CN2826252Y - Air purifier with photocatalyst and active carbon cooperative air purification effect - Google Patents

Abstract

The utility model relates to an air purifier for home furnishing and car driving, which comprises a shell 1, a replaceable hollow activated carbon filter element 2 inside the shell, a fan 3 on the top, and the air outlet of the fan leads to the outside of the purifier. The fan air inlet is connected with a photocatalyst air purification device 4, and the housing of the photocatalyst air purification device is provided with an ultraviolet lamp 5 and a multi-layer quartz glass that can pass through ultraviolet light or a polymer material grille 6 that can pass through ultraviolet light. The photocatalyst layer is attached to the surface, and the fan and photocatalyst air purification device are placed in the activated carbon filter element. The utility model places the ultraviolet lamp between multi-layer photocatalyst grilles that can pass through the ultraviolet light, and arranges it in the flow direction of the air in the activated carbon filter element, and combines the physical adsorption of the activated carbon to greatly improve the air purification of the device. effect, it can be used in places such as indoors and cars.

Description

Air purifier with synergistic air purification effect of photocatalyst and activated carbon

technical field

The invention relates to an air purifying device, in particular to an air purifier used in a home room and an automobile driving room.

technical background

At present, most of the existing air purification devices only use filters to filter and purify the air, but this kind of air purification devices cannot remove harmful bacteria and harmful gases in the air, but only filter air dust, even if silver-loaded ion filters are used The net can only kill a small amount of bacteria and has a short validity period, and the use effect is poor; recently, some air purification devices that are beneficial to photocatalyst technology have appeared on the market. Although these devices can decompose some harmful gases and have some bactericidal effects, these devices There are defects in the setting of the photocatalyst, because the air purification method of these devices is single and inefficient, and the actual use effect is still unsatisfactory.

Contents of the invention

Aiming at the problems existing in the existing air purifiers, the purpose of the utility model is to provide a highly efficient air purifier capable of filtering, decomposing harmful gases in indoor air, and sterilizing.

The technical solution adopted by the utility model to solve the technical problems is: an air purifier, including a shell, a replaceable hollow activated carbon filter element inside the shell, a fan on the top, the air outlet of the fan leads to the outside of the purifier, and the fan The air inlet is connected with a photocatalyst air purification device. The housing of the photocatalyst air purification device is equipped with ultraviolet lamps and multi-layer quartz glass that can pass through ultraviolet light or a polymer material grille that can pass through ultraviolet light. The photocatalyst layer is attached to both sides of the grille. , fan and photocatalyst air purification device are placed in the activated carbon filter.

The beneficial effects of the utility model are: firstly, the harmful non-polar gas in the air is adsorbed by using the physical adsorption of activated carbon, and the air after being absorbed by the activated carbon enters the interior with ultraviolet lamps and multi-layer quartz glass that can transmit ultraviolet light. Or in the photocatalyst grille device of polymer materials that pass through ultraviolet light, because the photocatalytic effect of titanium dioxide photocatalyst is directly related to its area, by using a photocatalyst grille with high ultraviolet transmittance for air purification, the ultraviolet light irradiation and At the same time, the photocatalyst grille device is set in the direction of air flow in the activated carbon filter element, which greatly improves the air purification effect of the device.

Instructions attached

Below in conjunction with accompanying drawing and embodiment the utility model is further described.

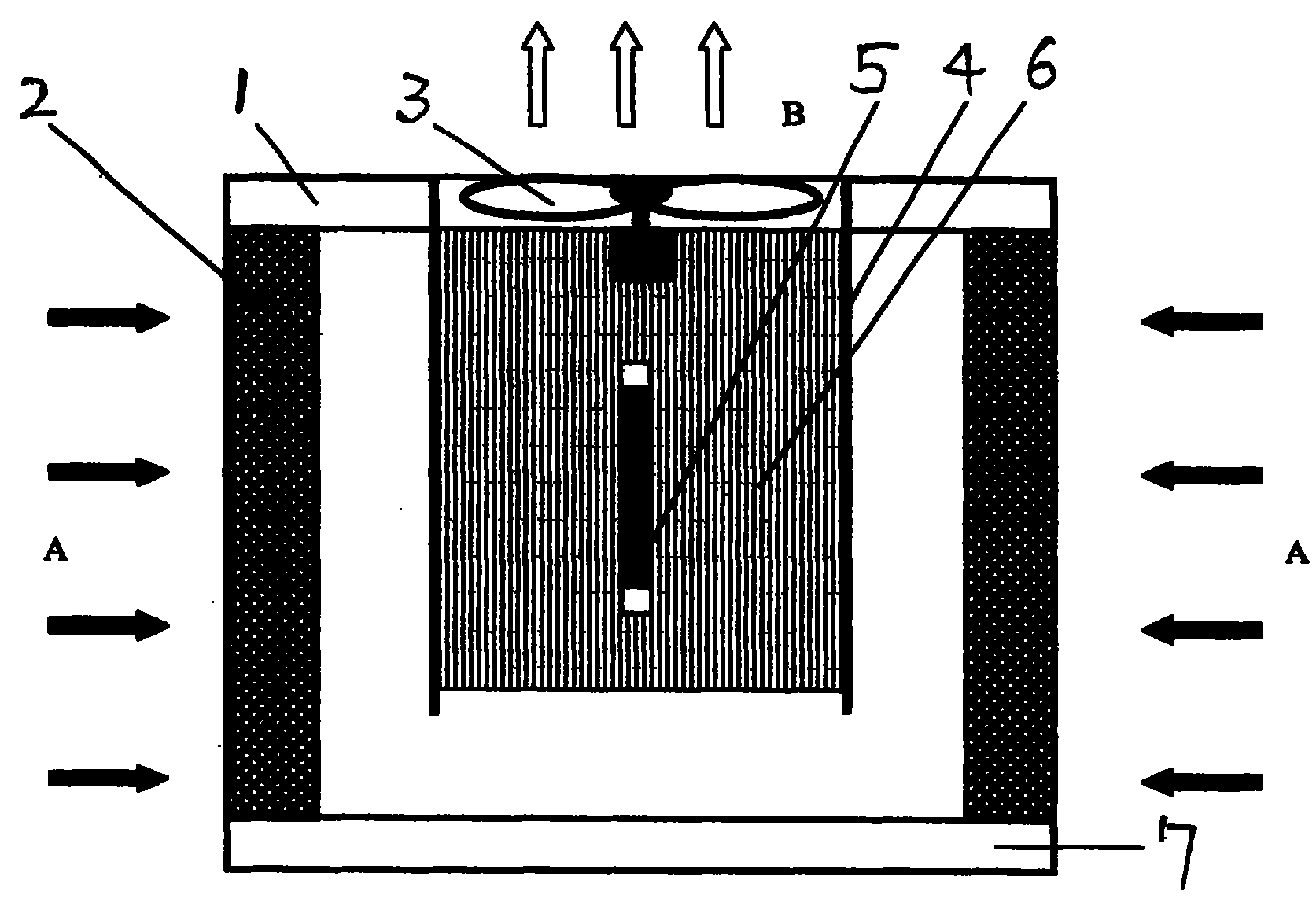

Fig. 1 is a kind of structural representation (longitudinal sectional view) of the utility model

Fig. 2 is a kind of structural representation (top view) of the utility model

-出风方向。In the figure: 1-shell, 2-replaceable hollow activated carbon filter element, 3-fan, 4-photocatalyst air purification device shell, 5-ultraviolet lamp, 6-photocatalyst grille with high ultraviolet transmittance, 7-base, A - Intake direction, B

- Outflow direction.

Detailed ways

As shown in Figure 1, a kind of indoor air purifier of the present utility model comprises housing 1, replaceable hollow activated carbon filter core 2, blower fan 3, photocatalyst air purification device housing 4, ultraviolet lamp 5, high ultraviolet transmittance The photocatalyst grille 6 and the base 7 are composed, the air outlet of the fan leads to the outside of the purifier, the air inlet of the fan is connected with a photocatalyst air purification device, and the housing of the photocatalyst air purification device is provided with an ultraviolet lamp and a multi-layer UV-permeable quartz Glass or polymer material grille through ultraviolet light, the photocatalyst layer is attached to both sides of the grille, and the fan and photocatalyst air purification device are placed in the activated carbon filter element.

Claims (5)

1. air purifier, comprise housing (1), a removable hollow active carbon filter core (2) is arranged in the housing, a blower fan (3) is arranged at the top, it is characterized in that blower fan (3) air outlet leads to the clarifier outside, blower fan (3) air inlet links to each other with a photocatalyst air purifying device, be provided with the macromolecular material barrier (6) that ultraviolet lamp (5) and multilayer can see through the quartz glass of ultraviolet light or see through ultraviolet light in the photocatalyst air purifying device case (4), the two-sided photocatalyst layer that adheres to of barrier (6), blower fan and photocatalyst air purifying device all place in the active carbon filter core.

2. air purifier according to claim 1 is characterized in that in the photocatalyst air purifying device attached to the photocatalyst on the barrier (6) being anatase rutile titania photocatalyst.

3. air purifier according to claim 1 and 2 is characterized in that in the photocatalyst air purifying device attached to the photocatalyst on the barrier (6) it can also being the gold redrock nano-titanium dioxide photocatalyst.

4. according to claim 1,2 or 3 described air purifiers, it is characterized in that also can being zinc oxide photocatalyst and the compound that contains silver ion powder China ink attached to the photocatalyst on the barrier (6) in the photocatalyst air purifying device.

5. according to claim 1, described air purifier, it is characterized in that the ultraviolet lamp in the photocatalyst air purifying device can be 1 or many.
