CN2815710Y

CN2815710Y - Comfort long-tail clip

Info

Publication number: CN2815710Y
Application number: CN 200520102843
Authority: CN
Inventors: 陈丽; 姚琤; 陈根才
Original assignee: Zhejiang University ZJU
Current assignee: Zhejiang University ZJU
Priority date: 2005-06-10
Filing date: 2005-06-10
Publication date: 2006-09-13
Anticipated expiration: 2015-06-10

Abstract

The utility model discloses a comfortable long-tail clip which is comfortable to use and avoids paper damage. It consists of a steel clip and a clip tail. The side of the steel clip is triangular. There are two pivot holes on the upper and lower clips made of its sheet material. The end of the short arm is provided with the end of the short arm that is folded outward, and the end of the short arm is fitted in the two pivot holes. There are two rubber fixing parts on the jaw of the steel clip. The upper end of the "U" shaped long arm is provided with two flat plates. The utility model is provided with two flat plates at the end of the "U"-shaped long arm to make the hand feel more comfortable, and two rubber fixing parts are provided at the jaw of the steel clip to protect the contact surface with the paper and avoid paper damage.

Description

Comfortable long tail clip

技术领域technical field

本实用新型涉及夹持装置，尤其涉及一种舒适型长尾夹。The utility model relates to a clamping device, in particular to a comfortable long tail clamp.

背景技术Background technique

文件、纸张在现代社会中是不可或缺的日常用品，为使分散文件的更易于整理和保管，便使用文件夹、长尾夹。长尾夹是很传统的一种文具类产品，长尾夹的使用方式与结构一直以来都没有变化，它依靠指力使用，使用舒适感差，并且，金属夹口会损坏纸张。长尾夹包括钢夹及夹尾，钢夹侧面成三角形，钢夹上、下夹片上利用其片料制成的各两个枢接孔，夹尾具有“U”形长臂杆，“U”形长臂杆两端设有外折的短臂杆端头，短臂杆端头套合于所述的各两个枢接孔内。Files and paper are indispensable daily necessities in modern society. In order to make it easier to organize and store scattered files, folders and long-tail folders are used. Long tail clip is a very traditional stationery product. The use method and structure of long tail clip have not changed all the time. It relies on finger force to use, which is not comfortable to use. Moreover, the metal jaw will damage the paper. The long tail clip includes a steel clip and a clip tail. The side of the steel clip is triangular. There are two pivot holes on the upper and lower clips of the steel clip made of its sheet material. The clip tail has a "U"-shaped long arm rod, and the "U" The two ends of the "shaped long arm are provided with outwardly folded short arm ends, and the short arm ends are sleeved in the two pivotal holes described above.

发明内容Contents of the invention

本实用新型的目的是提供使用舒适避免纸张破损的一种使用舒适避免纸张破损的舒适型长尾夹。The purpose of the utility model is to provide a comfortable long tail folder which is comfortable to use and avoids paper damage.

本实用新型解决其技术问题采用的技术方案是：它包括钢夹及夹尾，钢夹侧面成三角形，钢夹上、下夹片上利用其片料制成的各两个枢接孔，夹尾具有“U”形长臂杆，“U”形长臂杆两端设有外折的短臂杆端头，短臂杆端头套合于所述的各两个枢接孔内，在所述的钢夹夹口上设有两块橡胶固定件，在所述的“U”形长臂杆上端部设有两平板。The technical scheme adopted by the utility model to solve the technical problem is: it includes a steel clip and a clip tail, the side of the steel clip is triangular, and two pivot holes are made of its sheet material on the upper and lower clips of the steel clip, and the clip tail It has a "U"-shaped long arm, and the ends of the "U"-shaped long arm are provided with outwardly folded short-arm ends, which fit into the two pivot holes described above. Two pieces of rubber fixing parts are arranged on the steel clip jaw, and two flat plates are arranged on the upper end of the "U" shaped long arm.

本实用新型与背景技术相比具有的有益的效果是：在“U”形长臂杆上端部设有两平板让手感更为舒适，在钢夹夹口设有两块橡胶固定件可以保护与纸张的接触面，避免纸张破损。Compared with the background technology, the utility model has the beneficial effects that two flat plates are provided on the upper end of the "U" shaped long arm to make the hand feel more comfortable, and two rubber fixing parts are provided at the jaw of the steel clip to protect the contact surface of the paper to avoid damage to the paper.

附图说明Description of drawings

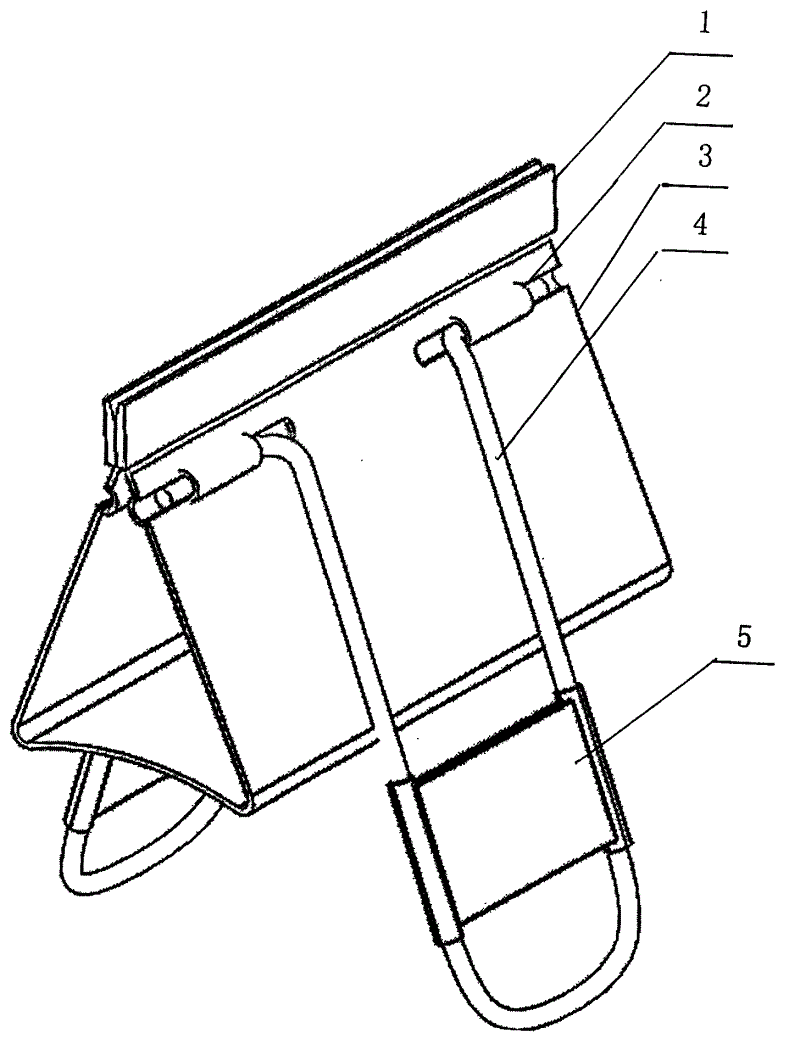

图1是舒适型长尾夹的结构示意图；Fig. 1 is a structural schematic diagram of a comfortable long tail clip;

图2是舒适型长尾夹结构分解示意图。Fig. 2 is an exploded schematic view of the structure of the comfortable long tail clip.

具体实施方式Detailed ways

如图所示，舒适型长尾夹包括钢夹3及夹尾，钢夹侧面成三角形，钢夹上、下夹片上利用其片料制成的各两个枢接孔2，夹尾具有“U”形长臂杆4，“U”形长臂杆4两端设有外折的短臂杆端头6，短臂杆端头套合于所述的各两个枢接孔内，在所述的钢夹夹口7上设有两块橡胶固定件1，在所述的“U”形长臂杆上端部设有两平板5。As shown in the figure, the comfortable long tail clip includes a steel clip 3 and a clip tail. U"-shaped long arm 4, the two ends of the "U"-shaped long arm 4 are provided with outwardly folded short arm ends 6, and the short arm ends are sleeved in the two pivot holes described above. Two pieces of rubber fixing parts 1 are arranged on the jaw 7 of the steel clip, and two flat plates 5 are arranged on the upper end of the "U" shaped long arm.

上述具体实施方式用来解释说明本实用新型，而不是对本实用新型进行限制，在本实用新型的精神和权利要求的保护范围内，对本实用新型作出的任何修改和改变，都落入本实用新型的保护范围。The above-mentioned specific embodiments are used to explain the utility model, rather than to limit the utility model. Within the spirit of the utility model and the scope of protection of the claims, any modifications and changes made to the utility model fall into the scope of the utility model. scope of protection.

Claims

1. A comfortable long tail clip, which includes a steel clip (3) and a clip tail, the side of the steel clip is triangular, and the upper and lower clips of the steel clip are each made of two pivot holes (2) made of its sheet material , the clip tail has a "U"-shaped long arm (4), and the two ends of the "U"-shaped long arm (4) are provided with outwardly folded short arm ends (6), and the short arm ends are sleeved on the described In each of the two pivot holes, it is characterized in that two rubber fixing parts (1) are provided on the steel clip jaw (7), and two pieces of rubber fixing parts (1) are provided on the upper end of the "U"-shaped long arm. There are two flat plates (5).
