CN2813465Y - Integral combined packing box - Google Patents

Abstract

The utility model discloses an integrated combined packing box, which is provided with a side plate 2 and a side plate 10 on the side of the bottom plate 1, the side plate has a support groove 11, and the other side of the side plate is connected with a cover plate 3, There are positioning holes 4 on the cover plate, and there are half side plates 5 on the other two corresponding sides of the side plate, and there are protruding pins 12 on the half side plate; the other side of the side plate is connected with a rebate plate 9 through two connecting plates 6, Fixing hole 7 is arranged on connecting plate, and the top two ends of rebate plate 9 have support tip 8. The integrated packing box provided by the utility model has the advantages of simple structure, low manufacturing cost, and convenient use. It can directly combine a material board into a packing box by using the buckle-back method, which effectively shortens the cost and time of box assembly, and improves the Packaging productivity.

Description

All-in-one combination packing box



The utility model relates to a packing box, in particular to a paper packing box used for loading fruits.

Background technique

With the development of commodity socialization, more and more commodities need to be circulated to various places to achieve the intercommunication of commodities. However, in order to avoid damage and facilitate handling during the circulation of commodities, commodities generally need to be packaged. Most of the paper packaging boxes currently used are composed of several cardboards, including main cardboards, patchwork cardboards, etc. When using, it is necessary to combine the cartons into a whole through labor, glue, and horse nails, which not only wastes labor but also increases Cardboard increases the cost of the box body, and because the packaging box is composed of multiple pieces of cardboard, it is easy to be stretched by items during use, affecting transportation and easily damaging items.

Contents of the invention

The purpose of the utility model is to provide an integrated packing box, which can directly combine a material board into a packing box by using the buckle-back method.

In order to achieve the above purpose, the technical solution designed by the utility model is: a square bottom plate is provided, side plates are arranged on the corresponding two sides of the bottom plate, there are support grooves at both ends of the connection between the side plate and the bottom plate, and the side plates The other side of the plate is connected with a cover plate, and there are positioning holes on the cover plate, and there are half side plates on the other two corresponding sides of the side plate, and there are protrusions on the half side plate; There is a side panel, and the other side of the side panel is connected with a buckle plate through two connecting plates. There are fixing holes on the connecting plate, and there are support pins at both ends of the top of the buckle plate; It is in a vertical state, then turn the half side panel until it is at right angles to the side panel, then pull the side panel up to make it close to the half side panel, and then buckle the buckle back so that the side panel and the buckle board wrap the half side panel, and put the buckle The support pin on the board is buckled back into the support groove of the side plate to form a locked state to prevent the buckle plate from moving. Move the position, pull the cover plate inward so that the positioning hole on the cover plate is buckled on the protruding pin to form a locked state, and the packing box is assembled. In order to facilitate the lifting of the packaging box, lifting holes are provided at the corresponding positions of the half side panels, side panels, and rebate panels, and the lifting holes communicate with each other when the packaging box is assembled. In order to prevent the displacement between the upper and lower packaging boxes when stacking, a limit hole is provided at the connection between the bottom plate and the side panel. When the packaging box is combined, the limiting hole forms a groove, which can be matched with the bottom of the packaging box. The convex pins are interlocked to prevent displacement between the upper and lower packing boxes.

The integrated packing box provided by the utility model has the advantages of simple structure, low manufacturing cost, and convenient use. It can directly combine a material board into a packing box by using the buckle-back method, which effectively shortens the cost and time of box assembly, and improves the Packaging productivity.

Description of drawings

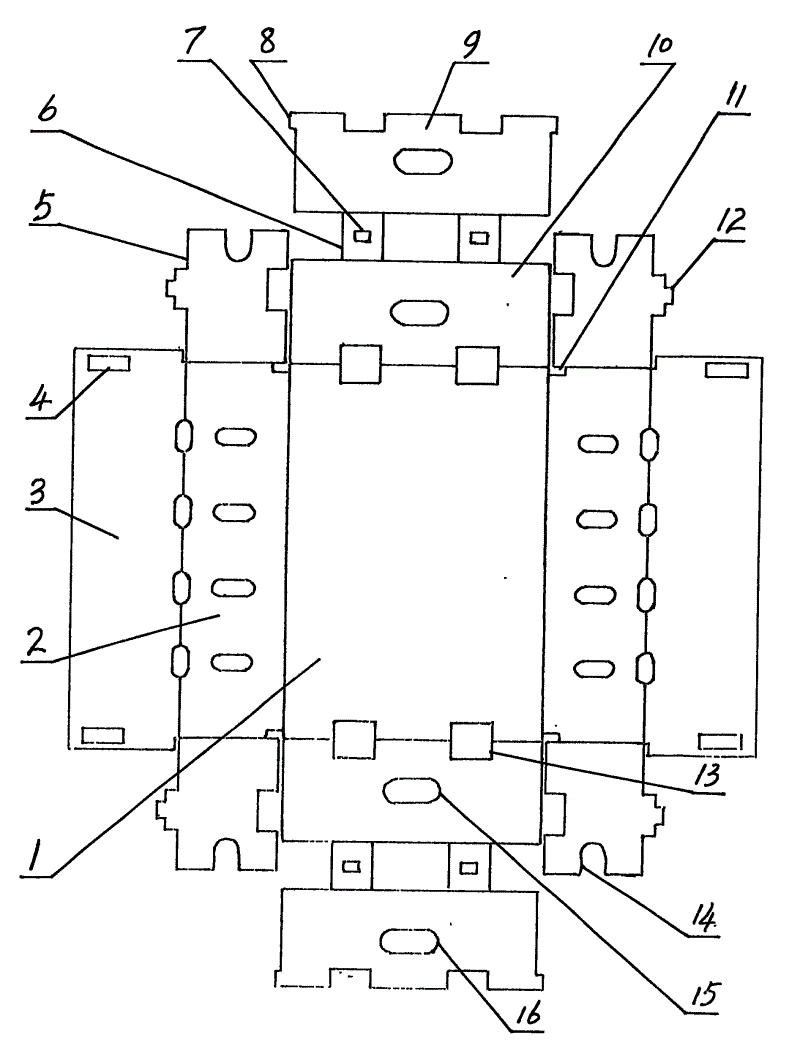

Fig. 1 is a schematic structural view of an integrated combined packing box according to an embodiment of the present invention.

Specific implementation method

In the structure shown in the figure, side plates 2 are provided on the corresponding two sides of the bottom plate 1, there are support grooves 11 at both ends of the connection between the side plate and the bottom plate, and a cover plate 3 is connected to the other side of the side plate. , positioning holes 4 are arranged on the cover plate, half side plates 5 are arranged on the other two corresponding sides of the side plate, and protruding pins 12 are arranged on the half side plate; side panels 10 are arranged on the other corresponding two sides of the bottom plate, The other side of the side panel is connected with a rebate plate 9 through two connecting plates 6, and there are fixing holes 7 on the connecting plate, and there are support pins 8 at both ends of the top of the rebate plate 9; It is perpendicular to the bottom plate 1, and then the half side plate 5 is turned to be at right angles to the side plate, then the side plate 10 is pulled up to make it close to the half side plate 5, and then the buckle plate 9 is snapped back so that the side plate 10 and the buckle plate 9 wrapping the half side plate 5, buckle the support tip 8 on the buckle plate 9 to the support groove 11 of the side plate 2 to form a locked state, to prevent the buckle plate from moving, and at this time, the fixing hole 7 on the connecting plate is just in place. Locking state is formed on the protruding pin 12 of half side plate 5, prevents half side plate from shifting position, cover plate 3 is pulled inward again and allows positioning hole 4 on the cover plate to be buckled on protruding pin to form locking state, is combined into packing box. In order to carry packing case conveniently, be provided with and carry hole 14,15,16 in the corresponding position on half side plate, side panel, rebate plate, carry hole and communicate when being combined into packing case. In order to prevent the displacement between the upper and lower packaging boxes when stacking, a limit hole 13 is provided at the connection between the bottom plate and the side panel. When the packaging box is assembled, the limit hole 13 forms a groove, which can be connected with the packaging below. The protruding pins of the boxes are interlocked to prevent displacement between the upper and lower boxes.

Claims (3)

1, a kind of integral type combination packaging case, it is characterized in that: be provided with a base plate [1], on the corresponding dual-side of base plate [1], be provided with side plate [2], there is support groove [11] at the two ends of the junction of side plate and base plate, the another side of side plate is connected with cover plate [3], knock hole [4] is arranged on the cover plate, half side plate [5] is arranged on two other respective side of side plate, the protruding tip [12] is arranged on the half side plate; Be provided with side panel [10] on the other corresponding dual-side of base plate, the another side of side panel is connected with returning plate [9] by two connecting panels [6], and fixed orifice [7] is arranged on the connecting panel, and there is the support tip [8] at the two ends, top of returning plate [9].

2, integral type combination packaging case according to claim 1 is characterized in that: the relevant position on half side plate, side panel, returning plate is provided with and lifts hole [14], [15], [16].

3, integral type combination packaging case according to claim 1 is characterized in that: be provided with spacing hole [13] in the junction of base plate and side panel.
