CN2757529Y - Walking driving device of harvester - Google Patents

Abstract

The utility model discloses a walking driving device for a harvester, which comprises a front driving wheel, a rear guide wheel, and a main gearbox providing driving force for the front driving wheel. The main gearbox providing driving force for the front driving wheel is also There is a power output shaft, the power output shaft is connected with the power input shaft of the sub-transmission that can provide driving force for the rear guide wheels, and the power output shaft of the sub-transmission is connected with the driving gearbox of the rear guide wheels through a universal coupling ; said sub-gearbox is provided with a clutch device; when the rear guide wheel is required to participate in the drive, the power output shaft of the sub-gearbox is output by the clutch device and transmitted to the drive gearbox of the rear guide wheel, so that it becomes Adopting four-wheel drive mode, the utility model has the advantages of simple structure and flexible operation, and can be suitable for various ground operations.

Description

A walking drive device for a harvester

technical field

The utility model relates to a driving device, in particular to a walking driving device of a combine harvester.

Background technique

The front wheel of the existing combine harvester is a driving wheel, and the rear wheel is a guide wheel for controlling the walking direction of the harvester; this walking driving mechanism is easy to cause the harvester to sink into the soil when the soil is soft or the paddy field operation, so that the harvester cannot Carrying out the harvesting operation greatly reduces the operating efficiency of the harvester.

Contents of the invention

The technical problem to be solved by the utility model is to provide a walking driving device of the harvester which can also drive the rear wheel of the harvester.

In order to achieve the above object, the technical solution of the utility model is: a walking driving device of a harvester includes a front drive wheel, a rear guide wheel, and a main gearbox that provides driving force for the front drive wheel. Li's main gearbox is also provided with a power output shaft, which is connected with the power input shaft of the sub-transmission that can provide driving force for the rear guide wheels, and the power output shaft of the sub-transmission and the driving gearbox of the rear guide wheels pass through connected by a universal coupling; a clutch device is arranged in the auxiliary gearbox.

As an improvement, the clutch device is a sliding gear arranged on the power input shaft of the auxiliary transmission, and a shift fork controls the engagement or disconnection of the sliding gear.

As an improvement, the auxiliary gearbox includes a sliding gear arranged on the power input shaft of the auxiliary gearbox, a driven gear that can mesh with the sliding gear, a first bevel gear fixed on the same shaft as the driven gear, and fixed on The second bevel gear on the PTO shaft of the auxiliary transmission and meshing with the first bevel gear.

Due to the adoption of the above technical scheme, a walking drive device for a harvester includes a front drive wheel, a rear guide wheel, and a main gearbox that provides driving force for the front drive wheel. The main gearbox that provides drive force for the front drive wheel is also provided with There is a power output shaft, and the power output shaft is connected with the power input shaft of the sub-transmission that can provide driving force for the rear guide wheels, and the power output shaft of the sub-transmission is connected with the driving gearbox of the rear guide wheels through a universal coupling; The auxiliary gearbox is provided with a clutch device; when the rear guide wheel is required to participate in the drive, the power output shaft of the auxiliary gearbox is output through the clutch device and transmitted to the drive gearbox of the rear guide wheel, thus becoming Four-wheel drive mode, the utility model is simple in structure, flexible in operation, and can be suitable for various ground operations.

Description of drawings

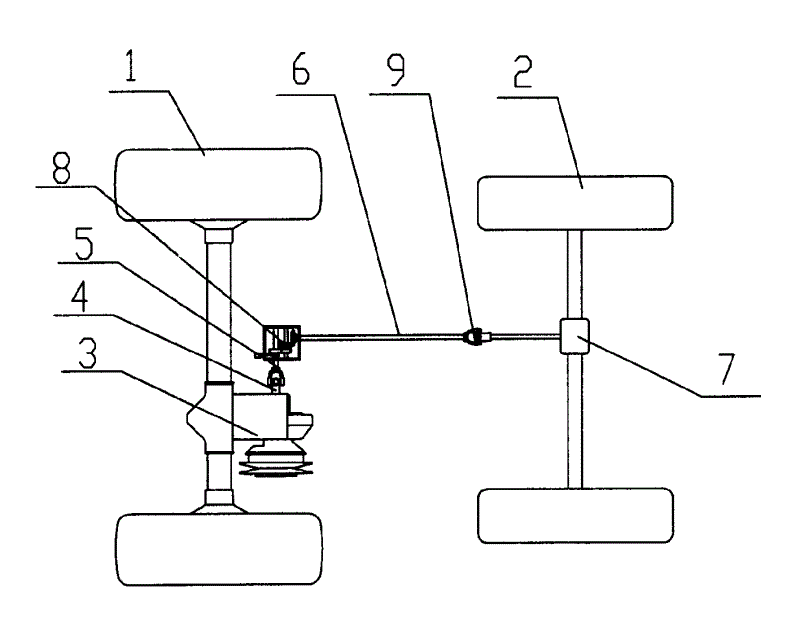

Fig. 1 is a schematic structural view of an embodiment of the utility model.

Fig. 2 is a schematic diagram of the structure of the auxiliary gearbox in the embodiment of the utility model.

Detailed ways

As shown in accompanying drawing 1, accompanying drawing 2, a kind of harvester walking driving device comprises front driving wheel 1, rear guide wheel 2, provides the main gearbox 3 of driving force for front driving wheel 1, and described is front driving wheel 1. The main gearbox 3 that provides driving force is also provided with a power output shaft 4. The power output shaft 4 passes through a universal coupling and the power input shaft 5 of the auxiliary gearbox 8 that can provide driving force for the rear guide wheel 2 passes through a universal joint. The coupling is connected, and the power output shaft 6 of the auxiliary gearbox 8 is also connected with the drive gearbox 7 of the rear guide wheel 2 through a universal joint; the auxiliary gearbox 8 is provided with a clutch device.

The clutch device is a sliding gear 81 arranged on the auxiliary gearbox power input shaft 5, and a shift fork 82 controls the engagement or disengagement of the sliding gear 81, so as to output or cut off the power sent to the rear guide wheel.

The auxiliary gearbox 8 includes a sliding gear 81 arranged on the power input shaft 5 of the auxiliary gearbox, a driven gear 83 meshable with the sliding gear 81, and a first bevel gear 84 fixed on the same shaft as the driven teeth 83) , the second bevel gear 85 fixed on the power output shaft 6 of the sub-transmission and meshed with the first bevel gear 84, the first bevel gear 84 and the second bevel gear 85 play the role of changing the power output direction.

Claims (3)

1. a harvester walking drive, comprising front drive wheels (1), rear guide wheels (2), the main gearbox (3) that provides driving force for front drive wheels (1), is characterized in that: described The main gearbox (3) that provides driving force for the front drive wheel (1) is also provided with a power take-off shaft (4), and the power take-off shaft (4) and the auxiliary gearbox ( 8) is connected to the power input shaft (5), and the power output shaft (6) of the auxiliary gearbox (8) is connected to the drive gearbox (7) of the rear guide wheel (2) through a universal coupling (9); The auxiliary gearbox (8) described above is provided with a clutch device. 2. A kind of harvester walking driving device as claimed in claim 1, is characterized in that: described clutch device is the sliding gear (81) that is arranged on the auxiliary gearbox power input shaft (5), has shift fork ( 82) Engagement or disconnection of control sliding gear (81). 3. A kind of harvester traveling drive device as claimed in claim 1, is characterized in that: described auxiliary gearbox (8) comprises the sliding gear (81) that is arranged on the auxiliary gearbox power input shaft (5), The driven gear (83) that can be meshed with the sliding gear (81), the first bevel gear (84) that is fixed on the same shaft as the driven gear (83), is fixed on the power output shaft (6) of the auxiliary gearbox and is connected with the first A bevel gear (84) meshes with a second bevel gear (85).
