Abstract

A high-efficiency rotary-tub washing machine, the washing tub (14) is composed of an inner layer (15) and an outer layer (17) fixedly connected, the diameter of the barrel mouth is smaller than the diameter of the barrel body, and the inner layer (15) and the outer layer (17) Space (16) is arranged between, and drain valve (20) is equipped with in outer layer (17) bottom. This kind of washing machine has no external obstacles when the washing tub rotates, the rotation speed is high, the rotation speed changes quickly, the washing power is increased, the clothes can be kept evenly distributed during the washing process, the washing tub is guaranteed to rotate smoothly, the clothes are not easy to be entangled, and the wear is small. And shorten the washing time.

Description

Rotary tub high efficiency washing machine

Technical field

The utility model relates to a washing machine, in particular to a high-efficiency centrifugal rotating barrel washing machine.

Background technique

Among all kinds of washing machines, the traditional pulsator type washing machine has a high cleaning rate, but the clothes wear a lot, are easily entangled, and consume a lot of water; although the drum type washing machine wears little and is not easy to tangle, the cleaning rate is low. , and takes a long time; there are also some centrifugal washing machines, such as the centrifugal washing machine with the patent No. ZL 01209406.4, which have strong washing power, and the clothes are not easy to be entangled and wear less, but the clothes are easy to scatter in the washing process due to most of the circulating washing water. The upper part of the centrifugal bucket reduces the chances of the clothes at the bottom of the bucket to be washed repeatedly, which is prone to uneven washing, and the centrifugal bucket is prone to violent mechanical vibrations when it is running at high speed, causing noise and affecting the service life. Another example is the washing machine with the patent number ZL 98233460.5, which combines the characteristics of the pulsator type and the centrifugal type, and can solve the problems of entanglement and wear of the clothes during washing, but its washing tub is hindered by the water contained in the outer tub, and its rotational speed and angular acceleration are affected. The restriction makes its washing power small and affects the washing effect.

The existing washing machine needs to stop the washing work when filling and draining water during the washing process, thereby prolonging the washing time.

Contents of Invention

The technical problem to be solved by the utility model is to make the washing tub rotate without external hindrance, realize high-speed, large angular acceleration rotation, improve washing power, shorten washing time, prevent the clothes from being entangled and worn, and the washing tub can run smoothly.

The utility model solves the above-mentioned technical problems with the following technical solutions: the washing bucket is composed of an inner layer and an outer layer fixedly connected, the diameter of the barrel mouth is smaller than the diameter of the barrel body, there is a gap between the inner layer and the outer layer, and the lower part of the outer layer is equipped with a drainage valve;

The valve stem of the drain valve is connected to one end of the fork rocker arm, and the other end of the fork rocker arm extends into the shaft wall hole of the hollow shaft of the flange;

The upper and lower parts of the inner layer can be provided with return holes, and a limited sprayer or sprinkler is installed at the lower return hole;

The barrel mouth of the washing bucket can be fitted with a necking ring;

The necking ring can be a ratchet-type hollow structure. The ratchet ring is sleeved on the pawl shell ring and connected by positioning pins. The ratchet ring and the pawl shell ring are in clearance fit. The ratchet on the ratchet ring is in contact, and the ratchet ring is provided with a ratchet limit groove.

The utility model has no external obstacles when the washing bucket rotates, the rotation speed is increased, the speed change is accelerated, the washing power is enhanced, the clothes can be kept evenly distributed during the washing process, the washing bucket rotates smoothly, and the clothes are not easy to be entangled. Less wear, and shorten the total washing time.

Description of drawings

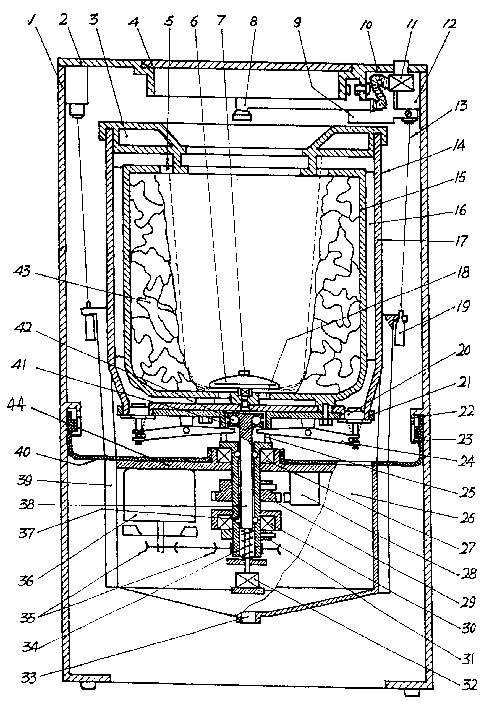

Fig. 1 is a schematic structural view of the rotary tub high-efficiency washing machine of the present invention. The dotted line in the figure indicates the washing solution boundary.

Fig. 2 is a structural schematic diagram of the necking ring of the rotary tub high-efficiency washing machine of the present invention.

Fig. 3 is a schematic diagram of the cross-sectional structure along A-A of Fig. 2 .

Detailed ways

There is a cover 2 and a movable cover 4 at the top of the box body 1; the washing bucket 14 located in the box body 1 is composed of an inner layer 15 and an outer layer 17 fixedly connected, the diameter of the mouth of the bucket is smaller than the diameter of the barrel body, and the inner layer and the outer layer There are gaps 16 and reinforced vertical ribs 51 between them. The upper and lower parts of the inner layer are respectively provided with an upper backflow hole 5 and a lower backflow hole 18. A limited injector 6 is installed at the lower backflow hole, which is fixed on the inner layer by screws 7. There are dewatering holes on the inner wall, and a drain valve 20 is installed on the lower part of the outer layer, and the inner layer corresponding to the drain valve has a convex hull. The top of the washing tub is provided with a balance ring 3, and there is a swingable water tap 8 above the mouth of the bucket. The water tap is connected with the water pipe 10 connecting the electromagnetic valve 11, and the water quantity control mechanism 9 is connected in series on the circuit of the electromagnetic valve.

There is a flange hollow rotating shaft 21 fixedly connected to the bottom of the washing bucket, a joystick 38 is arranged in the rotating shaft, a ball 42 and a dial ring 41 are arranged on the top of the joystick, and a compression spring 34 is arranged at the bottom, which is hinged with the flange hollow rotating shaft 21. One end of the fork rocker arm 24 is connected with the valve stem of the drain valve, and the other end extends into the shaft wall hole 25 of the hollow rotating shaft of the flange.

The four jiaos of casing top are fixed with support 12, and the support 39 that is positioned at washing tub below is connected with support through suspender 13. There is a damping tube 19 at the lower end of the boom; an angular contact ball bearing 27 supporting the hollow rotating shaft of the flange is arranged above the support middle beam 44, and a motor 36 and a sensor head 28 are arranged below the middle beam, and the hollow rotating shaft of the flange passes through the pulley group 35 and The belt is connected to the motor 36, and the lower part of the hollow shaft of the flange is covered with a shaft limit ring 31, a radial ball bearing 30 and a magnetic rotor 29. The sensor head monitors the rotation speed of the washing tub through the magnetic field change of the magnetic rotor and transmits the monitoring data. to the program control agency. A ball 37 is arranged between the hollow rotating shaft of the flange and the joystick, and an electromagnet 32 is arranged under the hollow rotating shaft of the flange. Two sumps 26 are arranged at the lower part of the support, which are located on both sides of the center beam. The bottom of the sump has an outer drain hole 33, and a rubber funnel 40 glued to the bracket is arranged above the center beam. The rubber funnel and the groove of the sump There is a corresponding mouth at the corresponding place of the mouth, and the ribs on its periphery are hung in the water retaining plate groove 22 on the casing by the buckle hook 23.

If a sprinkler is installed at the lower backflow hole, the upper backflow hole can be sealed to increase the spray pressure; when high-grade clothes need to be washed, in order to avoid mesh cracking and deformation of the clothes, the backflow hole in the washing tub can be used The orifice is plugged to prevent circulation of the wash solution.

When a large amount of clothing needs to be washed, the neck ring 45 can be installed on the mouth of the washing tub. The necking ring is a ratchet-type hollow structure, as shown in Figure 2 and Figure 3, the necking ring includes a pawl shell ring 48, a ratchet ring 49, a pawl 50 on the pawl shell ring, and the ratchet ring is set on the pawl The shell ring is connected with the positioning pin 46, so that the ratchet ring and the pawl shell ring are in clearance fit. The ratchet ring is a ring-shaped entity. Sealing ring 47 is arranged below ratchet shell ring. When in use, press the neck ring into the neck of the washing bucket, and rotate the ratchet ring clockwise, so that the pawls supported by the ratchet teeth on the ratchet ring snap into the installation groove on the neck of the bucket mouth, and shrink The mouth ring is locked; when taking out the neck ring, rotate the ratchet ring clockwise to make the pawl spring back and get out of the installation groove, and then the neck ring can be taken out.

When washing clothes, open the movable cover, put the clothes 43 into the washing bucket after moving the faucet to the side of the bucket, then move the water faucet to the mouth of the bucket, cover the movable cover, input the washing program data, firstly controlled by the water volume control mechanism After the water is injected to a certain amount, the electromagnetic valve is closed, and the water injection is stopped, and the program control mechanism controls the motor to start immediately, driving the hollow rotating shaft of the flange and the washing bucket to rotate, and the motor stops working until the whole washing program is finished.

In the selection of the washing program, there are two rotation modes of constant speed and angular acceleration. When rotating at a constant speed, the clothes are evenly squeezed to the wall of the bucket by the centrifugal force, and the washing liquid is driven by the rotation of the clothes, and the reaction force of the washing liquid can be changed. The clothes are flushed. During the rotation process, the washing liquid passes through the clothes and comes out of the dehydration hole due to centrifugal action, and returns to the barrel through the gap and the upper and lower return holes, and the washing liquid through the lower return hole passes through the spray limiter or sprayer. The shower sprays the clothes, which forms a cycle of centrifugal penetration washing, so that the washing effect of the clothes is better.

When it is used as angular acceleration rotation, directional rotation and bidirectional rotation can also be selected. When it is used as directional rotation, the program control mechanism controls the forward drive and reverse braking of the motor, so that the washing tub can accelerate and decelerate back and forth in a certain speed range , as the speed increases, the clothes are squeezed tightly against the wall of the bucket, and the extrusion of the centrifugal force is strengthened, and most of the washing liquid is squeezed out from the clothes; as the speed decreases, the centrifugal force on the clothes weakens and relaxes, and finally breaks away from the wall of the bucket. The washing liquid can re-immerse into the clothes, which creates a squeeze scrubbing of the clothes. When it is used as a two-way rotation, the clothes in the bucket are also turned over many times after multiple changes of direction, and can be rearranged and evenly distributed, so that the clothes can be washed more fully. Angular acceleration rotation also has the washing effect of constant rotation speed.

When the washing enters the drainage and dehydration program, in order to avoid the zero-speed start in anhydrous state and ensure the uniform distribution of clothes, the motor is driven in the direction of increasing or not decreasing the rotating speed, and the monitoring data of the rotating speed is provided by the sensor head supply.

When entering the drainage or dehydration program, the program control mechanism controls the electromagnet to turn on the power, so that the joystick is pulled down, and the dial ring on the joystick is pressed against the fork rocker arm, so that the other end of the fork rocker arm is upward. Pry, the drain valve is opened, the waste water flows into the sump through the cover of the rubber funnel, and is discharged from the outer drain hole. closure.

No matter what kind of rotation mode is selected, during the washing of clothes, the clothes rely on the buoyancy, inertia, damping effect and centrifugal force of the washing liquid to be evenly distributed, so that the washing tub can rotate smoothly.

Claims (5)

1. A high-efficiency washing machine with a rotating tub, which has a casing, a balance ring, a motor, a water injection and drainage control mechanism, a program control mechanism, etc., and is characterized in that the washing tub (14) is composed of an inner layer (15) and an outer layer (17) fixedly connected ) to form, its bung diameter is less than the barrel diameter, there is a gap (16) between the inner layer (15) and the outer layer (17), and the outer layer (17) bottom is equipped with a drain valve (20). 2. The rotary tub high-efficiency washing machine according to claim 1, characterized in that: the valve stem of the drain valve (20) is connected to one end of the fork rocker arm (24), and the other end of the fork rocker arm extends into the flange In the shaft wall hole (25) of the hollow rotating shaft. 3. The rotary tub high-efficiency washing machine according to claim 1 or 2, characterized in that the upper and lower parts of the inner layer (15) are provided with backflow holes, and a limited sprayer or shower is installed at the lower backflow holes. 4. The high-efficiency rotary-tub washing machine according to claim 1, characterized in that a necking ring (45) is installed on the mouth of the washing tub (14). 5. The rotary tub high-efficiency washing machine according to claim 4, characterized in that the necking ring (45) is a ratchet-type hollow structure, and the ratchet (49) is set on the ratchet shell ring (48) and passed through the positioning pin ( 46) connection, the ratchet ring and the pawl shell ring are clearance fit, the ratchet (50) on the pawl shell ring contacts the ratchet teeth of the ratchet ring, and the ratchet ring is provided with a pawl limit groove.
