CN2609588Y

CN2609588Y - Nasal clip on gauze mask

Info

Publication number: CN2609588Y
Application number: CN 03262177
Authority: CN
Inventors: 李江毅
Original assignee: Individual
Current assignee: Individual
Priority date: 2003-05-12
Filing date: 2003-05-12
Publication date: 2004-04-07
Anticipated expiration: 2013-05-12

Abstract

The utility model relates to a respirator nose clip, comprising a ductile, rectangular transforming chip. The connecting part that is jointed to the respirator is arranged on one side of the transforming chip. In comparison of the prior art, the utility model of the nose clip can be conveniently arranged on the respirator, further, the cost is low and the manufacturing and utilization is convenient.

Description

Gauze mask nose clip

Technical field

The utility model relates to a kind of nose clip, and this nose clip can be attached at the suitable position of mouth mask, and mouth mask is closely cooperated on people's nose and in nose one facial zone of intersecting and skin formation.

Background technology

The face that mouth mask is worn over the people has three purposes usually; the one, prevent that pollutants such as impurity or dust from entering respiratory tract; the 2nd, protect other people to avoid the germ of mouth mask user exhalation or the invasion and attack of other pollutant, the 3rd, prevent that face and respiratory tract are subjected to the attack of cold air.For realizing above-mentioned preceding two purposes, mouth mask must keep with user's face closely cooperating.Existing mouth mask can major part can closely cooperate with facial formation at cheek and lower jaw place; but in nasal area; because the variation of face contour is bigger; often there is the slit between mouth mask and the skin; can't form and closely cooperate; make the gas of inspiration and exhalation have quite a few to filter, thereby be difficult to realize preventing that pollutants such as impurity or dust from entering respiratory tract, or protect other people to avoid the germ of mouth mask user exhalation or the purpose of other pollutant invasion and attack through the mouth mask body.For this reason, someone has invented the mouth mask of band nose clip, this mouth mask is that nose clip and mouth mask are made an integral body, nose clip is the sheet metal (as aluminium flake) of the strip that is ductile, nose clip just can be out of shape under the pressure of finger and the mouth mask of nose clip position part is attached on the skin of nasal area, and keep corresponding shape.Yet, the mouth mask of being produced at present has quite a few or major part not to be with nose clip, and iff in order to be to prevent that face and respiratory tract are subjected to the attack of cold air and nose clip that integral type is set on mouth mask also there is no need, integral type nose clip mouth mask is difficult for mouth mask is cleaned, sterilizes simultaneously, but also has improved the production cost of mouth mask and user's use cost.So how to increase the safeguard function with nose clip mouth mask is a problem that the assistant officer is to be solved.

The content of utility model

The purpose of this utility model is exactly the above-mentioned deficiency that overcomes prior art, and a kind of independently nose clip is provided, and this nose clip can be attached on the mouth mask simply, and it can be out of shape the region of interest that makes mouth mask by finger pressure and be fitted in nasal area closely.

For achieving the above object, gauze mask nose clip of the present utility model comprises a strip finger pressure distortion sheet that is ductile, and is provided with the connector that can removably connect with the mouth mask body in a side of this distortion sheet.

Gauze mask nose clip of the present utility model (prevents from when pollutants such as impurity or dust from entering respiratory tract or protecting other people to avoid the invasion and attack of germ that the mouth mask user breathes out or other pollutant) can be attached to immediately the privileged site of mouth mask under specific circumstances especially as needs; as inboard and the outside of mouth mask near nasal area; band muzzles the back with pointing the compressing nose clip; make distortion sheet distortion and the mouth mask position at nose clip place is attached at nasal area closely, form good sealing.

Nose clip of the present utility model is independent of mouth mask and forms an independent product, can select at any time when needed to use, and cuts the waste, and has also improved the productivity ratio of nose clip and two stand-alone products of mouth mask simultaneously greatly, has reduced production cost.In addition, nose clip of the present utility model can take off from mouth mask easily, makes things convenient for the washing and the sterilization of mouth mask.

Describe the utility model in detail with the specific embodiment with reference to the accompanying drawings.

Description of drawings

Fig. 1 is the front view of first embodiment of the utility model " " font nose clip;

Fig. 2 is the cutaway view of Fig. 1 embodiment along the A-A line;

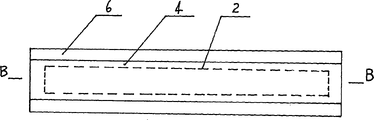

Fig. 3 is the front view of second embodiment of the utility model " " font nose clip;

Fig. 4 is the cutaway view of Fig. 3 embodiment along the B-B line;

Fig. 5 is the partial enlarged view of cutaway view shown in Figure 4;

Fig. 6 is the front view of the utility model " V " font nose clip embodiment;

Fig. 7 is the cutaway view of Fig. 6 embodiment along the C-C line;

Fig. 8 is the front view of the utility model " U " font nose clip embodiment;

Fig. 9 Fig. 8 embodiment is along the cutaway view of D-D line;

Figure 10 is the schematic diagram that " one " of the present utility model font nose clip is attached at mouth mask.

Each numbering expression in the accompanying drawing: 1 nose clip, 2 sheet metals, 3,7 adhesive sticker bar or non-drying glue layers, 4 sliding surface protection sheets, 6 nonwoven or non-woven paper, 11 mouth masks, 12 respirator belts.

The specific embodiment

Shown in Fig. 1-9, gauze mask nose clip of the present utility model comprises a strip finger pressure distortion sheet that is ductile, and is provided with the

connector

3,7 that can removably connect with the mouth mask body in a side of this distortion sheet.

At this, used term " ductility " and " finger pressure distortion " have essentially identical implication, and it is meant that nose clip or distortion sheet only just can be out of shape and adaptive surface contouring, the especially variation of nasal area face contour under the pressure of finger.

Gauze mask nose clip of the present utility model (prevents from when pollutants such as impurity or dust from entering respiratory tract or protecting other people to avoid the invasion and attack of germ that the mouth mask user breathes out or other pollutant) can be attached to immediately the privileged site of mouth mask under specific circumstances especially as needs; as inboard and the outside of mouth mask near nasal area; the band back that muzzles makes it to be out of shape that sheet is out of shape and the mouth mask position at nose clip place is attached at nasal area closely with finger compressing nose clip, form good sealing.

The utility model is independent of mouth mask with nose clip and forms an independent product, can select at any time when needed to use, and cuts the waste, and has improved the productivity ratio of nose clip and two stand-alone products of mouth mask in addition greatly, has reduced production cost.

On the basis of the above, the utility model can also have following modification:

1, described finger pressure distortion sheet comprises a sheet metal 2, as shown in Figure 1, 2.This sheet metal can have various selections, uses aluminium flake or aluminum alloy sheet usually, can certainly be other sheet metal that is ductile;

2, described finger pressure is out of shape nonwoven or the non-woven paper 6 that sheet comprises a sheet metal 2 and has interlayer, and described sheet metal is contained in the described interlayer, shown in Fig. 3,4,5.The purpose that clad is set outside sheet metal is: prevent that sheet metal from stabbing the user; Clad can have shades of colour, wears and play decoration function on mouth mask; Prevent sheet metal oppress repeatedly the distortion and cause connector (as the adhesive sticker bar) to separate with mouth mask; Nose clip be attached in the mouth mask (nose clip is pasting skin when wearing) outer (nose clip is not pasting skin when wearing) all can, make that wearing of nose clip or mouth mask is more random, and feel good, can not stabbed by sheet metal.

3, described finger pressure distortion sheet is formed (not shown) by metal wire that is arranged in parallel and flexible plastic packaging external packing;

4, described connector comprises the

non-drying glue layer

3,7 that is coated on the described distortion sheet, and is coated with sliding surface protection sheet 4 on non-drying glue layer, shown in Fig. 1-5.This embodiment directly is coated on adhesive sticker on the distortion sheet, and the sliding surface protection sheet on it is used to prevent that non-drying glue layer is damaged because of adhering to other article when nose clip does not use, instant packed and transportation.In addition, use adhesive sticker very convenient and securely nose clip to be adhered on the cotton yarn mouth mask, and convenient disassembly;

5, described connector comprises the double-sided

adhesive bar

3,7 that adheres on the described distortion sheet, and is coated with sliding surface protection sheet 4 on the adhesive sticker bar, shown in figure-5.This embodiment can adhere to the one side of double-sided adhesive bar one side of distortion sheet simply after the manufacturing of distortion sheet is finished, thereby makes complete nose clip, and its technology is simple, and is easy to operate.Certainly, also the adhesive sticker bar that has the sliding surface protection sheet can be attached at earlier on the blank of making the distortion sheet, make a plurality of distortion sheets through reduction then.The adhesive sticker bar especially can stick on non-woven paper and the nonwoven securely;

6, described distortion sheet can be " one " font, " C " font, " U " font or " V " font." one " font nose clip (shown in Fig. 1-5) can make the contact-making surface of nose clip or mouth mask and cheek wideer, attaches good with nasal region; Opening is down when wearing for " C " font, " U " font or " V " font nose clip (shown in Fig. 6-9), wherein " C " font or " U " font nose clip good looking appearance, compressing great efforts to the nose both sides, and invest on the wing of nose, the fixing good sealing effect that reaches, " V " font nose clip good looking appearance is more suitable for the higher people of nasal bone and wears, fixing and good sealing effect.

As shown in figure 10, under the situation of using the adhesive sticker bar, nose clip of the present utility model only needs the sliding surface protection sheet removed and it is adhered on the mouth mask can use again.

Above-mentioned just illustrative to the description of utility model with reference to the drawings and specific embodiments, and do not constitute qualification to it.Obviously, on basis of the present utility model, can carry out many modification,, but not break away from its essence as the variation of nose clip size, nose clip distortion sheet is made angle, garden, material at the position of its warpage selection etc.

Claims

1, a kind of gauze mask nose clip is characterized in that, this nose clip comprises a strip finger pressure distortion sheet that is ductile, and is provided with the connector (3,7) that can removably connect with the mouth mask body in a side of this distortion sheet.

2, gauze mask nose clip according to claim 1 is characterized in that, described finger pressure distortion sheet comprises a sheet metal (2).

3, gauze mask nose clip according to claim 1 is characterized in that, described finger pressure distortion sheet comprises a sheet metal (2) and have the nonwoven or the non-woven paper (6) of interlayer that described sheet metal (2) is contained in the described interlayer.

4, gauze mask nose clip according to claim 1 is characterized in that, described finger pressure distortion sheet is made up of metal wire that is arranged in parallel and plastic packaging external packing.

According to the described gauze mask nose clip of one of claim 1-4, it is characterized in that 5, described connector (3,7) comprises the non-drying glue layer that is coated on the described distortion sheet, and on non-drying glue layer, be coated with sliding surface protection sheet (4).

According to the described gauze mask nose clip of one of claim 1-4, it is characterized in that 6, described connector (3,7) comprises a double-sided adhesive bar, it simultaneously adheres on the described distortion sheet, and another side is coated with sliding surface protection sheet (4).

According to the described gauze mask nose clip of one of claim 1-4, it is characterized in that 7, described distortion sheet is " one " font, " C " font, " U " font or " V " font.

8, gauze mask nose clip according to claim 5 is characterized in that, described distortion sheet is " one " font, " C " font, " U " font or " V " font.

9, gauze mask nose clip according to claim 6 is characterized in that, described distortion sheet is " one " font, " C " font, " U " font or " V " font.
