Abstract

The utility model belongs to the technical field of gas stoves, in particular to a dual-purpose supercharged energy-saving stove. The cooker is composed of a cooker body, a cooker surface and a gas valve part, and a gas channel is arranged under the cooker surface, and is characterized in that it is also provided with an electric blower device, which is connected with the cooker body. Compared with the existing gas stove, the energy-saving cooker has the advantages of more complete combustion, stable flame without fluttering, obvious energy-saving effect, saving about 20-30% of gas, simple structure, low cost, convenient installation and use, and the like.

Description

Dual-purpose supercharged energy-saving stove

The utility model belongs to the technical field of gas stoves, in particular to a dual-purpose supercharged energy-saving stove.

Currently widely used gas stoves will produce harmful gases due to insufficient oxygen supply and insufficient fuel combustion. In addition, the burning flames are floating and not concentrated, and the heat cannot be effectively used, resulting in serious energy waste.

The purpose of this utility model is to design a dual-purpose pressurized energy-saving stove for the above-mentioned product shortages. This stove can effectively overcome the shortcomings of the existing gas stoves. The stove has the advantages of simple structure, low cost, and convenient installation and use.

This dual-purpose pressurized energy-saving cooker is composed of a cooker body, a cooker surface, a gas valve and other components. A gas channel is arranged under the cooker surface. It is characterized in that it is also provided with an electric blower device connected to the cooker body. The stove body is the main body of the energy-saving stove, and it is a device for fixing the gas valve, the stove surface or other components. The gas valve is a component that controls the gas flow and firepower. The electric blower device is a device powered by electricity to blow air to increase the wind pressure to add oxygen to the gas, so that the gas can be fully combusted. Oxygen is automatically supplied to the gas around the stove surface during the gas combustion process, and the oxygen demand is not much during the gas combustion process, so the air volume of the electric blower device is small, and the motor is only powered by a 1.5-3.0V DC battery. The need for pressurized air supply, low power consumption, and low cost of the electric blower device. The power supply can adopt DC power supply or AC power supply. If there is a power failure during use and the electric blower stops working, the energy-saving cooker can be used as usual, relying on the natural oxygen supply around the cooker surface to maintain gas combustion. Of course, the combustion effect is poor, but it does not affect the use. Because the cooker can be used with or without electricity, it is named as a dual-purpose booster energy-saving cooker. This stove can use automatic ignition or manual ignition to make the gas burn.

When in use, open the gas valve, start the electric blower device, and ignite the gas by automatic ignition or manual ignition. During the combustion process, due to the adoption of the electric blower device, the flame is the same as the blue flame on the torch, the flame is stable and does not swing, and the flame temperature is obviously higher than that of the existing gas stove without the electric blower device.

Compared with the existing gas stove, the energy-saving cooker has the advantages of more sufficient fuel combustion, stable flame without fluttering, obvious energy-saving effect, simple structure, low cost, convenient installation and use, and the like. According to experimental tests, compared with the original gas stove without electric blower device, it can save about 20-30% of gas and reduce indoor environmental pollution.

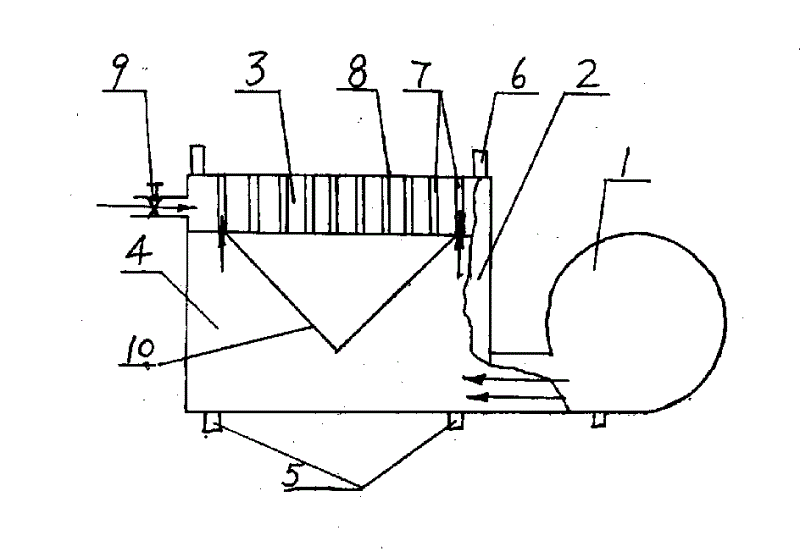

Fig. 1 is a schematic structural diagram of the front view of an embodiment of the dual-purpose pressurized energy-saving stove of the present invention.

In Figure 1: 1. Electric blower device; 2. Stove body; 3. The gas channel, when in use, the gas enters the gas channel (3) through the gas valve (9), and the gas is ejected from the small hole next to the nozzle of the air pipe (7) and mixed with the air ejected from the nozzle of the air pipe (7) to form a Combustion gas combustion; 4. The air channel is pressurized air provided by the electric blower device (1); 5. 6. Sit on the bottom of the stove; The pot support plays the role of supporting the pot; 7. The air pipe plays the role of guiding the air, and the stove surface (8) next to the air (7) is provided with some small gas spouts; 8. Kitchen surface; 9. Gas valve; 10. The deflector makes the wind energy blown in by the electric blower device (1) evenly distributed in the air pipe (7) on the cooktop (8). When the cooker is in use, if there is a power failure, the air pipe (7) There is no longer air ejection in the air pipe (7) side gas spout, and the natural oxygen supply combustion around the reliable cooking surface (8) side of the gas ejection from the air pipe (7) side gas spout. It is also impossible for gas to enter the air pipe (7) and bring danger.

Claims (1)

1, be provided with blast tube below a kind of dual-purpose boosting energy-saving kitchen range of being made up of stove, kitchen range face, gas valve parts, kitchen range face, it is characterized in that it also is provided with electronic air-blast device, electronic air-blast device links to each other with stove.
