Abstract
The utility model relates to an electrical appliance applied to family kitchen washing, particularly a family dish-washing machine. The utility model uses the full automatic control of a digital control circuit and is high in automatization degree. The dish-washing machine adopts double spraying impellers from top to bottom, and the key of the utility model is miniature particles are arranged in the dish-washing machine. The miniature particles can be rubbed and washed in the washing process circularly. Compared with the prior art, consequently the utility model is short in washing time, more clean, more water-saving and more electricity-saving. Washing trash can be discharged directly and does not need to be cleaned by a person. The dish-washing machine and a disinfection cabinet are designed as a whole, and the design saves space. The utility model is more convenient in disinfecting and storing tableware and is an ideal domestic electrical appliance product of a modern family kitchen currently.
Description
The utility model relates to a kind of household electrical appliance, particularly the electrical equipment of family kitchen washing usefulness.
Along with the raising of science and technology development and people's living standard, various household electrical appliance are progressively come into family, and automaticity is also more and more higher.As domestic bowl-washing, enter and people are freed from numerous and diverse housework after the family, can have that the time is engaged in some other activities more fully.But the dish-washing machine of prior art mostly purposes is single, and wash time is long, and both electricity wasting was wasted water again, and clean result is also not ideal.
To be that design is a kind of can wash the dishes and the household dishwasher of diverse in function the purpose of this utility model fast, to overcome the deficiencies in the prior art.
The utility model is dimeric, be that top is divided into dish-washing machine, the bottom is divided into the sterilization storage cabinet, dish-washing machine by the washing storehouse, spray impeller, water pump, hot water storgae, blower fan, ozone generator, water pipe, tracheae and computer automatic control system up and down and form, its key is that the microparticle that is provided with some in hot water storgae participates in circulation friction washing, makes washing faster cleaner.Be described in detail structure of the present utility model below in conjunction with accompanying drawing.
The utility model is a cabinet type structure as shown in drawings, and top is dish-washing machine, and the bottom is the sterilization storage cabinet.Dish-washing machine mainly comprises washing storehouse 31, spray impeller 4,12, auto feed box 7, water pump 25, hot water storgae 23, blower fan 13, ozone generator 15, cold water pipe 2, hot-water line 3, computer controller 33, level sensor 29, bowl frame 30 up and down, its key is: be provided with microparticle 19 in hot water storgae 23 bottoms, the height of microparticle 19 is under static state to be lower than the draining mouth of pipe of drainpipe 21 slightly.In order to make the microparticle periodic duty, tank 23 tops have a water-supply-pipe 24 to be connected with following spray impeller 12, a water-supply-pipe 24 is connected with water pump, hot-water line 3 connects the flow jeting port 5 of spray impeller 4, below the dish-washing machine discharge outlet 28 of washing 31 bottoms, storehouse, be provided with an electromagnetic change-over valve 26, respectively the water-supply-pipe 24 and the drainpipe 21 of water flowing pump; Can get back in the hot water storgae 23 smoothly for guaranteeing the microparticle of bringing washing storehouse 31 by High-Pressure Water into, the bottom design in washing storehouse 31 is the inclined-plane, so that make microparticle be got back to then in the hot water storgae 23 to water pump through water-supply-pipe 24 by dish-washing machine discharge outlet 28 and recycle along with current.For the ease of depositing the tableware of washing, below dish-washing machine a sterilization storage cabinet 18, be provided with infrared sterilization pipe 17 in sterilization storage cabinet the inside, the air inlet 8 on an ozone tracheae 10 logical dish-washing machine tops of the ozone generator 15 in the dish-washing machine; Another ozone tracheae 16 logical sterilization storage cabinets.
Operation principle of the present utility model and job step are: at first connect water pipe and power supply, and opening power, magnetic valve begins water inlet, and through last impeller rotary-jet, the flushing foreign material are discharged by drainpipe by the electromagnetic conversion valve; After one fen kind, the electromagnetic conversion valve is closed drainpipe, and the water that enters flows into water pump, and water pump is started working.Simultaneously, the self-feeding box is sent washing agent and is entered in the storehouse, and the water inlet of electromagnetic water inlet valve has level sensor control.When water level reach a certain height, level sensor was passed to chipset to signal, cut off the water intaking valve circuit automatically; At this moment water is heated in the heater work in the hot water storgae, by water pump hot water storgae interior heat water is pressurizeed, drive microparticle simultaneously and spray into the washing that rubs of washing storehouse through two spray impellers up and down, heating tank quits work in advance ten seconds, working time one arrives, water pump quits work, magnetic valve begins draining in the heating tank, because microparticle proportion is bigger, after the water in the heating tank is discharged, the microparticle precipitation has then been stayed the bottom of heating tank, and microparticle can be by silicates, metal species or enwrapped granule are made, and the granularity of particle is the about 1-2 millimeter of diameter generally speaking.At this moment, electromagnetic water inlet valve begins water inlet, discharges after last impeller flushing; After one fen kind, blower fan is started working; Blower fan work two minutes, outage automatically then, whole work is finished.Ozone generator can manually also can be automatic.
The automatically controlled part of the utility model is same as the prior art substantially, so do not add detailed description.
The utility model has the advantages that: owing to be placed with microparticle in hot water storgae, and these microparticles participate in circulation and rub in washing process, so the utility model is shorter than prior art wash time, more water-saving, more power saving; Adopt and the design of disinfection cabinet one, saved the space, increased function, it is more thorough to sterilize, and range of application is more extensive; Foreign material can directly be discharged by the electromagnetic conversion valve in washing process, and do not need manually to clear up with hand; The inclined design of bottom, washing storehouse is water-saving more.The utility model is the comparatively ideal kitchen utensils of Modern Family.
Description of drawings:
Fig. 1: structural representation of the present utility model
The B-B of Fig. 2: Fig. 1 is to cross-sectional schematic

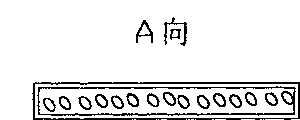

The A of Fig. 3: Fig. 1 is to schematic diagram (spray impeller floor map)
1. 30. bowls of frame sliding tracks of spray impeller 5. flow jeting ports 6. impeller supporting seats 7. auto feed boxes 8. air inlets, 9. air intakes, 10. ozone tracheaes, 11. airducts, 12. times sprays impeller 13. blower fans, 14. heating wire 15. ozone generators, 16. ozone tracheae 17. infrared sterilization pipes, 18. sterilizing storing cabinet 19. microparticles, 20. electromagnetism draining valve 21. drainpipes, 22. heater 23. hot water storgaes, 24. water-supply-pipe 25. water pumps, 26. electromagnetic change-over valve 27. communicating pipe, 28. dish-washing machine discharge outlet, 29. level sensors 31. wash storehouse 32. water inlet pipes, 33. computer controllers on electromagnetic water inlet valve 2. cool water pipes 3. hot-water lines 4.
Claims (5)
1, the type of expressing is used dish-washing machine more, comprise washing storehouse (31), spray impeller (4) (12), auto feed box (7), water pump (25), hot water storgae (23), blower fan (13), ozone generator (15), cold water pipe (2), hot-water line (3) up and down, computer controller (33), level sensor (29), bowl frame (30), it is characterized in that: be provided with microparticle (19) in hot water storgae (23) bottom, the height of microparticle (19) in hot water storgae (23) is under static state to be lower than the draining mouth of pipe of drainpipe (2) slightly.
2, the type of expressing according to claim 1 is used dish-washing machine more, it is characterized in that: have a water-supply-pipe (24) to be connected on hot water storgae (23) top with following spray impeller (12), a water-supply-pipe (24) links to each other with water pump, and hot-water line (3) connects the flow jeting port (5) of spray impeller (4); Below the dish-washing machine discharge outlet (28) of bottom, washing storehouse (31), an electromagnetic change-over valve (26) is arranged, respectively the water-supply-pipe (24) and the drainpipe (21) of water flowing pump.
3, the type of expressing according to claim 1 is used dish-washing machine more, it is characterized in that: microparticle (19) is made by silicate, metal or enwrapped granule.
4, the type of expressing according to claim 2 is used dish-washing machine more, it is characterized in that: an inclined-plane is arranged at bottom, washing storehouse (31).
5, use dish-washing machine according to claim 1, the 2 described types of expressing more, it is characterized in that: be provided with a sterilization storage cabinet (18) in the bottom of dish-washing machine, be provided with an infrared sterilization pipe (17) in sterilization storage cabinet (18), an ozone tracheae (16) of the ozone generator in the dish-washing machine communicates with sterilization storage cabinet (18).
