Abstract
本实用新型公开了一种瓶子包装盒,它的包装盒的两端为开口,在包装盒的两侧面上分别开有窗口。本实用新型与现有的包装盒相比,具有能够使消费者很容易通过包装盒的两端开口和侧面窗口看清包装盒内瓶中所装物品的优点。使用本实用新型包装瓶子时,只需将被包装的瓶子放进包装盒内,该瓶子即会被卡固在包装盒侧面的窗口中。
The utility model discloses a bottle packaging box. The two ends of the packaging box are openings, and windows are respectively opened on the two sides of the packaging box. Compared with the existing packaging box, the utility model has the advantage that consumers can easily see the articles contained in the bottle in the packaging box through the openings at both ends of the packaging box and the side windows. When using the utility model to pack bottles, only the packed bottle needs to be put into the packing box, and the bottle will be clamped and fixed in the window on the side of the packing box.
Description
The utility model relates to a kind of packing box of packing the packing box that bottle is used, particularly a kind of food packaging bottle.
At present, existing Bottle packing box, generally all be that bottle seal is packaged in the box, adopt this packing box packing, its shortcoming is: the customer is difficult to see the article appearance of being adorned in the bottle in the packing box clearly, and this understands commodity for the customer and has caused certain difficulty, particularly for the bottle of packaged food, because packing box all covers in bottle, makes the customer be difficult to see the style and the quality of food, thereby has caused the difficulty of the free choice of goods.
The purpose of this utility model is: a kind of Bottle packing box that can make things convenient for the customer to see article in the Packaging Bottle clearly is provided.
The utility model is to constitute like this: it removes the two ends front cover of ordinary packing box (1), form opening, and on the two sides of packing box (1), have a window (2), according to the quantity of required Packaging Bottle, the quantity of the window (2) of each side of packing box (1) is the same with the quantity of packaged bottle.
Owing to adopted technique scheme, the utility model is compared with the current packaging box, has can make the customer be easy to both ends open by packing box and side window to see in the packing box advantage of loaded article in the bottle clearly.Use the utility model Packaging Bottle period of the day from 11 p.m. to 1 a.m, only need packaged bottle is put in the packing box (I), this bottle promptly can be fixed in the window of packing box (1) side.

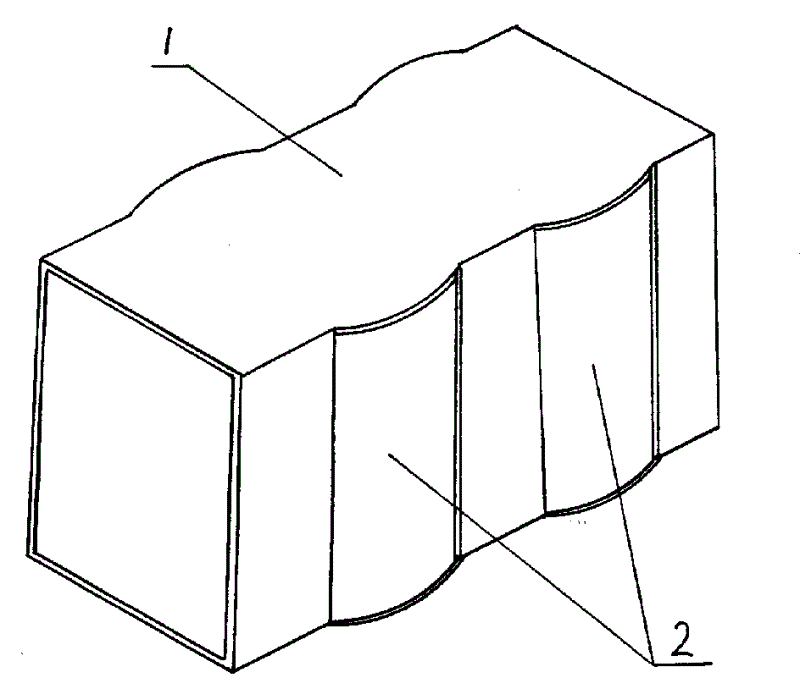

Structural representation when accompanying drawing 1 is made as two bottles of packing boxes for the utility model.
Embodiment of the present utility model: packing box (1) can adopt paper board material commonly used to make, during making, make the interior outage degree of packing box (1) the same with packaged bottle height, making its two ends is opening, on the two sides of packing box (1), leave window (2) respectively, the width of window (2) must be less than the diameter of packaged bottle, packaged bottle could be fixed in packing box (1) like this, according to the quantity that will pack bottle, on each side of packing box (1), leave the window (2) identical and get final product with packaged bottle quantity.
Claims (1)
1, a kind of Bottle packing box, it comprises packing box (1), it is characterized in that: the two ends of packing box (1) are opening, have window (2) on the two sides of packing box (1).
