Abstract
The utility model relates to a pen, concretely a pen point, and an iridium grain and the point end of the pen point are connected into a goshawk head shape. The utility model comprises the point end of the pen point, the tail part of the pen point and a middle part positioned between the point end and the tail part. The point end of the pen point is connected with the iridium grain, and effluent troughs are arranged from the iridium grain of the pen point, the point end to the middle part. The utility model is characterized in that the iridium grain connected to the point end of the pen point is positioned at the upper part or the lower part which is deviated from the center of the point end.
Description
The utility model relates to pen, and specifically a kind of iridium grain and nib tip are connected into the nib of hawk head.
On stylographic nib, all to connect the wear-resisting and smooth nib head that is used to improve writing quality and service life.This nib head is commonly called as the iridium grain, is made up of elements such as metal platinoiridita mostly.Till settled the present, the home and abroad all is the centre that the iridium grain is welded on the nib tip.Generally can only write out thinner writing when writing,, often just need to adopt the elbow nib if write thicker writing when improving the artistic effect of calligraphy.Therefore, bring certain trouble to the user.
The purpose of this utility model is the pluckings thin dual-purpose nib of hawk that a kind of iridium grain of design departs from most advanced and sophisticated central authorities, to overcome problems such as using trouble.
This nib is made of the tip of nib, the afterbody of nib and the middle part between tip and afterbody, be connected with the iridium grain at the tip of nib, to its middle part effluent trough is arranged from iridium grain, the tip of nib, be characterized in that the iridium grain that is connected in the nib tip is positioned at off-centered below or top; The middle part of described nib and afterbody can be little cylindrical shape, big packet header shape, the pointed and flat packet header of watt slit bamboo or chopped wood shape, or other various forms.
The utility model has the advantages that because the iridium grain is welded on the below or the top of departing from the most advanced and sophisticated center of nib, when writing, just can write out two kinds of person's handwritings that thickness is different with one-pen.Be welded into as shown in Figure 1 state as the iridium grain, promptly the iridium grain is positioned at the below at most advanced and sophisticated center, and when so just writing, its person's handwriting is just thinner, and during retrography, its person's handwriting is thicker.Vice versa.Therefore use more convenient.

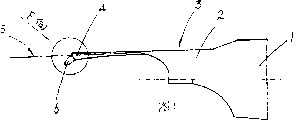

Fig. 1 is a structure chart of the present utility model.

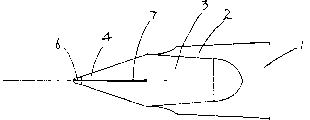

Fig. 2 is the vertical view of Fig. 1.
Fig. 3 is that the F of Fig. 1 is to view.
The structure chart of Fig. 4 top, most advanced and sophisticated center for the iridium grain is positioned at.
As shown be the nib of a kind of flat packet header type, the design feature of relevant flat packet header type nib is existing detailed description the in detail in the ZL93237119.1 patent, do not repeat them here.Nib shown in Figure 1 has columnar afterbody, and 2 there is a plane 3 at its middle part, and the welding of most advanced and sophisticated 4 places departs from the iridium grain 6 at most advanced and sophisticated center 5, look as " hawk head " shape, so a name hawk nib 2 has effluent trough 7 from iridium grain 6, tip 4 to the middle part.
Iridium grain 6 and most advanced and sophisticated 4 this off-centered connecting mode can be used for the nib of various other types, and be pointed etc. as common little cylindrical shape, big packet header shape, watt slit bamboo or chopped wood.
The design feature of above-mentioned all kinds of nibs is very clearly for the technical staff of the industry, therefore no longer describes in detail.
Claims (5)
1, the pluckings thin dual-purpose nib of hawk, comprise the nib tip, nib afterbody and the middle part between tip and afterbody, be connected with the iridium grain at the tip of nib, to its middle part effluent trough is arranged from iridium grain, the tip of nib, it is characterized in that the iridium grain that is connected in the nib tip is positioned at the below or the top of departing from most advanced and sophisticated center.
2, nib according to claim 1 is characterized in that the middle part of nib and afterbody are little cylindrical shape.
3, nib according to claim 1 is characterized in that the middle part of nib and afterbody are big packet header shape.
4, nib according to claim 1 is characterized in that the middle part of nib and a portion are that watt slit bamboo or chopped wood is pointed.
5, nib according to claim 1 is characterized in that the middle part of nib and afterbody are flat packet header shape.
