Abstract

The utility model relates to a road surface cleaning machine, which comprises a dust collection box and a base. The upper end of the dust collection box is fixedly connected with a limit slide frame, and the lower end of the limit slide frame is provided with a penetrating limit slide frame and is slidably connected with the penetrating part. Both sides of the filter screen are fixedly connected with sliding plates slidingly connected to the inside of the limit sliding frame, and both sides of the inside of the limit sliding frame are fixedly connected with sliding rods that run through the corresponding slide plates and are slidably connected with the penetrating parts The surface of the slide bar is provided with a spring that is slidingly connected to the surface of the slide bar and the two ends are respectively fixedly connected to the dust box and the slide plate. Both sides of the filter screen are provided with an L-shaped frame that is fixedly connected to the filter screen through bolts. The road surface cleaning machine described in the utility model can avoid the clogging of the mesh holes of the filter screen during use, which will seriously affect the ventilation effect of the filter screen, and further affect the work efficiency, and it is also convenient to clean the fallen dust It is more practical to collect and process.

Description

A road cleaning machine

technical field

The utility model relates to the technical field of road and bridge construction, in particular to a road cleaning machine.

Background technique

Pavement is a layered structure that is layered on the roadbed with various road materials or mixtures for cars to run on. Its function is to ensure that cars can run on the road in an all-weather, stable, high-speed, comfortable, safe and economical manner. , the pavement is usually composed of pavement body, road shoulder, curb stone and central divider, among which the pavement body can be divided into carriageway, sidewalk and curb strip in the horizontal direction.

The Chinese patent application number is CN202122278311.2, which discloses a road surface cleaning device for road and bridge construction, including a connecting plate, a motor is arranged on the upper surface of the connecting plate, and the output end of the motor is fixedly connected with a driving bevel gear. The driving bevel gear is meshed with a driven bevel gear, and the driven bevel gear is fixedly connected with a disc through a rotating shaft, the surface of the disc is threaded with a nut, and a friction disc is arranged below the disc.

However, the above-mentioned prior art also has deficiencies in actual use. In the above-mentioned prior art, when the filter screen is used for a long time, the surface of the filter screen will absorb a large amount of dust, thereby causing the mesh of the filter screen to be blocked, which will affect The passing efficiency of the gas reduces the work efficiency, and the dust falls on the bottom of the dust box, which is not convenient for subsequent cleaning. For this reason, we propose a road cleaning machine.

Utility model content

The utility model provides a road cleaning machine, which solves the technical problems raised by the background technology in the prior art.

The solution of the utility model to solve the above technical problems is as follows: it includes a dust collection box and a base, the upper end of the dust collection box is fixedly connected with a limit slide frame, and the lower end of the limit slide frame is provided with a penetrating limit slide frame and slides with the penetrating part The connected filter screen, the two sides of the filter screen are fixedly connected with the slide plate that is slidingly connected with the inside of the limit slide frame, and the two sides of the inside of the limit slide frame are fixedly connected with the slide plate that runs through the corresponding slide plate and is slideably connected with the penetrating part. The surface of the slide bar is provided with a spring that is slidingly connected to the surface of the slide bar and the two ends are respectively fixedly connected to the dust box and the slide plate. Both sides of the filter screen are provided with an L-shaped frame that is fixedly connected to the filter screen through bolts, L The vibration motor is fixedly connected to the upper end of the shape frame, and the front end of the dust collection box is provided with a collection frame that penetrates the dust collection box and is tightly slidingly connected with the penetration part through a rubber pad.

On the basis of the above technical solutions, the utility model can also be improved as follows.

Further, a handle is provided at the front end of the collection frame, the dust collection box is fixedly connected to the base, the upper end of the dust collection box is fixedly connected to a vacuum pump, and the vacuum pump exhaust pipe communicates with the inside of the limit slide frame.

Further, a U-shaped frame fixedly connected to the base through a mounting rod is arranged on one side of the base, and a power supply is fixedly connected inside the U-shaped frame.

Further, both sides of the dust collection box are provided with a dust suction pipe that penetrates the dust collection box and is fixedly connected with the penetrating part. The dust suction pipe runs through the base and is fixedly connected with the penetrating part. cover.

Further, a motor slot is opened on the lower surface of the base, a bidirectional motor is fixedly connected inside the motor slot, a hollow box is arranged at the lower end of the base, and a rotating motor is fixedly connected inside the hollow box.

Further, the output end of the rotating motor is fixedly connected to the rotating shaft that runs through the hollow box and is rotatably connected to the penetrating part, the lower end of the rotating shaft is fixedly connected to the friction disc, and the four corners of the upper surface of the hollow box are fixedly connected to the output end and the lower end of the base Fixedly connected telescopic cylinder.

Further, a lifting column is fixedly connected to the middle of the upper surface of the hollow box, and a thread groove is provided inside the lifting column, and a lifting screw threaded with the thread groove and fixedly connected with the output end of the bidirectional motor is arranged inside the thread groove.

Further, the four corners of the lower surface of the base are fixedly connected with supporting columns, the lower end of the supporting columns is provided with universal wheels, and the upper surface of the base is fixedly connected with push handles.

The beneficial effects of the utility model are: the utility model provides a road cleaning machine, which has the following advantages:

The set collection frame is convenient for collecting and processing the falling dust, so as to facilitate the subsequent cleaning, and through the cooperation between the set slide plate, limit slide frame, slide rod, spring, filter screen, vibration motor and L-shaped frame , can make the filter screen vibrate when used, so as to avoid the easy clogging of the mesh holes of the filter screen after long-term use, which will affect the use effect of the filter screen.

The above description is only an overview of the technical solution of the utility model. In order to understand the technical means of the utility model more clearly and implement it according to the contents of the specification, the following is a detailed description of the preferred embodiment of the utility model with accompanying drawings. back. The specific embodiment of the utility model is given in detail by the following examples and accompanying drawings.

Description of drawings

The drawings described here are used to provide a further understanding of the utility model and constitute a part of the application. The schematic embodiments of the utility model and their descriptions are used to explain the utility model and do not constitute improper limitations to the utility model. In the attached picture:

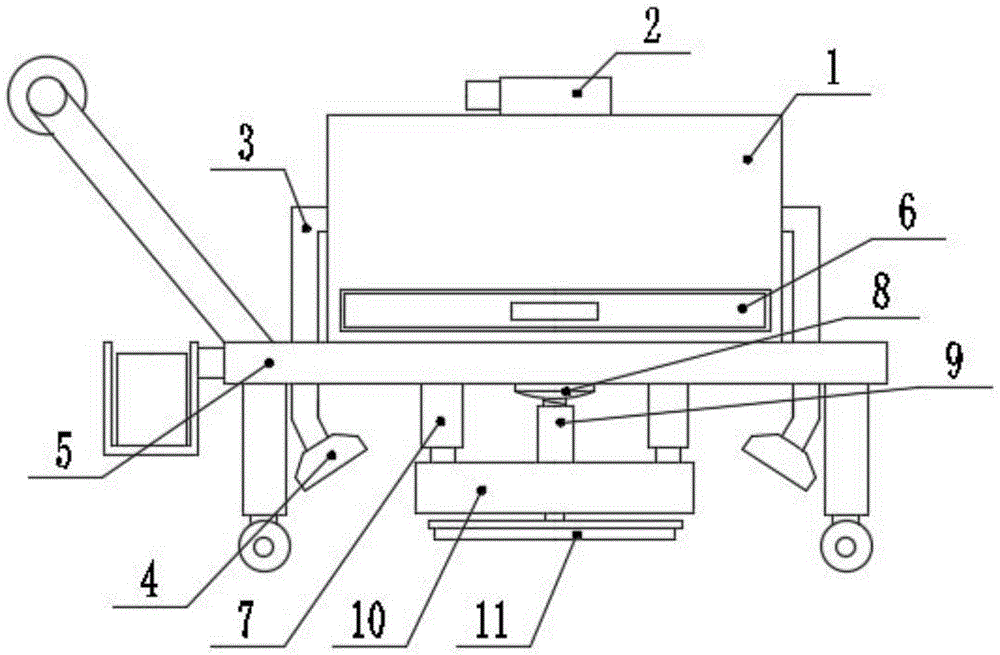

Fig. 1 is a schematic structural view of a road cleaning machine provided by an embodiment of the present invention;

Fig. 2 is a partial structure sectional schematic diagram in a kind of road cleaning machine that Fig. 1 provides;

Fig. 3 is a schematic cross-sectional view of the structure of a dust collection box in a road surface cleaning machine in the present invention;

FIG. 4 is a schematic structural diagram of a limit slide frame in the road cleaning machine provided in FIG. 1 .

In the accompanying drawings, the list of parts represented by each label is as follows:

1. Dust collection box; 2. Vacuum pump; 3. Dust suction pipe; 4. Dust suction cover; 5. Base; 6. Collection frame; 7. Telescopic cylinder; 8. Two-way motor; 9. Lifting column; ; 11, friction plate; 12, lifting screw; 13, rotating motor; 14, limit slide frame; 15, slide bar; 16, spring; 17, filter screen;

Detailed ways

The principles and features of the present utility model are described below in conjunction with accompanying drawings 1-4, and the examples given are only used to explain the present utility model, and are not intended to limit the scope of the present utility model. In the following paragraphs, the present utility model is described more specifically by way of example with reference to the accompanying drawings. According to the following description and claims, the advantages and features of the utility model will be more clear. It should be noted that all the drawings are in very simplified form and use inaccurate scales, which are only used to facilitate and clearly assist the purpose of illustrating the embodiments of the present utility model.

It should be noted that when a component is said to be "fixed" to another component, it can be directly on the other component or there can also be an intervening component. When a component is said to be "connected" to another component, it may be directly connected to the other component or there may be intervening components at the same time. When a component is said to be "set on" another component, it may be set directly on the other component or there may be an intervening component at the same time. The terms "vertical," "horizontal," "left," "right," and similar expressions are used herein for purposes of illustration only.

Unless otherwise defined, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the technical field of this invention. The terminology used in the description of the utility model herein is only for the purpose of describing specific embodiments, and is not intended to limit the utility model. As used herein, the term "and/or" includes any and all combinations of one or more of the associated listed items.

As shown in Figures 1-4, the utility model provides a road surface cleaning machine, including a dust collection box 1 and a base 5, the upper end of the dust collection box 1 is fixedly connected with a limit slide frame 14, and the limit slide frame 14 The lower end is provided with the filter screen 17 that penetrates the limit slide frame 14 and is slidably connected with the through position. The both sides of the filter screen 17 are fixedly connected with slide plates that are slidably connected with the limit slide frame 14. The inside of the limit slide frame 14 has two Both sides are fixedly connected with the sliding rod 15 that runs through the corresponding sliding plate and is slidingly connected with the penetrating part. The surface of the sliding rod 15 is provided with a spring 16 that is slidingly connected to the surface of the sliding rod 15 and is fixedly connected to the dust box 1 and the sliding plate at both ends. , both sides of the filter screen 17 are provided with an L-shaped frame fixedly connected to the filter screen 17 by bolts, the upper end of the L-shaped frame is fixedly connected with a vibration motor 18, and the front end of the dust collection box 1 is provided with a penetrating dust box 1 and The collection frame 6 is tightly slidingly connected with the penetration part through a rubber pad.

Preferably, the front end of the collection frame 6 is provided with a handle, the dust collection box 1 is fixedly connected to the base 5, the upper end of the dust collection box 1 is fixedly connected to the vacuum pump 2, and the suction pipe of the vacuum pump 2 is connected to the limit slide frame 14 Internal connectivity.

Preferably, one side of the base 5 is provided with a U-shaped frame fixedly connected to the base 5 through a mounting rod, and a power supply is fixedly connected to the inside of the U-shaped frame, and the power supply can provide power for the entire device.

Preferably, both sides of the dust collection box 1 are provided with a dust suction pipe 3 that runs through the dust collection box 1 and is fixedly connected with the penetrating part. The dust suction pipe 3 runs through the base 5 and is fixedly connected with the penetrating part. 3. The lower end is fixedly connected with the dust collection cover 4, and the dust collection cover 4 can absorb dust.

Preferably, a motor slot is provided on the lower surface of the base 5, a bidirectional motor 8 is fixedly connected inside the motor slot, a hollow box 10 is arranged at the lower end of the base 5, and a rotating motor 13 is fixedly connected inside the hollow box 10, and the rotating motor 13 The setting can drive the rubbing disc 11 to rotate.

Preferably, the output end of the rotating motor 13 is fixedly connected to the rotating shaft that runs through the hollow box 10 and is rotatably connected to the penetrating part, the lower end of the rotating shaft is fixedly connected to the friction disc 11, and the four corners of the upper surface of the hollow box 10 are fixedly connected The telescopic cylinder 7 fixedly connected to the lower end of the output end and the base 5, the effect of the telescopic cylinder 7 can make the friction disc 11 carry out the lifting process of the limit.

Preferably, the middle of the upper surface of the hollow box 10 is fixedly connected with a lifting column 9, and a threaded groove is provided inside the lifting column 9, and a lifting screw threaded with the threaded groove and fixedly connected with the output end of the bidirectional motor 8 is provided inside the threaded groove. 12. The setting of the lifting screw 12 can make the lifting column 9 perform lifting processing.

Preferably, the four corners of the lower surface of the base 5 are fixedly connected with support columns, the lower end of the support column is provided with universal wheels, and the upper surface of the base 5 is fixedly connected with a push handle.

Concrete working principle and using method of the present utility model are:

The utility model provides a road surface cleaning machine. When in use, the two-way motor 8 is controlled according to the requirement to drive the lifting screw 12 to rotate, so that the lifting column 9 drives the hollow box 10 to descend, so that the friction disc 11 is in contact with the ground, and then starts to rotate. The motor 13 rotates the rubbing disc 11, and then pushes the whole device to move, so as to clean the road surface, and the start of the vacuum pump 2 can make the dust enter the inside of the dust collection box 1 through the action of the dust suction pipe 3 and the dust suction hood 4, Filtration is carried out under the action of the filter screen 17, and the filter screen 17 can vibrate the filter screen 17 under the action of the vibrating motor 18, so that the dust on the surface of the filter screen 17 falls, avoiding the blockage of the filter screen 17 and affecting the use effect, and the fallen dust will be collected by the collection frame 6, which is convenient for subsequent cleaning.

The above is only a preferred embodiment of the utility model, and is not intended to limit the utility model in any way; any ordinary skilled person in the industry can smoothly implement it as shown in the accompanying drawings and the above description This utility model; however, all those who are familiar with the profession without departing from the scope of the technical solution of the utility model, and make use of the technical content disclosed above to make some changes, modifications and equivalent changes of evolution are all equivalent changes of the utility model. New equivalent embodiments; at the same time, all changes, modifications and evolutions of any equivalent changes made to the above embodiments according to the essential technology of the utility model still belong to the protection scope of the technical solution of the utility model.

Claims (8)

1. The utility model provides a road surface descaling machine, includes dust collection box (1) and base (5), its characterized in that, dust collection box (1) inside upper end fixed connection spacing sliding frame (14), spacing sliding frame (14) lower extreme has set up and has run through spacing sliding frame (14) and with run through position sliding connection's filter screen (17), filter screen (17) both sides all fixed connection with spacing sliding frame (14) inside sliding connection's slide, spacing sliding frame (14) inside both sides all fixed connection run through corresponding slide and with run through position sliding connection's slide bar (15), slide bar (15) surface have set up with slide bar (15) surface sliding connection and both ends respectively with dust collection box (1) and slide plate fixed connection's spring (16), filter screen (17) both sides have all set up through bolt and filter screen (17) fixed connection's L shape frame, L shape frame upper end fixed connection vibrating motor (18), dust collection box (1) front end has set up run through dust collection box (1) and with run through position through rubber pad zonulae occludens.

2. The road surface cleaning machine according to claim 1, wherein the front end of the collecting frame (6) is provided with a handle, the dust collecting box (1) is fixedly connected with the base (5), the upper end of the dust collecting box (1) is fixedly connected with the vacuum pump (2), and an exhaust pipe of the vacuum pump (2) is communicated with the inside of the limiting sliding frame (14).

3. The road surface cleaning machine according to claim 1, wherein a U-shaped frame fixedly connected with the base (5) through a mounting rod is arranged on one side of the base (5), and a power supply is fixedly connected inside the U-shaped frame.

4. The road surface cleaning machine according to claim 1, wherein dust collection pipes (3) penetrating through the dust collection box (1) and fixedly connected with penetrating parts are arranged on two sides of the dust collection box (1), the dust collection pipes (3) penetrate through the base (5) and are fixedly connected with penetrating parts, and dust collection covers (4) are fixedly connected with the lower ends of the dust collection pipes (3).

5. The road surface cleaning machine according to claim 1, wherein the lower end surface of the base (5) is provided with a motor groove, a bidirectional motor (8) is fixedly connected in the motor groove, the lower end of the base (5) is provided with a hollow box (10), and a rotary motor (13) is fixedly connected in the hollow box (10).

6. The road surface cleaning machine according to claim 5, wherein the output end of the rotating motor (13) is fixedly connected with a rotating shaft which penetrates through the hollow box (10) and is rotationally connected with the penetrating part, the lower end of the rotating shaft is fixedly connected with the friction plate (11), and four corners of the upper surface of the hollow box (10) are fixedly connected with telescopic cylinders (7) of which the output ends are fixedly connected with the lower end of the base (5).

7. The road surface cleaning machine according to claim 6, wherein the lifting column (9) is fixedly connected to the middle of the upper surface of the hollow box (10), a thread groove is formed in the lifting column (9), and a lifting screw (12) which is in threaded connection with the thread groove and is fixedly connected with the output end of the bidirectional motor (8) is arranged in the thread groove.

8. The road surface cleaning machine according to claim 1, wherein the four corners of the lower end surface of the base (5) are fixedly connected with supporting columns, universal wheels are arranged at the lower ends of the supporting columns, and the upper end surface of the base (5) is fixedly connected with a pushing handle.
