CN219341293U - Cable coiling machine that facilitates use - Google Patents

Abstract

The utility model relates to an easy-to-use cable coiling machine, which comprises an adjustment seat, the bottom of the adjustment seat is fixedly connected with feet near the four corners, and the inner cavity of the adjustment seat is provided with an adjustment mechanism, through which a threaded tube , threaded rods, moving blocks, rack plates, rotating gears, vertical rods, connecting pieces, movable rods, sliding blocks and connecting rods, these components cooperate with each other, and can be fixed on the adjacent sliding blocks through the connecting rods fixed on the adjacent sliding blocks. The connecting plate on the adjacent connecting rod moves to the far side, which facilitates the disassembly of the cable drum and improves the use effect of the device. By adjusting the motor, reciprocating screw rod, movable frame, ring, connecting shaft and movable block The mutual cooperation of the connecting shaft and the movable block can make the movable frame reciprocate left and right under the limit of the first chute and the first slider, so that the cable can be evenly wound on the cable drum, and the device can be improved. The aesthetics of winding.

Description

An easy-to-use cable coiler

technical field

The utility model relates to the technical field of wire and cable processing, in particular to an easy-to-use cable coiling machine.

Background technique

Cable is a general term for optical cables, cables and other items. It mainly includes an internal conductor and an insulating layer coated on the outside of the conductor. It is used to control installation, connect equipment, transmit power, etc. It is common and indispensable in daily life.

The existing device lacks the function of evenly winding the cable during the cable winding process, which makes the winding messy and reduces the aesthetics of the device. At the same time, after the winding is completed, the existing device needs to The cable drum needs to be replaced, but the existing device is inconvenient to install and disassemble the cable roller, which increases the work intensity of the user

Utility model content

The purpose of this utility model is to provide an easy-to-use cable coiling machine to solve the problems mentioned in the above-mentioned background technology.

The technical solution of the utility model is a convenient cable coiling machine, including an adjustment seat, the bottom of the adjustment seat is fixedly connected with feet near the four corners, and the inner cavity of the adjustment seat is provided with an adjustment mechanism. The bottom of the adjustment seat is provided with rectangular openings near the left and right sides, the top of the adjustment seat is provided with connecting plates near the left and right sides, and the opposite sides of the two connecting plates are movably connected near the top. There is a square pipe, and a cable receiving cylinder is arranged at the middle position of the top of the adjustment seat, and the left and right sides of the cable receiving cylinder are fixedly connected with square rods, and the two square rods are respectively plugged into the adjacent square pipes. The inner cavity is fixedly connected with an L-shaped plate near the top on the right side of the connecting plate on the right side, and the left side of the L-shaped structure on the vertical side of the L-shaped plate is fixedly connected with a drive motor near the top. The shaft end of the power output shaft of the motor is fixedly connected with a driving gear, and the bottom of the driving gear is meshed with a driven gear, and the driven gear is fixedly sleeved on the outside of the square tube on the right side, and the top of the adjustment seat is provided with reciprocating mechanism.

In one embodiment, the reciprocating mechanism includes an adjusting motor, the adjusting motor is fixedly connected to the top of the adjusting seat near the middle position, the shaft end of the power output shaft of the adjusting motor is fixedly connected to a reciprocating screw rod, and the adjusting seat A rectangular plate is fixedly connected to the top of the top near the left and right sides, and a first bearing is fixedly connected to the opposite side of the two rectangular plates near the middle, and the left end of the reciprocating screw rod runs through the adjacent first bearing and inserted into the inner cavity far away from the first bearing.

In one embodiment, a movable frame is sheathed on the outer side of the reciprocating screw rod near the left end, a connecting shaft is movably connected to the front side of the inner cavity of the movable frame, and a movable block is fixedly connected to the rear end of the connecting shaft. The movable block is movably connected to the outer side of the reciprocating screw rod, the top of the movable frame is fixedly connected with a ring, the bottom of the ring is fixedly connected with a first slider, and the top of the adjustment seat is close to the middle position A first chute is provided, and the first slider is movably connected to the inner chamber of the first chute.

In one embodiment, the adjustment mechanism includes a hand wheel, and the hand wheel is located on the right side of the adjustment seat near the bottom, and a threaded pipe is fixedly connected to the center of the left side of the hand wheel, and the adjustment seat The right side near the bottom is fixedly connected with a second bearing, the left end of the threaded tube runs through the inner cavity of the second bearing, the inner cavity of the threaded tube is movably connected with a threaded rod, and the left end of the threaded rod is fixedly connected with a movable A rack plate is fixedly connected to the left side of the moving block near the bottom, and a rotating gear is engaged with the front side of the rack plate near the middle.

In one embodiment, the bottom of the moving block is fixedly connected with a second sliding block, and the bottom of the inner chamber of the adjustment seat is provided with a second sliding slot, and the second sliding block is movably connected in the second sliding slot. cavity.

In one embodiment, a vertical bar runs through the center of the top circle of the rotating gear, the bottom end of the vertical bar is movably connected to the bottom of the inner cavity of the adjustment seat, and the inner cavity of the adjustment seat is fixedly connected with a The fixed plate, the third bearing is fixedly connected to the middle position of the top of the fixed plate, the top end of the vertical rod penetrates the inner cavity of the third bearing, and is fixedly connected with a connecting piece, the bottom of the connecting piece is close to the left and right sides Each part is movably connected with a movable rod, and the ends of the two movable rods away from each other are movably connected with a sliding block, and the tops of the two sliding blocks are fixedly connected with a connecting rod, and the top ends of the connecting rods pass through the rectangular opening The inner cavity is fixedly connected with the connecting plate.

In one embodiment, the bottoms of the two sliding blocks are fixedly connected with a third sliding block, and the top of the fixed plate is provided with a third sliding groove near the left and right sides, and the two third sliding blocks They are respectively movably connected to the inner cavity of the adjacent third chute.

The beneficial effects provided by the utility model are:

1. Through the mutual cooperation of threaded pipes, threaded rods, moving blocks, rack plates, rotating gears, vertical rods, connecting pieces, movable rods, sliding blocks and connecting rods, under the action of two movable rods, the The adjacent sliding blocks move to the far side under the limit of the adjacent third chute and the third sliding block, and then the connecting rods fixed on the adjacent connecting rods are fixed on the adjacent connecting rods. The connecting plate moves to the side away from each other, which facilitates the disassembly of the cable receiving drum and improves the use effect of the device.

2. By adjusting the mutual cooperation of the motor, reciprocating screw, movable frame, ring, connecting shaft and movable block, the movable frame can be moved between the first chute and the first sliding block under the cooperation of the connecting shaft and the movable block. Reciprocating left and right under the limit of the block, it is convenient to evenly wind up the cable on the cable drum and improve the aesthetics of the device.

Description of drawings

Fig. 1 is a sectional view of the utility model;

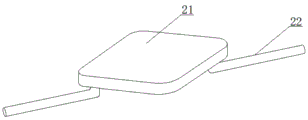

Fig. 2 is a partial perspective view of the connecting piece of the present invention;

Fig. 3 is the enlarged view of place A in Fig. 1 of the utility model;

Fig. 4 is the enlarged view of place B in Fig. 1 of the utility model;

Fig. 5 is an enlarged view of C in Fig. 1 of the present utility model.

In the accompanying drawings, 1. Adjusting seat; 2. Connecting plate; 3. Cable receiving barrel; 4. Square rod; 5. Square tube; 6. Driving motor; 7. Driving gear; 8. Driven gear; 9. Regulating motor 10, reciprocating screw rod; 11, movable frame; 12, ring; 13, connecting shaft; 14, movable block; 15, threaded pipe; 16, threaded rod; 17, moving block; 18, rack plate; 19, Rotary gear; 20, vertical rod; 21, connecting piece; 22, movable rod; 23, sliding block; 24, connecting rod.

Detailed ways

It should be noted that, in the case of no conflict, the embodiments of the present invention and the features in the embodiments can be combined with each other. The following will further describe the technical solution of the utility model in conjunction with the accompanying drawings of the utility model embodiment, and the utility model is not limited to the following specific embodiments.

It should be understood that the same or similar symbols in the drawings of the embodiments correspond to the same or similar components. In describing the present invention, it should be understood that if there are terms such as "upper", "lower", "front", "rear", "left", "right", "top", "bottom" etc. The orientation or positional relationship is based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the utility model and simplifying the description, and does not indicate or imply that the referred equipment or elements must have a specific orientation or be constructed in a specific orientation. and operation, so the terms describing the positional relationship in the drawings are only for illustrative purposes, and should not be construed as limitations on this patent. Those of ordinary skill in the art can understand the specific meanings of the above terms according to specific situations.

In one embodiment, as shown in Fig. 1 , Fig. 2 , Fig. 3 , Fig. 4 and Fig. 5 , a cable reeling machine that is convenient to use includes an adjustment seat 1, and the bottom of the adjustment seat 1 is near the four corners. Fixedly connected with legs, the inner cavity of the adjustment seat 1 is provided with an adjustment mechanism, the bottom of the adjustment seat 1 is provided with a rectangular opening near the left and right sides, and the top of the adjustment seat 1 is provided with a connecting plate 2 near the left and right sides. The opposite side of each connecting plate 2 is all movably connected with a square pipe 5 near the top, and the top middle position of the adjustment seat 1 is provided with a cable receiving tube 3, and the left and right sides of the cable receiving tube 3 are all fixedly connected with a square rod 4, The two square rods 4 are respectively plugged into the inner chamber of the adjacent square tube 5, and the right side of the right connecting plate 2 is fixedly connected to the top near the top, and the L-shaped plate is fixedly connected to the left side of the L-shaped structure on the left side of the L-shaped plate. The drive motor 6 is fixedly connected near the top, the driving gear 7 is fixedly connected to the shaft end of the power output shaft of the drive motor 6, the bottom of the driving gear 7 is meshed with a driven gear 8, and the driven gear 8 is fixedly sleeved on the square tube on the right side. 5, the top of the adjustment seat 1 is provided with a reciprocating mechanism.

It is convenient to evenly wind up the cable on the cable drum and improve the aesthetics of the device. In this embodiment, as shown in Figure 1 and Figure 4, the reciprocating mechanism includes an adjustment motor 9, which is fixedly connected to the adjustment seat 1 The top is close to the middle position, the shaft end of the power output shaft of the adjustment motor 9 is fixedly connected with a reciprocating screw rod 10, the top of the adjustment seat 1 is fixedly connected with a rectangular plate near the left and right sides, and the opposite side of the two rectangular plates is close to the middle All positions are fixedly connected with the first bearing, the left end of the reciprocating screw rod 10 runs through the inner cavity of the adjacent first bearing, and is plugged into the inner cavity far away from the first bearing, and the outer side of the reciprocating screw rod 10 is sleeved near the left end. Be provided with movable frame 11, the inner chamber front side of movable frame 11 is movably connected with connecting shaft 13, and the rear end of connecting shaft 13 is fixedly connected with movable block 14, and movable block 14 is movably connected at the outside place of reciprocating screw mandrel 10, and movable frame The top of 11 is fixedly connected with a ring 12, the bottom of the ring 12 is fixedly connected with a first slider, the top of the adjustment seat 1 is provided with a first chute near the middle position, and the first slider is movably connected to the first chute of the inner cavity.

It is convenient to disassemble the cable drum and improve the use effect of the device. In this embodiment, as shown in Figure 1, Figure 2 and Figure 5, the adjustment mechanism includes a hand wheel, and the hand wheel is located on the right side of the adjustment seat 1 close to At the bottom, a threaded pipe 15 is fixedly connected to the center of the left side of the hand wheel, and a second bearing is fixedly connected to the right side of the adjustment seat 1 near the bottom. The left end of the threaded pipe 15 runs through the inner cavity of the second bearing, and the threaded pipe 15 The inner cavity of the inner cavity is movably connected with a threaded rod 16, the left end of the threaded rod 16 is fixedly connected with a moving block 17, the bottom of the moving block 17 is fixedly connected with a second slider, and the bottom of the inner cavity of the adjustment seat 1 is provided with a second chute, the second The two sliders are movably connected to the inner cavity of the second chute, the left side of the moving block 17 is fixedly connected with a rack plate 18 near the bottom, and the front side of the rack plate 18 is engaged with a rotating gear 19 near the middle position. The center of the top circle of 19 is provided with a vertical rod 20, the bottom of the vertical rod 20 is flexibly connected to the bottom of the inner cavity of the adjustment seat 1, and the inner cavity of the adjustment seat 1 is fixedly connected with a fixed plate near the middle position, and the top middle position of the fixed plate is The third bearing is fixedly connected at the top of the vertical rod 20, and the top of the vertical rod 20 runs through the inner cavity of the third bearing, and is fixedly connected with a connecting piece 21. The bottom of the connecting piece 21 is movably connected with a movable rod 22 near the left and right sides. One end of the bar 22 that is far away from each other is movably connected with a sliding block 23, and the bottoms of the two sliding blocks 23 are fixedly connected with a third sliding block, and the top of the fixed plate is provided with a third chute near the left and right sides. The three slide blocks are respectively movably connected to the inner cavity of the adjacent third chute, and the tops of the two slide blocks 23 are fixedly connected with a connecting rod 24, and the top of the connecting rod 24 runs through the inner cavity of the rectangular opening, and connects with the connecting plate 2 Fixed connection.

Working principle: When the utility model is used, one end of the cable is passed through the inner cavity of the ring and wound on the cable receiving barrel. At this time, the external power supply of the drive motor and the adjustment motor is turned on, and the power output shaft of the drive motor rotates to drive and fix it on the drive The driving gear at the shaft end of the power output shaft of the motor rotates, so that the driven gear meshing with the driving gear rotates, and then the adjacent square tube rotates. With the cooperation of the adjacent square rod, the cable receiving drum rotates, and the cable is carried out. Rewinding, in the process of rewinding, turn on the external power supply of the regulating motor, and the rotation of the power output shaft of the regulating motor will drive the reciprocating screw rod fixed at the end of the power output shaft of the regulating motor to rotate, and the movable frame will be in the first position through the connecting shaft and the movable block. Under the limit of the chute and the first slider, the reciprocating movement left and right, the reeled cable reciprocates left and right through the ring fixed on the movable frame, so that the cable can be evenly rewound on the cable reel, and the device can be rewound. The aesthetics of the roll, when the winding is completed, turn off the external power supply of the adjustment motor and the drive motor, rotate the hand wheel to rotate the threaded tube fixed on the hand wheel, and make the fixed threaded rod move in the inner cavity of the threaded tube. The moving block at the end of the threaded rod moves to the right under the limit of the second chute and the second slider, and the rotating gear is rotated through the rack plate fixed on the moving block, and then the vertical rod is rotated, so that the fixed The connecting piece at the shaft end of the vertical rod rotates. During the rotation of the connecting piece, the adjacent sliding blocks are limited by the adjacent third chute and the third sliding block by moving the two movable rods at the bottom of the connecting piece. Move to the side away from each other, and then move the connecting plate fixed on the adjacent connecting rod to the side far away through the connecting rod fixed on the adjacent sliding block, so as to facilitate the disassembly of the cable drum and improve the safety of the device. Effect.

The technical features of the above-mentioned embodiments can be combined arbitrarily. To make the description concise, all possible combinations of the technical features in the above-mentioned embodiments are not described. However, as long as there is no contradiction in the combination of these technical features, should be considered as within the scope of this specification.

The above-mentioned embodiments only express several implementation modes of the utility model, and the description thereof is relatively specific and detailed, but it should not be understood as limiting the scope of the utility model patent. It should be noted that those skilled in the art can make several modifications and improvements without departing from the concept of the present invention, and these all belong to the protection scope of the present invention. Therefore, the protection scope of the utility model patent shall be determined by the appended claims.

Claims (7)

1. An easy-to-use cable coiling machine, characterized in that it includes an adjustment seat, the bottom of the adjustment seat is fixedly connected with legs near the four corners, and the inner cavity of the adjustment seat is provided with an adjustment mechanism, so The bottom of the adjustment seat is provided with rectangular openings near the left and right sides, the top of the adjustment seat is provided with connecting plates near the left and right sides, and the opposite sides of the two connecting plates are movably connected near the top. A square tube, the middle position of the top of the adjustment seat is provided with a cable receiving tube, and the left and right sides of the cable receiving tube are fixedly connected with square rods, and the two square rods are respectively plugged into the adjacent square tubes. Cavity, located on the right side of the connecting plate on the right side near the top is fixedly connected with an L-shaped plate, the left side of the L-shaped structure of the L-shaped plate is fixedly connected with a drive motor near the top, the drive motor The shaft end of the power output shaft is fixedly connected with a driving gear, and the bottom of the driving gear is meshed with a driven gear, and the driven gear is fixedly sleeved on the outside of the right square tube, and the top of the adjustment seat is provided with a reciprocating mechanism. 2. The easy-to-use cable coiler according to claim 1, wherein the reciprocating mechanism includes an adjustment motor, and the adjustment motor is fixedly connected to the top of the adjustment seat near the middle position, so that The shaft end of the power output shaft of the adjustment motor is fixedly connected with a reciprocating screw rod, the top of the adjustment seat is fixedly connected with rectangular plates near the left and right sides, and the opposite sides of the two rectangular plates are fixed near the middle. The first bearing is connected, and the left end of the reciprocating screw rod passes through the inner cavity adjacent to the first bearing, and is inserted into the inner cavity far away from the first bearing. 3. An easy-to-use cable coiler according to claim 2, characterized in that a movable frame is sleeved on the outer side of the reciprocating screw rod near the left end, and the front side of the inner cavity of the movable frame A connecting shaft is movably connected, and the rear end of the connecting shaft is fixedly connected with a movable block, and the movable block is movably connected to the outside of the reciprocating screw rod, and the top of the movable frame is fixedly connected with a ring, and the ring The bottom is fixedly connected with a first sliding block, and the top of the adjustment seat is provided with a first sliding slot near the middle position, and the first sliding block is movably connected to the inner cavity of the first sliding slot. 4. An easy-to-use cable coiler according to claim 1, characterized in that the adjustment mechanism includes a hand wheel, and the hand wheel is located on the right side of the adjustment seat near the bottom, so A threaded pipe is fixedly connected to the center of the left side of the hand wheel, and a second bearing is fixedly connected to the right side of the adjustment seat close to the bottom. The left end of the threaded pipe runs through the inner cavity of the second bearing, and the threaded pipe The inner cavity of the inner cavity is movably connected with a threaded rod, the left end of the threaded rod is fixedly connected with a moving block, the left side of the moving block near the bottom is fixedly connected with a rack plate, and the front side of the rack plate is near the middle position Engage with rotating gears. 5. An easy-to-use cable coiler according to claim 4, characterized in that, the bottom of the moving block is fixedly connected with a second slider, and the bottom of the inner cavity of the adjustment seat is provided with a second sliding block. Two sliding slots, the second sliding block is movably connected to the inner cavity of the second sliding slot. 6. An easy-to-use cable coiler according to claim 4, characterized in that, a vertical bar runs through the center of the top circle of the rotating gear, and the bottom end of the vertical bar is in contact with the inside of the adjustment seat. The bottom of the cavity is flexibly connected, the inner cavity of the adjustment seat is fixedly connected with a fixed plate near the middle position, and the third bearing is fixedly connected at the middle position of the top of the fixed plate, and the top end of the vertical rod passes through the inner part of the third bearing. cavity, and is fixedly connected with a connecting piece, the bottom of the connecting piece is movably connected with movable rods close to the left and right sides, and the ends of the two movable rods are movably connected with sliding blocks, and the two sliding blocks The tops of each are fixedly connected with connecting rods, and the top ends of the connecting rods pass through the inner cavity of the rectangular opening and are fixedly connected with the connecting plate. 7. The easy-to-use cable coiler according to claim 6, characterized in that, the bottoms of the two sliding blocks are fixedly connected with a third sliding block, and the tops of the fixing plates are close to the left and right Both sides are provided with a third chute, and the two third sliders are respectively movably connected to the inner cavity of the adjacent third chute.
