Abstract
The utility model relates to an antibacterial knitted underwear fabric which comprises a surface layer, a middle layer and an inner layer, wherein the surface layer, the middle layer and the inner layer are sequentially bonded together, the middle layer is an elastic deformation layer, the inner layer is formed by weaving an antibacterial elastic cored wire, and a plurality of bulges are formed by outwards protruding warps on one outward side of the inner layer.
Description
Technical Field
The utility model belongs to the technical field of fabrics, and particularly relates to an antibacterial knitted underwear fabric.
Background
At present, the existing underwear fabric is generally required to be comfortable to wear and elastic, but when the underwear fabric is used as clothing directly contacted with the skin of a human body, sweat is easily accumulated at the underwear and then bacteria are generated, but the underwear fabric mainstream in the market generally does not have antibacterial property, so that the generation of the scheme is provided.
Disclosure of Invention
In view of the defects of the prior art, the technical problem to be solved by the utility model is to provide the antibacterial knitted underwear fabric which has an antibacterial effect and a good effect.
In order to solve the technical problems, the utility model adopts the following technical scheme: the utility model provides an antibiotic knitted underwear surface fabric, includes top layer, middle level and inlayer, top layer, middle level and inlayer bond together in proper order, the middle level is elastic deformation layer, the inlayer is woven by antibiotic elasticity cored wire and is formed, the inlayer outwards warp outside protrusion forms a plurality of archs.
Further, the middle layer is composed of a memory sponge.
Further, the middle layer is provided with a plurality of ventilation holes.
Further, the antibacterial elastic cored wire comprises a nylon elastic wire and antibacterial fibers, and the antibacterial fibers are wound on the periphery of the nylon elastic wire.
Further, the antibacterial fiber is silver ion fiber.
Further, the middle layer is filled with activated carbon particles.
Further, the surface layer is formed by knitting nylon elastic yarns.
Compared with the prior art, the utility model has the following beneficial effects:
the underwear fabric comprises the surface layer, the middle layer and the inner layer, the middle layer is an elastic deformation layer, after the underwear is worn, the human body is provided with an arc shape, the middle layer presses the inner layer to be attached to the skin, the inner layer is formed by weaving an antibacterial elastic cored wire, the antibacterial effect of the fabric is ensured, the elastic effect of the fabric is not lost, a plurality of bulges are formed by outwards protruding warps on one surface of the inner layer outwards, and the bulges are arranged to enlarge the contact area between the inner layer fabric and the skin and enhance the antibacterial effect.
Drawings

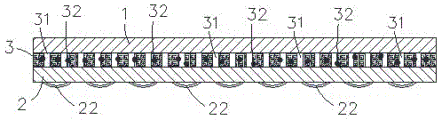

FIG. 1 is a schematic cross-sectional view of an antimicrobial knitted undergarment fabric of the present utility model;
FIG. 2 is a schematic cross-sectional view of an antimicrobial elastic cored wire in accordance with the present utility model;
FIG. 3 is a schematic front view of the antibacterial elastic cored wire of the utility model.
The marks in the figure: 1. a surface layer; 2. an inner layer; 21. an antibacterial elastic cored wire; 211. nylon elastic thread; 212. an antimicrobial fiber; 22. a protrusion; 3. a middle layer; 31. ventilation holes; 32. activated carbon particles.
Detailed Description
In order to make the above features and advantages of the present utility model more comprehensible, embodiments accompanied with figures are described in detail below.
As shown in fig. 1 to 3, the present embodiment provides an antibacterial knitted underwear fabric comprising a surface layer 1, a middle layer 3 and an inner layer 2.
The surface layer 1, the middle layer 3 and the inner layer 2 are sequentially bonded together, the surface layer 1 is formed by weaving nylon elastic yarns 211, the middle layer 3 is an elastic deformation layer, the middle layer 3 is provided with a plurality of ventilation holes 31, the ventilation holes 31 are used for enhancing the ventilation property of underwear fabric, the middle layer 3 is filled with activated carbon particles 32, the activated carbon particles 32 are used for deodorizing, the middle layer 3 is formed by memory sponge, and the middle layer 3 can be changed into a specific shape according to the matching shape of a wearer, so that the wearing effect of the wearer is more comfortable.
The inner layer 2 is formed by weaving an antibacterial elastic cored wire 21, specifically, the inner layer 2 outwards protrudes to form a plurality of bulges 22 along the warp on one surface outwards, the antibacterial elastic cored wire 21 comprises nylon elastic wires 211 and antibacterial fibers 212, the antibacterial fibers 212 are wound on the peripheral surface of the nylon elastic wires 211, the antibacterial fibers 212 are silver ion fibers, and the fabric fibers are soaked in silver ion solution to enable silver ions to be attached to the fabric fibers.
The underwear surface fabric comprises top layer 1, middle level 3 and inlayer 2 in this scheme, and middle level 3 is elastic deformation layer (memory sponge) after wearing the underwear, can deform and be adaptation wearer's shape to promote the travelling comfort, inlayer 2 is woven by antibiotic elasticity cored wire 21 and is formed, does not lose the elasticity effect of surface fabric when guaranteeing that the surface fabric has antibiotic effect again, and inlayer 2 outwards warp outside protrusion forms a plurality of archs 22 moreover, and bellied 22's setting is in order to increase inlayer 2 surface fabric and skin's area of contact, reinforcing antibiotic effect.
While the basic principles and main features of the utility model and advantages of the utility model have been shown and described, it will be understood by those skilled in the art that the present utility model is not limited by the foregoing embodiments, which are described in the foregoing description merely illustrate the principles of the utility model, and various changes and modifications may be made therein without departing from the spirit and scope of the utility model as defined in the appended claims and their equivalents.
Claims (7)
1. An antibacterial knitted underwear fabric is characterized in that: the novel antibacterial elastic cored wire comprises a surface layer, a middle layer and an inner layer, wherein the surface layer, the middle layer and the inner layer are sequentially bonded together, the middle layer is an elastic deformation layer, the inner layer is formed by weaving an antibacterial elastic cored wire, and a plurality of bulges are formed by outwards protruding one surface of the inner layer outwards through warps.
2. An antimicrobial knitted undergarment fabric according to claim 1 wherein: the middle layer is composed of a memory sponge.
3. An antimicrobial knitted undergarment fabric according to claim 2 wherein: the middle layer is provided with a plurality of ventilation holes.
4. An antimicrobial knitted undergarment fabric according to claim 1 wherein: the antibacterial elastic cored wire comprises a nylon elastic wire and antibacterial fibers, and the antibacterial fibers are wound on the periphery of the nylon elastic wire.
5. An antimicrobial knitted undergarment fabric according to claim 4 wherein: the antibacterial fiber is silver ion fiber.
6. An antimicrobial knitted undergarment fabric according to claim 2 wherein: the middle layer is filled with activated carbon particles.
7. An antimicrobial knitted undergarment fabric according to claim 1 wherein: the surface layer is formed by knitting nylon elastic yarns.
