Abstract

The utility model relates to the technical field of injection molding machines, and discloses an injection molding machine for plastic processing, comprising a base, one end of the top of the base is fixedly connected with an electric push rod, and the top end of the electric push rod is threadedly connected with a mounting plate. The injection molding machine for plastic processing realizes the effect of centralized collection of materials through the coordinated use of the set electric push rod, mounting plate, material collection bucket and screws. By adjusting the collection bucket to the specified height, the By adjusting the height of the collecting barrel, it is convenient to collect materials for injection molding machines of different heights, so as to avoid the splashing of materials when receiving materials due to excessive height, so as to make the injection molding machine more comfortable when using it as much as possible. Convenient, at the same time, through the fixing and disassembly of the collecting barrel, it is convenient to dump the materials inside the collecting barrel, and at the same time, it is convenient to replace and clean the collecting barrel, which improves the practicability of the injection molding machine.

Description

Injection molding machine for plastic processing

technical field

The utility model relates to the technical field of injection molding machines, in particular to an injection molding machine for plastic processing.

Background technique

Injection molding machine is also known as injection molding machine or injection machine. It is the main molding equipment for making thermoplastics or thermosetting plastics into various shapes of plastic products using plastic molding molds. Divided into vertical, horizontal, all-electric. The injection molding machine can heat the plastic and apply high pressure to the molten plastic to make it inject and fill the mold cavity. Therefore, an injection molding machine is also required to produce plastic when producing plastic.

In the Chinese utility model patent: such as CN212888774U, an injection molding machine for plastic processing belongs to the technical field of plastic processing equipment. The injection molding machine for plastic processing includes a support frame assembly, and the support frame assembly is used for fixing and supporting; It includes a box assembly, an injection molding assembly and a stirring assembly, the box assembly is fixedly installed on the support frame assembly, the injection molding assembly and the stirring assembly are fixedly arranged on the box assembly, and the box assembly includes an injection molding box and a stirring The injection molding assembly is arranged in the injection molding box, the stirring assembly is arranged in the stirring box, and the injection molding assembly is arranged under the stirring assembly. Under the mutual cooperation of the above components, the utility model can not only realize injection molding processing of plastics, but also can stir the raw materials before injection molding, so as to prevent the raw materials from solidifying during the feeding process and affect the injection molding effect, and has wide application prospect.

1. Most of the existing injection molding machines for plastic processing collect the raw materials directly, which is prone to the problem of material splashing when falling due to the high falling height;

2. Most of the existing injection molding machines for plastic processing directly discharge the materials, which is easy to affect the congestion and blockage during blanking due to the accumulation of materials.

Utility model content

(1) Solved technical problems

Aiming at the deficiencies of the prior art, the utility model provides an injection molding machine for plastic processing, which has the advantages of being convenient for receiving materials, and solves the above-mentioned problems in the background technology.

(2) Technical solution

In order to achieve the above-mentioned purpose of facilitating material collection, the utility model provides the following technical solution: an injection molding machine for plastic processing, including a base, one end of the top of the base is fixedly connected with an electric push rod, and the top end of the electric push rod is threadedly connected with Mounting plate.

The top of the mounting plate is fixedly connected with a collection barrel, and both ends of the top of the mounting plate are threaded with screws, and the screws penetrate the mounting plate and are threaded inside the electric push rod, and the electric push rod is turned on to drive the set. The bucket moves up and down to adjust the bucket to the specified height, so that the melted material can be collected by the bucket, and the bucket can be easily fixed and disassembled by turning the screw.

Preferably, a working box is fixedly connected to the other end of the top of the base, and a processing box is fixedly connected to one end of the top of the working box, and the processing box is used to process the materials, so as to facilitate the reaction of the materials.

Preferably, the middle of the top of the processing box is fixedly connected with an organic box, and the inside of the box is fixedly connected with an output motor, and the box is used to protect the output motor, so as to avoid damage to the output motor due to external collisions as much as possible.

Preferably, the output end of the output motor runs through the inside of the processing box and is connected with a rotating rod, and both sides of the outer wall of the rotating rod are provided with stirring blades at equal intervals, and the bottom of the stirring blade is fixedly connected with a connecting rod. One end of the connecting rod is fixedly connected with a scraper, and the output motor is turned on to drive the rotation of the rotating rod, so that the rotating rod is used to drive the rotation of the stirring blade and the scraper, the stirring blade is used to turn the material, and the scraper is used to avoid Material sticks to the inner wall of the disposal tank.

Preferably, both ends of the top of the processing box are fixedly connected with a feed port, and the middle of the bottom of the processing box is fixedly connected with a discharge port, and the material is poured into the inside of the processing case through the feed port, and the discharge port is opened. to drop the material into the interior of the work box.

Preferably, a driving motor is fixedly connected to the top of one side of the working box, and the output end of the driving motor is fixedly connected to a rotating shaft through a coupling, and one end of the rotating shaft runs through the inside of the working box and is connected to a crushing roller for rotation. Drive the motor to drive the rotation of the rotating shaft, thereby driving the rotation of the crushing roller, so as to facilitate the crushing and heating of the material, thereby melting the material.

Preferably, feet are fixedly connected to both ends of the bottom of the base, and the feet are center-symmetrical to the vertical line of the base, and the symmetrical structure of the feet is used to make the injection molding machine more stable when placed.

(3) Beneficial effects

Compared with the prior art, the utility model provides an injection molding machine for plastic processing, which has the following

Beneficial effect:

1. The injection molding machine for plastic processing realizes the effect of centralized collection of materials through the coordinated use of the electric push rod, mounting plate, collecting bucket and screws, and drives the aggregate by turning on the electric push rod. The barrel moves up and down to adjust the collecting barrel to the specified height, so that the injection molding machine of different heights can be conveniently collected by adjusting the height of the collecting barrel, so as to avoid the occurrence of material accidents when collecting materials due to excessive height. Splashing situation, so as to make the injection molding machine more convenient in use, and at the same time, through the fixing and disassembly of the collection bucket, it is convenient to dump the materials inside the collection bucket, and at the same time, it is convenient to replace and replace the collection bucket. Cleaning improves the practicability of the injection molding machine.

2. The injection molding machine for plastic processing realizes the effect of flipping the material through the combined use of the set processing box, output motor, rotating rod, stirring blade, connecting rod and scraper. By turning on the output motor to Drive the rotation of the rotating rod, thereby driving the rotation of the stirring blade and the scraper, so that the material can be turned by the stirring blade, so as to avoid the blockage caused by the accumulation of the material as much as possible, and at the same time use the scraper to clean the processing box The interior of the injection molding machine is cleaned, so as to avoid the sticking of materials on the inner wall of the processing box as much as possible, and improve the adaptability of the injection molding machine.

Description of drawings

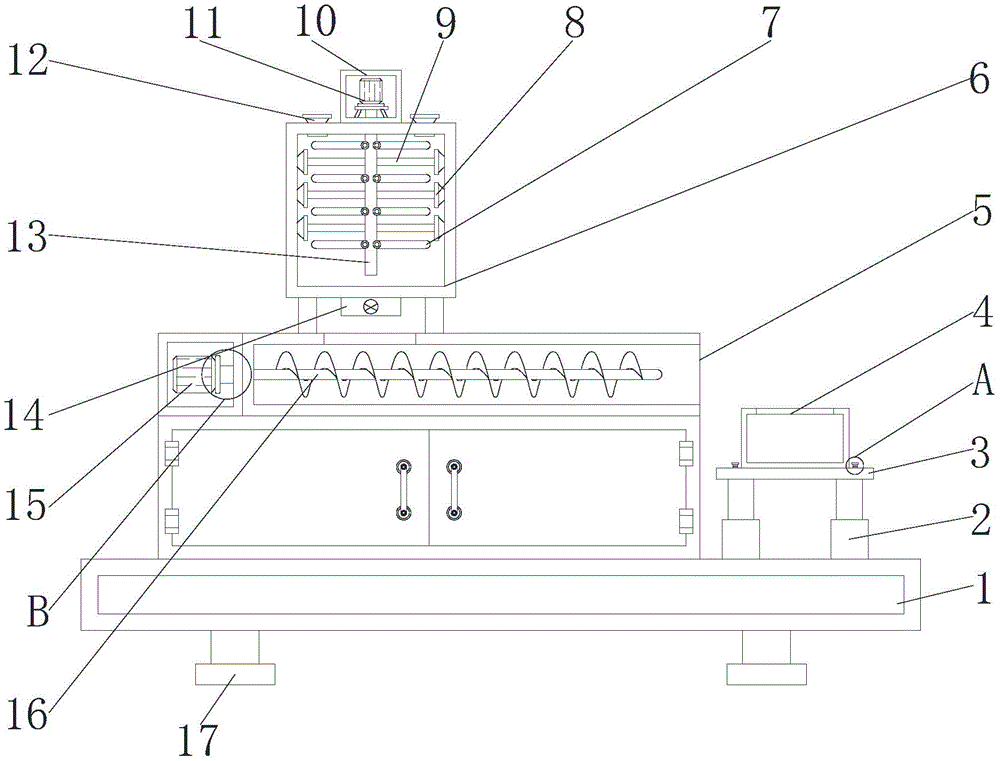

Fig. 1 is the front structural schematic diagram of the utility model;

Fig. 2 is the structural representation of stirring blade of the present utility model;

Fig. 3 is the schematic diagram of enlarged structure at A place in Fig. 1 of the present utility model;

Fig. 4 is the schematic diagram of enlarged structure at B place in Fig. 1 of the present utility model;

Fig. 5 is a structural schematic diagram of the collecting barrel of the present invention.

In the figure: 1. Base; 2. Electric push rod; 3. Mounting plate; 4. Collecting bucket; 5. Working box; 6. Processing box; 7. Stirring blade; 8. Scraper; 1, chassis; 11, output motor; 12, feed inlet; 13, rotating rod; 14, discharge outlet; 15, drive motor; 16, crushing roller; 17, feet; 18, screw;

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Example 1

The preferred embodiment of the injection molding machine for plastic processing provided by the utility model is shown in Figures 1 to 5: an injection molding machine for plastic processing, including a base 1, one end of the top of the base 1 is fixedly connected with an electric push rod 2, and The top end of the push rod 2 is threadedly connected with a mounting plate 3 .

The top of the mounting plate 3 is fixedly connected with the collecting barrel 4, and the two ends of the top of the mounting plate 3 are threaded with screws 18, and the screws 18 run through the mounting plate 3 and are threaded with the inside of the electric push rod 2, and the electric push rod 2 is opened. Drive the collection bucket 4 to move up and down, so as to adjust the collection bucket 4 to the specified height, so as to use the collection bucket 4 to collect the melted materials, and turn the screw 18 to facilitate the fixing and disassembly of the collection bucket 4 .

In this embodiment, the other end of the top of the base 1 is fixedly connected with a working box 5, and one end of the top of the working box 5 is fixedly connected with a processing box 6, and the processing box 6 is used to process the materials, so as to facilitate the reaction of the materials.

Example 2

On the basis of Embodiment 1, the preferred embodiment of the injection molding machine for plastic processing provided by the utility model is shown in Figure 1 to Figure 5: the middle of the top of the processing box 6 is fixedly connected to the organic case 10, and the inside of the case 10 is fixedly connected There is an output motor 11, and the casing 10 is used to protect the output motor 11, so as to avoid damage to the output motor 11 due to external collisions as much as possible.

In this embodiment, the output end of the output motor 11 runs through the inside of the processing box 6 and is connected with a rotating rod 13. Both sides of the outer wall of the rotating rod 13 are provided with stirring blades 7 at equal intervals, and the bottom of the stirring blade 7 is fixedly connected with a connecting rod 13. Rod 9, one end of the connecting rod 9 is fixedly connected with a scraper 8, and the output motor 11 is turned on to drive the rotation of the rotating rod 13, thereby using the rotating rod 13 to drive the rotation of the stirring blade 7 and the scraper 8, and using the stirring blade 7 to The material is stirred, and the scraper 8 is used to prevent the material from sticking to the inner wall of the processing box 6 .

Further, both ends of the top of the treatment box 6 are fixedly connected with a feed inlet 12, and the middle of the bottom of the treatment box 6 is fixedly connected with a discharge outlet 14, and the material is poured into the inside of the treatment box 6 through the feed inlet 12, and the outlet is opened. Material is dropped into the inside of working box 5 by material mouth 14.

Furthermore, the top of one side of the working box 5 is fixedly connected with a driving motor 15, and the output end of the driving motor 15 is fixedly connected with a rotating shaft 19 through a coupling, and one end of the rotating shaft 19 runs through the inside of the working box 5 and is connected with a crushing roller 16 for rotation. , Turn on the driving motor 15 to drive the rotation of the rotating shaft 19, thereby driving the rotation of the crushing roller 16, so as to facilitate crushing and heating of the material, thereby melting the material.

In addition, both ends of the bottom of the base 1 are fixedly connected with feet 17, and the feet 17 have a center-symmetrical structure with respect to the vertical line of the base 1. The symmetrical structure of the feet 17 is used to make the injection molding machine more stable when placed. .

When in use, first pour the material into the inside of the processing box 6 through the feed port 12, and drive the rotation of the rotating rod 13 by turning on the output motor 11, thereby using the rotating rod 13 to drive the rotation of the stirring blade 7 and the scraper 8, Use the stirring blade 7 to stir the material, use the scraper 8 to prevent the material from sticking to the inner wall of the processing box 6, then open the discharge port 14 to drop the material into the working box 5, and open the drive motor 15 to Drive the rotation of the crushing roller 16, so that it is convenient to crush and heat the material, so as to melt the material, and then open the electric push rod 2 to drive the collection bucket 4 to move up and down, so as to adjust the collection bucket 4 to the specified height, so that the material can be used The material collection barrel 4 is used to collect the melted material.

To sum up, the injection molding machine for plastic processing is convenient for receiving materials, thereby avoiding the splashing of materials during receiving, and at the same time, it is convenient for stirring and turning materials, thereby avoiding accumulation and blockage of materials during unloading.

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. There is no such actual relationship or order between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (4)

1. An injection molding machine for plastic processing, comprising a base (1), characterized in that: an electric push rod (2) is fixedly connected to one end of the top of the base (1), and the top thread of the electric push rod (2) A mounting plate (3) is connected; The top of the mounting plate (3) is fixedly connected with a material collecting bucket (4), and the two ends of the top of the mounting plate (3) are all threaded with screws (18), and the screws (18) run through the mounting plate (3) ) is threadedly connected with the inside of the electric push rod (2), the other end of the top of the base (1) is fixedly connected with a work box (5), and one end of the top of the work box (5) is fixedly connected with a processing box (6 ), the middle of the top of the processing box (6) is fixedly connected with a casing (10), and the inside of the casing (10) is fixedly connected with an output motor (11), and the output end of the output motor (11) runs through the processing box The inner rotation of (6) is connected with a rotating rod (13), and both sides of the outer wall of the rotating rod (13) are equipped with stirring blades (7) at equal intervals, and the bottom of the stirring blade (7) is fixedly connected with a connecting rod (13). A rod (9), one end of the connecting rod (9) is fixedly connected with a scraper (8). 2. A kind of injection molding machine for plastic processing according to claim 1, characterized in that: both ends of the top of the processing box (6) are fixedly connected with feed ports (12), and the processing box (6) The middle of the bottom is fixedly connected with a discharge port (14). 3. A kind of injection molding machine for plastic processing according to claim 1, characterized in that: a driving motor (15) is fixedly connected to the top of one side of the working box (5), and the output of the driving motor (15) The end is fixedly connected with a rotating shaft (19) through a shaft coupling, and one end of the rotating shaft (19) runs through the inside of the working box (5) and is connected with a crushing roller (16) for rotation. 4. An injection molding machine for plastic processing according to claim 1, characterized in that: both ends of the bottom of the base (1) are fixedly connected with feet (17), and the feet (17) are connected with the base (1) ) has a centrosymmetric structure.
