Abstract

The utility model relates to a cleaning and grinding mechanism for oral cavity implants. The cleaning and grinding mechanism includes a handle, a grinding drill bit and a cleaning chamber, wherein the handle is connected with the grinding drill bit through a first connecting rod, and connected with the cleaning chamber through a second connecting rod. Connection; a power supply device and a controller are embedded in the handle, and an application button is embedded on the surface of the handle, and the controller is electrically connected with the application button, the grinding drill bit, and the cleaning chamber; The inner wall is provided with a cleaning brush with a telescopic rod, and the inner wall at the bottom of the cleaning chamber is provided with an implant slot; the second connecting rod is provided with a water storage tank with a water injection port and a water outlet, and the water storage tank is connected with the cleaning chamber through the water outlet. Through the cleaning and grinding mechanism of the present application, the oral implant can be effectively cleaned and polished at the same time.

Description

Oral implant cleaning and grinding mechanism

technical field

The utility model relates to the technical field of oral care, in particular to an oral implant cleaning and polishing mechanism.

Background technique

A tooth is a structure present in many animals, humans, amphibians, reptiles, birds and higher mammals chewing organs. Teeth are the hardest organ in the human body. Generally speaking, teeth are white (yellow in normal people) and hard in texture. Teeth come in all shapes and sizes for a variety of purposes, including tearing and grinding food, making the health of your teeth vital to your health.

When people have serious problems with their teeth, dental implants are often required. Before dental implants, the implants need to be designed for targeted grinding and cleaning after grinding; or after the implants have been used for a period of time, they need to be removed for re-cleaning. At present, the grinding and cleaning of dental implants often requires multiple instrument parts, and the operation is very cumbersome and complicated. Especially for the step of implant cleaning, there is always the problem of poor cleaning effect. Furthermore, there is an urgent need to provide an oral implant cleaning and grinding mechanism to solve the aforementioned two technical problems.

Contents of the invention

(1) Technical problems to be solved

In view of the above-mentioned shortcomings and deficiencies of the prior art, the utility model provides an oral implant cleaning and grinding mechanism, which solves the cumbersome and complicated operation caused by the need to use multiple instrument parts in the current grinding and cleaning process of dental implants , and poor cleaning of dental implants.

(2) Technical solutions

In order to achieve the above object, the main technical solutions adopted by the utility model include:

The utility model provides an oral implant cleaning and grinding mechanism, the cleaning and grinding mechanism includes a handle, a grinding drill, and a cleaning chamber; the handle is connected with the grinding drill through a first connecting rod, and connected with the cleaning chamber through a second connecting rod. connect;

The handle is a hollow horizontal cylindrical metal closed structure, and the first connecting rod and the second connecting rod are hollow horizontal cylindrical metal closed structures; a power supply device and a controller are embedded in the handle, An application button is embedded on the surface of the handle, and the controller is electrically connected to the application button, the grinding drill bit, and the cleaning chamber;

The grinding drill bit is an arc cone metal drill bit, and the cleaning bin is a vertical cylindrical metal closed structure with a spring door on the top; There is a cleaning brush with a telescopic rod, and the inner wall at the bottom of the cleaning chamber is provided with implant slots;

A water storage tank with a water injection port and a water outlet is arranged inside the second connecting rod, and the water storage tank is connected with the cleaning chamber through the water outlet.

Optionally, the application buttons include a first switch button, a first steering button, a first speed regulation button, a second switch button, a second steering button, a second speed regulation button, a water control button, and a retractable button.

Optionally, the cleaning and grinding mechanism also includes a first protective cap and a second protective cap; the first protective cap is snap-connected with the handle to encapsulate and protect the grinding drill bit; the second protective cap is connected to the handle The snap connection seals and protects the cleaning chamber.

Optionally, the inner wall of the cleaning chamber is provided with a rotatable hollow sleeve, and the inner surface of the hollow sleeve is provided with cleaning brushes with telescopic rods, and the number of cleaning brushes is not less than two.

Optionally, a turntable is provided on the inner wall at the top of the cleaning chamber, and a cleaning brush with a telescopic rod is provided on the inner surface of the turntable.

Optionally, the first switch button is used to control the start and stop of the drill bit, the first steering button is used to control the rotation direction of the drill bit, and the first speed control button is used to control the rotation speed gear of the drill bit.

Optionally, the second switch button is used to control the cleaning start and stop of the cleaning brush in the cleaning chamber, the second steering button is used to control the rotation direction of the cleaning brush in the cleaning chamber, and the second speed control button is used to control the cleaning of the cleaning chamber. Rotation speed gear of inner cleaning brush.

Optionally, the water control button is used to open and close the water outlet of the water storage tank, and the telescopic button is used to control the expansion and contraction of the telescopic rod.

Optionally, the length of the handle is not greater than 10 cm; the length of the first connecting rod and the second connecting rod are the same and not greater than 5 cm.

Optionally, the cross-sectional diameter of the cleaning chamber is no less than 2 cm, and the length of the grinding drill bit is no more than 2 cm.

(3) Beneficial effects

First, the oral implant cleaning and grinding mechanism described in the utility model can complete the whole set of implant cleaning and grinding operation process, which is simple, convenient and easy to use;

Second, by setting up a cleaning chamber, a plurality of cleaning brushes with adjustable speed and steering can be installed in all directions in the cleaning chamber, and a water storage tank can be set in conjunction with it to achieve more efficient and thorough cleaning of dental implants.

Description of drawings

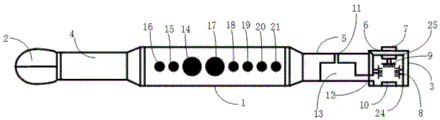

Fig. 1 is a structural schematic diagram of an oral implant cleaning and polishing mechanism provided in an embodiment of the present invention;

Fig. 2 is a schematic cross-sectional view of a cleaning chamber provided by an embodiment of the present invention;

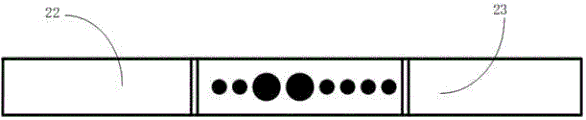

Fig. 3 is a schematic structural diagram of a cleaning and polishing mechanism for oral implants in a non-use state provided by an embodiment of the present invention.

The symbols in Figures 1 to 3 above include:

Handle-1, Grinding Drill Bit-2, Cleaning Chamber-3, First Connecting Rod-4, Second Connecting Rod-5, Spring Door-6, Opening Button-7, Telescopic Rod-8, Cleaning Brush- 9. Implant socket-10, water injection port-11, water outlet-12, water storage tank-13, first switch button-14, first steering button-15, first speed control button-16, second switch button -17, second steering button-18, second speed control button-19, water control button-20, telescopic button-21, first protective cap-22, second protective cap-23, hollow sleeve-24, turntable -25.

Implementation

In order to better explain the present invention and facilitate understanding, the utility model will be described in detail below through specific implementation modes in conjunction with the accompanying drawings.

The invention provides a cleaning and grinding mechanism for oral implants. By jointly setting a cleaning chamber and a grinding drill, the operation of the entire grinding and cleaning process becomes simpler, more convenient, and easy to use; and a plurality of adjustable Cleaning brushes with rotating speed and steering, and matching water storage tanks to achieve more efficient and thorough cleaning of dental implants.

In order to better understand the above technical solutions, the following will describe the exemplary embodiments of the present utility model in more detail with reference to the accompanying drawings. Although exemplary embodiments of the invention are shown in the drawings, it should be understood that the invention may be embodied in various forms and should not be limited to the embodiments set forth herein. On the contrary, these embodiments are provided so that the present invention can be understood more clearly and thoroughly, and the scope of the present invention can be fully conveyed to those skilled in the art.

Embodiment one

This embodiment proposes a cleaning and polishing mechanism for oral implants. The cleaning and polishing mechanism includes the following components: handle-1, grinding drill bit-2, cleaning chamber-3, first connecting rod-4, second connecting rod-5, and spring type chamber Door-6, opening button-7, telescopic rod-8, cleaning brush-9, implant socket-10, water injection port-11, water outlet-12, water storage tank-13, first switch button-14, second One steering button-15, the first speed regulating button-16, the second switch button-17, the second steering button-18, the second speed regulating button-19, the water control button-20, the retractable button-21, the first protection Cap-22, second protective cap-23, hollow casing-24, turntable-25.

In this embodiment, as shown in Figure 1, the cleaning and grinding mechanism mainly includes a handle 1, a grinding drill 2, and a cleaning chamber 3, wherein the grinding drill 2 is used for grinding the implant, and the cleaning chamber 3 is used for cleaning the implant. Clean; the handle 1 is connected with the grinding drill 2 through the first connecting rod 4, and connected with the cleaning chamber 3 through the second connecting rod 5; the handle 1 is a hollow horizontal cylindrical metal closed structure, the first connecting rod 4 and the second The second connecting rod 5 is a hollow horizontal cylindrical metal closed structure.

In the present embodiment, as shown in Figure 1, the grinding drill bit 2 is an arc cone metal drill bit, and the cleaning bin 3 is a vertical cylindrical metal closed structure with a spring door 6 at the top; The opening button 7, the top inner wall and the inner wall of the cleaning chamber 3 are provided with a cleaning brush 9 with a telescopic rod 8, and the inner wall of the bottom end of the cleaning chamber 3 is provided with an implant slot 10; specifically, as shown in Figure 2, the cleaning chamber 3 inner wall A rotatable hollow sleeve 24 is provided, and the inner surface of the hollow sleeve 24 is provided with cleaning brushes 9 with telescopic rods 8, and the number of cleaning brushes 9 is not less than two. The inner wall at the top of the cleaning chamber 3 is provided with a turntable 25, and the inner surface of the turntable 25 is provided with a cleaning brush 9 with a telescopic rod 8.

In this embodiment, as shown in FIG. 1 , a water storage tank 13 with a water injection port 11 and a water outlet 12 is provided inside the second connecting rod 5 , and the water storage tank 13 is connected to the cleaning chamber 3 through the water outlet 12 .

In this embodiment, in order to be easy to carry and operate, the length of the handle 1 is not more than 10cm, the length of the first connecting rod 4 and the second connecting rod 5 are the same and not more than 5cm; the length of the grinding drill 2 is not more than 2cm, clean The cross-sectional diameter of the bin 3 is not less than 2 cm.

In this embodiment, a power supply device and a controller are embedded in the handle 1, and an application button is embedded on the surface of the handle 1, and the controller is electrically connected with the application button, the grinding drill 2, and the cleaning chamber 3, and then it can be realized by pressing the application button. realize the corresponding function. The application buttons include a first switch button 14, a first turn button 15, a first speed control button 16, a second switch button 17, a second turn button 18, a second speed control button 19, a water control button 20, and a retractable button 21; Specifically, the start and stop of the grinding drill 2 is controlled by the first switch button 14, the rotation direction of the grinding drill 2 is controlled by the first steering button 15, and the rotation speed gear of the grinding drill 2 is controlled by the first speed regulating button 16; The second switch button 17 controls the cleaning start and stop of the cleaning brush 9 in the cleaning bin 3, controls the rotation direction of the cleaning brush 9 in the cleaning bin 3 by the second steering button 18, and controls the cleaning in the cleaning bin 3 by the second speed regulating button 19. The rotation speed gear of the brush 9; the water outlet 12 of the water storage tank 13 is opened and closed by the water control button 20, and the expansion and contraction of the telescopic rod 8 is controlled by the telescopic button 21.

In the present embodiment, as shown in FIG. 3 , the cleaning and grinding mechanism also includes a first protective cap 22 and a second protective cap 23; Encapsulation and protection: the second protective cap 23 is snap-connected with the handle 1 to realize the encapsulation and protection of the cleaning chamber 3 .

Based on the oral implant cleaning and grinding mechanism described in Embodiment 1, by jointly setting the cleaning chamber and the grinding drill, the operation of the entire grinding and cleaning process becomes simpler, more convenient, and easy to use; There are three cleaning brushes with adjustable speed and direction, and a water storage tank is set in conjunction with it to achieve more efficient and thorough cleaning of dental implants.

Embodiment two

This embodiment proposes a method for using the oral implant cleaning and polishing mechanism, which specifically includes:

When it is necessary to polish the dental implant, open the first protective cap 22, press the first switch button 14 to start the grinding drill 2, and polish the dental implant to be polished; if the current grinding speed is too fast or too slow, then Press the first speed regulating button 16 to adjust the drill bit of the grinding drill 2; when grinding the different positions of the dental implant, if the rotation direction of the current grinding drill 2 needs to be changed, first press the first switch button 14 Stop the operation of the grinding drill 2, and then adjust the rotation direction of the grinding drill 2 by sequentially pressing the first switch button 14 and the second steering button 18 after the grinding drill 2 stops running.

When the dental implant needs to be cleaned, the second protective cap 23 is opened, the spring door 6 is opened by pressing the opening button 7, and the dental implant to be cleaned is placed on the implant slot 10 for fixing, and then Adjust the degree of expansion and contraction of the telescopic rod 8 by pressing the telescopic button 21 to adapt to the cleaning work of the current dental implant, then inject an appropriate amount of water into the cleaning chamber 3 by pressing the water control button 20, and after completing all the aforementioned tasks, close the spring Spring door 6, start the cleaning work by pressing the second switch button 17, spring door 6 is provided with an observation window of transparent material, through the observation window to check the cleaning situation in the cleaning chamber 3, if necessary, increase or reduce the cleaning intensity , then press the second speed regulating button 19 to adjust the rotation speed gear of the cleaning brush 9 in the cleaning chamber 3; After the cleaning brush 9 stops working, the rotation direction of the cleaning brush 9 is adjusted by sequentially pressing the second switch button 17 and the second steering button 18 .

The rotation directions of the aforementioned grinding drill bit 2 and cleaning brush 9 include clockwise and counterclockwise.

Based on the method of using the oral implant cleaning and grinding mechanism described in Example 2, by jointly setting the cleaning chamber and the grinding drill, the operation of the entire grinding and cleaning process becomes simpler, more convenient, and easy to use; Multiple cleaning brushes with adjustable rotation speed and direction are set in azimuth, and water storage tanks are set in conjunction with each other to achieve more efficient and thorough cleaning of dental implants.

It should be noted that, in the claims, any reference signs placed between parentheses shall not be construed as limiting the claim. The word "comprising" does not exclude the presence of elements or steps not listed in a claim. The word "a" or "an" preceding an element does not exclude the presence of a plurality of such elements. The use of the words first, second, third, etc. is for convenience of presentation only and does not indicate any order. These words are to be understood as part of the name of the part.

In addition, it should be noted that in the description of this specification, descriptions of terms such as "one embodiment", "some embodiments", "embodiment", "example", "specific example" or "some examples" are It means that the specific features, structures, materials or characteristics described in conjunction with this embodiment or example are included in at least one embodiment or example of the present invention. In this specification, the schematic representations of the above terms are not necessarily directed to the same embodiment or example. Furthermore, the described specific features, structures, materials or characteristics may be combined in any suitable manner in any one or more embodiments or examples. In addition, those skilled in the art can combine and combine different embodiments or examples and features of different embodiments or examples described in this specification without conflicting with each other.

Although preferred embodiments of the present invention have been described, those skilled in the art can make additional changes and modifications to these embodiments after learning the basic inventive concepts. Therefore, the claims should be interpreted as including the preferred embodiments and all changes and modifications falling within the scope of the present invention.

Obviously, those skilled in the art can make various modifications and variations to the utility model without departing from the spirit and scope of the utility model. In this way, if these modifications and variations of the utility model fall within the scope of the claims of the utility model and equivalent technologies thereof, the utility model should also include these modifications and variations.

Claims (10)

1. The cleaning and polishing mechanism for the oral implant is characterized by comprising a grab handle (1), a polishing drill (2) and a cleaning bin (3); one end of the grab handle (1) is connected with the polishing drill bit (2) through a first connecting rod (4), and the other end of the grab handle (1) is connected with the cleaning bin (3) through a second connecting rod (5);

the grab handle (1) is of a hollow horizontal cylinder metal sealing structure, and the first connecting rod (4) and the second connecting rod (5) are of a hollow horizontal cylinder metal sealing structure; the power supply equipment and the controller are embedded in the grab handle (1), an application button is embedded on the surface of the grab handle (1), and the controller is electrically connected with the application button, the polishing drill bit (2) and the cleaning bin (3);

the polishing drill bit (2) is an arc cone metal drill bit, and the cleaning bin (3) is of a vertical cylinder metal closed structure with a spring bin door (6) at the top end; the outer side of the top end of the cleaning bin (3) is provided with a bin opening button (7), the inner wall of the top end of the cleaning bin (3) and the inner wall are provided with cleaning brushes (9) with telescopic rods (8), and the inner wall of the bottom end of the cleaning bin (3) is provided with an implant slot (10);

a water storage tank (13) with a water filling port (11) and a water outlet (12) is arranged in the second connecting rod (5), and the water storage tank (13) is connected with the cleaning bin (3) through the water outlet (12).

2. The cleaning and polishing mechanism according to claim 1, wherein the application buttons comprise a first switch button (14), a first steering button (15), a first throttle button (16), a second switch button (17), a second steering button (18), a second throttle button (19), a water control button (20), and a telescoping button (21).

3. The cleaning and polishing mechanism according to claim 1, further comprising a first protective cap (22) and a second protective cap (23); the first protective cap (22) is in buckling connection with the grab handle (1) to package and protect the grinding drill bit (2); the second protective cap (23) is connected with the grab handle (1) in a buckling way, and encapsulates and protects the cleaning bin (3).

4. The cleaning and polishing mechanism according to claim 1, wherein the inner wall of the cleaning bin (3) is provided with a rotatable hollow sleeve (24), the inner surface of the hollow sleeve (24) is provided with cleaning brushes (9) with telescopic rods (8), and the number of the cleaning brushes (9) is not less than 2.

5. The cleaning and polishing mechanism according to claim 1, wherein a turntable (25) is arranged on the inner wall of the top end of the cleaning bin (3), and 1 cleaning brush (9) with a telescopic rod (8) is arranged on the inner surface of the turntable (25).

6. A cleaning and polishing mechanism according to claim 2, characterized in that the first switch button (14) is used for controlling the start and stop of the polishing bit (2), the first steering button (15) is used for controlling the rotational direction of the polishing bit (2), and the first speed control button (16) is used for controlling the rotational speed gear of the polishing bit (2).

7. A cleaning and polishing mechanism according to claim 2, characterized in that the second switch button (17) is used for controlling the start and stop of cleaning of the cleaning brush (9) in the cleaning bin (3), the second turn button (18) is used for controlling the rotation direction of the cleaning brush (9) in the cleaning bin (3), and the second speed regulating button (19) is used for controlling the rotational speed level of the cleaning brush (9) in the cleaning bin (3).

8. A cleaning and polishing mechanism according to claim 2, wherein the water control button (20) is used for opening and closing the water outlet (12) of the water storage tank (13), and the telescopic button (21) is used for controlling the telescopic rod (8) to be telescopic.

9. A cleaning and polishing mechanism according to claim 1, characterized in that the length of the grip (1) is not more than 10cm; the lengths of the first connecting rod (4) and the second connecting rod (5) are the same and are not more than 5cm.

10. A cleaning and sharpening mechanism as claimed in claim 1, characterized in that the cross-sectional diameter of the cleaning magazine (3) is not less than 2cm, the length of the sharpening bit (2) being not more than 2cm.
