CN219334484U - Horizontal bead mill for preparing paint - Google Patents

Abstract

The utility model discloses a horizontal bead mill for paint preparation, relates to the technical field of bead mills, and comprises a base, a second driving motor is arranged above the base, and a driving gear is connected to one side of the second driving motor. The gears are externally connected with a double-sided toothed conveyor belt. The utility model starts the second driving motor by setting the second driving motor, driving gear, double-sided toothed conveyor belt, first driven gear, second driven gear, first grinding roller, and second grinding roller, so that the second The driving motor drives the driving gear to rotate, and under the rotation of the driving gear, it drives the double-sided toothed conveyor belt to drive, and the double-sided toothed conveyor belt drives the internal first driven gear to rotate, and also drives the external second driven gear to rotate, so that The first grinding roller and the second grinding roller rotate, and the reverse rotation between the first grinding roller and the second grinding roller can carry out secondary grinding on the discharged material, thereby greatly improving the grinding effect on the material.

Description

A kind of horizontal bead mill for coating preparation

technical field

The utility model relates to the technical field of bead mills, in particular to a horizontal bead mill for coating preparation.

Background technique

Such as a patent: a horizontal bead mill for coating preparation (notification number: CN215029569U) includes a base, a nozzle and a baffle, the upper end of the base is provided with a fixed frame, the upper end of the fixed frame is provided with a bracket, and the right end of the bracket on the left side is provided with a There is a motor, the right end of the motor is provided with a rotating rod, the rotating rod is covered with a stirring sleeve, and a bead mill barrel is arranged on the stirring sleeve. When in use, put the material and grinding medium into the bead mill barrel through the feeding port, and start the motor to drive the rotating rod, connecting rod, stirring sleeve and stirring blade to rotate, so that the material and grinding medium can be fully stirred evenly, and at the same time through the stirring blade and The combination of the grinding disc structure makes the material fully ground, and then starts the vibration motor. Through the combination of the set bracket, the fixed frame and the spring structure, the vibration motor drives the bead mill barrel to vibrate, improving the mixing efficiency and avoiding the barrel wall. Large quantities of materials and grinding media.

There is an existing horizontal bead mill for coating preparation. Although the material can be ground, the shape of the material is bead-shaped. There is rolling friction between the pressing equipment, so the grinding effect is poor and the efficiency is low. Therefore, it is necessary to invent a kind of coating preparation horizontal bead mill to solve the above problems.

Utility model content

The purpose of this utility model is to provide a horizontal bead mill for coating preparation to solve the problems of poor grinding effect and low efficiency in the above-mentioned background technology.

In order to achieve the above object, the utility model provides the following technical solutions: a horizontal bead mill for coating preparation, including a base, and a second driving motor is arranged above the base, wherein the second driving motor is the motor of the first rotating shaft. Rotation provides power, and one side of the second drive motor is connected with a driving gear, wherein the driving gear plays a role in driving a double-sided toothed conveyor belt, and the outside of the driving gear is connected with a double-sided toothed conveyor belt. Both the inner wall and the outer wall of the toothed conveyor belt are provided with tooth patterns, wherein the double-sided toothed conveyor belt plays the role of driving the first driven gear and the second driven gear to rotate, and the inside of the double-sided toothed conveyor belt is connected with the second A driven gear, the first driven gear coincides with the tooth pattern on the inner wall of the double-sided toothed conveyor belt, wherein the first driven gear plays the role of driving the rotating rod to rotate, thereby driving the first grinding roller to rotate, the One side of the first driven gear is connected with the first grinding roller, and the outer wall of the double-sided toothed conveyor belt is connected with the second driven gear, wherein the second driven gear plays the role of driving the second grinding roller to rotate, so A second grinding roller is connected to one side of the second driven gear, wherein the first grinding roller and the second grinding roller rotate in opposite directions to play the role of crushing materials.

Preferably, a first fixing frame is fixed above the base, a first driving motor is installed inside the first fixing frame, and a first rotating shaft is connected to one side of the first driving motor, wherein the first fixing The frame plays the role of installing the first drive motor, and the first rotating shaft plays the role of driving the grinding device inside the bead mill bucket for grinding.

Preferably, a bead mill barrel is arranged outside the first rotating shaft, and a feed pipe is connected to the top of the bead mill barrel, wherein the bead mill barrel plays the role of processing and grinding, and the feed pipe plays the role of loading materials .

Preferably, a bearing is connected to the side of the first rotating shaft away from the first driving motor, and a second fixing bracket is fixed on the outside of the bearing, wherein the bearing makes the first rotating shaft rotate inside, and the second fixing frame The frame plays the role of installing the bearing.

Preferably, an arc-shaped support frame is arranged under the bead mill barrel, and there are two groups of arc-shaped support frames, and the two groups of arc-shaped support frames are symmetrically distributed under the bead mill barrel, wherein two groups The arc support frame plays the role of supporting the bead mill bucket.

Preferably, one side of the arc-shaped support frame is provided with a mounting base, one side of the mounting base is provided with a second rotating shaft, one side of the second rotating shaft is provided with a rotating rod, and the rotating rod has Two groups, the rotating rods of the two groups are respectively fixedly connected with the first grinding roller and the second grinding roller, wherein the mounting seat plays the role of fixing the second driving motor, and the second rotating shaft plays the role of driving the driving gear, thereby driving Double-sided toothed conveyor belt for transmission.

Preferably, a feeding pipe is provided outside the second grinding roller, and a receiving box is provided below the feeding pipe, wherein the feeding pipe plays the role of discharging the material inside the bead mill barrel, and the collecting box is arranged below the feeding pipe. The material box plays the role of final collection of the materials after the secondary rolling.

Technical effect and advantage of the present utility model:

By setting the second driving motor, driving gear, double-sided toothed conveyor belt, first driven gear, second driven gear, first grinding roller, and second grinding roller, start the second driving motor, so that the second driving motor drives The driving gear rotates, and under the rotation of the driving gear, it drives the transmission of the double-sided toothed conveyor belt. The double-sided toothed conveyor belt drives the internal first driven gear to rotate, and at the same time drives the external second driven gear to rotate, so that the first grinding Roller and the second grinding roller rotate, and the reverse rotation between the first grinding roller and the second grinding roller can carry out secondary grinding on the discharged material, thereby greatly improving the grinding effect of the material, and the two sets of grinding rollers The rotation can speed up the rate at which the material is discharged into the collecting box, thereby improving the grinding efficiency and the grinding effect.

Description of drawings

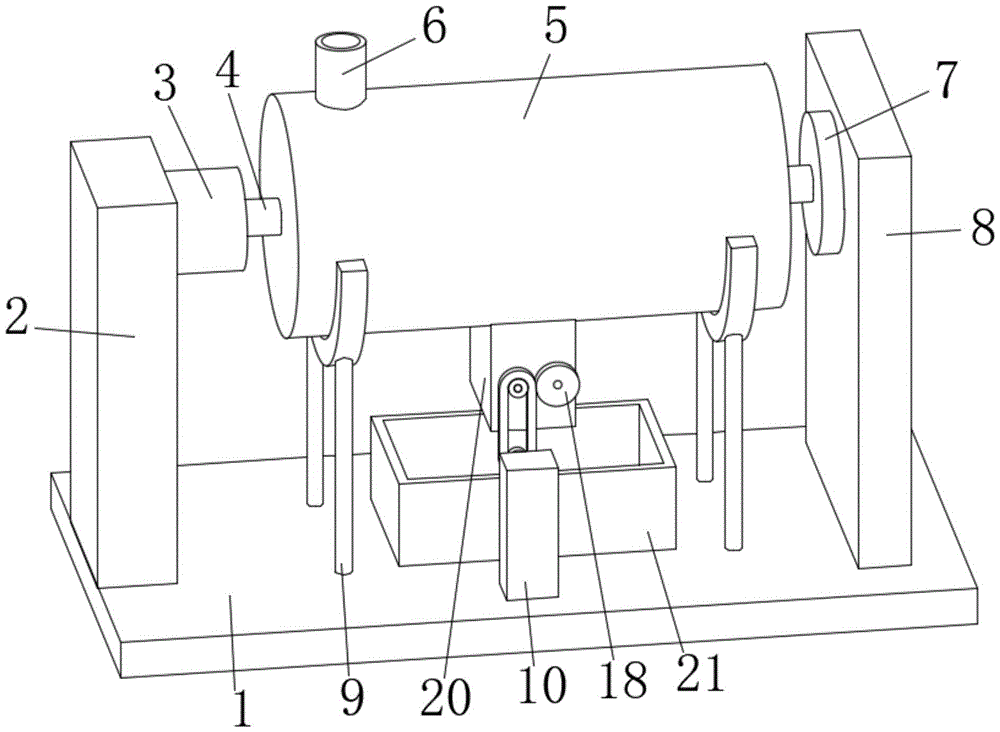

Figure 1 is a schematic diagram of the overall front view of a horizontal bead mill for coating preparation of the present invention.

Fig. 2 is a structural schematic diagram of a secondary grinding mechanism of a horizontal bead mill for coating preparation of the present invention.

Fig. 3 is a schematic top view structure diagram of a horizontal bead mill for coating preparation of the present invention.

Fig. 4 is a schematic side view of the overall structure of a horizontal bead mill for coating preparation of the present invention.

In the figure: 1. base; 2. first fixed frame; 3. first driving motor; 4. first rotating shaft; 5. bead mill barrel; 6. feed pipe; 7. bearing; 8. second fixed frame ; 9, arc-shaped support frame; 10, mounting base; 11, second drive motor; 12, second rotating shaft; 13, driving gear; 14, double-sided toothed conveyor belt; 15, first driven gear; 16, 17, the first grinding roller; 18, the second driven gear; 19, the second grinding roller; 20, the feeding pipe; 21, the receiving box.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

The utility model provides a horizontal bead mill for coating preparation as shown in Figure 1-4, comprising a base 1, a second drive motor 11 is arranged above the base 1, wherein the second drive motor 11 is the first rotating The rotation of the shaft 4 provides power, and one side of the second driving motor 11 is connected with a driving gear 13, wherein the driving gear 13 plays the role of driving the double-sided toothed conveyor belt 14, and the outside of the driving gear 13 is connected with a double-sided toothed conveyor belt 14. Both the inner wall and the outer wall of the double-sided toothed conveyor belt 14 are provided with tooth patterns, wherein the double-sided toothed conveyor belt 14 plays the role of driving the first driven gear 15 and the second driven gear 18 to rotate, and the double-sided toothed conveyor belt The interior of 14 is connected with a first driven gear 15, the first driven gear 15 is consistent with the inner wall of the double-sided toothed conveyor belt 14, wherein the first driven gear 15 plays the role of driving the rotation of the rotating rod 16, thereby driving the second A grinding roller 17 rotates, and one side of the first driven gear 15 is connected with the first grinding roller 17, and the outer wall of the double-sided toothed conveyor belt 14 is connected with the second driven gear 18, wherein the second driven gear 18 plays a driving role. The role of the rotation of the second grinding roller 19, one side of the second driven gear 18 is connected with the second grinding roller 19, wherein the first grinding roller 17 and the second grinding roller 19 rotate in opposite directions to play the role of crushing materials.

The top of the base 1 is fixed with a first fixed mount 2, the inside of the first fixed mount 2 is equipped with a first drive motor 3, and one side of the first drive motor 3 is connected with a first rotating shaft 4, wherein the first fixed mount 2 starts To the effect of installing the first drive motor 3, the first rotating shaft 4 plays a role in driving the grinding device inside the bead mill barrel 5 to grind.

The outside of the first rotating shaft 4 is provided with a bead mill barrel 5, and the top of the bead mill barrel 5 is connected with a feed pipe 6, wherein the bead mill barrel 5 plays the role of processing and grinding, and the feed pipe 6 plays the role of loading materials.

The side of the first rotating shaft 4 away from the first drive motor 3 is connected with a bearing 7, and the outside of the bearing 7 is fixed with a second fixed mount 8, wherein the bearing 7 makes the first rotating shaft 4 rotate inside it, and the second fixed mount 8 Play the effect of installing bearing 7.

The bottom of the bead mill barrel 5 is provided with an arc-shaped support frame 9, and there are two groups of arc-shaped support frames 9. The two groups of arc-shaped support frames 9 are symmetrically distributed below the bead mill barrel 5, and two groups of arc-shaped support frames 9 To support the role of bead mill bucket 5.

One side of the arc support frame 9 is provided with a mounting base 10, and one side of the mounting base 10 is provided with a second rotating shaft 12, and one side of the second rotating shaft 12 is provided with a rotating rod 16, and the rotating rod 16 has two groups, two The group of rotating rods 16 is fixedly connected with the first grinding roller 17 and the second grinding roller 19 respectively, wherein the mounting seat 10 plays the role of fixing the second driving motor 11, and the second rotating shaft 12 plays the role of driving the driving gear 13, thereby Drive the double-sided toothed conveyor belt 14 to drive.

The outside of the second grinding roller 19 is provided with a blanking tube 20, and the bottom of the blanking tube 20 is provided with a receiving box 21, wherein the blanking tube 20 plays the role of blanking the material in the bead mill barrel 5, and the material is collected. The box 21 plays the role of final collection of the materials after secondary rolling.

Working principle: When in use, start the first driving motor 3, so that the first rotating shaft 4 drives the grinding disc to rotate inside the bead mill barrel 5, and then pour the material from the feed pipe 6 into the bead mill barrel 5, and start to grind the material Grind, and then the ground material comes down from the feeding pipe 20, and starts the second driving motor 11, so that the second rotating shaft 12 installed on the second driving motor 11 drives the driving gear 13 to rotate, and the driving gear 13 rotates to drive the double-sided belt tooth The conveyor belt 14 rotates, and the outer wall and the inner wall of the double-sided toothed conveyor belt 14 are indented, which match the teeth of the first driven gear 15 and the second driven gear 18, thereby driving the first driven gear 15 and the second driven gear. The two driven gears 18 rotate, so that the first driven gear 15 and the second driven gear 18 drive the first grinding roller 17 and the second grinding roller 19 to rotate through the rotating rod 16, and the first grinding roller 17 and the second grinding roller 19 rotates in the opposite direction, so that the material is subjected to secondary grinding, and the rotation of the first grinding roller 17 and the second grinding roller 19 can speed up the rate at which the material is discharged into the receiving box 21, thereby improving the grinding efficiency and grinding efficiency. Effect, has realized the function that this a kind of coating preparation uses horizontal bead mill repeatedly to grind like this.

Claims (7)

1. A horizontal bead mill for coating preparation, comprising a base (1), characterized in that: the top of the base (1) is provided with a second drive motor (11), and the second drive motor (11) One side of the drive gear (13) is connected to the outside of the drive gear (13) with a double-sided toothed conveyor belt (14), and the inner and outer walls of the double-sided toothed conveyor belt (14) are provided with tooth patterns , the inside of the double-sided toothed conveyor belt (14) is connected with a first driven gear (15), and the first driven gear (15) coincides with the inner wall of the double-sided toothed conveyor belt (14), One side of the first driven gear (15) is connected with a first grinding roller (17), and the outer wall of the double-sided toothed conveyor belt (14) is connected with a second driven gear (18). One side of the driven gear (18) is connected with a second grinding roller (19). 2. A kind of coating preparation horizontal bead mill according to claim 1, is characterized in that: the top of described base (1) is fixed with first mount (2), and described first mount (2) ) is equipped with a first driving motor (3), and one side of the first driving motor (3) is connected with a first rotating shaft (4). 3. a kind of coating preparation horizontal bead mill according to claim 2 is characterized in that: the outside of described first rotating shaft (4) is provided with bead mill barrel (5), and described bead mill barrel (5 ) is connected with feed pipe (6) at the top. 4. A kind of horizontal bead mill for coating preparation according to claim 2, characterized in that: the side of the first rotating shaft (4) away from the first driving motor (3) is connected with a bearing ( 7), the outside of the bearing (7) is fixed with a second fixing frame (8). 5. A kind of coating preparation horizontal bead mill according to claim 3, is characterized in that: the below of described bead mill barrel (5) is provided with arc support frame (9), and described arc support frame (9) There are two groups, and the arc-shaped support frames (9) of the two groups are symmetrically distributed under the bead mill barrel (5). 6. A kind of horizontal bead mill for coating preparation according to claim 5, characterized in that: one side of the arc support frame (9) is provided with a mount (10), and the mount (10) ) is provided with a second rotating shaft (12), one side of the second rotating shaft (12) is provided with a rotating rod (16), and the rotating rod (16) has two groups, and the two groups of rotating The rods (16) are respectively fixedly connected with the first grinding roller (17) and the second grinding roller (19). 7. a kind of coating preparation horizontal bead mill according to claim 1 is characterized in that: the outside of described second grinding roller (19) is provided with feeding pipe (20), and described feeding pipe ( 20) is provided with a receiving box (21) below.
