Abstract

The utility model discloses a convenient disinfection equipment for a farm, which comprises a base and a disinfection cabinet above the base. The bottom of the base is provided with rollers and a handle is provided on one side. The disinfection cabinet is provided with a partition. One side of the partition is provided with a disinfection box, and the other side is provided with a disinfection pipeline. The disinfection pipeline passes through the partition and is connected to the disinfection box. The disinfection cabinet is provided with an opening on the side away from the handle, and the disinfectant passes through The disinfection pipe is sprayed out at the opening; the farm’s convenient disinfection equipment can spray and disinfect the front and top of the equipment when it is in use, and the upper side can be rotated back and forth to increase the disinfection range. In addition, the direction can be adjusted in time according to the demand, and the overall structure is stable. , easy to control and suitable for popularization.

Description

A convenient disinfection equipment for farms

technical field

The utility model relates to the technical field of breeding disinfection, in particular to a convenient disinfection equipment for breeding farms.

Background technique

Breeding is an industry in which domesticated poultry are bred and bred artificially to obtain meat, eggs, milk, cashmere, etc. During the breeding process, most poultry and livestock are bred in agglomeration and have low immunity. Therefore, it is necessary to disinfect the farm to avoid the growth of bacteria and viruses.

The Chinese utility model whose publication number is CN211050351U discloses a disinfection device for animal husbandry farms, which includes a base plate, the left side of the top of the base plate is fixedly connected with a box, and the right side of the top of the base plate is fixedly connected with a water pump. The right side of the bottom plate top is movably connected with a water spray plate through a rotating rod, the top of the left side of the water spray plate is fixedly connected with a connecting block, and the opposite side of the connecting block is fixedly connected with a slide bar. It improves the user's experience of the disinfection device used in livestock farms, and solves the problem that the disinfection device used in livestock farms cannot adjust the spraying angle in the past.

However, when the above-mentioned disclosed disinfection device is in use, its disinfection range is small, and the disinfection pipeline cannot be adjusted according to the demand. The effect of disinfection on the corners of the farm is relatively poor, and it is inconvenient to use. It does not meet the needs for comprehensive disinfection of the farm.

Utility model content

The purpose of this utility model is to solve the above problems and provide a device that can spray and disinfect the front and top of the equipment during use, and can reciprocate and rotate to increase the disinfection range during disinfection on the top. In addition, the direction can be adjusted in time according to needs, and the overall structure is stable. Control simple farm convenience disinfection equipment.

In order to achieve the above purpose, the technical solution of the utility model is: a convenient disinfection equipment for farms, including a base and a disinfection cabinet above the base, the bottom of the base is provided with rollers and a handle is provided on one side, the The disinfection cabinet is provided with a partition, one side of the partition is provided with a disinfection box, and the other side is provided with a disinfection pipeline, and the disinfection pipeline passes through the partition to connect with the disinfection box. The side is provided with an opening, and the disinfectant is sprayed from the opening through the disinfecting pipe.

Preferably, the sterilizing pipeline includes a first sterilizing tube and a second sterilizing tube, valves are respectively arranged on the first sterilizing tube and the second sterilizing tube, and the first sterilizing tube and the second sterilizing tube can be individually or simultaneously Open.

Preferably, one end of the first disinfection pipe passes through the partition and communicates with the disinfection box, and the other end is bent at the bottom of the disinfection cabinet, and a plurality of first disinfection branch pipes are uniformly arranged on the first disinfection pipe. A disinfection branch pipe is perpendicular to the first disinfection pipe.

Preferably, one end of the second disinfection pipe passes through the partition and communicates with the disinfection box, and the other end extends upwards out of the disinfection cabinet, the second disinfection pipe communicates with the second disinfection branch pipe through a rotary joint, and the second disinfection pipe The branch pipe reciprocates through the transmission mechanism.

Preferably, the surfaces of the first branch disinfection pipe and the second branch disinfection pipe are respectively provided with atomization holes.

Preferably, the transmission mechanism includes a stepping motor, a gear shaft and a transmission gear, the stepping motor is fixed on the upper surface of the disinfection cabinet, the gear shaft is connected with the stepping motor and parallel to the second disinfection branch pipe, the The transmission gear is fixed on the circumference of the second disinfection branch pipe, wherein the gear shaft is engaged with the transmission gear, and the second disinfection branch pipe is driven to rotate when the stepper motor rotates.

Preferably, one side of the disinfection box is provided with a liquid injection port and a liquid discharge port, the liquid injection port and the liquid discharge port are in a normally closed state, and the disinfection direction of the disinfection cabinet is adjustable.

Preferably, the bottom of the disinfection cabinet is provided with a turntable, the base is provided with a built-in motor, and the built-in motor drives the disinfection cabinet to rotate through the turntable.

The utility model discloses a convenient disinfection equipment for farms, which includes a base and a disinfection cabinet above the base. The bottom of the base is provided with rollers and a handle is provided on one side. The disinfection cabinet is provided with a partition. One side of the partition is provided with a disinfection box, and the other side is provided with a disinfection pipeline. The disinfection pipeline passes through the partition and is connected to the disinfection box. The disinfection cabinet is provided with an opening on the side away from the handle, and the disinfectant passes through The disinfection pipeline sprays out at the opening; compared with the prior art, the convenient disinfection equipment for the farm has the ability to spray and disinfect the front and top of the equipment when in use, and can reciprocate to increase the disinfection range during disinfection at the top, and the other direction can It can be adjusted in time according to the demand, the overall structure is stable, and the control is simple and beneficial.

Description of drawings

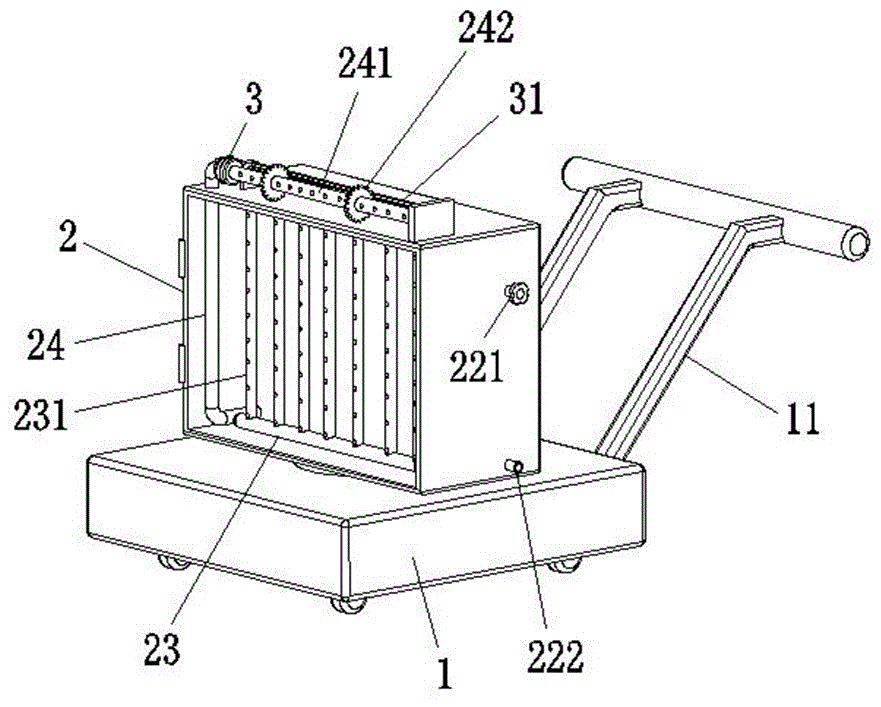

Fig. 1 is a structural schematic diagram 1 of a convenient disinfection equipment for a farm of the present invention.

Fig. 2 is a structural schematic diagram 2 of a convenient disinfection equipment for a farm of the present invention.

Fig. 3 is a schematic diagram of the internal structure of a disinfection cabinet in a convenient disinfection equipment for a farm according to the present invention.

Fig. 4 is a schematic diagram of the connection structure between the gear shaft and the transmission gear in a convenient disinfection equipment for farms according to the present invention.

In the figure: 1, base; 11, handle; 2, disinfection cabinet; 21, partition; 22, disinfection box; 221, liquid injection port; 222, liquid discharge port; Disinfection branch pipe; 24, the second disinfection pipe; 241, the second disinfection branch pipe; 242, transmission gear; 3, stepping motor; 31, gear shaft; 4, turntable.

Detailed ways

Now in conjunction with accompanying drawing, the utility model is described in further detail. The accompanying drawings are simplified schematic diagrams, which only schematically illustrate the basic structure of the utility model, so they only show the configurations related to the utility model.

Please refer to Figures 1-4, a convenient disinfection equipment for farms, including a base 1 and a disinfection cabinet 2 above the base 1, the bottom of the base 1 is provided with rollers and a handle 11 is provided on one side, which can be used during use. The device is pushed to the disinfection position by the handle 11 and the rollers, the disinfection cabinet 2 is provided with a partition 21, one side of the partition 21 is provided with a disinfection box 22, and the other side is provided with a disinfection pipeline, and the disinfection pipeline Pass through the partition 21 and connect with the disinfection box 22, wherein the disinfection box 22 is provided with a pressure pump, and the pressure pump sprays the internal disinfectant from the disinfection pipeline. The liquid is sprayed out at the opening through the disinfection pipe, so as to play a disinfection role.

In the solution of the utility model, the disinfection pipeline includes a first disinfection tube 23 and a second disinfection tube 24, and valves are respectively arranged on the first disinfection tube 23 and the second disinfection tube 24, and the first disinfection tube 23 and the second sterilizing tube 24 can be opened separately or simultaneously, and can be selected and used according to requirements.

Specifically, one end of the first disinfection tube 23 passes through the partition 21 and communicates with the disinfection box 22, and the other end is bent at the bottom of the disinfection cabinet 2, and the first disinfection tube 23 is evenly provided with a plurality of first disinfection tubes. Branch pipe 231, the first disinfection branch pipe 231 is perpendicular to the first disinfection pipe 23, please refer to Figure 3 again, the first disinfection branch pipe 231 is vertically distributed in the disinfection cabinet 2, and passes through the first disinfection branch pipe 231 after starting the built-in pump Spray disinfectant outward; In addition, one end of the second disinfection tube 24 passes through the partition 21 and communicates with the disinfection box 22, and the other end extends upwards and stretches out the disinfection cabinet 2, and the second disinfection tube 24 is connected to the disinfection cabinet through a rotary joint The second disinfection branch pipe 241 is connected, and the second disinfection branch pipe 241 is reciprocatingly rotated by the transmission mechanism. When the second disinfection branch pipe 241 is reciprocatingly rotating above the disinfection cabinet 2, it can further increase the spray disinfection space and improve the disinfection efficiency; The surfaces of the first disinfection branch pipe 231 and the second disinfection branch pipe 241 are respectively provided with atomization holes. During use, the first disinfection branch pipe 231 sprays and disinfects to the front, and the second disinfection branch pipe 241 sprays and disinfects to the front.

Wherein said transmission mechanism comprises stepping motor 3, gear shaft 31 and transmission gear 242, and described stepping motor 3 is fixed on the upper surface of disinfection cabinet 2, and described gear shaft 31 is connected with stepping motor 3 and is connected with the second sterilizer. The branch pipes 241 are parallel, and the transmission gear 242 is fixed on the circumference of the second disinfection branch pipe 241, wherein the gear shaft 31 is meshed with the transmission gear 242, and the second disinfection branch pipe 241 is driven to rotate when the stepper motor 3 rotates.

Wherein the stepper motor 3 drives the second disinfection branch pipe 241 to rotate reciprocally in the range of 0-90° through the gear shaft 31, that is to say, the disinfection direction of the second disinfection branch pipe 241 can be adjusted in the range of 0-90°, and the disinfection direction can be If it is fixed, it can also be rotated back and forth for disinfection to increase the scope of disinfection.

As a preferred solution, one side of the disinfection box 22 is provided with a liquid injection port 221 and a liquid discharge port 222, and the liquid injection port 221 and the liquid discharge port 222 are in a normally closed state, and the disinfectant is injected into the liquid injection port 221 for disinfection. box 22, the remaining disinfectant can be discharged from the liquid discharge port 222, and the disinfection direction of the disinfection cabinet 2 is adjustable. The bottom of the disinfection cabinet 2 is provided with a turntable 4, the base 1 is provided with a built-in motor, and the built-in motor drives the disinfection cabinet 2 to rotate through the turntable 4. At this time, the disinfection cabinet 2 can be rotated 360°, and can be used for each farm. The corners are disinfected in place to meet the needs of use.

Wherein the switch of the stepper motor 3, the switch of the built-in motor and the switch of the pump machine in the disinfection box are all located on the handle 11, and the disinfection is controlled when the device is driven as a whole to move, and it is easy to use.

When this novel farm facilitates disinfection equipment in use, the disinfectant is injected into the disinfection box 22 at the liquid injection port 221, and the first disinfection tube 23 and/or the second disinfection tube 24 are opened at first, and the disinfectant will flow from the first disinfection branch pipe 231 And/or the second disinfection branch pipe 241 sprays out, when needing spraying disinfection on the disinfection cabinet 2, drive the stepping motor 3, the stepping motor 3 drives the second disinfection branch pipe 241 to reciprocate and rotate through the gear shaft 31 and the transmission gear 242, thereby It meets the disinfection requirements above; in addition, when the equipment is moved to the corner of the farm as a whole, it is not convenient to spray and disinfect at the corner. At this time, the built-in motor is driven, and the disinfection cabinet 2 is driven to rotate as a whole through the built-in motor and the turntable 4, which increases the range to meet the use.

Apparently, the above-mentioned embodiments are only examples for clear description, rather than limiting the implementation. For those of ordinary skill in the art, other changes or changes in different forms can be made on the basis of the above description. It is not necessary and impossible to exhaustively list all the implementation manners here. And the obvious changes or variations derived therefrom are still within the scope of protection of the utility model.

Claims (8)

1. A convenient disinfection equipment for farms, comprising a base and a disinfection cabinet above the base, the bottom of the base is provided with rollers and one side is provided with a handle, it is characterized in that a partition is provided in the disinfection cabinet , one side of the partition is provided with a disinfection box, and the other side is provided with a disinfection pipeline. Spray on opening through sanitized tubing. 2. The convenient disinfection equipment for farms according to claim 1, wherein the disinfection pipeline comprises a first disinfection tube and a second disinfection tube, and valves are respectively arranged on the first disinfection tube and the second disinfection tube , the first sterilizing tube and the second sterilizing tube can be opened individually or simultaneously. 3. The convenient disinfection equipment for farms according to claim 2, wherein one end of the first disinfection tube passes through the partition and communicates with the disinfection box, and the other end bends at the bottom of the disinfection cabinet, and the first disinfection tube A plurality of first disinfection branch pipes are uniformly arranged on the pipe, and the first disinfection branch pipes are perpendicular to the first disinfection pipe. 4. The convenient disinfection equipment for farms according to claim 3, wherein one end of the second disinfection tube passes through the partition and communicates with the disinfection box, and the other end extends upwards out of the disinfection cabinet, and the second disinfection tube The pipe communicates with the second disinfection branch pipe through the rotary joint, and the second disinfection branch pipe rotates back and forth through the transmission mechanism. 5. The convenient disinfection equipment for farms according to claim 4, characterized in that, the surfaces of the first branch disinfection pipe and the second branch disinfection pipe are respectively provided with atomization holes. 6. The convenient disinfection equipment for farms according to claim 4, wherein the transmission mechanism comprises a stepper motor, a gear shaft and a transmission gear, the stepper motor is fixed on the upper surface of the disinfection cabinet, and the gear The shaft is connected with the stepper motor and is parallel to the second disinfection branch pipe. The transmission gear is fixed on the circumference of the second disinfection branch pipe, wherein the gear shaft is meshed with the transmission gear. When the stepper motor rotates, it drives the second disinfection branch pipe to rotate. 7. The convenient disinfection equipment for farm according to claim 1, characterized in that, one side of the disinfection box is provided with a liquid injection port and a liquid discharge port, and the liquid injection port and the liquid discharge port are in a normally closed state, The disinfection direction of the disinfection cabinet is adjustable. 8. The convenient disinfection equipment for farms according to claim 7, characterized in that, the bottom of the disinfection cabinet is provided with a turntable, the base is provided with a built-in motor, and the built-in motor drives the disinfection cabinet to rotate through the turntable.
