Abstract

The utility model discloses a vision care training instrument, which relates to the technical field of vision care and aims to solve the problem that the functions of some training instruments used in vision care are too single, and it is impossible to perform training in multiple directions, which makes the training effect unsatisfactory The main point of the technical solution is to include a box body and a first electric slide rail, a first electric slide block is installed on the outside of the first electric slide rail, and a second electric slide block is installed on the outside of the second electric slide rail. As for the slider, the outer side of the second electric slider is fixedly connected with a luminous panel, and the center of the groove is fixedly connected with a training display screen. The effects of improving vision care training and being convenient to use are achieved.

Description

A vision care training instrument

technical field

The utility model relates to the technical field of vision care, in particular to a vision care training instrument.

Background technique

Vision care refers to health care measures that prevent the occurrence of eye diseases that hinder the development of visual function and damage visual function, treat non-organic eye diseases that affect visual function, organic eye diseases in the rehabilitation period, and ocular adverse symptoms, and promote the normal development and recovery of visual function. To sum up, through coordinated exercise, the paralyzed and stiff state of the eye muscles can be relieved, making them strong and flexible, thereby improving the adjustment ability of the eye muscles, and finally achieving the clear imaging of objects on the retina and restoring vision.

The above-mentioned prior art solutions have the following defects: the functions of some training instruments used for vision care are too single, and it is impossible to realize the training of moving in multiple directions, making the training effect unsatisfactory.

Utility model content

The purpose of the utility model is to provide a vision care training instrument which can improve the training effect.

In order to achieve the above object, the utility model provides the following technical solutions:

A vision care training instrument, comprising a box body and a first electric slide rail, a first electric slide block is installed on the outside of the first electric slide rail, the upper end of the first electric slide block is fixedly connected with a bracket, the The upper end of the bracket is fixedly connected with a mounting plate, and the inside of the mounting plate is provided with a groove, and the inside of the groove is fixedly connected with a second electric slide rail, and a second electric slide rail is installed on the outside of the second electric slide rail. block, the outer side of the second electric slider is fixedly connected with a luminous panel, and the center of the groove is fixedly connected with a training display screen.

By adopting the above-mentioned technical scheme, the circular second electric slide rail and the second electric slider control the light-emitting board to rotate slowly, which can drive the user's eyeballs to follow the rotation, thereby exercising the muscles of the eyes and maintaining vision. The purpose of this method is to simultaneously move the training device laterally through the first electric slide rail and the first electric slide block, thereby improving the training effect.

Further, the inside of the box body is fixedly connected with a translation mechanism, the outer side of the translation mechanism is fixedly connected with a carrier plate, the outer side of the box body is provided with a window, and the outer side of the window is fixedly connected with a rubber pad. The outer side of the box body is fixedly connected with the adjustment assembly at the lower end of the window.

By adopting the above-mentioned technical scheme, the training device is driven to move longitudinally through the translation mechanism, and at the same time, two sets of front and rear windows can be used to satisfy two users to perform vision training at the same time.

Further, the first electric slide rail is fixedly installed on the upper end of the carrier board, the first electric slide rail is slidably connected with the first electric slide block, and the groove, the second electric slide rail, and the second electric slide block There are two groups of luminous panels and training display screens arranged symmetrically about the vertical center line of the mounting plate, and six of the second electric sliders and luminous panels in each group are distributed in a ring at equal intervals, and the second electric slide rail adopts With a circular structure design, the second electric slide rail is slidably connected to the second electric slider.

By adopting the above technical scheme, the rotation of the luminescent board can drive the user's eye muscles to exercise, thereby achieving the purpose of vision care.

Further, the inside of the translation mechanism includes a mounting base, a motor, a screw and a movable block, the inside of the mounting base is fixedly connected to a motor, and the output end of the motor is fixedly connected to a screw rod inside the mounting base, A movable block is arranged on the outer side of the screw rod, the screw rod and the movable block are threadedly connected, the movable block is slidingly connected to the mounting seat, and the screw rod and the mounting seat are rotationally connected through a bearing.

By adopting the above technical scheme, the motor drives the screw rod to realize longitudinal translation, which improves the stability of the structure and makes the operation more convenient and quick.

Further, the inside of the adjusting assembly includes a mounting block, a screw and a chin rest, the inside of the mounting block is provided with a screw, and the upper end of the screw is provided with a chin rest.

By adopting the above-mentioned technical solution, by manually adjusting the position of the screw rod, the height of the chin rest can be controlled, and adaptive adjustment can be performed according to different users.

Further, the installation block is fixedly installed on the outside of the box body, the screw rod is screwed to the installation block, and the chin rest and the screw rod are rotatably connected through a bearing.

By adopting the above technical scheme, the structure of the adjustment assembly is simple, and the operation is convenient and fast.

In summary, the beneficial technical effects of the utility model are:

1. Electric slide rails and electric sliders are adopted. Through two sets of different electric slide rails and electric sliders, one group realizes lateral movement, and the other group realizes rotation, so as to exercise the user's eye muscles. At the same time, symmetrically set The structure can meet the vision training of two people at the same time, and produce the effect of improving vision care training;

2. The adjustment component is adopted, and the height position of the chin rest can be raised by manually rotating the screw, resulting in a convenient use effect.

Description of drawings

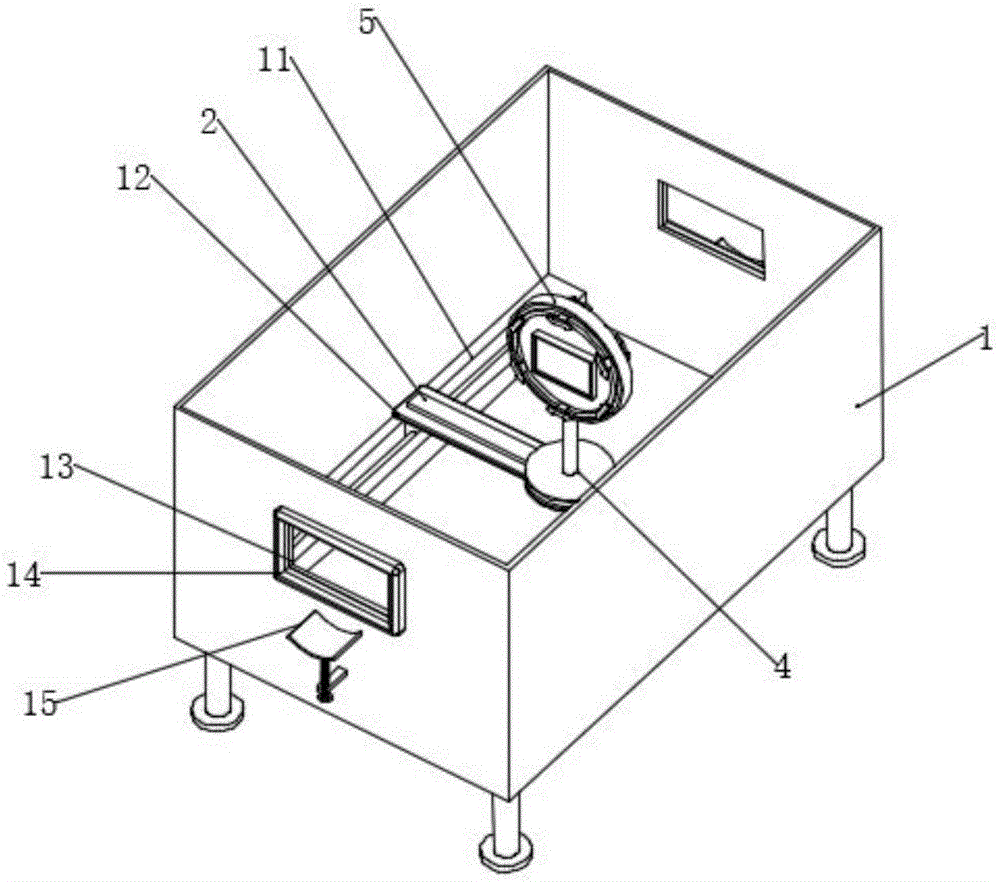

Fig. 1 is a schematic diagram of the overall structure of the utility model;

Fig. 2 is a schematic cross-sectional structure diagram of the translation mechanism of the present invention;

Fig. 3 is a schematic diagram of the three-dimensional structure of the installation plate of the present invention;

Fig. 4 is a schematic diagram of the three-dimensional structure of the adjustment assembly of the present invention.

In the figure, 1. Box body; 2. First electric slide rail; 3. First electric slide block; 4. Bracket; 5. Mounting plate; 6. Groove; 7. Second electric slide rail; 8. Second Electric slider; 9. Luminous board; 10. Training display screen; 11. Translation mechanism; 12. Carrier board; 13. Window; 14. Rubber pad; 15. Adjustment component; 111. Mounting base; Screw mandrel; 114, movable block; 151, installation block; 152, screw rod; 153, chin support.

Detailed ways

Below in conjunction with accompanying drawing, the utility model is described in further detail.

Referring to Figures 1-3, a vision care training instrument includes a box body 1 and a first electric slide rail 2, a first electric slide block 3 is installed on the outside of the first electric slide rail 2, and the upper end of the first electric slide block 3 A bracket 4 is fixedly connected, the upper end of the bracket 4 is fixedly connected with a mounting plate 5, and the inside of the mounting plate 5 is provided with a groove 6, and the inside of the groove 6 is fixedly connected with a second electric slide rail 7, and the inside of the second electric slide rail 7 The outside is equipped with a second electric slider 8, the outside of the second electric slider 8 is fixedly connected with a luminous panel 9, the center of the groove 6 is fixedly connected with a training display screen 10, and the first electric slide rail 2 is fixedly installed on the carrier board 12 The upper end of the first electric slide rail 2 and the first electric slide block 3 are slidably connected, and the groove 6, the second electric slide rail 7, the second electric slide block 8, the light-emitting board 9 and the training display screen 10 are respectively about the mounting plate 5 There are two groups symmetrically arranged on the vertical center line of the vertical center line, and each group of second electric sliders 8 and luminescent panels 9 are distributed in a ring with six equal intervals, and the second electric slide rail 7 adopts a circular structure design, and the second electric slide rail 7 and the The second electric slider 8 is slidably connected, and the light emitting board 9 is controlled to rotate slowly through the circular second electric slide rail 7 and the second electric slider 8, which can drive the user's eyeballs to follow the rotation, thereby exercising the eyes. Muscles serve the purpose of eye health care and improve the effect of training.

As shown in Figure 2-4, the inside of the box body 1 is fixedly connected with a translation mechanism 11, and the outer side of the translation mechanism 11 is fixedly connected with a carrier plate 12, and the outer side of the box body 1 is provided with a window 13, and the outer side of the window 13 is fixedly connected with a rubber Pad 14, the outer side of box body 1 is positioned at the lower end of viewing window 13 and is fixedly connected with adjusting assembly 15, and the inside of translation mechanism 11 includes mounting base 111, motor 112, screw mandrel 113 and movable block 114, and the inside of mounting base 111 is fixedly connected with Motor 112, the output end of motor 112 is positioned at the inside of mounting seat 111 and is fixedly connected with screw mandrel 113, and the outside of screw mandrel 113 is provided with movable block 114, and screw mandrel 113 and movable block 114 threaded connections, between movable block 114 and mounting seat 111 between the screw rod 113 and the mounting seat 111 through bearing rotation connection, the inside of the adjustment assembly 15 includes a mounting block 151, a screw rod 152 and a chin rest 153, the inside of the mounting block 151 is provided with a screw rod 152, and the upper end of the screw rod 152 A chin rest 153 is provided, and the mounting block 151 is fixedly installed on the outside of the box body 1. The screw rod 152 and the mounting block 151 are threadedly connected, and the chin rest 153 and the screw rod 152 are connected through bearing rotation. 15 Make adaptive adjustments.

The implementation principle of this embodiment is as follows: first adjust the adjustment assembly 15, manually rotate the screw rod 152, and control the position of the chin rest 153 by adjusting the position of the screw rod 152. After the adjustment, the user rests his chin on the position of the chin rest 153 , the eyes watch the training equipment inside the box body 1 through the window 13, and the training equipment can be trained by two people at the same time, and then through the cooperation between the motor 112 and the screw rod 113 inside the translation mechanism 11, the longitudinal movement of the training device is realized , and then through the cooperation between the first electric slide rail 2 and the first electric slider 3, the lateral movement of the training device is realized, and then through the cooperation between the second electric slide rail 7 and the second electric slider 8, the light-emitting panel is realized. 9 rotations, in order to exercise the movement of eye muscles and improve the effect of vision care training.

The embodiments of this specific embodiment are all preferred embodiments of the present utility model, and are not intended to limit the protection scope of the present utility model accordingly: all equivalent changes made according to the structure, shape and principle of the present utility model are all applicable. Should be covered within the protection scope of the present utility model.

Claims (6)

1. The utility model provides a vision health care training appearance, includes box (1) and first electronic slide rail (2), its characterized in that: the utility model discloses a training display screen, including first electronic slide rail (2), first electronic slider (3) are installed in the outside of first electronic slide rail (2), the upper end fixedly connected with support (4) of first electronic slider (3), the upper end fixedly connected with mounting disc (5) of support (4), recess (6) are seted up to the inside of mounting disc (5), the inside fixedly connected with second electronic slide rail (7) of recess (6), second electronic slider (8) are installed in the outside of second electronic slide rail (7), the outside fixedly connected with luminescent plate (9) of second electronic slider (8), the center fixedly connected with training display screen (10) of recess (6).

2. The vision care training apparatus of claim 1, wherein: the novel portable electronic device is characterized in that the translation mechanism (11) is fixedly connected to the inside of the box body (1), the carrier plate (12) is fixedly connected to the outer side of the translation mechanism (11), the window (13) is formed in the outer side of the box body (1), the rubber pad (14) is fixedly connected to the outer side of the window (13), and the adjusting assembly (15) is fixedly connected to the lower end of the window (13) outside the box body (1).

3. The vision care training apparatus of claim 2, wherein: the utility model discloses a portable electronic device is characterized by comprising a support plate (12), a first electronic slide rail (2), a first electronic slider (3), a recess (6), a second electronic slide rail (7), a second electronic slider (8), luminescent plate (9) and training display screen (10), respectively, are provided with two groups with respect to the vertical central line symmetry of mounting plate (5), every group second electronic slider (8) and luminescent plate (9) equidistant annular distribution have six, second electronic slide rail (7) adopts circular structural design, second electronic slide rail (7) and second electronic slider (8) sliding connection.

4. The vision care training apparatus of claim 2, wherein: the inside of translation mechanism (11) is including mount pad (111), motor (112), lead screw (113) and movable block (114), the inside fixedly connected with motor (112) of mount pad (111), the output of motor (112) is located inside fixedly connected with lead screw (113) of mount pad (111), the outside of lead screw (113) is provided with movable block (114), lead screw (113) and movable block (114) threaded connection, sliding connection between movable block (114) and mount pad (111), be connected through bearing rotation between lead screw (113) and mount pad (111).

5. The vision care training apparatus of claim 2, wherein: the inside of adjusting part (15) is including installation piece (151), screw rod (152) and chin rest (153), the inside of installation piece (151) is provided with screw rod (152), the upper end of screw rod (152) is provided with chin rest (153).

6. The vision care training apparatus of claim 5, wherein: the mounting block (151) is fixedly mounted on the outer side of the box body (1), the screw rod (152) is in threaded connection with the mounting block (151), and the chin rest (153) is in rotary connection with the screw rod (152) through a bearing.
