CN219297922U - Crack pouring device for highway maintenance - Google Patents

Abstract

The utility model relates to the technical field of a joint filling device for road maintenance, and discloses a joint filling device for road maintenance, which includes a main body mechanism, a stirring and pouring mechanism and a cleaning mechanism. The stirring and pouring mechanism is located at the outer end of the main body mechanism. The cleaning mechanism is located at the upper end of the main body mechanism. The main body mechanism includes a material storage box, a load-bearing base, a support leg, a universal wheel and a push handle. The load-bearing base is fixedly installed at the lower end of the material storage box, and the support leg is fixedly installed At the lower end of the load-bearing base, the universal wheel is fixedly installed on the lower end of the support leg, and the hand push handle is fixedly installed on the left end of the material storage box. The crack filling device for road maintenance, through the installation and improvement of the cleaning mechanism, the cleaning ability of the crack filling device for road maintenance has been improved. In the actual use process, the dust in the cracks and The sundries are cleaned up, which is convenient for joint filling operations, without manual cleaning, reducing the amount of manual labor.

Description

A joint filling device for road maintenance

technical field

The utility model relates to the technical field of a gap filling device for road maintenance, in particular to a gap filling device for road maintenance.

Background technique

After the road is completed and opened to traffic, after years of wear and tear of the wheels and the influence of rain and snow, cracks will appear in different degrees. In order to improve the service life of the road, it is necessary to fill and maintain the cracked places. It is necessary to use it during maintenance. The utility model relates to a joint filling device for road maintenance to carry out maintenance filling operation.

However, due to the poor cleaning ability of the gap fillers used in road maintenance in the prior art, the gap fillers used for road maintenance cannot clean the dust and debris in the cracks in a practical and portable way, and manual work is required. Only after cleaning can the seam filling operation be carried out, which reduces work efficiency and increases labor load.

Moreover, in the prior art, the stirring ability of the joint filling device for road maintenance is not good, which leads to the inability of the joint filling device for road maintenance to quickly and effectively stir the joint filling material in the actual process, which may easily cause the joint filling material to appear. The solidification will affect the efficiency of the joint filler for road maintenance.

Utility model content

(1) Solved technical problems

The purpose of this utility model is to provide a kind of joint filling device for road maintenance, to solve the problem that the cleaning ability of the joint filling device for road maintenance in the prior art is not good in the above-mentioned background technology, which leads to the fact that the joint filling device for road maintenance still has During the process, it is impossible to clean the dust and sundries in the cracks portablely, and manual cleaning is required to carry out the filling operation, which reduces the work efficiency and increases the labor load.

(2) Technical solution

In order to achieve the above purpose, the utility model provides the following technical solutions: a joint irrigation device for highway maintenance, including a main body mechanism, a stirring watering mechanism and a cleaning mechanism, the stirring watering mechanism is located at the outer end of the main body mechanism, and the cleaning mechanism is located at the The upper end of the main mechanism, the main mechanism includes a material storage box, a load-bearing base, a support leg, a universal wheel and a push handle, the load-bearing base is fixedly installed on the lower end of the material storage box, and the support leg is fixedly installed on the load-bearing base The lower end of the universal wheel is fixedly installed on the lower end of the supporting leg, and the hand push handle is fixedly installed on the left end of the material storage box. The stirring and pouring mechanism includes a motor shield, a heat dissipation mesh, a driving motor, a rotating shaft, Stirring blades, control panels, mud pumps, slurry pumping pipes, seam filling pipes and feed inlets, the motor shield is fixedly installed on the upper end of the material storage box.

Preferably, the heat dissipation mesh is fixedly arranged on the upper end of the motor shield, the driving motor is fixedly installed inside the motor shield, the rotating shaft is fixedly installed at the lower end of the driving motor, and the rotating shaft extends to the material storage Inside the box, the stirring blade is fixedly installed on the lower end of the rotating shaft, and the effect of facilitating stirring is realized through the installation and improvement of the driving motor and the stirring blade.

Preferably, the control panel is fixedly installed at the front end of the storage tank, the mud pump is fixedly installed at the front end of the storage tank, the pumping pipe is fixed at the left end of the mud pump, and the pumping pipe extends to the storage tank. Inside the material box, through the installation and improvement of the mud pump and the pumping pipe, the effect of facilitating joint filling has been realized.

Preferably, the joint filling pipe is fixedly installed at the front end of the mud pump, and the feed inlet is fixedly arranged at the upper end of the storage tank. Through the installation and improvement of the joint filling pipe, the effect of facilitating joint filling is realized.

Preferably, the cleaning mechanism includes a dust box, a mounting bracket, a suction motor, a transmission shaft, a suction blade, a filter screen, a dust suction port, a one-way solenoid valve, a box door and a door handle, and the dust box is fixed Installed on the upper end of the load-bearing base, the dust collection box is located at the right end of the material storage box, and the installation bracket is fixedly installed inside the dust collection box. Through the installation and improvement of the dust collection box, the effect of facilitating dust collection is realized.

Preferably, the air suction motor is fixedly installed on the upper end of the mounting bracket, the transmission shaft is fixedly installed on the lower end of the air suction motor, the air suction blade is fixedly installed on the lower end of the transmission shaft, and the filter screen is fixedly installed on the set Inside the dust box, the dust suction port is fixed at the lower end of the dust collection box, the dust suction port extends to the lower end of the load-bearing base, the one-way solenoid valve is fixedly installed inside the dust suction port, and the one-way The solenoid valve is electrically connected to the control panel, the door is movably installed at the front end of the dust box, and the door handle is fixedly installed at the front end of the door. Through the installation and improvement of the suction motor and suction blades, the Easy to vacuum.

Compared with the prior art, the beneficial effects of the utility model are:

1. The crack filling device for road maintenance, through the installation and improvement of the cleaning mechanism, the cleaning ability of the crack filling device for road maintenance has been improved. Dust and sundries are cleaned up, which is convenient for joint filling operations, without manual cleaning, reducing the amount of manual labor;

2. The joint filler for road maintenance, through the installation and improvement of the mixing and pouring mechanism, the stirring ability of the joint filler for road maintenance has been improved. In the actual use process, it can quickly and effectively fill the joints Stir the material to prevent solidification and improve the use efficiency of the joint filler for road maintenance;

3. The gap filling device for road maintenance realizes the function of easy movement through the installation and improvement of the main mechanism. In the actual use process, the position can be moved freely according to the needs of the use, which is convenient to move and improve It improves the convenience of use of the joint filling device for road maintenance.

Description of drawings

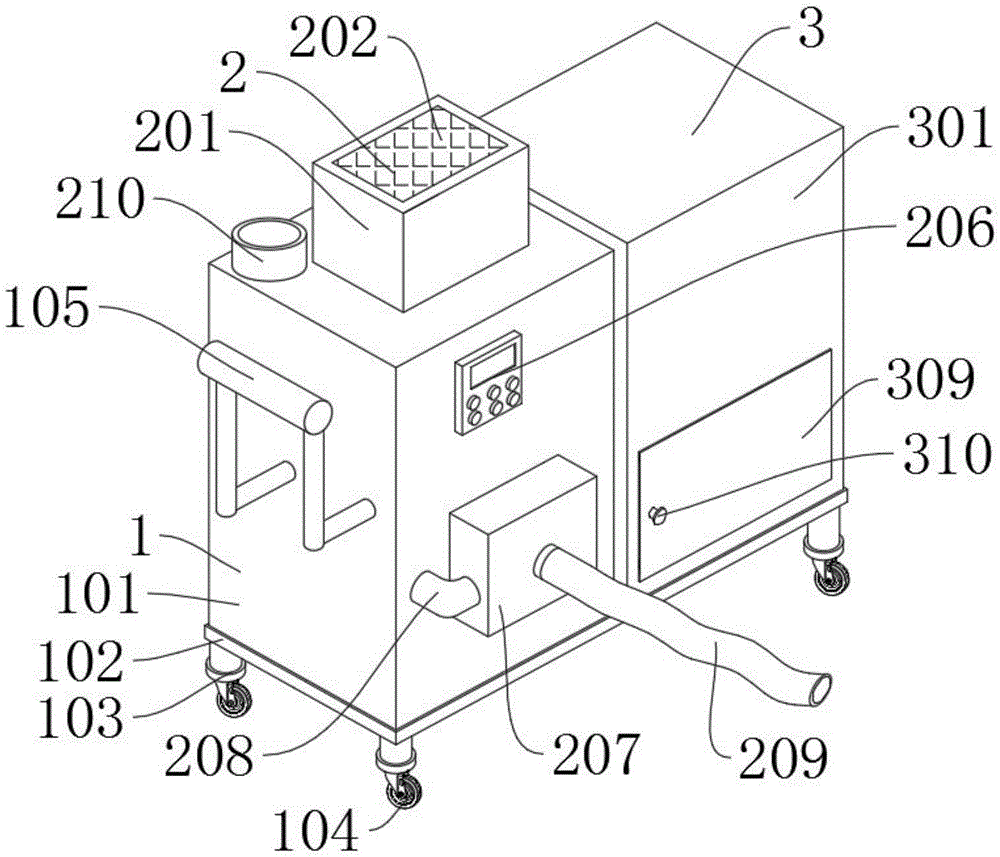

Fig. 1 is a schematic diagram of the three-dimensional structure of the utility model;

Fig. 2 is the utility model sectional structure schematic diagram;

Fig. 3 is a schematic diagram of an enlarged cross-sectional structure of a local detail of the mixing and pouring mechanism of the present invention;

Fig. 4 is a schematic diagram of an enlarged cross-sectional structure of a partial detail of the cleaning mechanism of the present invention.

In the figure: 1. Main mechanism; 101, material storage box; 102, load-bearing base; 103, support leg; 104, universal wheel; 105, hand push handle; 2, mixing and pouring mechanism; Heat dissipation mesh; 203, driving motor; 204, rotating shaft; 205, stirring blade; 206, control panel; 207, mud pump; 208, pumping pipe; 209, filling pipe; 210, feed port; Mechanism; 301, dust collection box; 302, mounting bracket; 303, suction motor; 304, transmission shaft; 305, suction blade; 306, filter screen; 307, dust suction port; Box door; 310, door handle.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Fig. 1-Fig. 4, the utility model provides a technical solution: a joint irrigation device for highway maintenance, including a main body 1, a stirring watering mechanism 2 and a cleaning mechanism 3, the stirring watering mechanism 2 is located outside the main body 1 end, the cleaning mechanism 3 is located at the upper end of the main body mechanism 1, the main body mechanism 1 includes a material storage box 101, a load-bearing base 102, a support leg 103, a universal wheel 104 and a push handle 105, and the load-bearing base 102 is fixedly installed on the side of the material storage box 101 The lower end, the supporting leg 103 is fixedly installed on the lower end of the load-bearing base 102, the universal wheel 104 is fixedly installed on the lower end of the supporting leg 103, the hand push handle 105 is fixedly installed on the left end of the material storage box 101, and the stirring and pouring mechanism 2 includes a motor protective cover 201 , heat dissipation mesh 202, drive motor 203, rotating shaft 204, stirring blade 205, control panel 206, mud pump 207, pumping pipe 208, joint filling pipe 209 and feed port 210, motor protective cover 201 is fixedly installed on the storage The upper end of the box 101.

The heat dissipation mesh 202 is fixedly arranged on the upper end of the motor shield 201, the driving motor 203 is fixedly installed inside the motor shield 201, the rotating shaft 204 is fixedly installed on the lower end of the driving motor 203, and the rotating shaft 204 extends to the inside of the material storage box 101 , the stirring blade 205 is fixedly installed on the lower end of the rotating shaft 204, the control panel 206 is fixedly installed on the front end of the material storage box 101, the mud pump 207 is fixedly installed on the front end of the material storage box 101, and the slurry pumping pipe 208 is fixedly installed on the bottom of the mud pump 207. At the left end, the slurry pumping pipe 208 extends to the inside of the material storage box 101, the joint filling pipe 209 is fixedly installed on the front end of the mud pump 207, the feed inlet 210 is fixedly arranged on the upper end of the material storage box 101, and the drive motor 203 is started to rotate the shaft 204. Make the rotating shaft 204 drive the stirring blade 205 to rotate, start the mud pump 207, pump the joint filling material in the material storage box 101 into the joint filling pipe 209 through the slurry pumping pipe 208, and align the joint filling pipe 209 with the hand-held joint filling pipe 209 Carry out seam filling work.

The cleaning mechanism 3 comprises a dust collection box 301, a mounting bracket 302, a suction motor 303, a transmission shaft 304, a suction blade 305, a filter screen 306, a dust suction port 307, a one-way solenoid valve 308, a box door 309 and a door handle 310, The dust collection box 301 is fixedly installed on the upper end of the load-bearing base 102, the dust collection box 301 is located at the right end of the material storage box 101, the installation bracket 302 is fixedly installed inside the dust collection box 301, and the suction motor 303 is fixedly installed on the upper end of the installation bracket 302 , the transmission shaft 304 is fixedly installed on the lower end of the suction motor 303, the suction blade 305 is fixedly installed on the lower end of the transmission shaft 304, the filter screen 306 is fixedly installed inside the dust collection box 301, and the dust suction port 307 is fixedly arranged on the dust collection box 301, the dust suction port 307 extends to the lower end of the load-bearing base 102, the one-way solenoid valve 308 is fixedly installed inside the dust suction port 307, the one-way solenoid valve 308 is electrically connected with the control panel 206, and the box door 309 is movably installed on the The front end of the dust box 301, the door handle 310 is fixedly installed on the front end of the box door 309, and the suction motor 303 is started to rotate the transmission shaft 304, so that the transmission shaft 304 drives the suction blade 305 to rotate.

Working principle: when in use, first pour the mud or concrete used for joint filling into the storage tank 101 through the feed port 210, start the driving motor 203 to rotate the shaft 204, and make the rotating shaft 204 drive the stirring blade 205 to rotate. Stir the joint filling material in the material storage box 101 to prevent it from solidifying, and then move the universal wheel 104 by pushing the handle 105 to move the joint filling device for road maintenance to the crack on the road, and start the wind suction power The machine 303 rotates the transmission shaft 304, so that the transmission shaft 304 drives the suction blade 305 to rotate, and the one-way solenoid valve 308 is opened through the control panel 206, and the dust and sundries in the cracks are sucked into the dust collection box 301 through the dust suction port 307, After cleaning up, start the mud pump 207, and the seam filling material in the material storage box 101 is drawn into the seam filling pipe 209 through the slurry pumping pipe 208, and the seam filling operation is carried out at the crack of the road by the hand-held seam filling pipe 209. When needing to clean up the dust and sundries in the dust box 301, the door 309 is opened by the door handle 310 to clean up. By installing the filter screen 306, it is possible to prevent dust from damaging the suction motor 303.

Finally, it should be noted that the above content is only used to illustrate the technical solution of the utility model, rather than to limit the scope of protection of the utility model. Simple modifications or equivalent replacements to the technical solution of the utility model by those skilled in the art are all acceptable. Do not depart from the essence and scope of the technical solution of the utility model.

Claims (6)

1. A joint filling device for highway maintenance, comprising a main body mechanism (1), a stirring watering mechanism (2) and a cleaning mechanism (3), characterized in that: the stirring watering mechanism (2) is located at the side of the main body mechanism (1) At the outer end, the cleaning mechanism (3) is located at the upper end of the main body mechanism (1), and the main body mechanism (1) includes a material storage box (101), a load-bearing base (102), supporting legs (103), universal wheels ( 104) and push handle (105), the load-bearing base (102) is fixedly installed on the lower end of the material storage box (101), and the support legs (103) are fixedly installed on the lower end of the load-bearing base (102). The wheel (104) is fixedly installed on the lower end of the support leg (103), the hand push handle (105) is fixedly installed on the left end of the material storage box (101), and the stirring and pouring mechanism (2) includes a motor shield (201 ), cooling mesh (202), driving motor (203), rotating shaft (204), stirring blade (205), control panel (206), mud pump (207), pumping pipe (208), joint filling pipe ( 209) and feed inlet (210), the motor shield (201) is fixedly installed on the upper end of the material storage box (101). 2. A joint filling device for road maintenance according to claim 1, characterized in that: the heat dissipation mesh (202) is fixedly arranged on the upper end of the motor protective cover (201), and the driving motor (203) is fixed Installed in the inside of the motor shield (201), the rotating shaft (204) is fixedly installed on the lower end of the drive motor (203), the rotating shaft (204) extends to the inside of the storage box (101), and the stirring The blade (205) is fixedly installed on the lower end of the rotating shaft (204). 3. A joint filling device for road maintenance according to claim 2, characterized in that: the control panel (206) is fixedly installed on the front end of the material storage box (101), and the mud pump (207) is fixedly installed At the front end of the storage tank (101), the slurry pumping pipe (208) is fixedly installed on the left end of the mud pump (207), and the slurry pumping tube (208) extends to the inside of the storage tank (101). 4. A joint filling device for road maintenance according to claim 3, characterized in that: the joint filling pipe (209) is fixedly installed on the front end of the mud pump (207), and the feeding port (210) is fixed Be arranged on the upper end of material storage box (101). 5. A joint filling device for road maintenance according to claim 4, characterized in that: the cleaning mechanism (3) includes a dust collection box (301), a mounting bracket (302), a suction motor (303), Transmission shaft (304), air suction blade (305), filter screen (306), dust suction port (307), one-way solenoid valve (308), box door (309) and door handle (310), described dust collecting The box (301) is fixedly installed on the upper end of the load-bearing base (102), the dust collection box (301) is located at the right end of the material storage box (101), and the installation bracket (302) is fixedly installed on the top of the dust collection box (301). internal. 6. A joint filling device for road maintenance according to claim 5, characterized in that: the suction motor (303) is fixedly installed on the upper end of the mounting bracket (302), and the transmission shaft (304) is fixedly installed At the lower end of the suction motor (303), the suction blades (305) are fixedly mounted on the lower end of the transmission shaft (304), and the filter screen (306) is fixedly mounted inside the dust box (301), the The dust suction port (307) is fixedly arranged at the lower end of the dust collection box (301), and the dust suction port (307) extends to the lower end of the load-bearing base (102), and the one-way solenoid valve (308) is fixedly installed on the dust collection box (301). The inside of the mouth (307), the one-way solenoid valve (308) is electrically connected with the control panel (206), the box door (309) is movably installed on the front end of the dust box (301), and the door handle ( 310) is fixedly installed in the front end of box door (309).
