Abstract

The utility model discloses a limb supporting nursing device for oncology department, which relates to the technical field of medical nursing equipment and comprises a bed board, the bottom surface of the bed board is fixedly connected with a warehouse body, the inner bottom wall of the warehouse body is fixedly connected with a servo motor, and the output of the servo motor is The rotating shaft is fixedly connected with a threaded rod, the outer surface of the threaded rod is covered with a spiral ring, and the spiral ring is threadedly connected with the threaded rod. It can drive the threaded rod to rotate through the servo motor, the spiral ring drives the two movable plates to move upward, pushes the two push rods to move upward, the push rod pushes the snap ring to move upward, the snap ring pushes the patient's leg to move upward, and the servo motor reverses the movement. Rotate, so that the threaded rod drives the spiral ring to move downward, the spiral ring drives the movable plate and the push rod to move downward, the push rod drives the clasp to move downward, and the clasp drives the patient's leg to move downward, so that the whole body can effectively Push the patient's legs to move up and down, carry out rehabilitation training, assist the patient to recover, and prevent the patient's legs from moving for a long time, which will affect blood circulation.

Description

Limb support nursing device for oncology department

technical field

The utility model relates to the technical field of medical nursing equipment, in particular to a limb supporting nursing device for oncology departments.

Background technique

Oncology, like internal medicine, surgery, obstetrics and gynecology, and pediatrics, is a secondary discipline of clinical medicine, divided into medical oncology, radiotherapy oncology, and surgical oncology. The Radiation Oncology Department is mainly engaged in radiation therapy for tumors. The Department of Oncology Surgery provides comprehensive treatment based on surgery. The relevant departments of specialized cancer hospitals will be subdivided according to different parts, such as the Department of Gastrointestinal Oncology and Lymphoma in the Department of Medical Oncology. Department of Oncology, oncology surgery includes breast surgery, head and neck surgery, thoracic surgery, oncology and gynecology and abdominal surgery, etc.

After radiation therapy, the patient will be very weak and needs to lie on the nursing bed for a long time to rest. However, due to lying down for a long time, the body's own weight will compress its own blood vessels, affect blood circulation, and affect the normal recovery of the patient; Therefore, we provide a limb support nursing device for oncology to solve the above problems.

Utility model content

The purpose of the utility model is to make up for the deficiencies of the prior art, and to provide a limb support nursing device for oncology departments.

In order to achieve the above purpose, the utility model provides the following technical solutions: a limb support nursing device for oncology, including a bed board, the bottom surface of the bed board is fixedly connected with a warehouse body, and the inner bottom wall of the warehouse body is fixedly connected with a servo motor. The output rotating shaft of the motor is fixedly connected with a threaded rod, the outer surface of the threaded rod is covered with a spiral ring, and the spiral ring is threadedly connected with the threaded rod.

The outer surface of the spiral ring is fixedly connected with two symmetrical movable plates, the upper surface of each movable plate is fixedly connected with a push rod, and the top of each push rod passes through the bed board and extends to the upper part of the bed board.

The top of each push rod is hinged with a rotating plate through a pin shaft, and the upper surface of each rotating plate is fixedly connected with a snap ring.

The bottom surface of the bed board is fixedly connected with two symmetrical support legs.

Further, support blocks are fixedly connected to the bottom surface of the warehouse body and the bottom surface of the support legs, and a wheel set is connected to the sides of every two support blocks that are close to each other, which is convenient for medical staff to push the nursing device, and facilitate the nursing device. to move.

Further, the bottom surface of the bed board is fixedly connected with two symmetrical slide bars, the outer surface of the slide bar is slidably connected with a slip ring, the outer surface of each slip ring is fixedly connected with a connecting plate, and the outer surface of each push rod The surface is fixedly connected with a fixed ring, and the ends of the two connecting plates away from the slip ring are respectively fixedly connected with the outer surfaces of the two fixed rings, which can effectively ensure the stability of the two push rods during the lifting and reciprocating motion, and avoid the push rod Deflection occurs, resulting in jamming, which affects the normal use of the nursing device as a whole.

Further, the bottom surface of each slide bar is fixedly connected with a limit ring, and the limit ring has a diameter larger than that of the slide bar, which can effectively prevent the slip ring from slipping out from the outer surface of the slide bar during the sliding process. , affecting the normal use of the nursing device as a whole.

Further, the upper surface of the bed board is fixedly inlaid with two symmetrical through-rings, and the top ends of the two push rods respectively pass through the two through-rings and extend to the outside of the through-rings, which can effectively reduce the The friction between the bed and the bed avoids wear and tear on the push rod caused by long-term use.

Further, the outer surface of the servo motor is fixedly connected with a stabilizing ring, and the outer surface of the stabilizing ring is fixedly connected with two symmetrical stabilizing plates, and the ends of the two stabilizing plates away from the stabilizing ring are fixedly connected with the inner wall of the warehouse body, It can effectively guarantee the stability of the servo motor during use and avoid the shaking of the servo motor during use.

Further, the inner ring of each snap ring is fixedly connected with a soft pad, and the upper surface of the soft pad is provided with anti-skid lines, which can effectively increase the comfort of the patient's legs placed inside the snap ring, and effectively Prevent the patient's leg from sliding inside the clasp.

Further, the left and right sides of the upper surface of the bed board are fixedly connected with guardrails, the upper surface of the guardrails is fixedly connected with guardrails, and the upper surface of the bed board is fixedly connected with two symmetrical protective plates, which can effectively protect the bed board. The patient is protected to prevent the patient from falling off the bed board when turning over.

Compared with the prior art, the limb supporting nursing device for oncology has the following beneficial effects:

1. The utility model drives the threaded rod to rotate through the servo motor, the spiral ring drives the two movable plates to move upward, pushes the two push rods to move upward, the push rod pushes the snap ring to move upward, and the snap ring pushes the patient's leg to move upward. The servo motor reverses, so that the threaded rod drives the spiral ring to move downward, the spiral ring drives the movable plate and the push rod to move downward, the push rod drives the clasp to move downward, and the clasp drives the patient's leg to move downward, making the whole It can effectively push the patient's legs to move up and down, carry out rehabilitation training, assist the patient to recover, and prevent the patient's legs from moving for a long time, which will affect blood circulation.

2. The utility model facilitates the medical staff to push the nursing device and move the nursing device through the support block and the wheel group, and facilitates the medical staff to push the nursing device and move the nursing device through the slip ring and the connecting plate. The limit ring can effectively prevent the slip ring from slipping out of the outer surface of the slide bar during the sliding process, which will affect the normal use of the nursing device as a whole. The stability ring and the stability plate can effectively ensure the stability of the servo motor during use. To prevent the servo motor from shaking during use.

Description of drawings

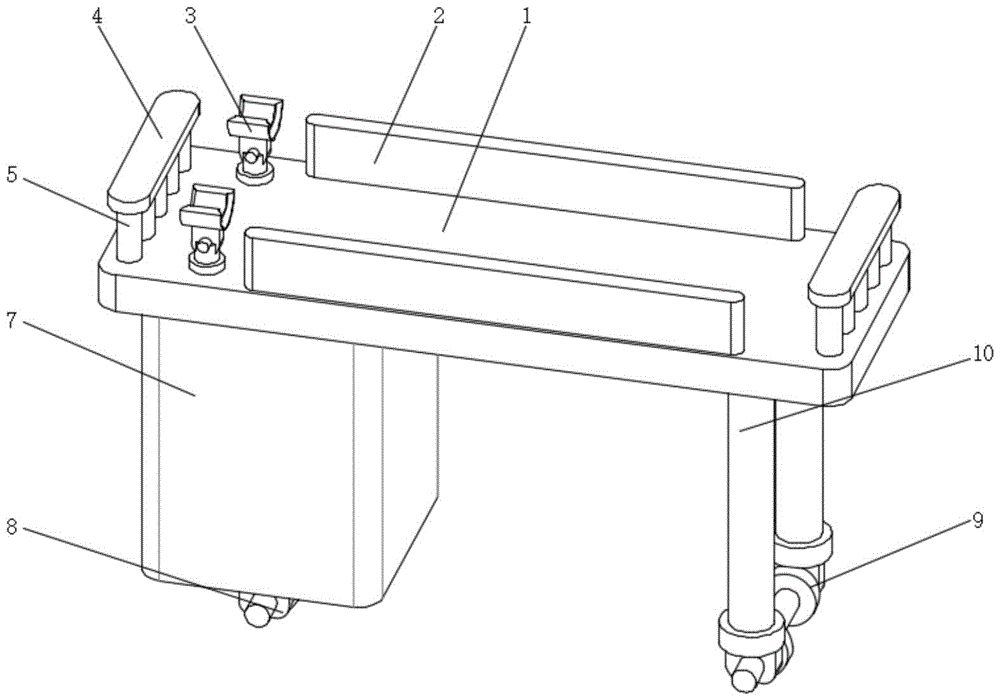

Fig. 1 is a front view of the utility model;

Fig. 2 is a front sectional view of the warehouse body of the present invention;

Fig. 3 is an enlarged view of the structure at A in Fig. 2 of the utility model;

Fig. 4 is a bottom sectional view of the bin body of the present invention.

In the figure: 1. Bed board; 2. Protective plate; 3. Snap ring; 4. Guardrail board; 5. Guardrail bar; 6. Through ring; 7. Warehouse body; 8. Support plate; Leg; 11, servo motor; 12, stable plate; 13, stable ring; 14, movable plate; 15, fixed ring; 16, threaded rod; 17, push rod; 18, connecting plate; 19, sliding rod; Ring; 21, spiral ring; 22, soft pad; 23, rotating plate; 24, limit ring.

Detailed ways

The principles and features of the present utility model are described below in conjunction with the accompanying drawings, and the examples given are only used to explain the utility model, and are not used to limit the scope of the utility model.

This embodiment provides a limb support nursing device for oncology department. The whole device can effectively push the patient's legs to move up and down, carry out rehabilitation training, assist the patient to recover, and avoid the patient's legs not moving for a long time, which will affect the blood circulation.

Referring to Figures 1 to 4, a limb support nursing device for oncology, including a bed board 1, guard rails 5 are fixedly connected to the left and right sides of the upper surface of the bed board 1, and guard rails 4 are fixedly connected to the upper surface of the guard rail 5, The upper surface of the bed board 1 is fixedly connected with two symmetrical protective plates 2, which can effectively protect the patients on the bed board 1 and prevent the patients from falling from the bed board 1 when turning over.

The bottom surface of the bed board 1 is fixedly connected with the bin body 7, the inner bottom wall of the bin body 7 is fixedly connected with the servo motor 11, the outer surface of the servo motor 11 is fixedly connected with the stabilizing ring 13, and the outer surface of the stabilizing ring 13 is fixedly connected with two phase Symmetrical stabilizing plates 12, the ends of the two stabilizing plates 12 away from the stabilizing ring 13 are fixedly connected to the inner wall of the bin body 7, which can effectively ensure the stability of the servo motor 11 during use and prevent the servo motor 11 from Shaking occurs.

The output shaft of the servo motor 11 is fixedly connected with a threaded rod 16 , the outer surface of the threaded rod 16 is covered with a spiral ring 21 , and the spiral ring 21 is threadedly connected with the threaded rod 16 .

The bottom surface of the bed board 1 is fixedly connected with two symmetrical slide bars 19, and the outer surface of the slide bar 19 is slidably connected with a slip ring 20, and the outer surface of each slip ring 20 is fixedly connected with a connecting plate 18, and each push rod 17 The outer surfaces of the two connecting plates 18 are fixedly connected with the fixed ring 15, and the ends of the two connecting plates 18 away from the slip ring 20 are respectively fixedly connected with the outer surfaces of the two fixed rings 15, which can effectively ensure that the two push rods 17 are in the process of lifting and reciprocating movement. The stability of the push rod 17 is prevented from being deflected, resulting in jamming, which affects the normal use of the nursing device as a whole.

The bottom surface of each slide bar 19 is fixedly connected with the limit ring 24, and the diameter value of the limit ring 24 is greater than the diameter value of the slide bar 19, which can effectively prevent the slip ring 20 from slipping from the outer surface of the slide bar 19 during the sliding process. out, affecting the normal use of the nursing device as a whole.

The outer surface of the spiral ring 21 is fixedly connected with two symmetrical movable plates 14, the upper surface of each movable plate 14 is fixedly connected with a push rod 17, the top of each push rod 17 runs through the bed board 1 and extends to the bed board 1 The upper part of the upper surface of the bed board 1 is fixedly inlaid with two symmetrical through-rings 6, and the tops of the two push rods 17 respectively pass through the two through-rings 6 and extend to the outside of the through-rings 6, which can effectively lower the pressure of the push rods 17. The frictional force between the reciprocating motion and the bed board 1 can avoid wear and tear on the push rod 17 caused by long-term use.

The top of each push rod 17 is hinged with a rotating plate 23 through a pin shaft, the upper surface of each rotating plate 23 is fixedly connected with a snap ring 3, and the inner ring of each snap ring 3 is fixedly connected with a soft pad 22, The upper surface of the soft pad 22 is provided with anti-skid lines, which can effectively increase the comfort of the patient's legs placed inside the clasp 3 and effectively prevent the patient's legs from sliding inside the clasp 3 .

The bottom surface of the bed board 1 is fixedly connected with two symmetrical support legs 10, the bottom surface of the bin body 7 and the bottom surface of the support legs 10 are fixedly connected with a support block 8, and a side of each two support blocks 8 close to each other is rotatably connected with a wheel. Group 9 is convenient for medical personnel to push the nursing device and move the nursing device.

Working principle: the nurse electrically connects the servo motor 11 to the municipal power supply, puts the patient's legs into the two snap rings 3, the servo motor 11 drives the threaded rod 16 to rotate, and the spiral ring 21 and the threaded rod 16 are threaded relationship, the spiral ring 21 drives the two movable plates 14 to move upwards, pushes the two push rods 17 to move upward, the push rod 17 pushes the snap ring 3 to move upward, and the snap ring 3 pushes the patient's legs to move upward, after that, the servo motor 11 reverses Turn, so that the threaded rod 16 drives the spiral ring 21 to move downward, the spiral ring 21 drives the movable plate 14 and the push rod 17 to move downward, the push rod 17 drives the snap ring 3 to move downward, and the snap ring 3 drives the patient's leg downward Move, so that the whole can effectively push the patient's legs to move up and down, carry out rehabilitation training, assist the patient to recover, and prevent the patient's legs from moving for a long time, which will affect blood circulation.

The above descriptions are only preferred embodiments of the present utility model, and are not intended to limit the present utility model. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present utility model shall be included in this utility model. within the scope of protection of utility models.

Claims (8)

1. A limb supporting nursing device for oncology, comprising a bed board (1), characterized in that: the bottom surface of the bed board (1) is fixedly connected with a warehouse body (7), and the inner bottom wall of the warehouse body (7) is fixedly connected Servomotor (11) is arranged, and the output rotating shaft of servomotor (11) is fixedly connected with threaded rod (16), and the outer surface of threaded rod (16) is sheathed with spiral ring (21), and spiral ring (21) and threaded rod ( 16) threaded connection; The outer surface of the spiral ring (21) is fixedly connected with two symmetrical movable plates (14), and the upper surface of each movable plate (14) is fixedly connected with a push rod (17), and each push rod (17) The top ends all pass through the bed board (1) and extend to the upper part of the bed board (1); The top of each push rod (17) is hinged with a rotating plate (23) through a pin shaft, and the upper surface of each rotating plate (23) is fixedly connected with a snap ring (3); The bottom surface of the bed board (1) is fixedly connected with two symmetrical support legs (10). 2. A limb support nursing device for oncology department according to claim 1, characterized in that: the bottom surface of the warehouse body (7) and the bottom surface of the support leg (10) are fixedly connected with a support block (8), A wheel set (9) is rotatably connected to one side of every two support blocks (8) close to each other. 3. A kind of oncology limb supporting nursing device according to claim 1, characterized in that: the bottom surface of the bed board (1) is fixedly connected with two symmetrical slide bars (19), and the slide bars (19) The outer surface of each slip ring (20) is slidably connected with a slip ring (20), and the outer surface of each slip ring (20) is fixedly connected with a connecting plate (18), and the outer surface of each push rod (17) is fixedly connected with a fixed ring (15 ), the ends of the two connecting plates (18) away from the slip ring (20) are fixedly connected to the outer surfaces of the two fixed rings (15) respectively. 4. A kind of oncology department limb supporting nursing device according to claim 3, is characterized in that: the bottom surface of each said slide bar (19) is all fixedly connected with limiting ring (24), and limiting ring (24) The diameter value of is greater than the diameter value of slide bar (19). 5. A limb support nursing device for oncology department according to claim 1, characterized in that: the upper surface of the bed board (1) is fixedly inlaid with two symmetrical through-rings (6), two push rods The top ends of (17) respectively pass through the two through rings (6) and extend to the outside of the through rings (6). 6. A kind of oncology limb supporting nursing device according to claim 1, characterized in that: the outer surface of the servo motor (11) is fixedly connected with a stabilizing ring (13), and the outer surface of the stabilizing ring (13) Two symmetrical stabilizing plates (12) are fixedly connected, and the ends of the two stabilizing plates (12) away from the stabilizing ring (13) are fixedly connected with the inner wall of the warehouse body (7). 7. A kind of oncology department limb supporting nursing device according to claim 1, is characterized in that: the inner ring of each said snap ring (3) is all fixedly connected with soft pad (22), soft pad ( 22) The upper surface is provided with anti-slip lines. 8. A kind of oncology limb support nursing device according to claim 1, characterized in that: the left and right sides of the upper surface of the bed board (1) are fixedly connected with guardrails (5), and the guardrails (5) The upper surface of the bed board (1) is fixedly connected with guardrail boards (4), and the upper surface of the bed board (1) is fixedly connected with two symmetrical protective boards (2).
