Abstract

The utility model discloses a suitcase for anesthesiology department, which comprises: a box body and buckles; the box body is connected with buckles, the top of the box body is provided with a box cover, and the side of the box cover is connected with a card block. A handle is connected to the top of the lid. In this anesthesia suitcase, when the positioning block is squeezed into the extrusion groove, the slider can drive the card slot to slide to the top and bottom of the positioning block. At this time, the positioning block can be reset by the elastic force of the spring itself. The card slots are snapped and connected, so that four groups of boxes can be opened by repeated operations, which is convenient for anesthesia equipment to be placed in categories. After the battery is charged, the switch can send instructions to the controller, and the controller will start the light belt after receiving the instructions. When working, the light strip will emit light when it is working, and the light can shine on the inside of the box through the light-transmitting plate, so that the suitcase can have a lighting function when it is used at night.

Description

Anesthesia suitcase

technical field

The utility model relates to the technical field of anesthesiology, in particular to a suitcase for anesthesiology.

Background technique

Anesthesiology is a comprehensive discipline, which contains multidisciplinary knowledge. The scope is very wide, not only to meet the requirements of surgery, but also to participate in the rescue work of various departments to ensure that patients undergo surgery smoothly under painless and safe conditions. part of the work content. Anesthesia work also includes preparation and treatment before and after anesthesia, monitoring and treatment of critically ill patients, first aid resuscitation, pain treatment, etc. The anesthesiology department needs to use various anesthesia medical devices, and then the anesthesiologist can carry the anesthesia medical devices through the suitcase It is stored so as to facilitate the carrying of anesthesia equipment, and the existing anesthesia suitcases still have certain defects in use, such as;

When the existing anesthesia suitcase is in use, the medical personnel can place the anesthesia equipment in the placement groove of the box body. When the operation requires anesthesia, the medical personnel can pull the box cover and the box body by the handbag, so that the box body can be adjusted. The internal anesthesia equipment is carried. When the anesthesia equipment needs to be used, the buckle and block can be opened. After the buckle and the block are opened, the box cover can be opened. After the box cover is opened, the anesthesia equipment can be taken and used. Traditional anesthesia The suitcase usually has only one box, and then all the anesthesia instruments are placed inside the box, but when it is necessary to take the anesthesia instruments at the bottom of the box, the anesthesia instruments on the surface should be taken out, and the anesthesia instruments at the bottom should be removed. Take it, but this kind of taking method is very troublesome, it is easy to cause confusion of anesthesia instruments, and it is inconvenient to classify and place anesthesia instruments.

Utility model content

The utility model provides the following technical solutions: the purpose of the utility model is to provide a suitcase for the anesthesiology department, to solve the many defects in the suitcase for the anesthesiology department on the market currently proposed by the above-mentioned background technology, and the anesthesia equipment is inconvenient to classify and place, and it is not convenient Problem with lighting function.

In order to achieve the above purpose, the utility model provides the following technical solutions: a suitcase for anesthesiology department, comprising: a box body and a buckle;

Buckles are connected to the box body, a box cover is arranged on the top of the box body, blocks are connected to the side of the box cover, and a handle is connected to the top of the box cover.

Preferably, the box body is also provided with a storage groove, a first connecting shaft, a chute, an extrusion groove, a spring, a positioning block, a slider, a card slot, a second connecting shaft, a first connecting rod, and a second connecting rod and shaft;

The storage grooves are set at the bottom of the box body and the box cover respectively, and the storage grooves and the box body are both connected with a first connecting shaft.

Preferably, the chute is respectively provided on the surface of the storage tank and the box body, and an extrusion groove is provided inside the chute;

A spring is fixedly connected to the inside of the extrusion groove, and a positioning block is fixedly connected to the end of the spring.

Preferably, a sliding block is movably connected inside the chute, and a card slot is opened on the surface of the sliding block;

The surface of the slider is connected with a second connecting shaft.

Preferably, a first connecting rod is rotatably connected between the second connecting shaft and the first connecting shaft, and a second connecting rod is rotatably connected between the second connecting shaft and the first connecting shaft;

A rotating shaft is rotatably connected between the second connecting rod and the first connecting rod.

Preferably, the box cover is also provided with a controller, a switch, a charging interface, a battery box, a battery, a mounting slot, a light strip and a light-transmitting plate;

A controller is installed on the cover, and a switch is installed on the controller.

Preferably, a charging interface is installed on the controller, and a battery box is connected inside the box cover;

A battery is installed inside the battery box.

Preferably, both the cover and the bottom of the box body are provided with installation grooves, and a light strip is installed inside the installation grooves;

A light-transmitting plate is connected to the bottom of the installation groove.

Compared with the prior art, the beneficial effect of the utility model is: the anesthesiology suitcase, when the positioning block is squeezed into the extrusion groove, the slider can drive the card slot to slide to the top and bottom of the positioning block, and at this time the positioning The block can be reset by the elastic force of the spring itself. When the positioning block is reset, it can be engaged with the card slot, so that the four groups of boxes can be opened by repeated operations, which is convenient for anesthesia instruments to be placed in categories. After the battery is charged, the switch can be Send instructions to the controller, and the controller will start the light strip to work after receiving the instruction. When the light strip is working, it will emit light. The light can shine on the inside of the box through the light-transmitting plate, which is convenient for the suitcase to be used at night. lighting function.

1. When you need to take the anesthesia device, you can open the buckle. After the buckle is opened, you can pull the handle. When the handle is pulled, it can drive the box cover to pull. When the box cover is pulled, it can drive the first connecting shaft at the bottom and The chute moves. When the first connecting shaft moves, it can drive the second connecting rod to rotate. When the chute moves, it can slide with the slider. When the slider slides, it drives the first connecting rod to rotate. The second connecting rod and the second connecting rod When the first connecting rod rotates, it can rotate through the rotating shaft. When the second connecting rod rotates, it can drive the second connecting shaft at the end to move. When the second connecting shaft moves, it can drive the slider and the chute to slide. When the first connecting rod rotates It can be rotated through the first connecting shaft. When the slider slides to the side of the positioning block, the slider can squeeze the inclined surface of the positioning block. When the positioning block is squeezed, it can slide through the extrusion groove. When the positioning block slides The spring can be squeezed. When the positioning block is squeezed into the extrusion groove, the slider can drive the card slot to slide to the top and bottom of the positioning block. At this time, the positioning block can be reset by the elastic force of the spring itself. When the positioning block is reset, it can It is snapped and connected with the card slot, so that the four groups of boxes can be opened by repeated operations, so that the anesthesia equipment can be classified and placed;

3. When the anesthesia suitcase is used at night, it is necessary to illuminate the inside of the box. The charging interface can charge the battery inside the battery box through an external power supply. After the battery is charged, it can send instructions to the switch to the controller. After the controller receives the instruction, it will start the light strip to work. When the light strip is working, it will emit light. The light can shine on the inside of the box through the light-transmitting plate, so that the suitcase can have the lighting function when it is used at night.

Description of drawings

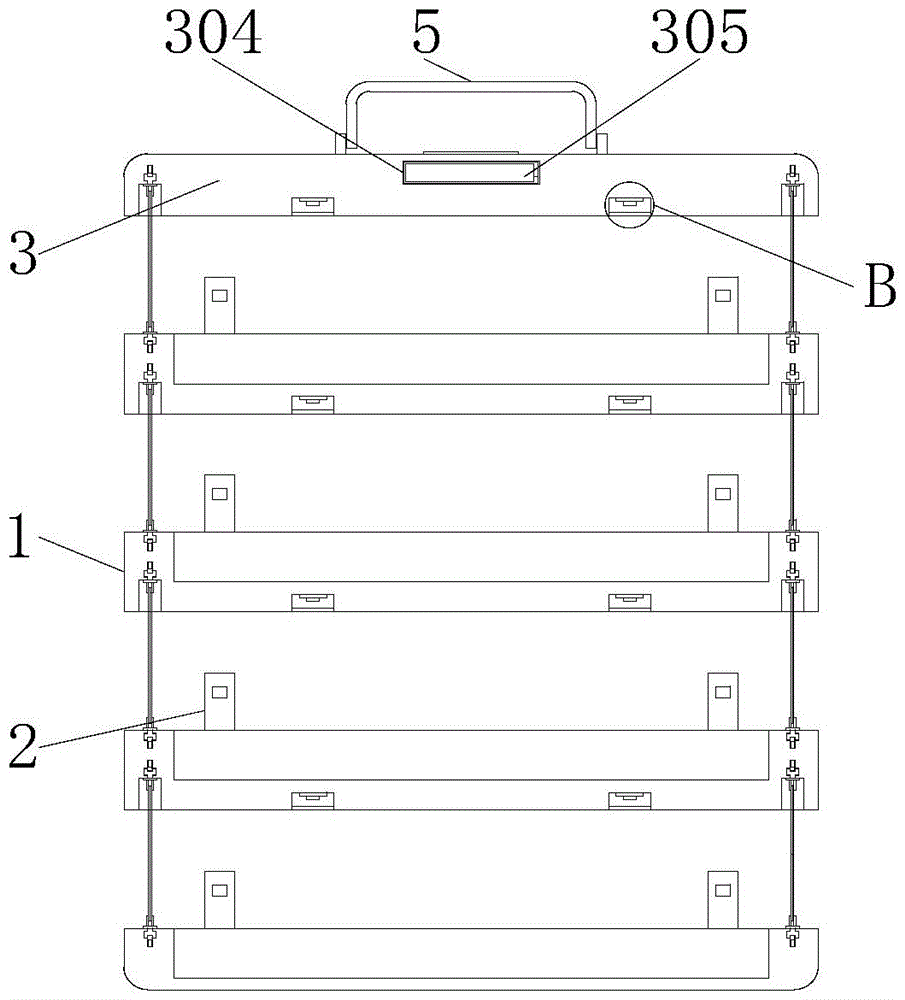

Fig. 1 is a schematic diagram of the front view section structure of the utility model;

Fig. 2 is the utility model side view sectional structure schematic diagram;

Fig. 3 is a schematic view of the structure of the utility model;

Fig. 4 is the schematic diagram of enlarged structure of part A of the utility model;

Fig. 5 is a schematic diagram of enlarged structure of part B of the utility model.

In the figure: 1, box body; 101, storage slot; 102, first connecting shaft; 103, chute; 104, extrusion slot; 105, spring; 106, positioning block; 107, slider; 108, card slot; 109. Second connecting shaft; 110. First connecting rod; 111. Second connecting rod; 112. Rotating shaft; 2. Buckle; 3. Case cover; 301. Controller; 302. Switch; 303. Charging interface; , battery box; 305, battery; 306, installation slot; 307, light strip; 308, light-transmitting plate; 4, clamp block; 5, handle.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Figures 1-5, the utility model provides a technical solution: a suitcase for anesthesiology department, including: a box body 1 and a buckle 2;

The box body 1 is connected with buckles 2 , the top of box body 1 is provided with box cover 3 , the side of box cover 3 is connected with clamping blocks 4 , and the top of box cover 3 is connected with handle 5 .

The box body 1 is also provided with a storage groove 101, a first connecting shaft 102, a chute 103, an extrusion groove 104, a spring 105, a positioning block 106, a sliding block 107, a card groove 108, a second connecting shaft 109, a first connecting rod 110, the second connecting rod 111 and the rotating shaft 112, the storage groove 101 is set at the bottom of the box body 1 and the box cover 3 respectively, and the storage groove 101 and the box body 1 are connected with the first connecting shaft 102, when it is necessary to take the anesthesia instrument When the buckle 2 is opened, the handle 5 can be pulled. When the handle 5 is pulled, it can drive the case cover 3 to pull. The tank 103 moves.

The chute 103 is provided on the surface of the storage groove 101 and the casing 1 respectively, and the inside of the chute 103 is provided with an extrusion groove 104. When the slide block 107 slides to the side of the positioning block 106, the slide block 107 can press against the inclined surface of the positioning block 106. Squeeze, the positioning block 106 can slide through the extrusion groove 104 when it is squeezed, the inside of the extrusion groove 104 is fixedly connected with a spring 105, and the end of the spring 105 is fixedly connected with a positioning block 106, when the positioning block 106 slides, it can The spring 105 squeezes, and when the positioning block 106 is squeezed into the extrusion groove 104, the slider 107 can drive the slot 108 to slide to the top and bottom of the positioning block 106, and the positioning block 106 can be reset by the elastic force of the spring 105 itself , when the positioning block 106 is reset, it can be engaged with the card slot 108 to be connected.

The inside of the chute 103 is movably connected with a slide block 107. When the second connecting shaft 109 moves, it can drive the slide block 107 to slide with the chute 103. When the first connecting rod 110 rotates, it can rotate through the first connecting shaft 102, and the slide block 107 The surface of the slider 107 is provided with a card slot 108 , and the surface of the slider 107 is connected with a second connecting shaft 109 .

A first connecting rod 110 is rotatably connected between the second connecting shaft 109 and the first connecting shaft 102, a second connecting rod 111 is rotatably connected between the second connecting shaft 109 and the first connecting shaft 102, and the first connecting shaft 102 moves It can drive the second connecting rod 111 to rotate, and when the chute 103 moves, it can slide with the slider 107. When the slider 107 slides, it drives the first connecting rod 110 to rotate. The second connecting rod 111 and the first connecting rod 110 When rotating, the rotating shaft 112 can be used to rotate. When the second connecting rod 111 is rotating, it can drive the second connecting shaft 109 at the end to move. The rotating shaft 112 is connected between the second connecting rod 111 and the first connecting rod 110 .

The case cover 3 is also provided with a controller 301, a switch 302, a charging interface 303, a battery box 304, a battery 305, a mounting groove 306, a light strip 307 and a light-transmitting plate 308, and the case cover 3 is equipped with a controller 301, a controller 301 A switch 302 is installed on it, and after the battery 305 is fully charged, an instruction can be sent to the switch 302 to the controller 301, and the controller 301 will start the light strip 307 to work after receiving the instruction.

A charging interface 303 is installed on the controller 301, and a battery box 304 is connected to the inside of the box cover 3. When the anesthesia suitcase is used at night, it is necessary to illuminate the inside of the box body 1, and the charging interface 303 can be connected to an external power supply to charge the battery box. The battery 305 inside 304 is charged, and the battery 305 is installed inside the battery box 304 .

Both the box cover 3 and the bottom of the box body 1 are provided with an installation groove 306, and a light strip 307 is installed inside the installation groove 306. The light strip 307 emits light when it works, and the light can shine on the inside of the box body 1 through the light-transmitting plate 308 , the bottom of the mounting groove 306 is connected with a light-transmitting plate 308 .

Working principle: When using the anesthesia suitcase, firstly, when the anesthesia equipment needs to be taken, the buckle 2 can be opened, and the handle 5 can be pulled after the buckle 2 is opened, and the case cover 3 can be driven when the handle 5 is pulled. Pulling, when the case cover 3 is pulled, the first connecting shaft 102 and the chute 103 at the bottom can be driven to move, the first connecting shaft 102 can drive the second connecting rod 111 to rotate, and the chute 103 can move with the slider 107 slides, the slider 107 slides and drives the first connecting rod 110 to rotate, the second connecting rod 111 and the first connecting rod 110 can rotate through the rotating shaft 112 when rotating, and the second connecting rod 111 can drive the end The second connecting shaft 109 moves. When the second connecting shaft 109 moves, it can drive the slider 107 to slide with the chute 103. When the first connecting rod 110 rotates, it can rotate through the first connecting shaft 102. When the slider 107 slides to When the positioning block 106 is on the side, the slide block 107 can squeeze the inclined surface of the positioning block 106. When the positioning block 106 is squeezed, it can slide through the extrusion groove 104. When the positioning block 106 slides, the spring 105 can be squeezed. When the positioning block 106 was extruded into the extrusion groove 104, the slide block 107 could drive the draw-in groove 108 to slide to the top and bottom of the positioning block 106. At this time, the positioning block 106 could be reset by the elastic force of the spring 105 itself. When the positioning block 106 reset It can be snapped and connected with the card slot 108, so that the four groups of boxes 1 can be opened by repeated operations, so that the anesthesia equipment can be classified and placed. When the anesthesia suitcase is used at night, it is necessary to illuminate the inside of the box 1. The charging interface 303 can charge the battery 305 inside the battery box 304 through an external power supply. After the battery 305 is fully charged, it can send an instruction to the switch 302 to the controller 301. After receiving the instruction, the controller 301 will start the light strip 307 to work. The light strip 307 will emit light when it is working, and the light can shine on the inside of the box body 1 through the light-transmitting plate 308, so that the suitcase can have a lighting function when it is used at night, and the content that is not described in detail in this specification belongs to this field prior art known to those skilled in the art.

Although the utility model has been described in detail with reference to the aforementioned embodiments, those skilled in the art can still modify the technical solutions described in the aforementioned embodiments, or perform equivalent replacements for some of the technical features. Within the spirit and principles of the utility model, any modification, equivalent replacement, improvement, etc., should be included in the protection scope of the utility model.

Claims (8)

1. A suitcase for anesthesia department comprising: the box body (1) and the buckle (2) are characterized in that;

the novel box is characterized in that the box body (1) is connected with the buckle (2), the top of the box body (1) is provided with the box cover (3), the side face of the box cover (3) is connected with the clamping block (4), and the top of the box cover (3) is connected with the handle (5).

2. The anesthesia suitcase of claim 1, wherein: the box body (1) is further provided with a collection groove (101), a first connecting shaft (102), a sliding groove (103), an extrusion groove (104), a spring (105), a positioning block (106), a sliding block (107), a clamping groove (108), a second connecting shaft (109), a first connecting rod (110), a second connecting rod (111) and a rotating shaft (112);

the storage groove (101) is respectively formed in the bottoms of the box body (1) and the box cover (3), and the storage groove (101) and the box body (1) are connected with a first connecting shaft (102).

3. The anesthesia suitcase of claim 2, wherein: the sliding chute (103) is respectively arranged on the surfaces of the storage chute (101) and the box body (1), and an extrusion chute (104) is arranged in the sliding chute (103);

the extrusion groove (104) is internally fixedly connected with a spring (105), and the end part of the spring (105) is fixedly connected with a positioning block (106).

4. The anesthesia suitcase of claim 2, wherein: a sliding block (107) is movably connected inside the sliding groove (103), and a clamping groove (108) is formed in the surface of the sliding block (107);

the surface of the sliding block (107) is connected with a second connecting shaft (109).

5. The anesthesia suitcase of claim 2, wherein: a first connecting rod (110) is rotatably connected between the second connecting shaft (109) and the first connecting shaft (102), and a second connecting rod (111) is rotatably connected between the second connecting shaft (109) and the first connecting shaft (102);

a rotating shaft (112) is rotatably connected between the second connecting rod (111) and the first connecting rod (110).

6. The anesthesia suitcase of claim 1, wherein: the box cover (3) is also provided with a controller (301), a switch (302), a charging interface (303), a battery box (304), a battery (305), a mounting groove (306), a lamp belt (307) and a light-transmitting plate (308);

a controller (301) is mounted on the box cover (3), and a switch (302) is mounted on the controller (301).

7. The anesthesia suitcase of claim 6, wherein: the controller (301) is provided with a charging interface (303), and the battery box (304) is connected inside the box cover (3);

the battery box (304) is internally provided with a battery (305).

8. The anesthesia suitcase of claim 6, wherein: the box cover (3) and the bottom of the box body (1) are provided with mounting grooves (306), and a lamp strip (307) is mounted in each mounting groove (306);

the bottom of the mounting groove (306) is connected with a light-transmitting plate (308).
