CN219283870U - A new type of drying equipment for printing and dyeing - Google Patents

Abstract

The utility model discloses a new type of drying equipment for printing and dyeing, which relates to the technical field of printing and dyeing drying, and comprises a drying box. There are multiple uniformly distributed nozzles fixedly connected, through the drying box, the gas entering the drying box can be dried, the dried gas enters the heating box through the connecting pipe, the gas entering the heating box will be heated, and the heated gas It will enter the connecting hose through the connecting pipe, then enter the air outlet box, spray out through the nozzle, and pass through the feeding port, so that the printed and dyed fabric can enter the drying box, pass through the conveying roller, and then the printed and dyed fabric can be transported, and the nozzle sprays out The hot air will dry the printed and dyed cloth, and then flow out through the outlet, thus solving the problem. However, the existing printing and dyeing device cannot dry the cloth in time after the printing and dyeing is completed, which affects the fineness of the cloth and lowers the working efficiency. Low questions.

Description

A new type of drying equipment for printing and dyeing

technical field

The utility model relates to the technical field of printing and dyeing drying, in particular to a novel drying equipment for printing and dyeing.

Background technique

Printing and dyeing is also called dyeing and finishing. It is a processing method, and it is also a general term for pretreatment, dyeing, printing, finishing, washing, etc.; the undergraduate dyeing and finishing major has now been incorporated into the light chemical engineering major; as early as the Neolithic Age six or seven thousand years ago, Our ancestors were able to dye sackcloth red with hematite powder. The primitive tribes living in the Nomuhong area of the Qaidam Basin in Qinghai can dye wool into yellow, red, brown, blue and other colors, and weave woolen cloth with colored stripes.

However, the existing printing and dyeing equipment cannot dry the cloth in time after the printing and dyeing is completed, which affects the fineness of the cloth and has low work efficiency. Therefore, we propose a new type of drying equipment for printing and dyeing.

Utility model content

The purpose of the utility model is to provide a new type of drying equipment for printing and dyeing in order to solve the problems raised by the above-mentioned background technology.

The utility model specifically adopts the following technical solutions in order to achieve the above object:

A new type of drying equipment for printing and dyeing, comprising a drying box, the inside top of the drying box is rotatably connected with an angle-adjustable air outlet box, and the bottom of the air outlet box is fixedly connected with a plurality of evenly distributed nozzles. The top of the air outlet box is fixedly connected with a connecting hose, the top of the drying box is fixedly connected with a heating box, and the top of the drying box is also fixedly connected with a drying box, and the heating box and the connecting hose are connected through a connecting pipe. The heating box and the drying box are communicated through a connecting pipe. One side of the drying box is provided with a feed port, and the other side of the drying box is provided with a discharge port. Both are rotatably connected with two symmetrically distributed conveying rollers, and the side of the drying box away from the heating box is fixedly connected with the second connecting pipe.

Further, one end of the inner top of the drying box is rotatably connected to an electric push rod, the output end of the electric push rod is rotatably connected to the top of the air outlet box, and the other end of the inner top of the drying box is rotatably connected to a connecting rod two. The end of the connecting rod two away from the drying box is rotatably connected with the connecting rod one, and the end of the connecting rod one away from the connecting rod two is rotatably connected with the top of the air outlet box.

Further, a heating wire is fixedly connected to one end inside the heating box, and a fan is fixedly connected to the other end inside the heating box.

Further, an installation frame is slidably connected to the inside of the drying box, a drying bag is provided inside the installation frame, the bottom of the installation frame is clipped to the inside bottom of the drying box, and cover plates are clipped on both sides of the installation frame.

Further, the bottom of the installation frame is provided with a slot 2, and the inside bottom of the drying box is fixedly connected with a block 2, and the block 2 is engaged with the inner side of the slot 2.

Further, two symmetrically distributed card slots 1 are provided on both sides of the installation frame, and two symmetrically distributed card slots 1 are fixedly connected to the opposite sides of the two cover plates. The inner side of the card slot is carded.

Further, a sealing plate is provided on the top of the drying box, and the top of the installation frame is fixedly connected to the bottom of the sealing plate.

The beneficial effects of the utility model are as follows:

The utility model can dry the gas entering the drying box through the drying box, and the dried gas enters the heating box through the connecting pipe, and the gas entering the heating box will be heated, and the heated gas will enter the connecting pipe through the connecting pipe. The hose then enters the air outlet box, sprays out through the nozzle, and passes through the feed port, so that the printed and dyed fabric can enter the drying box, pass through the conveying roller, and then transport the printed and dyed fabric, and the hot air flow ejected from the nozzle will affect the printing and dyeing The cloth is dried and then flows out through the outlet, which solves the problem that the existing printing and dyeing device cannot dry the cloth in time after the printing and dyeing is completed, which affects the fineness of the cloth and has low working efficiency.

Description of drawings

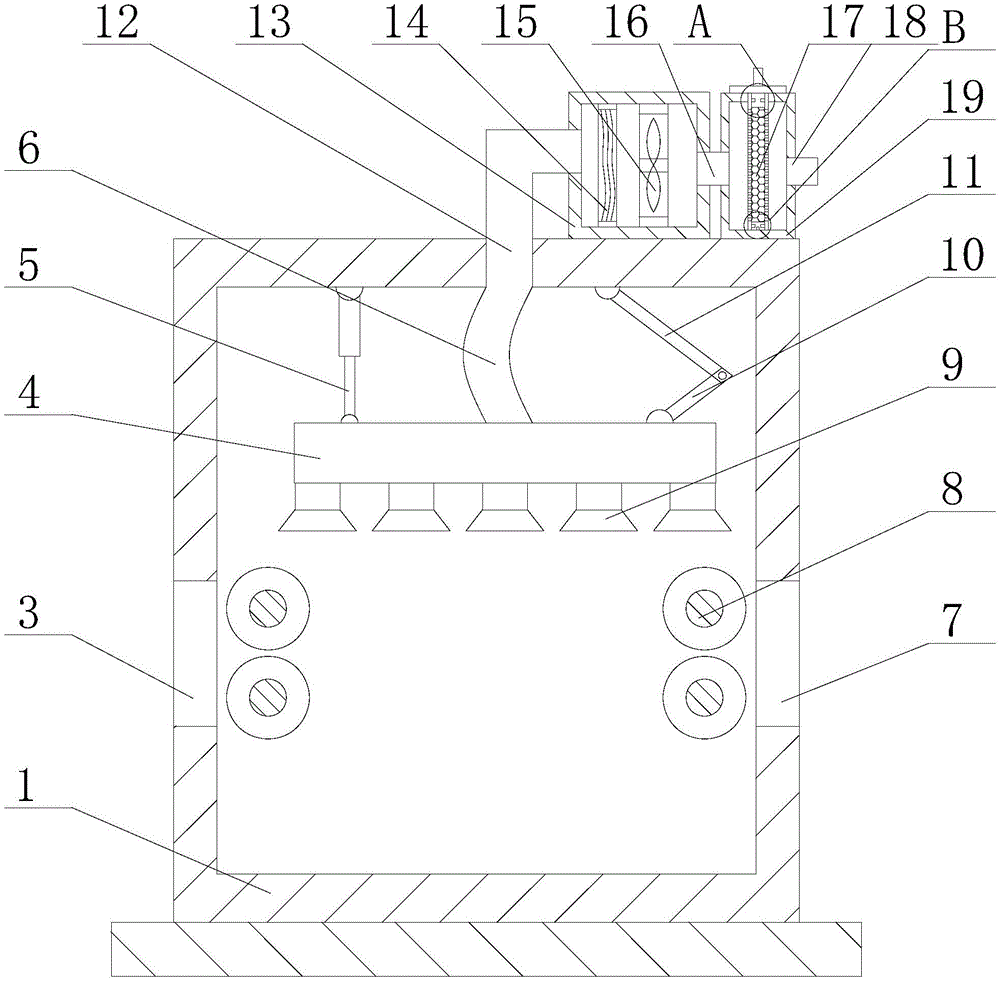

Fig. 1 is a structural representation of the utility model;

Fig. 2 is a front view of the utility model;

Fig. 3 is a schematic diagram of enlarged structure at A place in Fig. 1 of the present utility model;

Fig. 4 is the schematic diagram of enlarged structure at B place in Fig. 1 of the utility model;

Reference signs: 1. Drying box; 2. Cover plate; 3. Material inlet; 4. Air outlet box; 5. Electric push rod; 6. Connecting hose; 7. Material outlet; 8. Conveying roller; 9 , nozzle; 10, connecting rod one; 11, connecting rod two; 12, connecting pipe; 13, heating box; 14, heating wire; 15, fan; 16, connecting pipe one; 17, drying bag; 18, connecting pipe two ; 19, drying oven; 20, sealing plate; 21, block one; 22, installation frame; 23, block two; 24, slot two; 25, slot one.

Detailed ways

In order to make the purpose, technical solutions and advantages of the embodiments of the utility model clearer, the technical solutions in the embodiments of the utility model will be clearly and completely described below in conjunction with the drawings in the embodiments of the utility model.

As shown in Figure 1-4, a new type of drying equipment for printing and dyeing, including a drying box 1, the top of the inside of the drying box 1 is rotatably connected to an angle-adjustable air outlet box 4, and the bottom of the air outlet box 4 is fixedly connected to multiple Evenly distributed nozzles 9, the top of the air outlet box 4 is fixedly connected with a connecting hose 6, the top of the drying box 1 is fixedly connected with a heating box 13, and the top of the drying box 1 is also fixedly connected with a drying box 19, and the heating box 13 is connected with the connecting soft box. The pipe 6 is connected through the connecting pipe 12, and the heating box 13 and the drying box 19 are connected through the connecting pipe 16. One side of the drying box 1 is provided with a feed port 3, and the other side of the drying box 1 is provided with a discharge port. Port 7, two ends of the inner side of the drying box 1 are rotatably connected with two symmetrically distributed conveying rollers 8, and the side of the drying box 19 away from the heating box 13 is fixedly connected with a connecting pipe 2 18. In some embodiments, through the drying box 19, and then the gas entering the drying box 19 can be dried, and the dried gas enters the heating box 13 through the connecting pipe 16, and the gas entering the heating box 13 will be heated, and the heated gas will enter the connection through the connecting pipe 12. The hose 6 then enters the air outlet box 4, sprays out through the nozzle 9, and passes through the feed port 3, so that the printed and dyed cloth can enter the drying box 1, and then the printed and dyed cloth can be transported through the conveying roller 8, and the printed and dyed cloth can be sprayed by the nozzle 9 The hot air flow will dry the printed and dyed cloth, and then flow out through the outlet 7, thus solving the problem. However, the existing printing and dyeing device cannot dry the cloth in time after the printing and dyeing is completed, which affects the fineness of the cloth The problem of low work efficiency.

As shown in Figure 1, in some embodiments, an electric push rod 5 is rotatably connected to one end of the inner top of the drying box 1, and the output end of the electric push rod 5 is rotatably connected to the top of the air outlet box 4, and the other end of the inner top of the drying box 1 is rotated. Connecting rod two 11 is connected, connecting rod two 11 rotates and connects connecting rod one 10 away from drying oven 1, one end of connecting rod one 10 away from connecting rod two 11 is connected to the top of air outlet box 4 by rotation, through electric push rod 5, and then It can drive the air outlet box 4 to rotate, and through the cooperation of the connecting rod two 11 and the connecting rod one 10, the air outlet box 4 can be rotated on the inner top of the drying box 1, and then the nozzle 9 can be driven to rotate, and then the printing and dyeing cloth can be differently processed. Angled hot air drying.

As shown in Figure 1, in some embodiments, one end inside the heating box 13 is fixedly connected with a heating wire 14, and the other end inside the heating box 13 is fixedly connected with a fan 15. The wire 14 heats the gas in the heating box 13 , passes through the fan 15 , and then transports the heated gas into the drying box 1 .

As shown in Fig. 1, Fig. 3 and Fig. 4, in some embodiments, an installation frame 22 is slidably connected to the inner side of the drying box 19, and the inner side of the installation frame 22 is provided with a drying bag 17, and the bottom of the installation frame 22 is engaged with the bottom of the inner side of the drying box 19. Then, the cover plate 2 is clamped on both sides of the installation frame 22. Through the clamping connection between the cover plate 2 and the two sides of the installation frame 22, the dry bag 17 in the installation frame 22 can be limited, and then the dry bag 17 that enters the drying box can be controlled. The gas in 19 is dried.

As shown in FIG. 4 , in some embodiments, the bottom of the installation frame 22 is provided with a slot 2 24 , and the inside bottom of the drying box 19 is fixedly connected with a block 2 23 , and the block 23 is engaged with the inside of the slot 24 . The clamping connection between the second clamping block 23 and the internal side of the second clamping slot 24 further makes the clamping connection between the installation frame 22 and the inner bottom of the drying box 19 .

As shown in Figures 3 and 4, in some embodiments, two symmetrically distributed slots 125 are provided on both sides of the installation frame 22, and two symmetrically distributed slots 25 are fixedly connected to the opposite sides of the two cover plates 2. Block one 21, block one 21 and draw-in slot one 25 inboard clamping, by clamping block one 21 and draw-in groove one 25 inboard clamping, and then cover plate 2 can be clamped on mounting frame 22 both sides.

As shown in Figures 1-3, in some embodiments, the top of the drying box 19 is provided with a sealing plate 20, the top of the installation frame 22 is fixedly connected to the bottom of the sealing plate 20, and the top of the drying box 19 can be sealed through the sealing plate 20, At the same time, the sealing plate 20 is moved, and the installation frame 22 can be drawn out from the inner side of the drying box 19 .

The above description of the disclosed embodiments enables those skilled in the art to realize or use the utility model. Various modifications to these embodiments will be readily apparent to those skilled in the art, and the general principles defined herein may be implemented in other embodiments without departing from the spirit or scope of the invention. Therefore, the present invention will not be limited to these embodiments shown herein, but will conform to the widest scope consistent with the principles and novel features disclosed herein.

Claims (7)

1. A new type of drying equipment for printing and dyeing, comprising a drying box (1), characterized in that: the inside top of the drying box (1) is rotatably connected with an angle-adjustable air outlet box (4), the The bottom of the air outlet box (4) is fixedly connected with a plurality of evenly distributed nozzles (9), the top of the air outlet box (4) is fixedly connected with a connecting hose (6), and the top of the drying box (1) is fixedly connected with a heating box (13), the top of the drying box (1) is also fixedly connected with a drying box (19), the heating box (13) communicates with the connecting hose (6) through the connecting pipe (12), and the heating The box (13) is communicated with the drying box (19) through a connecting pipe one (16). The drying box (1) side is provided with a feed port (3), and the drying box (1) is connected to the other side. A discharge port (7) is provided on one side, and two symmetrically distributed conveying rollers (8) are rotatably connected to both ends of the inside of the drying box (1), and the drying box (19) is far away from the heating box (13 ) one side is fixedly connected with connecting pipe two (18). 2. A new type of drying equipment for printing and dyeing according to claim 1, characterized in that: an electric push rod (5) is rotatably connected to one end of the inner top of the drying box (1), and the electric push rod (5) The output end is rotatably connected with the top of the air outlet box (4), and the other end of the inner top of the drying box (1) is rotatably connected with a connecting rod two (11), and the connecting rod two (11) is far away from the drying box ( 1) One end is rotatably connected with a connecting rod one (10), and the one end of the connecting rod one (10) away from the connecting rod two (11) is rotatably connected with the top of the air outlet box (4). 3. A new type of drying equipment for printing and dyeing according to claim 1, characterized in that: a heating wire (14) is fixedly connected to one end of the inner side of the heating box (13), and a heating wire (14) is fixedly connected to the inner side of the heating box (13). The other end is fixedly connected with a blower fan (15). 4. A new type of drying equipment for printing and dyeing according to claim 1, characterized in that: an installation frame (22) is slidably connected to the inner side of the drying box (19), and the inner side of the installation frame (22) is set There is a drying bag (17), the bottom of the installation frame (22) is clamped with the inner bottom of the drying box (19), and cover plates (2) are clamped on both sides of the installation frame (22). 5. A new type of drying equipment for printing and dyeing according to claim 4, characterized in that: the bottom of the installation frame (22) is provided with a slot two (24), and the inner bottom of the drying box (19) The second clamping block (23) is fixedly connected, and the second clamping block (23) is engaged with the inner side of the second clamping slot (24). 6. A new type of drying equipment for printing and dyeing according to claim 4, characterized in that: two symmetrically distributed slots one (25) are provided on both sides of the installation frame (22), The opposite sides of each of the cover plates (2) are fixedly connected with two symmetrically distributed clamping blocks one (21), and the clamping block one (21) is clamped with the inner side of the clamping groove one (25). 7. A new type of drying equipment for printing and dyeing according to claim 4, characterized in that: the top of the drying box (19) is provided with a sealing plate (20), and the top of the installation frame (22) is sealed The bottom of the plate (20) is fixedly connected.
