Abstract

The utility model discloses a concealed air conditioner hanger, which comprises an outer wall surface and a wall inner groove set on the outer wall surface. Both sides of the wall inner groove are equipped with fixed Side strips, movable retaining strips are installed equidistantly between the two fixed side strips, an L-shaped air-conditioning bracket is installed on the vertical inner wall inside the inner groove of the wall, and the horizontal end of the bottom of the L-shaped air-conditioning bracket is plugged in There is a bracket, and the side of the bracket away from the L-shaped air-conditioning bracket is connected with a vertically arranged vertical plate, and the vertical plate is rotatably connected with a rotating stop bar. In the utility model, the rotating bar structure that can be installed integrally is adopted, on the one hand, it reduces the time for high-altitude operation when the air conditioner external unit is installed, and on the other hand, it facilitates heat dissipation and ventilation when the air conditioner external unit is working.

Description

A hidden air conditioner hanger

technical field

The utility model relates to the technical field of installation of an air conditioner external unit, in particular to a hidden air conditioner hanger.

Background technique

The outdoor unit of the air conditioner mainly refers to the outdoor unit outside the air conditioner. Its main cooling principle is to transfer the heat in the room to the outdoor unit through the refrigerant. After the refrigerant condenses in the chassis, it is sent to the indoor unit through the pipeline. Circulation, in order to complete the directional transport of heat and the effect of cooling, and vice versa, heating, so the outdoor unit of the air conditioner is often installed in a cool and dry place outdoors.

Compared with flat-story buildings, urban high-rise buildings and residential building facades often reserve installation locations for air-conditioning external units for aesthetic and safety reasons, and install metal grid windows on the outside of the installation locations. In order to achieve the purpose of shielding the external unit to form a unified building facade, rain protection and ventilation at the same time, however, when performing high-altitude operations for the external unit of the air conditioner, it is necessary to remove the metal grid window part used for shielding so that the external unit of the air conditioner can enter the pre-installed area. At the reserved installation position, install the air conditioner outdoor unit into the reserved installation frame, and then reinstall the dismantled metal grid window.

However, for high-altitude operations such as the installation of air conditioner external units, it is time-consuming and laborious to remove the metal grid windows and reinstall them. At the same time, dense metal grid windows are also likely to affect the heat dissipation effect of the air conditioner external units. When the grid windows are reinstalled, few or no metal grid windows are installed, resulting in gaps and omissions in the grid windows of the original neat building facade, which affects the overall aesthetic effect of the building facade.

Utility model content

The purpose of this utility model is: in order to solve the problem that the window grid plate removed during the installation of the air conditioner external unit will not be reinstalled, and a hidden air conditioner hanger is proposed.

In order to achieve the above object, the utility model adopts the following technical solutions:

A hidden air conditioner hanger, comprising an outer wall surface and an inner wall groove set concavely on the outer wall surface, fixed edge strips are installed on both sides of the inner wall groove near the outer wall surface, two Movable retaining bars are equidistantly installed between the fixed side bars, and an L-shaped air-conditioning bracket is installed on the vertical inner wall inside the inner groove of the wall, and a bracket is plugged into the horizontal end of the bottom of the L-shaped air-conditioning bracket. A vertically arranged riser is connected to the side of the bracket away from the L-shaped air-conditioning support, and a rotating stop bar is rotatably connected to the riser.

As a further description of the above technical solution:

Fixed bars are equidistantly arranged on the fixed side bars, and both ends of the movable bar are respectively detachably and fixedly connected to the fixed bars.

As a further description of the above technical solution:

Both ends of the bracket are provided with support clips that are plugged and slidable with the horizontal end of the L-shaped air-conditioning bracket, and the support clip is provided with a vertical hole that communicates with the through hole at the horizontal end of the L-shaped air-conditioning bracket.

As a further description of the above technical solution:

A rotating ring cooperating with the rotating retaining bar is fixed on the vertical plate.

As a further description of the above technical solution:

An oblique push rod abutting against the rotating bar is fixed on the side of the rotating ring.

As a further description of the above technical solution:

The rotating bar is arranged parallel to the movable bar.

In summary, due to the adoption of the above technical solution, the beneficial effects of the utility model are:

1. In the present utility model, a rotating bar structure that can be installed integrally is adopted. Because of the use of the bracket inserted between the two L-shaped air-conditioning brackets and the vertical board fixed by the bracket, and because of the use of the vertical board The rotating baffle connected by the upper rotation can realize that after dismantling multiple movable baffles during the installation process of the external air conditioner, multiple rotating baffles can be installed at the original movable baffle at one time, reducing the number of external air conditioners. After installation, it is necessary to reinstall the disassembled movable baffle. At the same time, the rotating baffle can be rotated to reduce wind resistance when the external air conditioner is working. On the one hand, it reduces the time for working at heights when the air conditioner is installed, and on the other hand, it is convenient Heat dissipation and ventilation when the outdoor unit is working.

Description of drawings

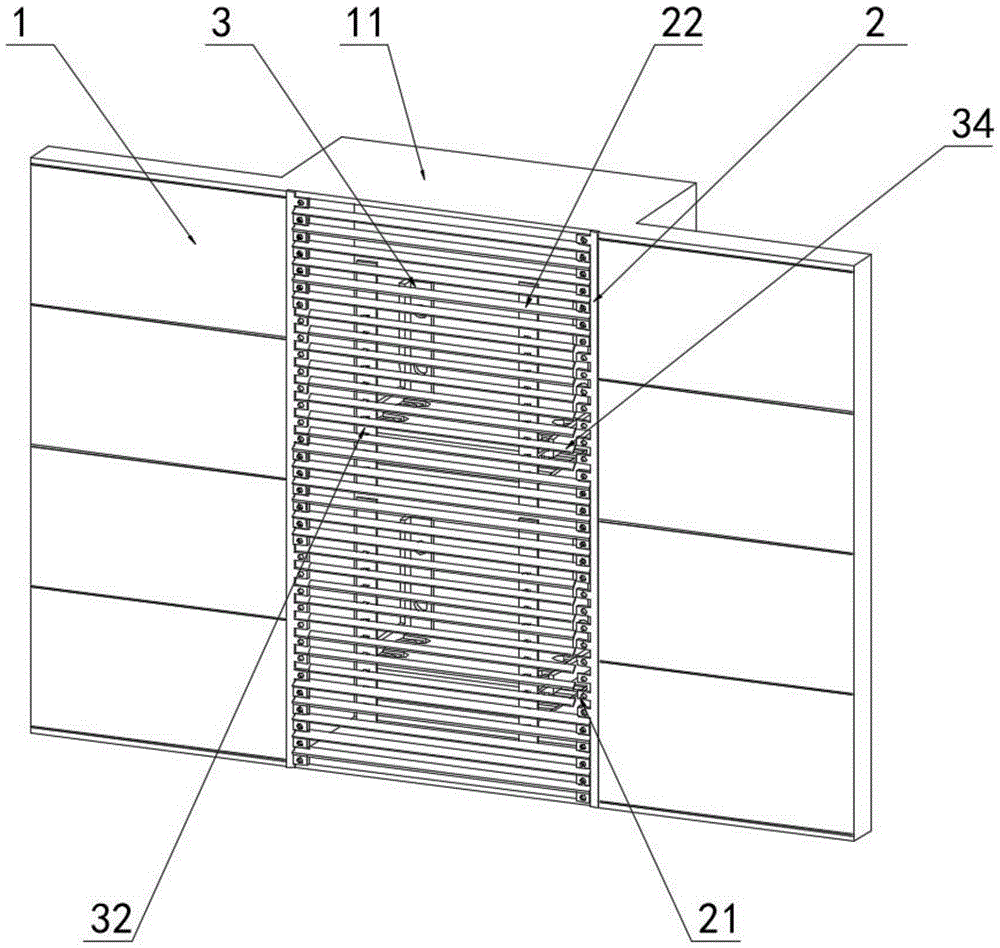

Fig. 1 shows a schematic diagram of a front stereoscopic structure provided according to an embodiment of the present invention;

Fig. 2 shows a schematic diagram of a vertical cross-sectional structure provided according to an embodiment of the present invention;

Fig. 3 shows a schematic diagram of a cross-sectional structure of a knuckle according to an embodiment of the present invention;

Fig. 4 shows a schematic diagram of an enlarged structure at A provided according to an embodiment of the present invention.

illustration:

1. Outer wall surface; 11. Groove inside the wall; 2. Fixed edge strip; 21. Fixed strip; 22. Movable retaining strip; 3. L-shaped air conditioning bracket; 31. Bracket; 32. Riser; 33. Support clip; 34, rotating bar; 35, inclined push rod; 36, rotating ring.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without creative efforts belong to the scope of protection of the present utility model.

Please refer to Figures 1-4, the utility model provides a technical solution: a hidden air conditioner hanger, including an outer wall surface 1 and an inner wall groove 11 set concavely on the outer wall surface 1, and the wall inner wall is concave Both sides of the groove 11 are equipped with fixed side bars 2 near the outer wall surface 1, movable retaining bars 22 are installed equidistantly between the two fixed side bars 2, and L-shaped bars are installed on the inner vertical inner wall of the groove 11 in the wall. Air-conditioning support 3, bracket 31 is plugged into the bottom horizontal end of L-shaped air-conditioning support 3, and the side of bracket 31 away from L-shaped air-conditioning support 3 is connected with a vertical vertical plate 32, and the vertical plate 32 is rotatably connected with a rotating block. Article 34.

Among them, the setting of the groove 11 in the wall is used to install the L-shaped air conditioner bracket 3 and the external air conditioner equipment in the groove 11 in the cavity, and then pass the fixed side strips 2 arranged on both sides of the groove 11 in the wall , and the movable retaining strip 22 arranged between the two fixed side strips 2, to block the opening of the front side of the groove 11 in the wall, and the setting of the L-shaped air conditioner bracket 3 is used to be fixed at the groove 11 in the wall On the wall of the external air conditioner, the external unit of the external air conditioner is fixed on the horizontal end of the L-shaped air conditioner bracket 3, and the bracket 31 and the support clips 33 provided on both sides of the bracket 31 are used to fix the bracket 31 and the vertical plate 32 on the two sides. Between the two L-shaped air-conditioning brackets 3, the vertical plate 32 and the rotating bar 34 and the movable bar 33 that are rotatably connected to the front side of the vertical plate 32 are on the same plane, thereby forming a plurality of movable bars 22 in the installation of the external air conditioner. The cavity produced by dismantling the movable retaining bar 33 during the machine is blocked, reducing the steps of reinstalling after the movable retaining bar 33 is removed. The abutment between the retaining bars 34 can support the tilting of the rotating retaining bar 34, so that the inclination angle of the rotating retaining bar 34 and the movable retaining bar 22 is the same. Rotate around the rotating ring 36 to reduce the shielding of the rotating bar 34 when the external air conditioner is working.

Specifically, as shown in Figure 1, fixed strips 21 are equidistantly arranged on the fixed side strips 2, and the two ends of the movable strips 22 are respectively detachably and fixedly connected with the fixed strips 21, wherein the fixed strips 21 are used to connect with the movable strips 22. Between the precast fixed.

Specifically, as shown in Figure 4, both ends of the bracket 31 are provided with a support clip 33 that is plugged and slid with the horizontal end of the L-shaped air-conditioning bracket 3, and the support clip 33 is provided with a through hole at the horizontal end of the L-shaped air-conditioning bracket 3. Connected vertical holes, wherein the support frame 33 is used to insert the bracket 31 between the two L-shaped air conditioner brackets 3, so that the support frame 33 can be slidably inserted between the two L-shaped air conditioners 3, thereby This makes it more convenient for a plurality of rotating bars 34 to be installed between a plurality of movable bars 22, and reduces the time for high-altitude operations.

Specifically, as shown in FIG. 3 , the vertical plate 32 is fixed with a rotating ring 36 that rotates in conjunction with the rotating bar 34 , wherein the setting of the rotating ring 36 makes the angle of the rotating bar 34 freely rotatable, so that the external air conditioner When the external unit was working, the blowing could drive the rotating retaining bar 34 to offset, thereby facilitating the blowing and cooling of the external air-conditioning external unit.

Specifically, as shown in Figure 3, the side of the rotating ring 36 is fixed with an oblique push rod 35 abutting against the rotating bar 34, wherein the setting of the oblique pushing rod 35 is used to support the inner side of the rotating bar 34, so that the rotating bar When 34 was fitted with the inclined push rod 35, the angle of inclination of the rotating retaining bar 34 and the movable retaining bar 22 was the same.

Specifically, as shown in Figure 1, the rotating bar 34 is arranged parallel to the movable bar 22, wherein the rotating bar 34 and the movable bar 22 are arranged parallel to each other, so that the overall shape of the facade is similar. Avoid affecting the appearance.

The above is only a preferred embodiment of the utility model, but the scope of protection of the utility model is not limited thereto. The equivalent replacement or change of the new technical solution and the concept of the utility model shall be covered by the protection scope of the utility model.

Claims (6)

1. The utility model provides a hidden air conditioner stores pylon, includes wall (1) and wall inner groovy (11) that indent set up on outer wall (1), fixed strake (2) are all installed near outer wall (1) department in wall inner groovy (11) both sides, two equidistant movable blend stop (22) of installing between fixed strake (2), its characterized in that, install L shape air conditioner support (3) on the inboard vertical inner wall of wall inner groovy (11), L shape air conditioner support (3) bottom horizontal end grafting has bracket (31), one side that L shape air conditioner support (3) were kept away from to bracket (31) is connected with riser (32) of vertical setting, rotate on riser (32) and be connected with rotation blend stop (34).

2. A hidden air conditioner hanging frame according to claim 1, wherein the fixed side strips (2) are equidistantly provided with fixed strips (21), and two ends of the movable baffle strip (22) are detachably and fixedly connected with the fixed strips (21) respectively.

3. The hidden air conditioner hanging rack according to claim 1, wherein two ends of the bracket (31) are provided with a supporting clamp (33) which is inserted and slides with the horizontal end of the L-shaped air conditioner bracket (3), and the supporting clamp (33) is provided with a vertical hole communicated with a through hole at the horizontal end of the L-shaped air conditioner bracket (3).

4. A concealed air conditioner hanger as claimed in claim 3 wherein said riser (32) is secured with a rotatable ring (36) which rotates in cooperation with a rotatable barrier (34).

5. The concealed air conditioner hanging rack according to claim 4, wherein the side surface of the rotating ring (36) is fixed with an inclined push rod (35) which is abutted with the rotating barrier strip (34).

6. A concealed air conditioner hanger as claimed in claim 1 wherein the rotating barrier (34) is disposed parallel to the movable barrier (22).
