Abstract

The utility model relates to the technical field of wastewater treatment, and discloses a purification device, comprising a collection box, a motor is fixedly installed on the top of the collection box, a cross is fixedly installed on the output shaft of the motor, and the outer surface of the cross is fixed A ring block is installed, and a filter screen is fixedly installed inside the ring block. The utility model is provided with a motor, a filter screen, a vertical shaft and a rotating block. Due to the operation of the motor, the filter screen located inside the processing box is separated from the processing box under the rotation of the ring block, and under the continuous rotation of the ring block, it passes The ring block drives the vertical shaft to rotate, and then the vertical shaft drives the rotary block to rotate at the connection between the top plate and the rotary block, thereby driving the cleaning block to clean the impurities on the surface of the filter screen, so as to realize continuous cleaning and filtering operations, reducing work The workload of personnel is reduced, and the continuous cleaning of wastewater is realized at the same time.

Description

a purification device

technical field

The utility model relates to the technical field of wastewater treatment, more specifically, the utility model relates to a purification device.

Background technique

At present, when enterprises carry out production and manufacturing operations, a large amount of organic wastewater will be generated. The common treatment method for organic wastewater is to add flocculants to make the organic substances in the wastewater precipitate into agglomerates, and then discharge the sediment to achieve Purification effect, the wastewater purification device in the prior art usually uses a built-in filter to filter the discharged wastewater with sediment. However, after a long time of filtration, the filter is prone to blockage, which reduces the filtering effect. During manual cleaning, it is necessary to stop the operation of the device, which reduces the efficiency of wastewater treatment and cannot achieve continuous and efficient operation.

Utility model content

In order to overcome the shortcomings of the prior art, the utility model provides a purification device, which has the advantages of continuous, high efficiency and good filtering effect.

In order to achieve the above object, the utility model provides the following technical solutions: a purification device, including a collection box, a motor is fixedly installed on the top of the collection box, a cross is fixedly installed on the output shaft of the motor, and the outer surface of the cross is A ring block is fixedly installed, and a filter screen is fixedly installed inside the ring block, and a processing box is arranged above the collection box, and the filter screen part extends to the inside of the processing box, and the front and rear sides of the collection box are both A fixed bracket is fixedly installed, and a top plate and a bottom plate are fixedly installed on the back of the fixed bracket. The bottom end of the top plate is rotatably installed with a turning block, and the bottom end of the turning block is fixedly installed with a cleaning block on the top of the filter screen. The bottom end of the turning block is provided with a groove, and the top of the bottom plate is rotatably mounted with a vertical shaft, the top of the vertical shaft extends to the inside of the groove, and the vertical shaft is in extrusion contact with the ring block and the turning block.

As a preferred technical solution of the present invention, the number of the treatment tanks is two, and the two treatment tanks are connected through a waste water pipe.

As a preferred technical solution of the present invention, the treatment box is fixedly connected with the collection box through a connection pipe, and the shape of the connection pipe is an inverted trumpet shape.

As a preferred technical solution of the utility model, evenly distributed guide plates are fixedly installed on the top of the inner cavity of the processing box, and the two ends of the guide plates are in an inclined state.

As a preferred technical solution of the present invention, both sides of the inside of the processing box are rotatably mounted with rollers, and the outer surfaces of the rollers are smooth.

As a preferred technical solution of the present invention, an anti-slip ring is fixedly sleeved on the outer surface of the vertical shaft, and the anti-slip ring is made of rubber.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. The utility model is equipped with a motor, a filter screen, a vertical shaft and a rotating block. Due to the operation of the motor, the cross, the ring block and the filter screen will be driven to rotate, so that the filter screen inside the processing box will be rotated under the rotation of the ring block. Separated from the processing box, at this time the filter screen located outside the processing box will replace the filter screen in between and enter the inside of the processing box for filtering operations, and under the continuous rotation of the ring block, the ring block drives the vertical axis to rotate, Then, the vertical shaft drives the rotary block to rotate at the connection between the top plate and the rotary block, thereby driving the cleaning block to clean the impurities on the surface of the filter screen, thereby realizing continuous cleaning and filtering operations, reducing the workload of the staff, and at the same time realizing cleaning. Continuous cleaning of waste water.

2. The utility model is provided with a guide plate. Due to the design of the guide plate, the waste water entering the treatment tank through the waste water pipe will be evenly distributed to both sides of the treatment tank under the guidance of the guide plate, so that the waste water and the filter screen The contact is more uniform and the filtering effect is improved.

Description of drawings

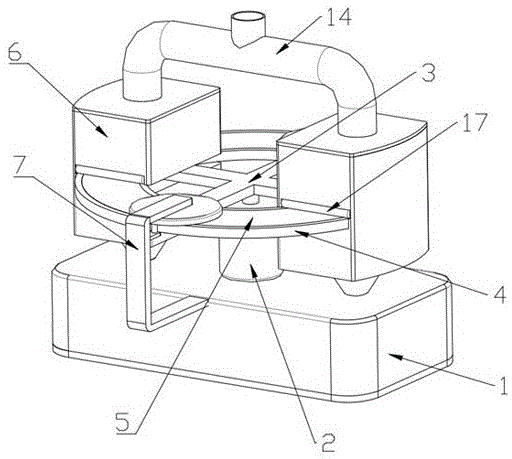

Fig. 1 is a structural representation of the utility model;

Fig. 2 is the internal structure schematic diagram of the utility model processing box;

Fig. 3 is a schematic cross-sectional structural view of the side of the utility model;

Fig. 4 is a schematic diagram of a partially enlarged structure at A in Fig. 3 of the present utility model;

Fig. 5 is a structural schematic diagram of the guide plate of the present invention.

In the figure: 1. Collection box; 2. Motor; 3. Cross; 4. Ring block; 5. Filter screen; 6. Processing box; 7. Fixed bracket; 8. Top plate; 9. Turning block; 10. Cleaning block; 11. Groove; 12. Bottom plate; 13. Vertical axis; 14. Waste pipe; 15. Connecting pipe; 16. Guide plate; 17. Roller; 18. Anti-skid ring.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

As shown in Figures 1 to 5, the utility model provides a purification device, including a collection box 1, a motor 2 is fixedly installed on the top of the collection box 1, a cross 3 is fixedly installed on the output shaft of the motor 2, and the outer surface of the cross 3 The ring block 4 is fixedly installed, and the inside of the ring block 4 is fixedly installed with a filter screen 5, and the top of the collection box 1 is provided with a processing box 6, and the filter screen 5 part extends to the inside of the processing box 6, and the front and rear sides of the collection box 1 are all A fixed support 7 is fixedly installed, and a top plate 8 and a bottom plate 12 are fixedly installed on the back of the fixed support 7. The bottom end of the top plate 8 is rotatably equipped with a turning block 9, and the bottom end of the turning block 9 is fixedly installed with a cleaning block positioned at the top of the filter screen 5 10. The bottom end of the turning block 9 is provided with a groove 11, and the top of the bottom plate 12 is rotated with a vertical shaft 13, and the top of the vertical shaft 13 extends to the inside of the groove 11, and the vertical shaft 13 is connected to the ring block 4 and the turning block 9. squeeze contact;

Start the motor 2, due to the operation of the motor 2, the cross 3, the ring block 4 and the filter screen 5 will be driven to rotate, so that the filter screen 5 positioned at the inside of the processing box 6 breaks away from the processing box 6 under the rotation of the ring block 4. The filter screen 5 located outside the treatment box 6 will replace the filter screen 5 between them and enter the inside of the treatment box 6 to perform filtering operations, and under the continuous rotation of the ring block 4, the vertical shaft 13 is driven by the ring block 4 to rotate , and then the vertical shaft 13 drives the turning block 9 to rotate at the junction of the top plate 8 and the turning block 9, thereby driving the cleaning block 10 to clean the impurities on the surface of the filter screen 5, thereby realizing continuous cleaning and filtering operations, and reducing the number of staff The amount of work, while achieving continuous cleaning of wastewater.

Wherein, the quantity of treatment tank 6 is two, and two treatment tanks 6 are communicated by waste water pipe 14; The top of waste water pipe 14 is communicated with sedimentation tank, by waste water pipe 14, waste water is divided into two streams of water by waste water pipe 14 and enters The inside of the treatment box 6 is used to increase the filtration amount of waste water per unit time and accelerate the filtration effect.

Wherein, the treatment box 6 is fixedly communicated with the collection box 1 through the connection pipe 15, and the shape of the connection pipe 15 is an inverted trumpet shape; due to the design of the connection pipe 15, the waste water filtered inside the treatment box 6 can be collected centrally through the connection pipe 15 Inside the collection box 1.

Wherein, the top of treatment box 6 inner chambers is fixedly equipped with evenly distributed guide plate 16, and the two ends of guide plate 16 are in inclined state; Due to the design of guide plate 16, the waste water that enters treatment box 6 inside by waste water pipe 14 will be in Under the guiding action of the guide plate 16, it is evenly distributed to both sides of the treatment box 6, so that the contact between the waste water and the filter screen 5 is more uniform, and the filtering effect is improved.

Wherein, the both sides of processing box 6 interiors are all rotatably equipped with rollers 17, the outer surface of rollers 17 is smooth, due to the design of rollers 17, when filter screen 5 rotates, will drive roller 17 to rotate together, avoid filter screen 5 Impurities on the surface are left inside the processing box 6 during movement, thereby achieving a better cleaning and filtering effect.

Wherein, the outer surface of the vertical shaft 13 is fixedly sleeved with an anti-slip ring 18, and the anti-slip ring 18 is made of rubber; due to the design of the anti-slip ring 18, the distance between the vertical shaft 13 and the ring block 4 and the rotating block 9 can be increased by the anti-slip ring 18. The friction force between them makes the rotary block 9 rotate smoothly, and the surface of the filter screen 5 is cleaned.

Working principle and application process of the utility model:

Start the motor 2, due to the operation of the motor 2, the cross 3, the ring block 4 and the filter screen 5 will be driven to rotate, so that the filter screen 5 positioned at the inside of the processing box 6 breaks away from the processing box 6 under the rotation of the ring block 4. The filter screen 5 located outside the treatment box 6 will replace the filter screen 5 between them and enter the inside of the treatment box 6 to perform filtering operations, and under the continuous rotation of the ring block 4, the vertical shaft 13 is driven by the ring block 4 to rotate , and then the vertical shaft 13 drives the turning block 9 to rotate with the junction of the top plate 8 and the turning block 9, thereby driving the cleaning block 10 to clean the impurities on the filter screen 5 surface.

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. There is no such actual relationship or order between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. A purification device comprising a collection tank (1), characterized in that: the utility model discloses a cleaning device for a kitchen ventilator, including collecting box (1), fixed mounting has motor (2) at the top of collecting box (1), output shaft fixed mounting of motor (2) has cross (3), surface fixed mounting of cross (3) has ring piece (4), the inside fixed mounting of ring piece (4) has filter screen (5), the top of collecting box (1) is provided with handles case (6), filter screen (5) part extends to the inside of handling case (6), equal fixed mounting in both sides has fixed bolster (7) around collecting box (1), the back fixed mounting of fixed bolster (7) has roof (8) and bottom plate (12), the bottom of roof (8) rotates and installs turning piece (9), the bottom fixed mounting of turning piece (9) has cleaning piece (10) that are located filter screen (5) top, recess (11) are seted up to the bottom of turning piece (9), the top of bottom plate (12) rotates and installs vertical axis (13), the top of vertical axis (13) extends to the inside of recess (11), turning piece (13) and extrusion all contact with ring piece (4).

2. A purification apparatus according to claim 1, wherein: the number of the treatment boxes (6) is two, and the two treatment boxes (6) are communicated through waste water pipes (14).

3. A purification apparatus according to claim 1, wherein: the treatment box (6) is fixedly communicated with the collection box (1) through a connecting pipe (15), and the shape of the connecting pipe (15) is inverted horn-shaped.

4. A purification apparatus according to claim 1, wherein: the top of the inner cavity of the treatment box (6) is fixedly provided with guide plates (16) which are uniformly distributed, and two ends of each guide plate (16) are in an inclined state.

5. A purification apparatus according to claim 1, wherein: the two sides of the inside of the treatment box (6) are rotatably provided with rollers (17), and the outer surfaces of the rollers (17) are smooth.

6. A purification apparatus according to claim 1, wherein: an anti-slip ring (18) is fixedly sleeved on the outer surface of the vertical shaft (13), and the anti-slip ring (18) is made of rubber.
