The utility model discloses a pair of trousers for interventional operation, in particular to the field of medical equipment, which comprises a trousers body and shielding cloth, wherein a waistband is fixedly arranged at the top end of the trousers body, the shielding cloth is arranged at the bottom end of the trousers body, and a first button is arranged on the shielding cloth; according to the utility model, the first magic tape is torn open, the zipper is pulled open, the puncture point can be observed, the leg circumference of a patient can be measured, part of the patient needs to be pressurized by the sand bag, the sand bag is placed at the puncture point through the opening of the zipper, the first magic tape is attached to the adhesive surface of the first magic tape, the fixation of the sand bag can be realized, the fixation of the sand bag improves the postoperative effect, meanwhile, the patient feels too loose and too big, the trouser legs can be attached to the adhesive surface of the second magic tape along with the second magic tape, and the tightness of the trouser legs is adjusted through the rear leg magic tape and the adhesive surface of the rear leg magic tape, so that the patient fits more, the rear end of the trousers body is provided with the hemorrhoid-preventing protective tape, and the probability of the patient lying in bed for a long time to cause hemorrhoids is reduced.

Description

Intervention operation trousers
Technical Field
The utility model relates to the field of medical equipment, in particular to interventional operation trousers.
Background
The interventional operation is carried out by introducing the medical imaging device into the body by using specialized catheters or guide wires and other instruments, judging and treating the disease by using a modern high-technology minimally invasive treatment mode, the patient after the interventional operation is bound by using sterile auxiliary materials under pressure due to the puncture point at the femoral artery, the right lower limb is kept braked for 24 hours, and a nurse needs to dynamically observe the leg circumference change and the instep arterial pulsation condition of the patient. Therefore, the patient trousers are needed to be worn and taken off in daily nursing to observe the condition of the operation puncture part and measure the leg circumference, so that the comfort level of the patient is greatly reduced, and the postoperative condition observation is inconvenient.
Through searching, the prior patent (publication number: CN 214432058U) discloses a special operation trousers for interventional therapy of lower limb vascular diseases, which comprises an operation trousers body, wherein an observation port corresponding to the position of an operation wound is arranged on the operation trousers body, and a connecting piece capable of opening and closing the observation port is arranged at the edge of the observation port. Because the interventional minimally invasive treatment wound of the vascular disease of the lower limb is usually positioned inside the groin or the leg of the patient, the position of the observation port corresponds to the position of the wound, so that the medical staff can observe the condition of the wound conveniently. When the observation port is opened, medical staff can directly check the wound; moreover, the observation port is not easy to expose excessive body parts of the patient, so that the privacy of the patient is protected. Compared with the traditional operation trousers, the special operation trousers for intervention treatment of the vascular diseases of the lower limbs are more convenient to use, can effectively protect the privacy of patients, and the inventor finds that the following problems exist in the process of the utility model:
1. the fixing function is imperfect, and part of patients need to press the sand bag to the puncture point.
2. The space that medical personnel observe through operation trousers is less, is inconvenient for measuring patient's leg circumference simultaneously.
Disclosure of Invention
The utility model provides interventional operation trousers, which solve the problems in the background technology.
In order to solve the technical problems, the interventional operation trousers provided by the utility model comprise a trousers body and shielding cloth, wherein a waistband is fixedly arranged at the top end of the trousers body, shielding cloth is arranged at the bottom end of the trousers body, a first button is arranged on the shielding cloth, first velcro is connected to two sides of the trousers body, a zipper is arranged on one side of the first velcro, a first velcro adhesive surface is arranged on one side of the zipper, a sand bag is arranged on the first velcro adhesive surface, trouser legs are arranged at the bottom end of the first velcro adhesive surface, second velcro adhesives are connected to two sides of the trouser legs, a second velcro adhesive surface is fixedly connected to one side of the second velcro adhesive surface, a hemorrhoid-preventing protective patch is arranged at the rear end of the trousers body, a second button is connected to the bottom end of the hemorrhoid-preventing protective patch, a rear leg velcro is connected to two ends of the trouser legs, and a rear leg velcro adhesive surface is fixedly arranged on one side of the rear leg velcro.
Preferably, the waistband includes fixed block, first magnetic path, waistband strip and second magnetic path, the top of trousers body is equipped with the fixed block, the bottom fixedly connected with first magnetic path of fixed block, one side of first magnetic path is equipped with the waistband strip, the top fixed mounting of waistband strip has the second magnetic path.
Preferably, the size of the first magnetic block is matched with the size of the second magnetic block, and a plurality of second magnetic blocks are arranged on the waistband strip.
Preferably, the number of the first magic tape, the zipper and the first magic tape adhesive surfaces on the trousers body is two, and the first magic tape is matched with the size of the first magic tape adhesive surfaces.
Preferably, the shielding cloth is fixedly connected through a first button, and the length of the zipper and the connected chain is smaller than that of the first magic tape adhesive surface.
Preferably, the shape of the rear leg magic tape and the shape of the rear leg magic tape adhesive surface are trapezoid, and the rear leg magic tape adhesive surface and the hemorrhoid-preventing protective tape are symmetrically distributed about the vertical central line of the shielding cloth.
Compared with the related art, the interventional operation trousers provided by the utility model have the following beneficial effects:
when the waistband is used, a patient wears the operation trousers, the fixing blocks in the waistband are pulled, and when the waistband is adjusted to a proper tightness, the fixing blocks are pressed, and the first magnetic blocks and the second magnetic blocks are attracted, so that the waistband is fixed, the tightness of the waistband can be adjusted by the patient, the comfort of the patient is improved, and when the patient goes to a toilet, the patient only needs to pull out the first button, so that the convenience is improved for the patient, and meanwhile, the privacy is protected;
medical personnel are when observing patient puncture point position or measuring patient leg girth, through tearing first magic subsides, pull open the zip fastener, can observe puncture point position and measure patient leg girth, partial patient need place the sand bag with sand bag pressurization puncture department, place the sand bag in puncture department through the opening of zip fastener, paste first magic subsides to first magic subsides sticky surface, can realize the fixed of sand bag, the fixed postoperative effect that has improved of sand bag, the patient feels that the bottom of a trouser leg is too loose simultaneously, can paste the second magic subsides sticky surface with the bottom of a trouser leg along with the second magic subsides to and adjust the trouser leg elasticity through back leg magic subsides and back leg magic subsides sticky surface, make the patient suit more, the trousers body rear end is equipped with and prevents hemorrhoid protection subsides, the probability that the patient was initiated hemorrhoid for a long time bedridden has been reduced.
Drawings

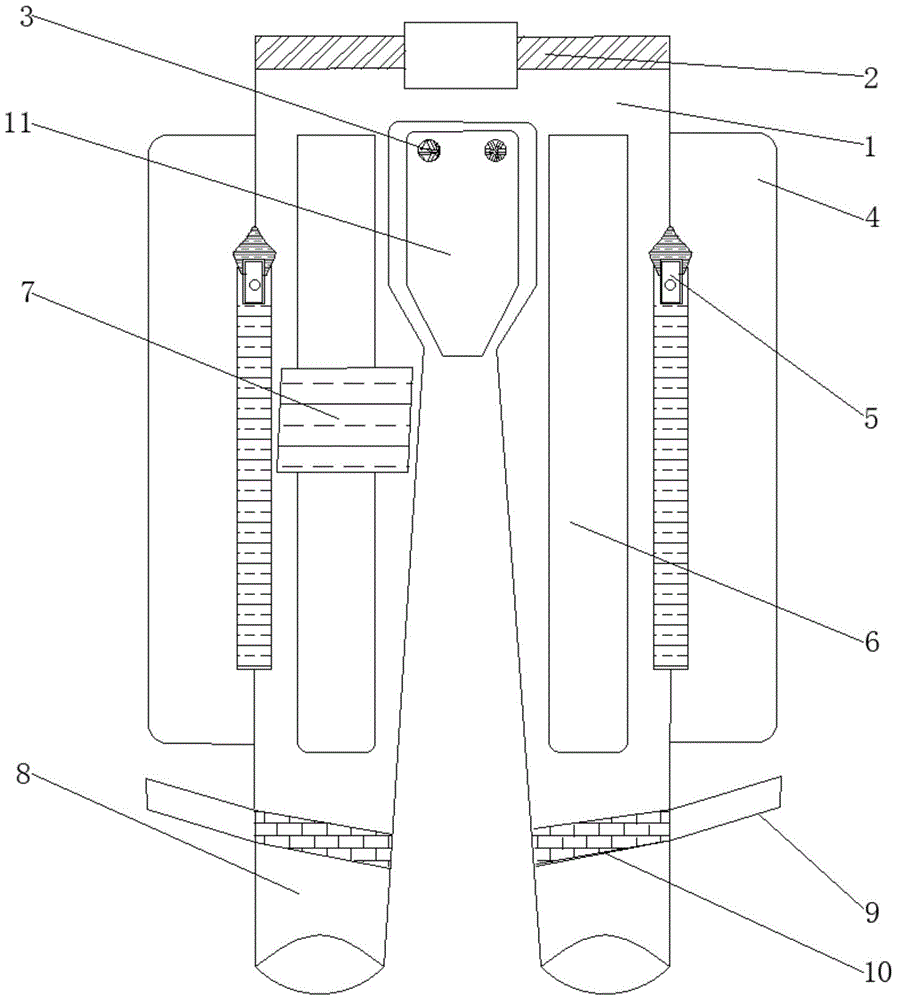

FIG. 1 is a schematic view of an expanded structure of an interventional operation pants;
FIG. 2 is a schematic front view of an interventional procedure pant;
FIG. 3 is a schematic view of a back side deployment configuration of an interventional procedure pant;
fig. 4 is a schematic view of a waistband structure of an interventional operation pants.
Reference numerals in the drawings: 1. a pant body; 2. a waistband; 201. a fixed block; 202. a first magnetic block; 203. a waistband strip; 204. a second magnetic block; 4. a first magic tape; 5. a zipper; 6. a first magic tape adhesive surface; 7. a sand bag; 8. trouser legs; 9. the second magic tape; 10. the second magic tape is stuck on the surface; 11. a shielding cloth; 12. a hemorrhoid-preventing protective patch; 13. a second button; 14. a rear leg magic tape; 15. the back leg magic tape is stuck on the surface.
Detailed Description
The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.
1-4, the interventional operation pants comprise a pants body 1 and shielding cloth 11, wherein a waistband 2 is fixedly arranged at the top end of the pants body 1, the shielding cloth 11 is arranged at the bottom end of the pants body 1, first buttons 3 are arranged on the shielding cloth 11, first velcro 4 are connected to two sides of the pants body 1, a zipper 5 is arranged on one side of the first velcro 4, a first velcro adhesive surface 6 is arranged on one side of the zipper 5, a sand bag 7 is arranged on the first velcro adhesive surface 6, trouser legs 8 are arranged at the bottom end of the first velcro adhesive surface 6, second velcro 9 are connected to two sides of the trouser legs 8, a second velcro adhesive surface 10 is fixedly connected to one side of the second velcro 9, a hemorrhoid preventing protector 12 is arranged at the rear end of the pants body 1, a second button 13 is connected to the bottom end of the hemorrhoid preventing protector 12, a rear leg velcro 14 is connected to two ends of the trouser legs 8, and a rear leg velcro 15 is fixedly arranged on one side of the rear leg velcro 14.
In this embodiment, waistband 2 includes fixed block 201, first magnetic path 202, waistband strip 203 and second magnetic path 204, the top of trousers body 1 is equipped with fixed block 201, the bottom fixedly connected with first magnetic path 202 of fixed block 201, one side of first magnetic path 202 is equipped with waistband strip 203, the top fixed mounting of waistband strip 203 has second magnetic path 204, the patient wears the operation trousers, through pulling fixed block 201 in waistband 2, when adjusting suitable elasticity, press fixed block 201, inhale between first magnetic path 202 and the second magnetic path 204, and then realize waistband 2 is fixed, the patient can adjust the elasticity, patient's travelling comfort has been improved, when the patient goes to the lavatory, only need pull out first button 3 can, the time of taking off trousers has been saved.
In this embodiment, the size of the first magnetic block 202 matches with the size of the second magnetic block 204, the waistband strip 203 is provided with a plurality of second magnetic blocks 204, the number of the first magic tape 4, the zipper 5 and the first magic tape adhesive surface 6 on the trousers body 1 is two, the first magic tape 4 matches with the size of the first magic tape adhesive surface 6, when a medical staff observes a puncture point of a patient or measures the circumference of the leg of the patient, the puncture point can be observed and the circumference of the leg of the patient can be measured by tearing the first magic tape 4, the zipper 5 is pulled open, part of the patient needs to use the sand bag 7 to pressurize the puncture point, the sand bag 7 is placed at the puncture point through the opening of the zipper 5, the first magic tape 4 is adhered to the first magic tape adhesive surface 6, the fixation of the sand bag 7 can be realized, and the fixation of the sand bag 7 improves the postoperative effect.
The second embodiment is different from the first embodiment in that on the basis of the first embodiment, the shielding cloth 11 is fixedly connected through the first button 3, the length of the zipper 5 and the connected chain is smaller than that of the first magic tape adhesive surface 6, the shapes of the rear leg magic tape 14 and the rear leg magic tape adhesive surface 15 are trapezoid, the vertical central lines of the rear leg magic tape 14, the rear leg magic tape adhesive surface 15 and the hemorrhoid-preventing protective tape 12, which are related to the shielding cloth 11, are symmetrically distributed, the patient feels that the trouser legs are too loose, the second magic tape adhesive surface 10 can be attached to the trouser legs along with the second magic tape 9, and the tightness of the trouser legs 8 can be adjusted through the rear leg magic tape 14 and the rear leg magic tape adhesive surface 15, so that the patient fits the patient, the rear end of the trousers body 1 is provided with the hemorrhoid-preventing protective tape 12, and the probability of the patient lying in bed for causing hemorrhoids for a long time is reduced.
Working principle:
when a patient wears the operation trousers, the fixing block 201 in the waistband 2 is pulled and adjusted to a proper tightness, the fixing block 201 is pressed, and the first magnetic block 202 and the second magnetic block 204 are attracted, so that the waistband 2 is fixed, the tightness of the patient can be adjusted, the comfort of the patient is improved, and when the patient goes to a toilet, the patient only needs to pull out the first button 3, so that the trousers are taken off;
medical personnel observe patient puncture point position or measure patient leg girth, through tearing first magic subsides 4, pull open zip fastener 5, can observe puncture point position and measure patient leg girth, partial patient need with sand bag 7 pressurization puncture department, place sand bag 7 in puncture department through the opening of zip fastener 5, paste first magic subsides 4 to first magic subsides sticky surface 6, can realize the fixed of sand bag 7, the fixed of sand bag 7 has improved the postoperative effect, the patient feels that the trouser legs is too loose too big simultaneously, can paste second magic subsides sticky surface 10 with the trouser legs along with 9 pieces of second magic subsides, and adjust trouser leg 8 elasticity through back leg magic subsides 14 and back leg magic subsides sticky surface 15, make the sick clothes fit more, the trousers body 1 rear end is equipped with and prevents hemorrhoid protection subsides 12, patient's probability of causing hemorrhoid for a long time bedridden.
Finally, it should be noted that: the foregoing description is only illustrative of the preferred embodiments of the present utility model, and although the present utility model has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described, or equivalents may be substituted for elements thereof, and any modifications, equivalents, improvements or changes may be made without departing from the spirit and principles of the present utility model.

Claims (6)

1. The utility model provides an intervention operation trousers, includes trousers body (1) and shelters from cloth (11), its characterized in that: the trousers are characterized in that the waistband (2) is fixedly arranged at the top end of the trousers body (1), shielding cloth (11) is arranged at the bottom end of the trousers body (1), first buttons (3) are arranged on the shielding cloth (11), first magic tapes (4) are connected to two sides of the trousers body (1), a zipper (5) is arranged on one side of the first magic tape (4), a sand bag (7) is arranged on the first magic tape adhesive surface (6), second magic tapes (9) are connected to two sides of the first magic tape adhesive surface (6), second magic tapes (10) are fixedly connected to one side of the second magic tapes (9), hemorrhoid protection tapes (12) are arranged at the rear end of the trousers body (1), second buttons (13) are connected to the bottom end of the hemorrhoid protection tapes (12), and two magic tapes (14) are fixedly arranged on one side of the two sides of the trousers legs (8) after the two magic tapes (14) are connected.
2. An interventional procedure pant as defined in claim 1, wherein: waistband (2) are including fixed block (201), first magnetic path (202), waistband strip (203) and second magnetic path (204), the top of trousers body (1) is equipped with fixed block (201), the bottom fixedly connected with first magnetic path (202) of fixed block (201), one side of first magnetic path (202) is equipped with waistband strip (203), the top fixed mounting of waistband strip (203) has second magnetic path (204).
3. An interventional procedure pant as defined in claim 2, wherein: the size of the first magnetic block (202) is matched with the size of the second magnetic block (204), and a plurality of second magnetic blocks (204) are arranged on the waistband strip (203).
4. An interventional procedure pant as defined in claim 1, wherein: the trousers body (1) is gone up first magic subsides (4), zip fastener (5), the quantity of first magic subsides adhesive surface (6) is two, first magic subsides (4) are in agreement with the size of first magic subsides adhesive surface (6).
5. An interventional procedure pant as defined in claim 1, wherein: the shielding cloth (11) is fixedly connected through the first button (3), and the length of the zipper (5) and the connected chain is smaller than that of the first magic tape adhesive surface (6).
6. An interventional procedure pant as defined in claim 5, wherein: the shape of the rear leg magic tape (14) and the shape of the rear leg magic tape adhesive surface (15) are trapezoid, and the vertical central lines of the rear leg magic tape (14), the rear leg magic tape adhesive surface (15) and the hemorrhoid-preventing protective tape (12) are symmetrically distributed about the shielding cloth (11).
