Abstract

The utility model provides a device for absorbing and placing anti-counterfeit paper. The device for absorbing and placing anti-counterfeit paper includes: a base; a first hydraulic cylinder, which is rotatably mounted on the top of the base; an electric guide rail, which is arranged on the first hydraulic cylinder; A hydraulic cylinder, the second hydraulic cylinder is arranged on the electric guide rail; a connecting plate, the connecting plate is fixedly installed on the second hydraulic cylinder; a support seat, the support seat is fixedly installed on the connecting plate a plurality of suction cups, a plurality of the suction cups are arranged under the support base; an air pump, the air pump is arranged on the electric guide rail; a connection mechanism, the connection mechanism is arranged on the connection plate. The anti-counterfeit paper suction and placement device provided by the utility model has the advantages of absorbing the paper through the combined use of the air pump and the suction cup, and can not manually operate the paper when feeding the paper.

Description

Anti-counterfeiting paper suction and placement device

technical field

The utility model belongs to the technical field of mechanical equipment manufacturing, in particular to a device for absorbing and placing anti-counterfeit paper.

Background technique

At present, in the process of folding and gluing paper, the paper needs to be placed in a preset position in the early stage, and then transported to different stations by conveyor belt for processing. The traditional paper production and processing method is to manually load the material, and manually place a sheet of paper on the belt of the conveyor.

Through manual operation, the production efficiency is low, and at the same time, due to manual operation, it is easy to cause damage to the paper when feeding thinner paper.

Therefore, it is necessary to provide a new anti-counterfeit paper suction and placement device to solve the above technical problems.

Utility model content

In order to solve the technical problem of low manual operation efficiency and easy paper damage, the utility model provides a device for absorbing and placing anti-counterfeit paper.

The anti-counterfeit paper absorbing and placing device provided by the utility model includes: a base; a first hydraulic cylinder, the first hydraulic cylinder is rotatably mounted on the top of the base; an electric guide rail, the electric guide rail is arranged on the first hydraulic cylinder ; the second hydraulic cylinder, the second hydraulic cylinder is arranged on the electric guide rail; the connecting plate, the connecting plate is fixedly installed on the second hydraulic cylinder; the support base, the support base is fixedly installed on the A connection plate; a plurality of suction cups, a plurality of the suction cups are arranged under the support seat; an air pump, the air pump is arranged on the electric guide rail; a connection mechanism, the connection mechanism is arranged on the connection plate .

As a further solution of the present invention, a plurality of third hydraulic cylinders are fixedly installed on the support base, and installation blocks are fixedly installed on the plurality of third hydraulic cylinders respectively.

As a further solution of the present utility model, the connecting mechanism includes a connecting pipe, a plurality of bellows and an exhaust pipe, the connecting pipe is fixedly installed on the top of the connecting plate, and the plurality of bellows are connected with the air pump respectively. It is fixedly connected with a plurality of the installation blocks, and the plurality of bellows are fixedly connected with the connecting pipe, the exhaust pipe is fixedly installed on the bellows on the air pump, and the exhaust pipe is covered with Equipped with electric valve.

As a further solution of the present utility model, connecting blocks are fixedly installed on the mounting blocks, sealing rings are fixedly installed in a plurality of the connecting blocks, and the plurality of connecting blocks are respectively threaded with a plurality of the suction cups, The plurality of suction cups communicate with the plurality of bellows through the plurality of connection blocks respectively.

As a further solution of the present utility model, a drive motor is fixedly installed on the top of the base, and bevel gears are fixedly sleeved on the output shafts of the first hydraulic cylinder and the drive motor, and the two bevel gears Mesh.

As a further solution of the present utility model, a placement box is fixedly installed on the top of the base, gaps are opened on both sides of the placement box, and an inductor is fixedly installed in the placement box, and the inductor is located in the gap below.

As a further solution of the present utility model, a threaded screw is mounted on one side of the placement box, and a pressing plate is rotatably mounted on the screw.

Compared with related technologies, the anti-counterfeit paper absorbing and placing device provided by the utility model has the following beneficial effects:

The utility model provides a device for absorbing and placing anti-counterfeit paper:

1. The air in the suction cup is pumped out by the air pump, so that the suction cup generates suction and absorbs the paper. When feeding the paper, there is no need to manually operate it, and the work efficiency is high. The installation block is driven by the third hydraulic cylinder. Slide to make multiple suction cups close to or far away from each other, so that the suction cups can absorb paper of different sizes, which is easy to use;

2. When unloading the paper, open the electric valve on the exhaust pipe, let the air enter into the bellows, and cut off the suction of the suction cup, so that the paper can be unloaded quickly. Through the setting of the connecting block, it can be It is more convenient to replace the suction cup, and at the same time, through the setting of the sealing ring, the connection between the suction cup and the connection block can be better sealed;

3. Drive the suction cup to rotate by driving the motor, and it is more convenient to take and unload the paper, which is better to use. Through the setting of the sensor in the storage box, it can remind the staff when the paper is insufficient, which is convenient for the paper. Feeding, close to the paper through the pressure plate, can prevent the paper from dumping and affect the use when the paper is placed.

Description of drawings

In order to facilitate the understanding of those skilled in the art, the utility model will be further described below in conjunction with the accompanying drawings.

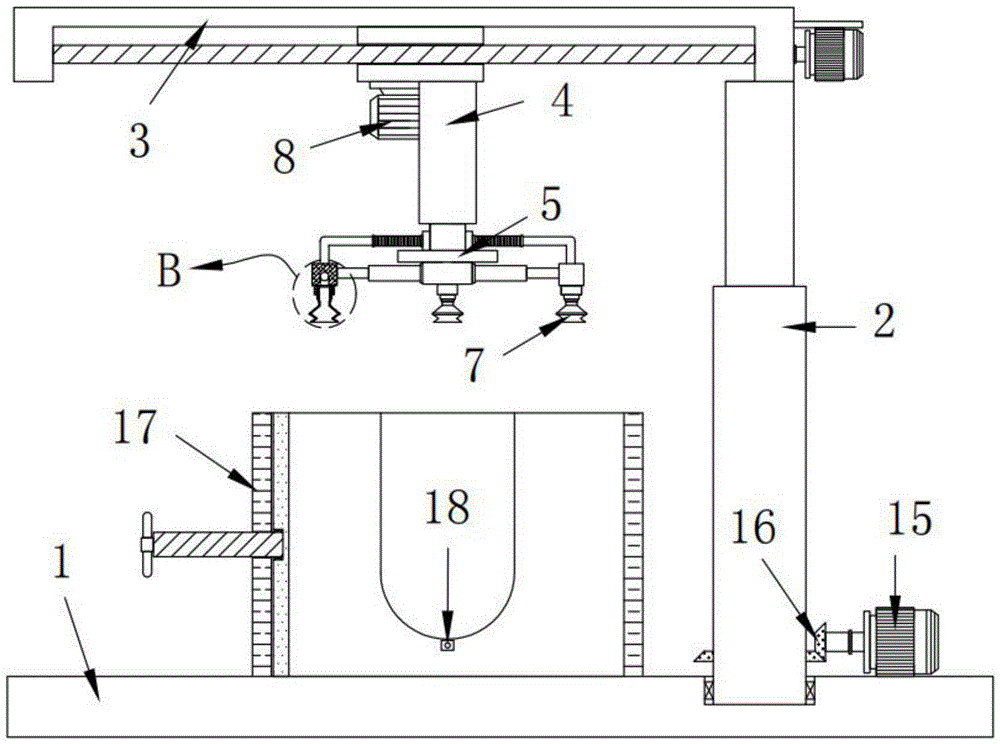

Fig. 1 is a front view sectional structural schematic diagram of a preferred embodiment of the anti-counterfeit paper suction and placement device provided by the utility model;

Fig. 2 is a rear view structural schematic diagram of a preferred embodiment of the anti-counterfeit paper suction and placement device provided by the utility model;

Fig. 3 is the assembly drawing of support seat, the 3rd hydraulic cylinder and installation block in the utility model;

Fig. 4 is the structural representation of placing box in the utility model;

Fig. 5 is the schematic diagram of the enlarged structure of part A in Fig. 2;

FIG. 6 is an enlarged structural schematic diagram of part B in FIG. 1 .

In the figure: 1. Base; 2. First hydraulic cylinder; 3. Electric guide rail; 4. Second hydraulic cylinder; 5. Connecting plate; 6. Support seat; 7. Suction cup; 8. Air pump; 9. Third hydraulic cylinder 10, installation block; 11, connecting pipe; 12, corrugated pipe; 13, exhaust pipe; 14, connecting block; 15, drive motor; 16, bevel gear; 17, placement box; 18, sensor.

Detailed ways

Please refer to Fig. 1-Fig. 6 in combination, wherein, Fig. 1 is a front view sectional structure schematic diagram of a preferred embodiment of the anti-counterfeit paper suction and placement device provided by the utility model; Fig. 2 is the anti-counterfeit paper suction and placement provided by the utility model A schematic diagram of the rear view structure of a preferred embodiment of the device; Figure 3 is an assembly diagram of the support seat, the third hydraulic cylinder and the installation block in the utility model;

Fig. 4 is a schematic diagram of the structure of the placement box in the present invention; Fig. 5 is a schematic diagram of the enlarged structure of part A in Fig. 2; Fig. 6 is a schematic diagram of the enlarged structure of part B in Fig. 1 .

The anti-counterfeiting paper suction and placement device includes: a base 1; a first hydraulic cylinder 2, which is rotatably mounted on the top of the base 1; an electric guide rail 3, which is arranged on the first hydraulic cylinder 2; the second hydraulic cylinder 4, the second hydraulic cylinder 4 is arranged on the electric guide rail 3; the connecting plate 5, the connecting plate 5 is fixedly installed on the second hydraulic cylinder 4; the support seat 6, The support base 6 is fixedly mounted on the connecting plate 5; a plurality of suction cups 7 are arranged under the support base 6; an air pump 8 is arranged on the electric guide rail 3. Connecting mechanism, the connecting mechanism is arranged on the connecting plate 5, and the air in the sucker 7 is drawn out by the air pump 8, so that the sucker 7 generates suction to absorb the paper, and when the paper is loaded, There is no need to manually operate it, and the work efficiency is high.

A plurality of third hydraulic cylinders 9 are fixedly installed on the support base 6, and mounting blocks 10 are respectively fixedly mounted on the plurality of third hydraulic cylinders 9, and the third hydraulic cylinders 9 drive the mounting blocks 10 to slide, so that multiple The suction cups 7 are close to or far away from each other, so that the suction cups 7 can absorb papers of different sizes, which is convenient for use.

The connection mechanism includes a connecting pipe 11, a plurality of bellows 12 and an exhaust pipe 13, the connecting pipe 11 is fixedly installed on the top of the connecting plate 5, and a plurality of the bellows 12 are connected with the air pump 8 and the air pump 8 respectively. A plurality of the installation blocks 10 are fixedly connected, a plurality of the bellows 12 are fixedly connected with the connecting pipe 11, the exhaust pipe 13 is fixedly installed on the bellows 12 on the air pump 8, the An electric valve is set on the exhaust pipe 13. When the paper is unloaded, the electric valve on the exhaust pipe 13 is opened to allow air to enter the bellows 12, and the suction force of the suction cup 7 is cut off, so that the paper can be quickly cutting.

A connection block 14 is fixedly installed on the mounting block 10, a sealing ring is fixedly installed in a plurality of the connection blocks 14, a plurality of the connection blocks 14 are respectively threaded with a plurality of the suction cups 7, and a plurality of the connection blocks 14 are threadedly connected with the plurality of suction cups 7 respectively. The suction cups 7 are respectively communicated with the plurality of bellows 12 through a plurality of the connecting blocks 14. Through the setting of the connecting blocks 14, it is more convenient to replace the suction cups 7. At the same time, through the setting of the sealing ring, it is possible to Preferably, the connection between the suction cup 7 and the connection block 14 is sealed.

The top of the base 1 is fixedly mounted with a driving motor 15, and the output shafts of the first hydraulic cylinder 2 and the driving motor 15 are fixedly sleeved with bevel gears 16, and the two bevel gears 16 are meshed with each other. , the suction cup 7 is driven to rotate by the drive motor 15, and the paper is reclaimed and unloaded relatively quickly, which is better to use.

The top of the base 1 is fixedly equipped with a placement box 17, and both sides of the placement box 17 are provided with gaps, and an inductor 18 is fixedly installed in the placement box 17, and the inductor 18 is located below the gap. Through the arrangement of the sensor 18 in the placement box 17, when the paper is insufficient, the staff can be prompted to facilitate feeding of the paper.

One side of the placement box 17 is threaded with a threaded mandrel, and a pressing plate is mounted on the threaded mandrel, and the pressing plate is close to the paper, so that the paper can be prevented from toppling over when the paper is placed, which will affect the use.

It is worth noting that the circuits, electronic components and modules involved in this utility model are all existing technologies, which can be realized by those skilled in the art. Needless to say, the protection content of this utility model does not involve the protection of software and methods. Improve.

The working principle of the anti-counterfeit paper suction and placement device provided by the utility model is as follows:

In this scheme, there is also an electric control cabinet. The electric control cabinet is set on the equipment. When in use, the electric control cabinet can be used to start the operation of each electric equipment. The power connection mode of each electric equipment is the existing mature technology. The well-known technology of field personnel, do not repeat redundantly here;

When in use, the staff first places the paper in the placement box 17, and then turns the screw rod, so that the screw rod drives the pressure plate to slide, so that the pressure plate is close to the paper, and then starts the first hydraulic cylinder 2 and the second hydraulic cylinder 4, so that the first hydraulic pressure The cylinder 2 and the second hydraulic cylinder 4 drive the suction cup 7 to slide, so that the suction cup 7 slides into the placement box 17. When the suction cup 7 slides into the placement box 17, the air pump 8 is started. When the suction cup 7 is connected with the paper, the air pump 8 will The air in the suction cup 7 is sucked out, so that the suction cup 7 generates suction, so that the suction cup 7 can absorb the paper;

After the paper is adsorbed, start the first hydraulic cylinder 2 and the second hydraulic cylinder 4 to make the paper slide away from the placement box 17, then start the drive motor 15 to make the drive motor 15 drive the bevel gear 16 to rotate, so that the bevel gear 16 drives the first hydraulic cylinder 2 to rotate, and then starts the electric guide rail 3 and the second hydraulic cylinder 4, so that the electric guide rail 3 and the second hydraulic cylinder 4 can be used together to transmit the paper to the external output device, and then open the electric valve to make the external Air enters the bellows 12, thereby breaking the suction force of the suction cup 7, and then the paper falls on the output device, and the paper is transported and processed;

When operating on the paper, the paper in the storage box 17 is continuously output, and when the paper is lower than the sensor 18, the sensor 18 sends a signal to the external electric control device, which is convenient for feeding the paper;

When it is necessary to work on paper of different sizes, firstly, start the third hydraulic cylinder 9, so that the third hydraulic cylinder 9 drives the installation block 10 to slide, so that the plurality of suction cups 7 are separated from or close to each other, and the suction cups 7 are adjusted. At the same time, When placing the paper, adjust the pressure plate through the screw rod to make it close to the paper, so as to avoid the paper from tipping when it is placed, which will affect the use

Compared with related technologies, the anti-counterfeit paper absorbing and placing device provided by the utility model has the following beneficial effects:

The utility model provides a device for absorbing and placing anti-counterfeit paper. The air in the suction cup 7 is drawn out by the air pump 8, so that the suction cup 7 generates suction and absorbs the paper. When feeding the paper, it does not need to be manually operated. The work efficiency is high. The third hydraulic cylinder 9 drives the installation block 10 to slide, so that the multiple suction cups 7 are close to or far away from each other, so that the suction cups 7 can absorb paper of different sizes, which is easy to use. When the paper is unloaded, Open the electric valve on the exhaust pipe 13, let the air enter the bellows 12, cut off the suction force of the suction cup 7, so as to quickly unload the paper, and through the setting of the connecting block 14, it can be compared when the suction cup 7 is replaced. Convenient, at the same time, through the setting of the sealing ring, the joint between the suction cup 7 and the connecting block 14 can be better sealed, and the suction cup 7 is driven to rotate by the driving motor 15, so that the paper can be reclaimed and unloaded more quickly. Preferably, through the setting of the sensor 18 in the placement box 17, the staff can be prompted when the paper is insufficient, so that it is convenient to feed the paper, and the paper can be placed close to the paper by the pressure plate, so that the paper can be prevented from being dumped when the paper is placed, which will affect the use. .

It should be noted that the equipment structure and drawings of the utility model mainly describe the principle of the utility model. In terms of the technology of the design principle, the settings of the power mechanism, power supply system and control system of the device are not fully described clearly. On the premise that those skilled in the art understand the principles of the above-mentioned utility model, they can clearly know the details of its power mechanism, power supply system and control system. The control method of the application document is automatically controlled by the controller, and the control circuit of the controller is passed Simple programming by those skilled in the art can be realized;

The standard parts used in it can be purchased from the market, and can be customized according to the instructions and drawings. The specific connection methods of each part adopt conventional methods such as bolts, rivets, and welding in the prior art. , the machinery, parts and equipment all adopt conventional models in the prior art, and the components known to those skilled in the art, their structures and principles are known to those skilled in the art through technical manuals or known through conventional experimental methods.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , Replacement and modification or direct or indirect application, in other relevant technical fields, the scope of the present invention is defined by the appended claims and their equivalents, all of which are equally included in the patent protection scope of the present invention.

Claims (7)

1. An anti-counterfeiting paper absorbing and placing device is characterized by comprising:

a base;

the first hydraulic cylinder is rotatably arranged at the top of the base;

the electric guide rail is arranged on the first hydraulic cylinder;

the second hydraulic cylinder is arranged on the electric guide rail;

the connecting plate is fixedly arranged on the second hydraulic cylinder;

the supporting seat is fixedly arranged on the connecting plate;

the sucking discs are arranged below the supporting seat;

the air pump is arranged on the electric guide rail;

the connecting mechanism is arranged on the connecting plate.

2. The anti-counterfeiting paper sucking and placing device according to claim 1, wherein a plurality of third hydraulic cylinders are fixedly installed on the supporting seat, and installation blocks are fixedly installed on the third hydraulic cylinders respectively.

3. The anti-counterfeiting paper sucking and placing device according to claim 2, wherein the connecting mechanism comprises a connecting pipe, a plurality of corrugated pipes and an exhaust pipe, the connecting pipe is fixedly installed at the top of the connecting plate, the corrugated pipes are respectively fixedly connected with the air pump and the mounting blocks, the corrugated pipes are fixedly connected with the connecting pipe, the exhaust pipe is fixedly installed on the corrugated pipes located on the air pump, and the exhaust pipe is sleeved with an electric valve.

4. The anti-counterfeiting paper sucking and placing device according to claim 3, wherein a plurality of connecting blocks are fixedly installed on the installing blocks, sealing rings are fixedly installed in the connecting blocks, the connecting blocks are respectively connected with the sucking discs in a threaded mode, and the sucking discs are respectively communicated with the corrugated pipes through the connecting blocks.

5. The anti-counterfeiting paper sucking and placing device according to claim 1, wherein a driving motor is fixedly arranged at the top of the base, conical gears are fixedly sleeved on output shafts of the first hydraulic cylinder and the driving motor, and the two conical gears are meshed.

6. The anti-counterfeiting paper sucking and placing device according to claim 1, wherein a placing box is fixedly installed at the top of the base, notches are formed in two sides of the placing box, an inductor is fixedly installed in the placing box, and the inductor is located below the notches.

7. The anti-counterfeit paper absorbing and placing device according to claim 6, wherein a screw is mounted on one side of the placing box in a threaded manner, and a pressing plate is rotatably mounted on the screw.
