CN219256057U - Vitrified tile cutting device - Google Patents

Abstract

The utility model relates to a cutting device, in particular to a vitrified brick cutting device. The utility model provides a vitrified brick cutting device which is convenient to move and can adjust the vitrified brick cutting range. The utility model provides such a vitrified brick cutting device, comprising: a support seat, the first support blocks are symmetrically arranged on the left and right sides of the top of the support seat; the first screw rod, two first support blocks on the left side of the support seat There are round holes on the sides close to each other, and a first screw rod is rotatably arranged between the round holes on the side of the first support block on the left side close to each other. The staff places the vitrified tiles to be cut on the top of the four first clamping blocks, and the staff starts the servo motor to make the blade cut the vitrified bricks. When the staff has a requirement for the cutting width, the staff rotates the first The first crank on the rear side wall of the screw rod and the fixed rod simultaneously drive the blade to slide forward, so that the staff can control the cutting width.

Description

A vitrified brick cutting device

technical field

The utility model relates to a cutting device, in particular to a vitrified brick cutting device.

Background technique

Ceramic tiles with a water absorption rate of less than 0.5% are called vitrified tiles. Because of the water absorption rate, the hardness of vitrified tiles is relatively high.

At present, the cutting of vitrified tiles is only water cutting or cutting machine. The water cutting effect is the best. Under the control of the computer, the workpiece can be carved arbitrarily, and it is less affected by the texture of the material. However, the water cutting machine is not convenient to move, and the cutting machine is easy to move. , but the requirements for the staff are very high during cutting. Poor operation may easily cause edge burst and the vitrified brick cannot be fixed well during cutting. Therefore, it is necessary to design a vitrified brick that is easy to move and can adjust the cutting range of the vitrified brick. cutting device.

Utility model content

The purpose of this utility model is to overcome the disadvantages that the water cutting machine is inconvenient to move, the cutting machine is easy to move, but the requirements for the staff are very high when cutting, and the poor operation is easy to cause edge burst and the vitrified brick cannot be well fixed during cutting. Technical problem: Provide a vitrified brick cutting device, which is easy to move and can adjust the vitrified brick cutting range.

The technical solution is as follows: a vitrified tile cutting device, comprising: a support seat, the first support blocks are symmetrically arranged on the left and right sides of the top of the support seat; the first screw rod, the two first support blocks on the left side of the support seat are close to each other There are round holes on one side, and a first screw rod is arranged between the round holes of the first support block on the left side close to each other; the first guide rod and the two first support blocks on the right side of the support seat are close to each other. The first guide rod is arranged between the sides; the first slider, the first guide rod front sliding type is provided with the first slider, the first screw rod front side is provided with the first slider, the first screw rod front side is provided with the first slider There is a threaded hole on the front side wall of the block, and the first slider on the front side of the first screw is screwed with the first screw; the first connecting rod is provided between the two first sliders on the side close to each other. ; The second slider, the right part of the first connecting rod is slidingly provided with a second slider; the second guide rod, the top of the second slider is provided with a left-right symmetrical second guide rod; the support frame, two second guide rods A support frame is arranged between the upper parts; a servo motor is provided on the upper part of the support frame; an elastic part is provided on the two second guide rods, and the tops of the two elastic parts are connected with the bottom of the support frame; The bottom of the part is connected with the top of the second slider; the fixed rod has a round hole at the bottom of the rear side wall of the support frame, and a fixed rod is arranged in the round hole at the bottom of the rear side wall of the support frame; the pulley set, the pulley set consists of two pulleys and Composed of a flat belt, the output shaft of the servo motor is provided with a pulley, the rear end of the fixed rod is provided with a lower pulley, and a flat belt is provided between the two pulleys; blades are provided with blades on the front side wall of the fixed rod; fixed blocks are provided on the top of the support seat The left and right sides of the back are symmetrically equipped with fixed blocks; the third slider, grooves are opened on the left and right sides of the top of the support seat, and the third slider is slidingly arranged in the grooves on the left and right sides of the top of the support seat; the first clamping block , the bottom sides of the two fixed blocks and the two third sliders that are close to each other are provided with a first clamping block; the second screw, the tops of the two fixed blocks and the two third sliders are threaded Holes, the threaded holes on the tops of the two fixing blocks and the two third sliders are all screwed with second screw rods; the first crank, the tops of the four second screw rods are all provided with first cranks; the second clamping block , the bottoms of the four second screw rods are all provided with second clamping blocks; the second connecting rod is provided with a second connecting rod between the upper parts of the rear side of the two third sliders close to each other.

Preferably, it also includes: a second support block, a second support block is provided on the rear side of the top of the support seat to the left; a third screw, a threaded hole is opened at the center of the second support block, and the threaded hole at the center of the second support block The screw-in type is provided with a third screw rod, and the front end of the third screw rod is connected with the rear side wall of the third slider on the left side; the second crank is provided with a second crank handle at the rear of the third screw rod.

Preferably, it also includes: a sliding bar, the bottom of the first slider is provided with a sliding bar, the top left side of the support seat is provided with a slide groove, and the slide bar is slidingly matched with the slide groove on the left side of the support seat top.

Preferably, the slide bar is made of rubber material.

Preferably, a handle is provided on the top of the rear side wall of the servo motor.

Preferably, universal wheels are provided at the bottom of the support seat.

The utility model has the following advantages: 1. The staff places the vitrified bricks to be cut on the top of the four first clamping blocks, the staff starts the servo motor, and then makes the blade cut the vitrified bricks. When the staff adjusts the cutting width When required, the worker turns the first crank on the rear side wall of the first screw rod, and the fixed rod simultaneously drives the blade to slide forward, so that the worker can control the cutting width.

2. The staff can hold the second crank to rotate, and the second crank drives the third slider to slide forward through the threaded hole in the center of the second support block, thereby saving labor in the process of moving the third slider.

3. When the first slider slides, the first slider drives the slider to slide in the chute on the left side of the top of the support seat. When the cut vitrified tiles will fall on the slider, it will play a buffering effect, and then Make the vitrified tiles not easily damaged.

Description of drawings

Fig. 1 is a three-dimensional structure schematic diagram of the present utility model.

Fig. 2 is a schematic diagram of the first partial three-dimensional structure of the utility model.

Fig. 3 is a partial three-dimensional cross-sectional structural schematic diagram of the utility model.

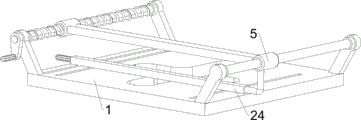

Fig. 4 is a schematic diagram of the second partial three-dimensional structure of the utility model.

Description of reference numerals: 1_support seat, 2_first support block, 3_first screw rod, 4_first guide rod, 5_first slider, 51_first connecting rod, 6_second slider , 7_ second guide rod, 8_ support frame, 9_ servo motor, 10_ elastic piece, 11_ fixed rod, 12_ pulley set, 13_ blade, 14_ fixed block, 15_ third slider, 16 _first clamping block, 17_second screw rod, 18_first crank, 19_second clamping block, 20_second connecting rod, 21_second support block, 22_third screw rod, 23_th Two cranks, 24_ slide rod.

Detailed ways

In order to make the purpose, technical solutions and advantages of the utility model clearer, the utility model will be further described in detail below in conjunction with the accompanying drawings and embodiments. It should be understood that the specific embodiments described here are only used to explain the utility model, and are not intended to limit the utility model.

Example 1

A vitrified tile cutting device, as shown in Figures 1-4, includes a support seat 1, a first support block 2, a first screw rod 3, a first guide rod 4, a first slider 5, and a first connecting rod 51 , the second slider 6, the second guide rod 7, the support frame 8, the servo motor 9, the elastic member 10, the fixed rod 11, the pulley set 12, the blade 13, the fixed block 14, the third slider 15, the first clamping Block 16, the second screw rod 17, the first crank 18, the second clamping block 19 and the second connecting rod 20, the top left and right sides of the support seat 1 are symmetrically arranged with the first support block 2 by welding, the support seat 1. The bottom is provided with universal wheels, which can make the staff move the device more conveniently. The two first support blocks 2 on the left side of the support base 1 have round holes on the side close to each other. The first support blocks 2 on the left side are mutually A first screw rod 3 is rotatably arranged between the round holes on one side, and a first guide rod 4 is arranged between the two first support blocks 2 on the right side of the support seat 1 near each other. The sliding type is provided with the first slide block 5, and the front side of the first screw rod 3 is provided with the first slide block 5, and the front side wall of the first slide block 5 on the front side of the first screw rod 3 has a threaded hole, and the front side of the first screw rod 3 The first slider 5 is screwed with the first screw 3, and a first connecting rod 51 is arranged between the two first sliders 5 near each other, and a second slider is provided on the right side of the first connecting rod 51. Block 6, the top of the second slide block 6 is provided with a left-right symmetrical second guide rod 7, a support frame 8 is arranged between the tops of the two second guide rods 7, and a servo motor 9 is arranged on the top of the support frame 8 by bolt connection. , the upper part of the rear side wall of the servo motor 9 is provided with a handle. When cutting, the staff moves the servo motor 9 and is easily injured. When the staff holds the handle, the probability of injury is greatly reduced, and the servo motor 9 is more convenient. Move, two second guide rods 7 are all provided with elastic parts 10, the tops of the two elastic parts 10 are connected with the bottom of the support frame 8, the bottoms of the two elastic parts 10 are connected with the top of the second slide block 6, and the tops of the support frame 8 There is a circular hole at the bottom of the rear side wall, and a fixed rod 11 is arranged in the circular hole at the bottom of the rear side wall of the support frame 8. The pulley group 12 is composed of two pulleys and a flat belt. The output shaft of the servo motor 9 is provided with a pulley. The rear end of the fixed rod 11 is provided with a lower side pulley, and there is a flat belt between the two pulleys. The front side wall of the fixed rod 11 is provided with a blade 13. Grooves are opened on both sides, and the third sliding block 15 is slidably arranged in the grooves on the left and right sides of the top of the support seat 1. The bottom sides of the two fixed blocks 14 and the two third sliding blocks 15 that are close to each other are all The first clamping block 16 is provided, and the tops of the two fixing blocks 14 and the two third sliding blocks 15 are provided with threaded holes, and the threaded holes at the tops of the two fixing blocks 14 and the two third sliding blocks 15 are all provided with threaded holes. The screw-in type is provided with a second screw rod 17, the top of the four second screw rods 17 is provided with a first crank 18, the bottom of the four second screw rods 17 is provided with a second clamping block 19, and the two third sliders 15 are close to each other A second connecting rod 20 is arranged between the upper part of one rear side.

When the staff needs to cut the vitrified tiles, first the staff will place the vitrified tiles to be cut on the top of the four first clamping blocks 16, and then the staff will hold the four first cranks 18 to rotate forward respectively, and the four A first crank 18 forwardly rotates to respectively drive four second screw rods 17 forwardly until the four second clamping blocks 19 touch the tops of the vitrified tiles, and the vitrified bricks are respectively fixed on the four first clamping blocks 16 and the second Between the clamping blocks 19 close to each other, for vitrified tiles with different lengths, the staff can push the two third sliders 15 to slide forward in the grooves on the left and right sides of the top of the support seat 1, and the two third sliders The block 15 is connected by the second connecting rod 20 to achieve the purpose of keeping the second connecting rod 20 in parallel, then the staff starts the servo motor 9, the servo motor 9 drives the output shaft to rotate, the output shaft rotates to drive the pulley set 12, and the pulley set 12 The rotation drives the fixed rod 11 to rotate, the fixed rod 11 drives the blade 13 to rotate, the staff pushes the servo motor 9 to the right, and then the blade 13 cuts the vitrified tiles, after the cutting is completed, the staff turns off the servo motor 9, and the fixed rod 11 stops Drive the blade 13 to rotate, the staff pushes the servo motor 9 to the left, the support frame 8 drives the two second guide rods 7 to move to the left, and the two second guide rods 7 drive the second slider 6 to slide to the left, and the work The personnel hold the four first cranks 18 to reverse respectively, and the four first cranks 18 reverse respectively drive the four second screw rods 17 to reverse until the four second clamping blocks 19 are away from the top of the vitrified tile, and the vitrified tile Take it out from between the four first clamping blocks 16 and the four second clamping blocks 19 close to each other. When the staff has a requirement for the cutting depth of the vitrified tiles, the staff can press the servo motor 9 downwards. , the servo motor 9 drives the support frame 8 to slide downward, the two elastic members 10 are deformed, the support frame 8 drives the fixed rod 11 to move downward, and the fixed rod 11 drives the blade 13 to move downward at the same time, and then the staff starts the servo motor 9 to carry out Cutting, so that the staff can control the cutting depth of the blade 13 when cutting. When the cutting is completed, the staff turns off the servo motor 9, and then the staff releases the servo motor 9, and the two elastic parts 10 return to the original state to drive the support frame 8 to slide upwards , the support frame 8 drives the servo motor 9 to slide upwards and resets. When the staff has a requirement for the cutting width, the staff rotates the first crank 18 on the rear side wall of the first screw rod 3, and the first crank 18 drives the first screw rod 3 to rotate. The first slide block 5 on the front side of a screw rod 3 is screwed with the first screw rod 3, and the first slide block 5 on the front side of the first screw rod 3 drives the first connecting rod 51 to slide forward, and the first connecting rod 51 drives the right The first slider 5 on the side slides to the front side, and then the first connecting rod 51 drives the servo motor 9 to slide to the front side through the support frame 8, and then the staff starts the servo motor 9 to achieve the purpose of the staff controlling the cutting width. After completion, the staff closes the servo motor 9, and the device is convenient to move, and can adjust the vitrified tile cutting range.

Example 2

On the basis of Embodiment 1, as shown in FIG. 3 , it also includes a second support block 21, a third screw rod 22 and a second crank 23. The rear side of the top of the support seat 1 is provided with a second support block 21 on the left side. The center position of the second support block 21 is provided with a threaded hole, and the threaded hole at the center position of the second support block 21 is provided with a third screw rod 22 in a threaded manner. The front end of the third screw rod 22 is connected with the rear side wall of the third slider 15 on the left side, The rear part of the third screw rod 22 is provided with a second crank 23 through bolt connection.

When pushing the third slider 15, the staff can hold the second crank 23 to rotate, and the second crank 23 drives the third slider 15 to slide forward through the threaded hole in the center of the second support block 21, thereby making the movement The third slide block 15 process is more labor-saving.

Referring to Fig. 4, it also includes a slide bar 24, the bottom of the first slider 5 is provided with a slide bar 24, the top left side of the support base 1 has a chute, and the slide bar 24 slides with the chute on the left side of the support base 1 top. The sliding rod 24 is made of rubber material, and when the vitrified tile falls on the sliding rod 24, the rubber material is elastic, which can better protect the vitrified tile.

When the first slider 5 slid, the first slider 5 drove the slide bar 24 to slide in the chute on the left side of the top of the support seat 1, and when the cut vitrified tiles would fall on the slide bar 24, it would act as a buffer Effect, so that the vitrified tiles are not easily damaged.

The above are only preferred embodiments of the present utility model, and are not intended to limit the present utility model. Any modifications, equivalent replacements and improvements made within the spirit and principles of the present utility model shall be included in the present utility model. within the scope of protection.

Claims (6)

1. A vitrified tile cutting apparatus, comprising:

the support seat (1), the left side and the right side of the top of the support seat (1) are provided with first support blocks (2) in a front-back symmetry manner;

the first screw (3) is arranged on one side, close to each other, of the two first support blocks (2) on the left side of the support base (1), round holes are formed in the two first support blocks (2) on the left side, and the first screw (3) is rotatably arranged between the round holes on the side, close to each other, of the first support blocks (2) on the left side;

the first guide rods (4) are arranged between two first support blocks (2) on the right side of the support seat (1) and close to one side of each other;

the first guide rod (4) is provided with a first sliding block (5) in a sliding manner, the front side of the first screw rod (3) is provided with the first sliding block (5), the front side wall of the first sliding block (5) at the front side of the first screw rod (3) is provided with a threaded hole, and the first sliding block (5) at the front side of the first screw rod (3) is matched with the first screw rod (3) in a screwing mode;

the first connecting rod (51) is arranged between one side, close to each other, of the two first sliding blocks (5);

the second sliding block (6) is arranged at the right part of the first connecting rod (51) in a sliding manner;

the top of the second sliding block (6) is provided with a left-right symmetrical second guide rod (7);

a support frame (8) is arranged between the upper parts of the two second guide rods (7);

a servo motor (9), wherein the upper part of the supporting frame (8) is provided with the servo motor (9);

the elastic pieces (10) are arranged on the two second guide rods (7), the tops of the two elastic pieces (10) are connected with the bottom of the supporting frame (8), and the bottoms of the two elastic pieces (10) are connected with the top of the second sliding block (6);

the bottom of the rear side wall of the support frame (8) is provided with a round hole, and the round hole at the bottom of the rear side wall of the support frame (8) is internally provided with the fixing rod (11);

the belt pulley group (12), the belt pulley group (12) is made up of two belt pulleys and a flat belt, there are belt pulleys on the output shaft of the servomotor (9), the rear end of the dead lever (11) has lower belt pulleys, there are flat belts between two belt pulleys;

a blade (13), wherein the front side wall of the fixed rod (11) is provided with the blade (13);

the fixed block (14) is arranged on the top of the supporting seat (1) in a back-left-right symmetry way, and the fixed block (14) is arranged on the top of the supporting seat;

the left side and the right side of the top of the supporting seat (1) are provided with grooves, and the grooves on the left side and the right side of the top of the supporting seat (1) are internally provided with the third sliding blocks (15) in a sliding manner;

the first clamping blocks (16) are arranged on the bottom sides of the two fixed blocks (14) and the two third sliding blocks (15) which are close to each other;

the tops of the two fixed blocks (14) and the two third sliding blocks (15) are respectively provided with a threaded hole, and the threaded holes of the tops of the two fixed blocks (14) and the two third sliding blocks (15) are respectively provided with the second screw (17) in a screwing mode;

the tops of the four second screws (17) are respectively provided with a first crank (18);

the bottoms of the four second screws (17) are respectively provided with a second clamping block (19);

and a second connecting rod (20) is arranged between the upper parts of the rear sides of the two third sliding blocks (15) which are close to each other.

2. The vitrified tile cutting device of claim 1, further comprising:

the second supporting block (21) is arranged on the left side of the rear side of the top of the supporting seat (1);

the center of the second supporting block (21) is provided with a threaded hole, the threaded hole in the center of the second supporting block (21) is internally provided with the third screw (22) in a rotating way, and the front end of the third screw (22) is connected with the rear side wall of the left third sliding block (15);

the second crank (23) is arranged at the rear part of the third screw (22), and the second crank (23) is arranged at the rear part of the third screw.

3. The vitrified tile cutting device of claim 1, further comprising:

the sliding rod (24), the first slider (5) bottom is provided with slide bar (24), and open in the left side of supporting seat (1) top has the spout, slide bar (24) and the left spout slip cooperation in supporting seat (1) top.

4. A vitrified tile cutting device according to claim 3, wherein the slide bar (24) is of rubber material.

5. A vitrified tile cutting device according to claim 1, characterized in that the top of the rear side wall of the servo motor (9) is provided with a grip.

6. A vitrified tile cutting device according to claim 1, characterized in that the bottom of the support base (1) is provided with universal wheels.
