Abstract

The utility model relates to the technical field of media display cabinets, in particular to a rotary display cabinet, comprising a mobile base, the top of the mobile base is rotatably connected with a fixed seat, the mobile base is provided with a rotating device, and the top of the fixed seat is fixedly connected with a control box for controlling The top of the box is fixedly connected with a glass cover, and the inside of the glass cover is fixedly connected with two baffles. When in use, the rotating device drives the fixed seat to rotate, which is convenient for the fixed seat to drive the control box and the glass cover to rotate. Through the first The motor drives the first rotating shaft to rotate, so that the first rotating shaft drives the first gear to rotate, the first gear drives the second gear to rotate, and the second gear drives the second rotating shaft, the rotating column, the placing plate, etc. to rotate, thereby facilitating the placement of the placing plate The food on the table is rotated, which is convenient for people to observe the food as a whole. Through the cooperation of springs, splints, top plates, clamping blocks, etc., it is convenient to fix and limit the food, and has high practicability.

Description

A rotating showcase

technical field

The utility model relates to the technical field of media display cabinets, in particular to a rotary display cabinet.

Background technique

The media showcase is a kind of props, which are mainly used in some stores such as shopping malls and supermarkets to display and store goods. It has individual appearance, powerful functions, and also has advertising effects, so as to achieve better profit goals. Firm structure, free assembly, fast disassembly and assembly, and convenient transportation. And the boutique display stand is beautiful in style, noble and elegant, and has a good decorative effect. The boutique display stand makes the product play an extraordinary charm. When selling and displaying supermarket food, it is necessary to display supermarket food, but the existing multimedia The display cabinet does not have the function of rotation. Viewers often need to walk around the multimedia display cabinet to understand the various information displayed in the display cabinet to watch the food in the display cabinet. In an exhibition with many people, it is often easy to cause inconvenience.

After searching, the utility model patent with the Chinese patent application number CN201921030679.3 discloses a multimedia rotary display cabinet, which is roughly described as including a mobile base, the inner wall of the mobile base is connected with a bearing base by bolts, and the bearing base The inner wall is connected with a rotating column through a bearing, and the outer wall of the rotating column is connected with five equidistantly distributed support plates through bolts, and the outer wall of the support plate is connected with equidistantly distributed colorful lights through bolts, and the two support plates The middle part is connected with equidistant snack hoppers by bolts. When in use, although it can be equipped with rotating columns, snack hoppers, placing plates, glass hopper covers, etc., it can display a variety of foods at the same time. The motor drives the ring through the rotating gear. The teeth on the outer wall of the groove rotate, which can drive the installation bottom plate to drive the rotating column to rotate on the bearing base, and can rotate the food in multiple directions. At the same time, colorful lights are installed on the outer wall of the support plate to attract people’s attention. When the gears, locking teeth, rotating columns, placing plates, etc. are rotating, the food placed on the placing plates is not easy to rotate, and it is not convenient for people to observe the food as a whole. When the whole device is hit or the rotating column, placing plates, etc. When it is used, it may affect the food placed on the placement plate, and it is not convenient to fix the food.

Utility model content

(1) Solved technical problems

Aiming at the deficiencies of the prior art, the utility model provides a rotary display cabinet to solve the prior art proposed in the background art. The food on the placement board is inconvenient to rotate, and it is not convenient for people to observe the food as a whole. When the overall device is hit or the rotating column, placement board, etc. rotate too fast, it may affect the food placed on the placement board. Easy to fix issues with food.

(2) Technical solution

In order to achieve the above purpose, the utility model provides the following technical solutions: a rotary showcase, including a mobile base, the top of the mobile base is rotatably connected with a fixed seat, the mobile base is provided with a rotating device, the fixed seat The top of the control box is fixedly connected with a control box, the top of the control box is fixedly connected with a glass cover, and the inside of the glass cover is fixedly connected with two baffles, and the bottom ends of the two baffles are fixedly connected with the shielding cover. A first motor is installed on the inner bottom wall of the control box, the top of the first motor passes through the control box and is fixedly connected with the first rotating shaft, the top of the first rotating shaft passes through two shield covers and two baffle plates and It is rotatably connected with the inner top wall of the glass cover. Two first gears are fixedly sleeved on the first rotating shaft. The two first gears are respectively located inside the two shielding covers. The inner bottom walls of the two shielding covers Four second rotating shafts are rotatably connected on the top, and second gears are fixedly sleeved on the second rotating shafts, and the four second gears are all meshed with the first gear, and four second rotating shafts are rotatably connected on the baffle. A rotating column, the top of the second rotating shaft passes through the baffle and is fixedly connected with the rotating column, the top of the rotating column is fixedly connected with a placement plate, and the four ends of the placing plate are fixedly connected with two fixed blocks, two A fixed shaft is fixedly connected between the fixed blocks, a splint is connected to the fixed shaft in rotation, a clamp block is fixedly connected to the splint, four top blocks are fixedly connected to the bottom end of the placement plate, and the top A spring is arranged between the block and the splint, a plurality of glass doors are arranged on the outer wall of the circular shaft of the glass cover, a lighting assembly is arranged on the baffle, and a refrigeration assembly is arranged inside the control box.

Preferably, the rotating device includes a second motor and an annular gear plate, the second motor is mounted on the bottom end of the mobile base, the annular gear plate is fixedly sleeved on the fixed seat, and the output end of the second motor A third gear is fixedly sheathed through the mobile base, and the third gear is engaged with the ring tooth plate.

Further, the lighting assembly includes a square board, the square board is fixedly connected to the top of the baffle, and a plurality of lighting lamps are installed on the square board.

Still further, the refrigeration assembly includes a refrigerator and a plurality of through holes, the refrigerator is installed on the inner bottom wall of the control box, the plurality of through holes are opened on two baffles respectively, and the top of the refrigerator The output end is communicated with a refrigeration pipe, and the top end of the refrigeration pipe passes through the control box, and a ventilation net is arranged at the left end of the control box.

Furthermore, a non-slip soft rubber block is fixedly connected to the clamping block.

On the basis of the foregoing solution, a non-slip pad is fixedly connected to the top of the placement plate.

On the basis of the foregoing solution, preferably, the bottom end of the mobile base is provided with a plurality of self-locking rollers, and the top left part of the mobile base is fixedly connected with a cart handle.

(3) Beneficial effects

Compared with the prior art, the utility model provides a rotary showcase, which has the following beneficial effects:

The rotary display cabinet drives the fixed seat to rotate through the rotating device, which is convenient for the fixed seat to drive the control box, the glass cover, etc. to rotate, and the first motor to drive the first rotating shaft to rotate, so that the first rotating shaft can drive the two first gears to rotate, which is convenient The first gear drives four second gears to rotate, which is convenient for the second gear to drive the second rotating shaft, the rotating column, the placing plate, etc. to rotate, thereby facilitating the rotation of the food on the placing plate and making it easy for people to observe the food as a whole. , splint, top plate, clamping block, etc. will cooperate to facilitate the fixed and limited food, and the practicability is high.

Description of drawings

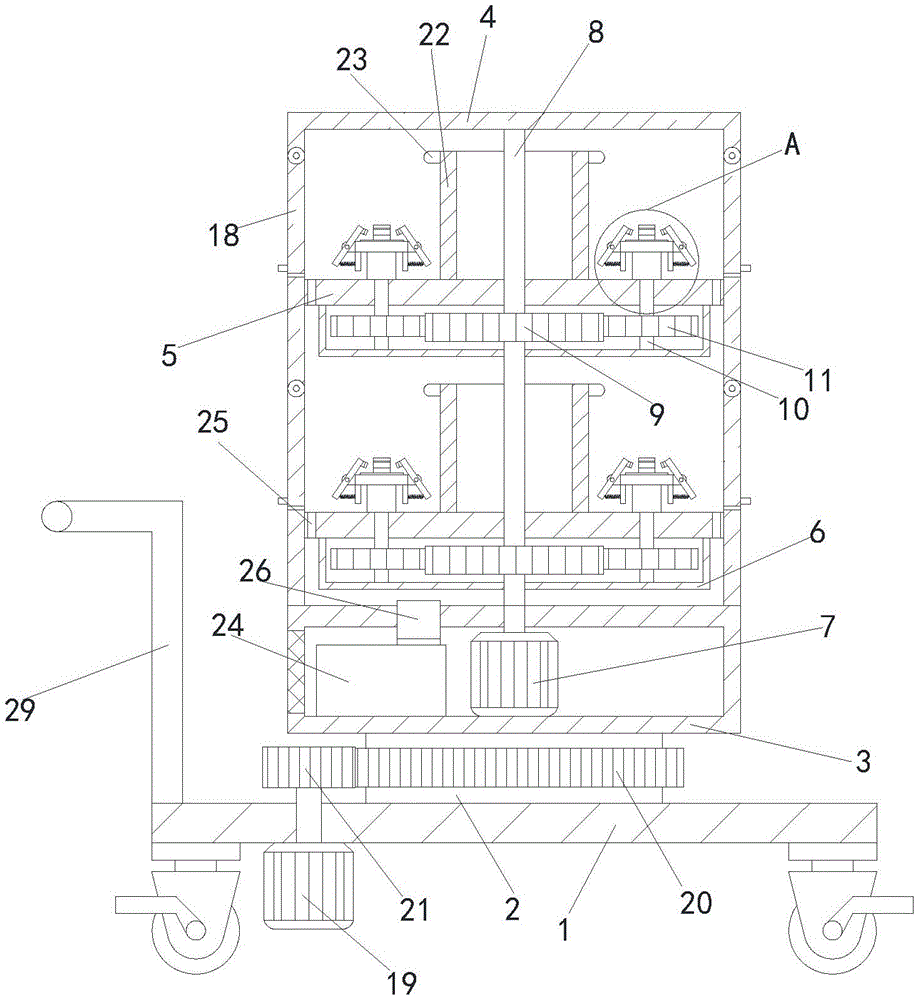

Fig. 1 is the schematic diagram of the main view plane effect of partial section of the utility model;

Fig. 2 is the schematic diagram of the top view plane effect of partial section of the utility model;

Fig. 3 is a schematic diagram of a partially enlarged structure at A in Fig. 1 of the utility model;

FIG. 4 is a schematic diagram of a partially enlarged structure at B in FIG. 2 of the present invention.

In the figure: 1. Mobile base; 2. Fixed seat; 3. Control box; 4. Glass cover; 5. Baffle plate; 6. Shield cover; 7. The first motor; 8. The first shaft; ; 10, the second rotating shaft; 11, the second gear; 12, the rotating column; 13, the placement plate; 14, the fixed block; 15, the splint; 16, the clip block; 17, the top block; Two motors; 20, ring tooth plate; 21, third gear; 22, square plate; 23, lighting lamp; 24, refrigerator; 25, through hole; 26, refrigeration pipe; 27, anti-skid soft rubber block; pad; 29, cart handle.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Example

Please refer to Figure 1-4, a rotary showcase, including a mobile base 1, the bottom of the mobile base 1 is provided with a plurality of self-locking rollers, the top left of the mobile base 1 is fixedly connected with a cart handle 29, which is convenient for the overall The device moves and is convenient to use. The top of the mobile base 1 is rotatably connected with a fixed seat 2. The mobile base 1 is provided with a rotating device. The rotating device includes a second motor 19 and an annular gear plate 20. The second motor 19 is installed on the mobile base 1 The bottom end of the ring gear plate 20 is fixedly set on the fixed base 2, the output end of the second motor 19 runs through the mobile base 1 and is fixedly set with a third gear 21, the third gear 21 meshes with the ring gear plate 20, It is used to drive the fixed seat 2 and the structure on the fixed seat 2 to rotate, which is convenient for displaying food. The top of the fixed seat 2 is fixedly connected with the control box 3, and the top of the control box 3 is fixedly connected with the glass cover 4, and the top of the glass cover 4 Two baffles 5 are fixedly connected inside, and the bottom ends of the two baffles 5 are fixedly connected to the shielding cover 6. The first motor 7 is installed on the inner bottom wall of the control box 3, and the top of the first motor 7 runs through the control box. 3 and is fixedly connected with a first rotating shaft 8, the top of the first rotating shaft 8 runs through two shield covers 6 and two baffle plates 5 and is connected to the inner top wall of the glass cover 4 in rotation, and the first rotating shaft 8 is fixedly sleeved with two A first gear 9, the two first gears 9 are respectively located in the inside of the two shields 6, the inner bottom walls of the two shields 6 are rotatably connected with four second rotating shafts 10, the second rotating shafts 10 are fixed sleeves The second gear 11 is provided, and the four second gears 11 are all meshed with the first gear 9. Four rotating columns 12 are rotatably connected to the baffle plate 5, and the top of the second rotating shaft 10 passes through the baffle plate 5 and connects with the rotating column 12. Fixedly connected, the top of the rotating column 12 is fixedly connected with a placement plate 13, and the top of the placement plate 13 is fixedly connected with a non-slip pad 28, which increases friction and is convenient to use. Through the cooperation of the first rotating shaft 8 and the second rotating shaft 10, etc., it is easy to drive The rotating column 12 and the placing plate 13 are rotated so that each food can be rotated. The four ends of the placing plate 13 are fixedly connected with two fixed blocks 14, and the fixed shafts are fixedly connected between the two fixed blocks 14. A splint 15 is rotatably connected to the shaft, and a clamping block 16 is fixedly connected to the splint 15. An anti-slip soft rubber block 27 is fixedly connected to the clamping block 16 to protect food. The bottom end of the placing plate 13 is fixedly connected to four top blocks 17. , Spring is provided between top piece 17 and clamping plate 15, by clamping plate 15, clamping block 16 and spring etc., is convenient to food is fixedly limited, and the circular shaft outer wall of glass cover 4 is provided with a plurality of glass doors 18.

It should be further explained that the baffle plate 5 is provided with a lighting assembly, the lighting assembly includes a square plate 22, the square plate 22 is fixedly connected to the top of the baffle plate 5, and a plurality of lighting lamps 23 are installed on the square plate 22 for providing The food provides light, which is convenient for people to observe each food. The inside of the control box 3 is provided with a refrigeration assembly. The refrigeration assembly includes a refrigerator 24 and a plurality of through holes 25. The refrigerator 24 is installed on the inner bottom wall of the control box 3. A plurality of through holes 25 are respectively opened on the two baffle plates 5, and the top output end of the refrigerator 24 is communicated with a refrigeration pipe 26, and the top of the refrigeration pipe 26 runs through the control box 3, and the left end of the control box 3 is provided with a ventilation net. To cool the inside of the glass cover 4, it is convenient to store food and to ventilate the control box 3.

It should be further explained that the first motor 7 and the second motor 19 in this embodiment are conventional equipment known to those skilled in the art purchased on the market, and models can be selected or customized according to actual needs. We just use it without improving its structure and function, its setting method, installation method and electrical connection method, for those skilled in the art, as long as it is debugged according to the requirements of its instruction manual. Yes, it will not be described in detail here, and the first motor 7 and the second motor 19 are provided with matching control switches, and the installation positions of the control switches are selected according to actual use requirements, so that it is convenient for the operator to operate and control.

To sum up, the working principle and working process of the rotary showcase are as follows: when in use, first place the rotary showcase at the place where it needs to be used; 15 is adjusted by the rotation of the fixed shaft, then the food is placed on the placement plate 13, and the splint 15 is loosened to make the spring rebound, so as to facilitate the cooperation of the spring, the fixed shaft, the fixed block 14, the clamp block 16, etc. Place on the plate 13, then start the second motor 19, the second motor 19 drives the third gear 21 to rotate, the third gear 21 cooperates with the ring tooth plate 20, drives the ring tooth plate 20 and the fixed seat 2 to rotate, and the fixed seat 2 drives Control box 3, glass cover 4, place plate 13 and food etc. rotate, then start first motor 7, and first motor 7 drives first rotating shaft 8 to rotate, and first rotating shaft 8 drives first gear 9 to rotate, is convenient to first gear 9. Drive the second gear 11 to rotate, so that the second gear 11 can drive the rotating column 12, the placement plate 13, etc. to rotate, so as to realize the rotation of each food, which is convenient for people to observe, and is more convenient and practical.

The above examples only express the specific implementation manners of the utility model, and the description thereof is relatively specific and detailed, but it should not be interpreted as limiting the patent scope of the utility model. It should be noted that those skilled in the art can make several modifications and improvements without departing from the concept of the present invention, and these all belong to the protection scope of the present invention.

Claims (7)

1. A rotary display cabinet, comprising a mobile base (1), characterized in that: the top of the mobile base (1) is rotatably connected with a fixed seat (2), and the mobile base (1) is provided with a rotating device, The top of the fixed base (2) is fixedly connected with a control box (3), the top of the control box (3) is fixedly connected with a glass cover (4), and the inside of the glass cover (4) is fixedly connected with two The baffle (5), the bottom ends of the two baffles (5) are fixedly connected to the shield cover (6), the inner bottom wall of the control box (3) is equipped with a first motor (7), the The top of the first motor (7) passes through the control box (3) and is fixedly connected with the first rotating shaft (8), and the top of the first rotating shaft (8) passes through two shield covers (6) and two baffle plates ( 5) and connected with the inner top wall of the glass cover (4), the first rotating shaft (8) is fixedly sleeved with two first gears (9), and the two first gears (9) are respectively located on two Inside the shield cover (6), four second shafts (10) are rotatably connected to the inner bottom walls of the two shield covers (6), and the second shaft (10) is fixedly sleeved with a second Gear (11), the four second gears (11) are all meshed with the first gear (9), the baffle plate (5) is rotatably connected with four rotating columns (12), and the second rotating shaft The top of (10) runs through baffle plate (5) and is fixedly connected with rotating column (12), and the top of described rotating column (12) is fixedly connected with placing plate (13), and the four ends of described placing plate (13) are Two fixed blocks (14) are fixedly connected, and a fixed shaft is fixedly connected between the two fixed blocks (14), and a splint (15) is rotatably connected to the fixed shaft, and a splint (15) is fixedly connected to the splint (15). There are clamping blocks (16), the bottom end of the placement plate (13) is fixedly connected with four top blocks (17), a spring is arranged between the top blocks (17) and the splint (15), and the glass cover A plurality of glass doors (18) are arranged on the outer wall of the circular axis of (4), lighting assemblies are arranged on the baffle (5), and refrigeration assemblies are arranged inside the control box (3). 2. A rotary showcase according to claim 1, characterized in that: the rotating device includes a second motor (19) and a ring tooth plate (20), and the second motor (19) is installed on the mobile base (1), the annular tooth plate (20) is fixedly sleeved on the fixed base (2), the output end of the second motor (19) runs through the mobile base (1) and is fixedly sleeved with a third gear (21), the third gear (21) is meshed with the ring tooth plate (20). 3. A rotary showcase according to claim 2, characterized in that: said lighting assembly comprises a square board (22), said square board (22) is fixedly connected to the top of the baffle (5), said A plurality of lighting lamps (23) are installed on the square plate (22). 4. A rotary display cabinet according to claim 3, characterized in that: the refrigeration assembly includes a refrigerator (24) and a plurality of through holes (25), and the refrigerator (24) is installed in the control box ( 3) on the inner bottom wall, a plurality of said through holes (25) are opened on two baffles (5) respectively, and the top output end of the refrigerator (24) is communicated with a refrigeration pipe (26), and the refrigeration pipe The top of (26) runs through the control box (3), and the left end of the control box (3) is provided with a ventilation net. 5. A rotating showcase according to claim 4, characterized in that: the clamping block (16) is fixedly connected with a non-slip soft rubber block (27). 6. A rotary display cabinet according to claim 5, characterized in that: the top end of the placing board (13) is fixedly connected with an anti-slip mat (28). 7. A rotary display cabinet according to claim 6, characterized in that: the bottom end of the mobile base (1) is provided with a plurality of self-locking rollers, and the top left part of the mobile base (1) is fixedly connected with a push Handlebars (29).
