A protection device for a charging interface

technical field

The utility model relates to the technical field of a protection device for a charging interface, in particular to a protection device for a charging interface.

Background technique

To charge a mobile phone, you need to use a charger and a charging cable. The plug on the charging cable matches the socket on the mobile phone for charging. However, there is no connection between the plug and the socket on the mobile phone case and the plug of the charging cable in current mobile phones. Auxiliary fixing mechanism, so that in the process of charging the mobile phone, if the mobile phone is accidentally knocked off the table, the plug and the socket will be separated, causing the mobile phone to fall on the ground, causing damage to the mobile phone. In addition, the plug and A strong pull between the sockets will also reduce the service life of the plug or the service life of the charging component inside the mobile phone socket, and may cause damage to the plug and the charging component in severe cases.

Utility model content

The purpose of the present utility model is to provide a protection device for a charging interface to solve the problems raised in the above-mentioned background technology.

In order to achieve the above object, the utility model provides the following technical solutions:

A protection device for a charging interface, comprising a mobile phone and a charging plug, the mobile phone is provided with a charging socket, the charging plug is provided with a charging insert, and when the mobile phone is charging, the charging insert is plugged into the charging socket , the mobile phones on both sides of the charging socket are symmetrically fixed with fixed frames, and the charging plug is provided with an auxiliary fixing protection mechanism for the charging port.

Preferably, the auxiliary fixing protection mechanism of the charging interface includes a guide board, a U-shaped connecting piece and an auxiliary fixing board. There are two guide boards, which are symmetrically fixed on both sides of the plug. The distance between the end faces of one end of the charging plug is smaller than the distance between the two fixing frames.

Preferably, both sides of the charging plug are symmetrically fixed with U-shaped connecting pieces, the U-shaped connecting piece is located at an end away from the charging insert, and the guide plate is located between the charging insert and the U-shaped connecting piece.

Preferably, an auxiliary fixing plate is fixedly arranged on the U-shaped connecting piece, and a guide fitting hole is opened on the auxiliary fixing plate, and a guide inserting plate is plugged into the guiding fitting hole.

Preferably, the end of the auxiliary fixing plate away from the U-shaped connecting piece is integrally formed with an auxiliary fixing block, and the auxiliary fixing block is plugged into the fixing frame when the mobile phone is charging.

Compared with the prior art, the beneficial effects of the utility model are:

Through the practicality of this technical solution, fixed frames are symmetrically fixed on both sides of the charging socket on the mobile phone, U-shaped connecting pieces are fixed symmetrically on both sides of the charging plug, and auxiliary fixing pieces are fixed on the U-shaped connecting pieces. An auxiliary fixed block is fixed on the auxiliary fixed plate. When charging, the auxiliary fixed block is plugged into the fixed frame to realize the fixed connection between the charging plug and the mobile phone, thereby ensuring the safety and reliability of mobile phone charging. .

Description of drawings

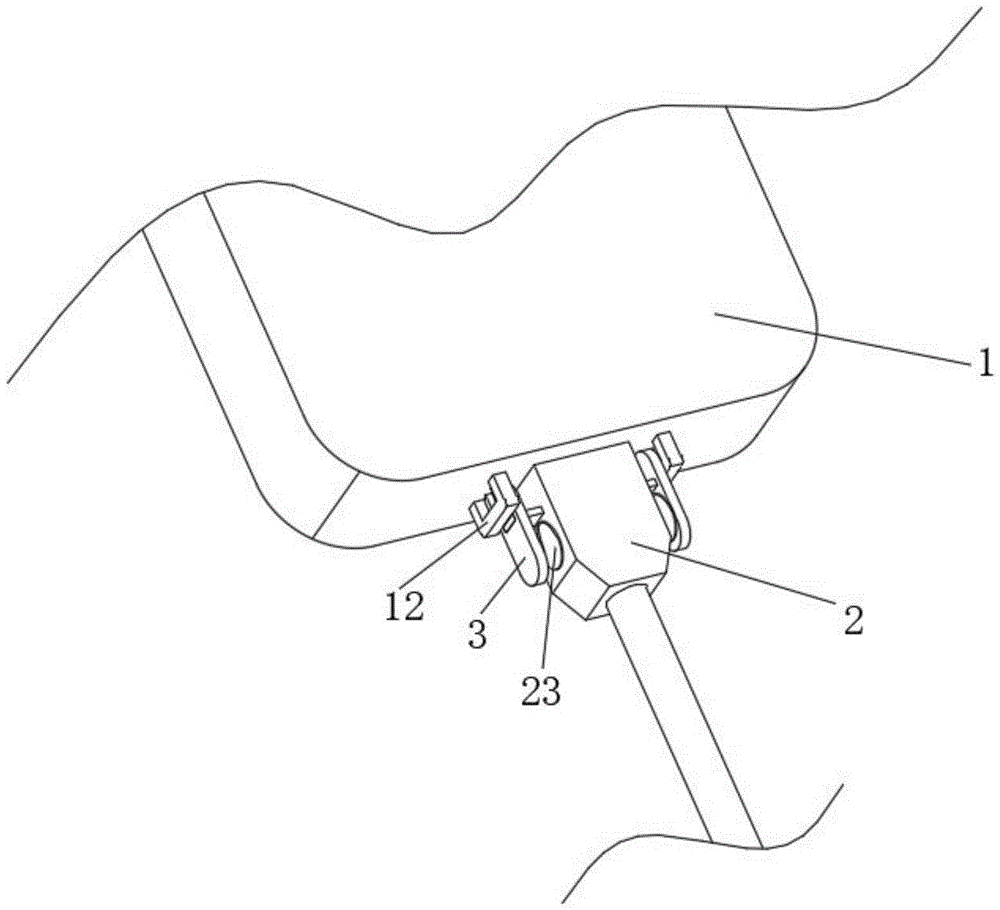

Figure 1 is a schematic diagram of the assembly of the mobile phone and the charging plug.

Figure 2 is an exploded schematic diagram of the assembly of the mobile phone and the charging plug.

FIG. 3 is an enlarged schematic view of point A in FIG. 2 .

In the figure: 1. mobile phone; 11. charging socket; 12. fixed frame; 2. charging plug; 21. charging insert; 22. guide plate; 23. U-shaped connecting piece; 3. auxiliary fixing plate; Fitting hole; 32, auxiliary fixing block.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Figure 1 to Figure 3, the utility model provides a technical solution:

A protection device for a charging interface, comprising a mobile phone 1 and a charging plug 2. The mobile phone 1 is provided with a charging socket 11, and the charging plug 2 is provided with a charging insert 21. When the mobile phone 1 is charging, the charging insert 21 is plugged into the charging port. In the socket 11, the mobile phone 1 on both sides of the charging socket 11 is symmetrically fixed with a fixed frame 12, and the charging plug 2 is provided with an auxiliary fixing protection mechanism for the charging interface, and the auxiliary fixing protection mechanism for the charging interface includes a guide plate 22 and a U-shaped connection. There are two guide plates 23 and auxiliary fixing plate 3, which are symmetrically fixed on both sides of the charging plug 2. The distance between the end faces of the guide plate 22 away from the end of the charging plug 2 is smaller than that between the two fixing frames 12. The distance between them, the surface of guide plate 22 is smooth without burrs in addition.

Both sides of the charging plug 2 are symmetrically fixed with a U-shaped connecting piece 23, the U-shaped connecting piece 23 is at the end far away from the charging insert 21, the guide plate 22 is located between the charging insert 21 and the U-shaped connecting piece 23, and the U-shaped connecting piece 23 is located at the end far away from the charging insert 21. The type connecting piece 23 has certain elasticity.

The U-shaped connecting piece 23 is fixedly provided with an auxiliary fixing plate 3, and the auxiliary fixing plate 3 is provided with a guide fitting hole 31, and the guide fitting hole 31 is inserted with a guide insertion plate 22, and the inner surface of the guide fitting hole 31 is smooth and free of burrs. And the inner wall of the guide fitting hole 31 is in contact with the side wall of the guide plate 22 .

One end of the auxiliary fixing plate 3 away from the U-shaped connecting piece 23 is integrally formed with an auxiliary fixing block 32. When the mobile phone 1 is charging, the auxiliary fixing block 32 is plugged into the fixing frame 12. In addition, the number of auxiliary fixing blocks 32 can be determined according to The actual use requirements are set, and the length of the auxiliary fixing block 32 is equal to the distance from the inner end surface of the fixing frame 12 away from the mobile phone 1 to the mobile phone 1, and when the auxiliary fixing block 32 is plugged into the fixing frame 12, it is far away from the end of the mobile phone 1 The end surface of the fixed frame 12 is in contact with the end surface away from the end of the mobile phone 1 .

When charging the mobile phone 1, press the two auxiliary fixing plates 3 towards each other to move toward the charging plug 2, so that the distance between the auxiliary fixing blocks 32 on the auxiliary fixing plates 3 on both sides of the charging plug 2 is less than Connect the distance between the fixed frames 12, and then you can smoothly insert the charging insert 21 into the charging socket 11 for charging. Realize reset under the action, and then make auxiliary fixed block 32 insert in the fixed frame 12, and then can guarantee the firmness of connection between mobile phone 1 and charging plug 2, the setting of guide plate 22 in addition, plays a role in auxiliary fixed plate 3 The role of support prevents it from twisting under the action of external force, thereby affecting the connection between it and the U-shaped connecting piece 23, resulting in a phenomenon of fracture. After the charging is completed, the two auxiliary fixing plates 3 are squeezed toward each other again , the charging insert 21 can be pulled out from the charging socket 11 .

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (5)

1. The utility model provides a protection device of interface charges, includes cell-phone (1) and charging plug (2), offer charging socket (11) on cell-phone (1), be provided with on charging plug (2) and charge lock pin (21), its characterized in that: when the mobile phone (1) is charged, the charging inserting core (21) is inserted into the charging jack (11), the mobile phone (1) on two sides of the charging jack (11) is symmetrically and fixedly provided with the fixing frame (12), and the charging plug (2) is provided with the auxiliary fixing protection mechanism of the charging interface.

2. The protection device for a charging interface according to claim 1, wherein: the auxiliary fixing and protecting mechanism for the charging interface comprises two guide inserting plates (22), two U-shaped connecting sheets (23) and two auxiliary fixing plates (3), wherein the two guide inserting plates (22) are symmetrically and fixedly arranged on two sides of the charging plug (2), and the distance between the end faces, far away from one end of the charging plug (2), of the guide inserting plates (22) is smaller than the distance between the two fixing frames (12).

3. A protection device for a charging interface according to claim 2, characterized in that: the charging plug is characterized in that U-shaped connecting pieces (23) are symmetrically and fixedly arranged on two sides of the charging plug (2), the U-shaped connecting pieces (23) are located at one ends far away from the charging inserting core (21), and the guide inserting plate (22) is located between the charging inserting core (21) and the U-shaped connecting pieces (23).

4. A protection device for a charging interface according to claim 3, wherein: the U-shaped connecting piece (23) is fixedly provided with an auxiliary fixing plate (3), the auxiliary fixing plate (3) is provided with a guide matching hole (31), and the guide matching hole (31) is internally inserted with a guide plugboard (22).

5. The charging interface protection device according to claim 4, wherein: one end of the auxiliary fixing plate (3) far away from the U-shaped connecting sheet (23) is integrally formed with an auxiliary fixing block (32), and the auxiliary fixing block (32) is inserted into the fixing frame (12) when the mobile phone (1) is charged.
