CN219238393U - Unmanned automatic cleaning bucket type scraper recovery system of full-sealed belt conveyor - Google Patents

Abstract

The utility model provides an unmanned automatic cleaning bucket scraper recovery system for a fully sealed belt conveyor, which includes a conveying system, a cleaning system and a recycling system. The conveying system includes a conveying belt and a conveying roller, and the upper side of the conveying belt is Feed belt, the lower side is the return belt. The cleaning system includes a herringbone cleaner arranged on the upper surface of the return belt. The lower surface of the return belt is sequentially provided with a shuttle roller, an alloy cutter head cleaner, and a polyurethane cutter. Cleaner and electric brush, the shuttle-shaped roller, alloy cutter head cleaner, polyurethane cutter head cleaner and electric brush are all located on the lower side of the herringbone cleaner, the recovery system is arranged below the cleaning system, and the recycling The system includes a bucket scraper and a head hopper. Using the utility model, the bonding material can be automatically recovered into the head funnel without manual cleaning, which reduces the production cost and labor intensity of workers, and at the same time does not generate secondary dust and cause serious production pollution.

Description

Fully sealed belt conveyor unmanned automatic cleaning bucket scraper recovery system

technical field

The utility model relates to the technical field of material conveying equipment, in particular to an unmanned automatic cleaning bucket scraper recovery system for a fully sealed belt conveyor.

Background technique

At present, most conveyor transfer stations basically do not adopt automatic cleaning and recovery devices, and a small number of them use split cleaners and chain scraper conveyors for cleaning and sewage. The cleaners cannot thoroughly clean the adhesive materials attached to the return journey of the conveyor belt. The phenomenon of material spilling along the return journey is serious, and it must be cleaned manually. Since the cleaning and recycling are not carried out in a closed space, secondary dust will be generated, which will cause greater pollution to the working environment.

Utility model content

The purpose of this utility model is to address the deficiencies of the existing technology, to provide an unmanned automatic cleaning bucket scraper recovery system for a fully sealed belt conveyor, to automatically clean the bonding material attached to the conveyor belt, and pass the bonding material through The scraper is collected into the head funnel, no manual cleaning is required, and no secondary pollution occurs.

For realizing above-mentioned object, the technical scheme that the utility model adopts is:

Fully sealed belt conveyor unmanned automatic cleaning bucket scraper recycling system, including conveying system, cleaning system and recycling system, the conveying system includes conveying belt and conveying roller, the upper side of the conveying belt is the feeding belt, and the lower side is The return belt, the cleaning system includes a herringbone cleaner arranged on the upper surface of the return belt, and the lower surface of the return belt is sequentially provided with shuttle rollers, alloy cutter head cleaners, polyurethane cutter head cleaners and electric brushes, The shuttle roller, alloy cutter head cleaner, polyurethane cutter head cleaner and electric brush are all located on the lower side of the herringbone cleaner, and the recovery system is arranged below the cleaning system, and the recovery system includes a bucket scraper and head funnel. A herringbone cleaner is installed on the upper surface of the return belt, which can clean the material on the upper surface of the return belt into the bucket scraper machine. At the same time, the herringbone cleaner can also adjust the tension of the conveyor belt by lifting the height to ensure Type idler rollers, alloy cutter head cleaners, polyurethane cutter head cleaners and electric brushes are closely attached to the return belt to achieve the purpose of cleaning the bonding material.

Preferably, the conveying system, the cleaning system and the recovery system are provided with an integrated sealing cover outside. The entire system is sealed inside by an integrated sealing cover, and the dust generated during production will not pollute the environment.

Preferably, a sprinkler device is provided above the sealing cover, and an inspection door and an observation window are provided below. The spray device can further suppress the dust in the sealed cover, the observation window is convenient for knowing the production status in time, and the inspection door is convenient for the staff to maintain the equipment.

Preferably, the shuttle roller and the herringbone cleaner are both arranged on the lifting support. Use the lifting bracket to adjust the height of the shuttle roller and the herringbone cleaner to make the return belt fit better with the cleaning equipment.

Preferably, the shuttle roller is located at the lower side of the front end of the herringbone cleaner.

Compared with the prior art, the utility model has the following advantages:

1. Through the improved cleaning system, all the adhesive materials attached to the return belt can be removed more thoroughly. The removed adhesive materials fall on the bucket scraper machine and are recycled to the head funnel without manual cleaning. , reducing production costs and labor intensity of workers.

2. An integrated sealing cover is installed outside the conveying system, cleaning system and recycling system to avoid secondary dust during production and cause serious production pollution.

Description of drawings

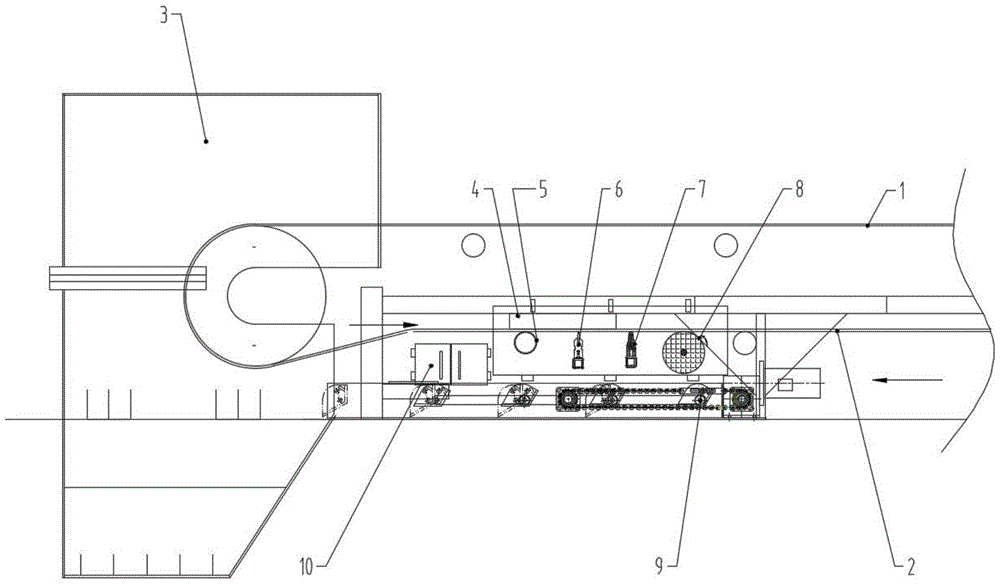

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the top view of herringbone cleaner;

Among them, 1-feed belt, 2-return belt, 3-head funnel, 4-herringbone cleaner, 5-shuttle roller, 6-alloy cutter head cleaner, 7-polyurethane cutter head cleaner, 8 -Electric brush, 9-bucket scraper, 10-access door

Detailed ways

Below in conjunction with accompanying drawing and specific embodiment, further illustrate the utility model, it should be understood that these embodiments are only used to illustrate the utility model and are not intended to limit the scope of the utility model, after reading the utility model, those skilled in the art will understand this utility model The modifications of various equivalent forms of the utility model all fall within the scope defined by the appended claims of the present application.

As shown in Figure 1-2, the fully sealed belt conveyor unmanned automatic cleaning bucket scraper recovery system includes a conveying system, a cleaning system and a recycling system. The conveying system includes a conveying belt and a conveying roller. The upper side of the conveying belt is the feeder Material belt 1, the lower side is the return belt 2, the cleaning system includes a herringbone cleaner 4 arranged on the upper surface of the return belt, the herringbone cleaner is installed on the corresponding lifting bracket, and the lower surface of the return belt is arranged in turn. Idler roller 5, alloy cutter head cleaner 6, polyurethane cutter head cleaner 7 and electric brush 8, the shuttle type idler is also installed on the corresponding lifting bracket, the shuttle type idler is located on the lower side of the front end of the herringbone cleaner, the shuttle Type rollers, alloy cutter head cleaners, polyurethane cutter head cleaners and electric brushes are all located on the lower side of the herringbone cleaner, and the recovery system is set under the cleaning system. The recovery system includes a bucket scraper and a head funnel. The bonding material is separated from the return belt through the cleaning system and falls on the bucket scraper machine 9, and the bonding material is pushed into the head funnel 3 through the scraper machine to complete the recovery, the conveying system, the cleaning system and the recovery The system is equipped with an integrated sealing cover, the upper part of the sealing cover is equipped with a sprinkler device, and the lower part is equipped with an inspection door and an observation window. The shower device can further suppress the dust in the sealing cover, the observation window is convenient to know the production status in time, and the maintenance door 10 is convenient for the staff to maintain the equipment.

The working principle of the fully sealed belt conveyor unmanned automatic cleaning bucket scraper recovery system: transport the material to be transported to the conveyor belt, start the conveyor belt, and the material is transported to the head funnel along with the feed belt, after the transport is completed , part of the material is attached to the return belt. First, the herringbone cleaner sweeps the material on the upper surface of the return belt into the bucket scraper through the herringbone end, and lowers the height of the herringbone cleaner to tension the conveyor belt. , and at the same time raise the height of the shuttle roller, so that the return belt is closely attached to the shuttle roller, alloy cutter head cleaner, polyurethane cutter cleaner and electric brush, and the return belt is cleaned in turn by different types of cleaning devices , sweep the bonding material attached to the return belt into the bucket scraper machine, when the material in the bucket scraper machine has accumulated to a limited amount, start the bucket type scraper machine, and push the bonding material into the head together in the external hopper to complete the recovery.

The above description shows and describes the preferred embodiments of the present utility model. As mentioned above, it should be understood that the present utility model is not limited to the forms disclosed herein, and should not be regarded as excluding other embodiments, but can be used in various Various other combinations, modifications and environments can be made within the scope of the utility model concept described herein, through the above teachings or the technology or knowledge in the related field. However, changes and changes made by those skilled in the art do not depart from the spirit and scope of the utility model, and should all be within the protection scope of the appended claims of the utility model.

Claims (5)

1. Fully sealed belt conveyor unmanned automatic cleaning bucket scraper recovery system, characterized in that it includes a conveying system, a cleaning system and a recycling system. The conveying system includes a conveying belt and a conveying roller, and the upper side of the conveying belt is material belt, the lower side is the return belt, and the cleaning system includes a herringbone cleaner arranged on the upper surface of the return belt, and the lower surface of the return belt is sequentially provided with a shuttle roller, an alloy cutter head cleaner, and a polyurethane cutter head cleaner. cleaner and electric brush, the shuttle roller, alloy cutter head cleaner, polyurethane cutter cleaner and electric brush are all located on the lower side of the herringbone cleaner, the recovery system is arranged below the cleaning system, the recovery system Includes bucket scraper and head hopper. 2. The fully sealed belt conveyor unmanned automatic cleaning bucket scraper recovery system according to claim 1, characterized in that: the conveying system, the cleaning system and the recovery system are provided with an integrated sealing cover outside. 3. The fully sealed belt conveyor unmanned automatic cleaning bucket scraper recovery system according to claim 2, characterized in that: a spray device is arranged above the sealing cover, and an inspection door and an observation window are arranged below. 4. The fully sealed belt conveyor unmanned automatic cleaning bucket scraper recovery system according to claim 1, characterized in that: the shuttle roller and the herringbone cleaner are all set on the lifting bracket. 5. The fully sealed belt conveyor unmanned automatic cleaning bucket scraper recovery system according to claim 1, characterized in that: the shuttle-type idler is located at the lower side of the front end of the herringbone cleaner.
