Abstract

The utility model discloses an environmental protection dedusting device, which comprises a square plate for installation and an electromagnetic valve. The interior of the square plate for installation is provided with a storage groove, and the front frame of the square plate for installation is equipped with a first magnetic block, and the side of the square plate is installed A connecting pipe is installed in the center, a sealing cover is installed at the end of the connecting pipe, and a butt joint is arranged at the center of the top surface of the sealing cover, and an electromagnetic valve is fixedly installed on the butt joint, and an assembly frame is installed in the storage tank , and a filter layer is installed inside the assembly frame, a sealing straight plate is installed on the front side of the assembly frame, and a second magnetic block is arranged inside the end of the sealing straight plate. For this environmental protection dust removal device, the staff can thread the sealing cover plate and the connecting pipe to be fixed, which is convenient for sealing work. filter dust removal.

Description

An environmental protection dust removal device

technical field

The utility model relates to the technical field of dust removal, in particular to an environment-friendly dust removal device.

Background technique

Dust removal is used to remove impurities inside the material, so as to facilitate the purification of the overall material, including gas dust removal devices, but the environmental protection dust removal devices currently on the market still have the following problems:

When performing dust removal work using filtration, the internal filter components cannot be quickly replaced and maintained, resulting in reduced overall maintenance efficiency, and general gas directly enters the environmental protection dust removal device through pipes.

In view of the above problems, an innovative design is carried out on the basis of the original environmental protection dust removal device.

Utility model content

The purpose of this utility model is to provide an environmental protection dust removal device to solve the problem that the environmental protection dust removal device commonly used in the market proposed in the above background technology cannot quickly replace and maintain the internal filter components when performing dust removal work using filtration , leading to a reduction in the overall maintenance efficiency, and the general gas directly enters the environmental protection dust removal device through the pipeline.

In order to achieve the above purpose, the utility model provides the following technical solutions: an environmental protection dust removal device, including an installation square plate and an electromagnetic valve, the inside of the installation square plate is provided with a storage slot, and the front frame of the installation square plate is installed with a first A magnetic block, and a connecting pipe is installed in the center of the installation square plate, a sealing cover is installed at the end of the connecting pipe, and a butt pipe is arranged in the center of the top surface of the sealing cover, and an electromagnetic valve is fixedly installed on the butt pipe. An assembly frame is installed in the storage tank, and a filter layer is installed inside the assembly frame, a sealing straight plate is installed on the front side of the assembly frame, and a second magnetic block is arranged inside the end of the sealing straight plate, and the front surface of the sealing straight plate Fixed installation with handle.

Preferably, the installation square plate and the connecting pipe are provided as an integrated structure, and the inner space of the connecting pipe and the inner space of the storage tank communicate with each other.

Preferably, the connection between the sealing cover plate and the connecting pipe is screw connection, and the sealing cover plate and the butt joint pipe are provided as an integrated structure, and the inner space of the butt joint pipe and the inner space of the connecting pipe communicate with each other.

Preferably, the connection between the assembly frame and the storage slot is a sliding connection.

Preferably, the assembly frame and the straight sealing plate are an integrated structure.

Preferably, the length and height of the sealing straight plate are greater than the length and height of the receiving groove.

Preferably, the connection mode between the second magnetic block and the first magnetic block is magnetic connection, and the second magnetic block and the first magnetic block are symmetrically distributed about the longitudinal center line of the straight sealing plate and the installation square plate, and the second magnetic block The connection mode of the first magnetic force block and the sealing straight plate and the installation square plate is inlaid and fixed.

Compared with the prior art, the beneficial effect of the utility model is: the environmental protection dust removal device,

1. The staff can thread the sealing cover plate and the connecting pipe to be fixed, which is convenient for sealing work. At the same time, through the electromagnetic valve set on the connecting pipe, the overall air intake and outlet can be intelligently regulated, and the overall filter and dust removal can be carried out ;

2. The gas entering the connecting pipe can be filtered and dust-removed through the filter layer set on the assembly frame. At the same time, the assembly frame and filter layer can be quickly disassembled by pulling the handle, and can be replaced, cleaned and maintained. .

Description of drawings

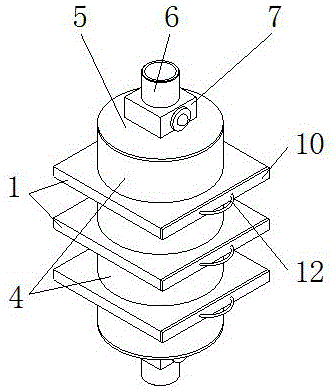

Fig. 1 is a schematic diagram of the overall three-dimensional structure of the utility model;

Fig. 2 is a schematic diagram of the three-dimensional structure of the whole and partial expansion of the utility model;

Fig. 3 is the schematic diagram of the three-dimensional structure of the installation square plate and the connecting pipe section of the utility model;

Fig. 4 is a schematic diagram of the three-dimensional structure of the assembly frame and the sealing straight plate of the present invention.

In the figure: 1. Installation square plate; 2. Storage tank; 3. First magnetic block; 4. Connecting pipe; 5. Sealing cover; 6. Butt joint; 7. Electromagnetic valve; 8. Assembly frame; 9. Filter layer; 10, the sealing straight plate; 11, the second magnetic block; 12, the handle.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Figures 1-4, the utility model provides a technical solution: an environmental protection dust removal device, including installing a square plate 1 and an electromagnetic valve 7, the interior of the installation square plate 1 is provided with a storage tank 2, and the installation of the square plate 1 The front frame is equipped with a first magnetic block 3, and the center of the installation square plate 1 is equipped with a connecting pipe 4, the end of the connecting pipe 4 is equipped with a sealing cover 5, and the center of the top surface of the sealing cover 5 is provided with a butt joint 6, And the electromagnetic valve 7 is fixedly installed on the connecting pipe 6, the assembly frame 8 is installed in the storage tank 2, and the filter layer 9 is installed inside the assembly frame 8, and the sealing straight plate 10 is installed on the front side of the assembly frame 8, and the sealing straight plate 10 A second magnetic block 11 is arranged inside the end of the straight plate 10 , and a handle 12 is fixedly installed on the front surface of the sealed straight plate 10 .

The installation square plate 1 and the connecting pipe 4 are set in an integrated structure, and the inner space of the connecting pipe 4 and the inner space of the storage tank 2 communicate with each other, so that the gas that subsequently enters the inside of the connecting pipe 4 can pass through the installation square plate 1 and the storage tank 2 Work on the go.

The connection mode of the sealing cover plate 5 and the connecting pipe 4 is threaded connection, and the sealing cover plate 5 and the butt joint pipe 6 are provided with an integrated structure, and the inner space of the butt joint pipe 6 communicates with the inner space of the connecting pipe 4, so that the first A magnetic block 3 and the end of the connecting pipe 4 are assembled and sealed by threads, so that the connecting pipe 6 is subsequently connected to the external air pipe.

The connection mode between the assembly frame 8 and the storage groove 2 is a sliding connection, which can facilitate the operation of the assembly frame 8 through the storage groove 2 in the installation square plate 1 for sliding assembly and sliding disassembly.

The assembly frame 8 and the sealing straight plate 10 are integrated structures, the sealing straight plate 10 can drive the assembly frame 8 to perform synchronous operation, and the stability of the assembly frame 8 can be improved through the stability of the sealing straight plate 10 later.

The length and height of the sealing straight plate 10 are greater than the length and height of the storage groove 2, so as to prevent the sealing straight plate 10 from sliding into the storage groove 2, and the overall installation of the assembly frame 8 can be firmly sealed.

The connection mode between the second magnetic block 11 and the first magnetic block 3 is magnetic connection, and the second magnetic block 11 and the first magnetic block 3 are symmetrically distributed about the longitudinal center line of the sealing straight plate 10 and the installation square plate 1, and the second magnetic force The block 11 and the first magnetic block 3 are connected to the sealing straight plate 10 and the installation square plate 1 by inlaying and fixing. Through the magnetic connection between the second magnetic block 11 and the first magnetic block 3, the sealing straight plate 10 can be placed on the installation square plate 1 It fits firmly on the top and improves the stability of the installation.

Working principle: According to Figure 1-4, firstly, the staff can install and fix the sealing cover plate 5 and the connecting pipe 4 with threads, so as to facilitate the sealing of the connecting pipe 4, and then assemble and fix the external pipe and the connecting pipe 6. The solenoid valve 7 starts after being connected to the external power supply through the power line, and controls the overall air intake and air outlet work, and then the external air enters the inside of the connecting pipe 4 through the butt joint 6 and the sealing cover plate 5, and the subsequent air can be installed on the assembly frame 8 The filter layer 9 is used for filtering and dust removal, which is convenient for purification and discharge. When the filter layer 9 needs to be cleaned and replaced in the follow-up, the sealing straight plate 10 can be manually pulled by the handle 12 to make the second magnetic block 11 on the sealing straight plate 10 It is magnetically separated from the first magnetic block 3 on the installation square plate 1, so that the sealing straight plate 10 drives the assembly frame 8 to slide and separate from the storage tank 2, and the filter layer 9 in the assembly frame 8 can be replaced and cleaned. The above is The working process of the whole device and the contents not described in detail in this specification belong to the prior art well known to those skilled in the art.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides an environmental protection dust collector, includes installation square board (1) and electromagnetic valve (7), its characterized in that: the inside of installation square board (1) is provided with accomodates groove (2), and installs first magnetic force piece (3) in the front end frame of square board (1) to connecting pipe (4) are installed at the center of installation square board (1), sealed apron (5) are installed at the end of connecting pipe (4), and the top surface center of sealed apron (5) is provided with butt joint pipe (6), and fixedly mounted with solenoid valve (7) on butt joint pipe (6), accomodate and install equipment frame (8) in groove (2), and the internally mounted of equipment frame (8) has filter layer (9), sealed straight board (10) are installed to the front side of equipment frame (8), and the inside second magnetic force piece (11) that is provided with of the end of sealed straight board (10), and the front surface fixed mounting of sealed straight board (10) has handle (12).

2. An environmental protection dust collector according to claim 1, wherein: the installation square plate (1) and the connecting pipe (4) are arranged in an integrated structure, and the inner space of the connecting pipe (4) is communicated with the inner space of the containing groove (2).

3. An environmental protection dust collector according to claim 1, wherein: the sealing cover plate (5) is in threaded connection with the connecting pipe (4), the sealing cover plate (5) and the butt joint pipe (6) are arranged in an integrated structure, and the inner space of the butt joint pipe (6) is communicated with the inner space of the connecting pipe (4).

4. An environmental protection dust collector according to claim 1, wherein: the assembling frame (8) and the containing groove (2) are connected in a sliding mode.

5. An environmental protection dust collector according to claim 1, wherein: the assembly frame (8) and the sealing straight plate (10) are of an integrated structure.

6. An environmental protection dust collector according to claim 1, wherein: the length and the height of the sealing straight plate (10) are larger than those of the containing groove (2).

7. An environmental protection dust collector according to claim 1, wherein: the second magnetic block (11) is magnetically connected with the first magnetic block (3), the second magnetic block (11) and the first magnetic block (3) are symmetrically distributed about the longitudinal center line of the sealing straight plate (10) and the installation square plate (1), and the second magnetic block (11) and the first magnetic block (3) are fixedly inlaid with the sealing straight plate (10) and the installation square plate (1).
