CN219230471U - Auxiliary air cushion bed for medical care - Google Patents

Abstract

The utility model relates to the technical field of air cushion beds, and discloses a medical auxiliary air cushion bed, comprising: a mattress base and auxiliary belts, the top of the mattress base is evenly provided with an inflatable column, and one side of the bottom of the mattress base is provided with Head airbag, the bottom of the mattress base is far away from the head airbag on both sides to provide a first turning airbag and a second turning airbag, a support pad is provided between the first turning airbag and the second turning airbag, the utility model inflates The column is made of silicone rubber. When not inflated, the height is low and has a certain degree of elasticity. When inflated, you can freely choose the inflatable column that needs to be inflated according to your needs. After the inflatable column is inflated, the height becomes higher. A certain friction force realizes smooth switching of the contact stress point between the body and the mattress when the patient is lying down, and automatically switches according to the settable frequency to solve the problem of local pressure caused by the patient's long-term bed rest.

Description

A medical auxiliary air mattress

technical field

The utility model relates to the technical field of air cushion beds, in particular to a medical auxiliary air cushion bed.

Background technique

Some patients in the hospital, especially the critically ill patients in the ICU, have to stay in bed due to their illness, consciousness, and mobility limitations. Most of these patients belong to high-risk/very-high-risk groups of pressure sores, so pressure sore prevention is an important part of the work of clinical nurses. one of the contents.

The traditional method is to turn the patient over every 2 hours and pat the back regularly to assist in expectoration. However, this will greatly increase the workload of nurses and cause serious damage to the nurses' backs, especially for those relatively thin nurses. It usually requires at least two people to work together to complete this task. Turn over and pat your back. If things go on like this, this work has caused severe challenges to the physical and mental health of nurses and the quality of nursing work. Propose a kind of medical care auxiliary air mattress for this reason.

Utility model content

The purpose of the present utility model is to provide a medical auxiliary air bed to solve the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the utility model provides the following technical solutions: a medical auxiliary air bed, comprising: a mattress base and auxiliary belts, the top of the mattress base is evenly provided with inflatable columns, and the two sides of the mattress base are Auxiliary belts are arranged between them, a head airbag is provided on one side of the bottom of the mattress base, a first turning airbag and a second turning airbag are arranged on both sides of the bottom of the mattress base away from the head airbag, and the first turning airbag A supporting cushion is arranged between the air bag and the second turning air bag.

Further, a quick connector is provided on the top side of the mattress base, and one end of the quick connector is connected to a vibrating expectoration vest through a trachea.

Further, a controlled motor is provided on one side of the bottom of the mattress base, and one end of the power output shaft of the controlled motor is fixedly connected to one end of the auxiliary belt. slot, and the controlled motor is electrically connected with a foot switch.

Further, the auxiliary strap includes a left elastic strap and a right elastic strap, one end of the left elastic strap is fixedly connected to the mattress base, the other end is a free end, and one end of the right elastic strap is fixed to the output shaft of the controlled motor The other end is a free end, and the free ends of the left elastic band and the right elastic band are provided with Velcro glued to each other.

Further, the head airbag is inclined after being inflated, wherein the end close to the head is the high point of the slope, and the end close to the middle of the bed is the low point of the slope. When it is necessary to turn to the left, the first turning airbag Inflation raises the mattress on the right side, and when it is necessary to turn over to the right, the second turning airbag inflation raises the mattress on the left side.

Further, the cross-section of the inflation column is hexagonal, and there is a gap of 1-2mm between the inflation columns. The bottom of the inflation column is provided with a solenoid valve for charging and deflation, and one end of the inflation port of the inflation column is connected to An inflatable tube is arranged, and one end of the inflatable tube is connected with an air pump.

Compared with the prior art, the beneficial effects of the utility model are:

The utility model realizes that when the medical auxiliary air mattress is in use, the utility model realizes that the inflation column is evenly arranged on the mattress base, and the bottom of the inflation column is provided with an independent inflation and deflation column. The solenoid valve can realize the independent inflation and deflation control of the inflatable column. The inflatable column is made of silicone rubber. When it is not inflated, it has a low height and has a certain degree of elasticity. When it is inflated, you can freely choose the inflatable column that needs to be inflated. , the height of the inflatable column becomes higher after it is inflated. At the same time, the silicone rubber material has a certain friction force to achieve smooth switching. Local pressure problems caused by prolonged bed rest.

When the patient needs to lie down, the head airbag is inflated. After the head airbag is inflated, it has an inclined structure with one end high and the other end low, so as to realize the elevation of the head area, which is convenient for the patient to lie comfortably. , can be connected to the vibrating expectoration vest through the quick connector, after the patient wears the vibrating expectoration vest, connect the air pump through the quick connector to inflate the vibrating expectoration vest, and cooperate with the vibration of the vibrating expectoration vest to expel sputum for the patient, which is convenient to use.

When the patient needs to turn over, paste the two ends of the auxiliary belt with Velcro to bind the patient on the mattress, and then control the movement of the controlled motor through the foot switch. When the controlled motor starts to rotate forward, the auxiliary belt is adjusted When rewinding and reversing, the auxiliary belt is released to automatically adjust the tightness of the auxiliary belt, and then the first turning airbag or the second turning airbag is inflated, so that the first turning airbag or the second turning airbag is lifted on one side. High, assist turning over, reduce the labor intensity of medical staff.

Description of drawings

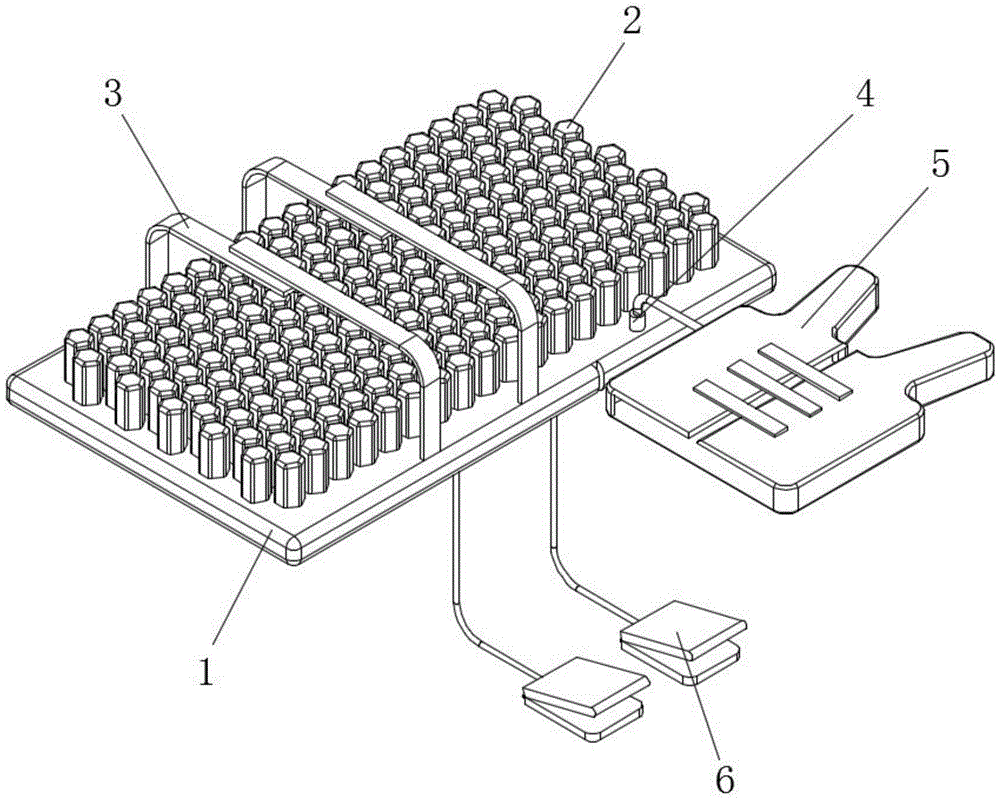

Fig. 1 is a perspective view of a medical auxiliary air bed of the utility model;

Fig. 2 is a perspective view of another angle of view of a medical auxiliary air bed of the utility model;

Fig. 3 is a top view of a medical auxiliary air bed of the utility model;

Fig. 4 is a bottom view of a medical auxiliary air bed of the utility model.

In the figure: 1-mattress base; 2-inflatable column; 3-auxiliary belt; 4-quick connector; 5-vibrating expectoration vest; 6-foot switch; 7-controlled motor; 8-head airbag; 9-support pad; 10-the first turning airbag; 11-the second turning airbag.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example.

Please refer to Fig. 1-Fig. 4, the utility model provides a technical solution: a kind of medical auxiliary air bed, comprising: mattress base 1 and auxiliary belt 3, the top of mattress base 1 is evenly provided with inflatable column 2, mattress Auxiliary belts 3 are provided between the two sides of the base body 1, a head air bag 8 is provided on one side of the bottom of the mattress base body 1, and a first turning air bag 10 and a second turning air bag 10 are arranged on both sides of the bottom of the mattress base body 1 away from the head air bag 8. The airbag 11 is provided with a support pad 9 between the first turning airbag 10 and the second turning airbag 11 . Through the inflatable column 2 evenly arranged on the mattress base 1, and the bottom of the inflatable column 2 is equipped with an independent inflation and deflation solenoid valve, the independent inflation and deflation control of the inflatable column 2 can be realized. The inflatable column is made of silicone rubber. When inflated, the height is low, and at the same time, it has a certain degree of elasticity. When inflated, you can freely choose the inflatable column 2 that needs to be inflated according to your needs. The height of the inflatable column 2 becomes higher after inflated. Smoothly switch the point of contact between the body and the mattress when the patient is lying down, and automatically switch according to the frequency that can be set to solve the problem of local pressure caused by the patient's long-term bed rest.

The mattress base 1 is any one of sponge, latex or coconut palm. When the mattress base 1 is made of coconut palm, due to the high hardness of the coconut palm mat, the mattress base 1 needs to be divided into a head and a body. Be that rotating shaft connects between head and body part, and wherein head air bag 8 is installed below the head, and support pad 9, the first air bag 10 for turning over and the second air bag 11 for turning over are installed below the body part.

One side of the top of the mattress substrate 1 is provided with a quick joint 4, and one end of the quick joint 4 is connected with a vibrating expectoration vest 5 through a trachea. Connect the vibrating expectoration vest 5 through the quick connector 4, after the patient wears the vibrating expectoration vest 5, connect the air pump through the quick connector 4 to inflate the vibrating expectoration vest 5, and cooperate with the vibration of the vibrating expectoration vest 5 to expel the patient ,easy to use. Wherein the vibration expectoration vest 5 is also called a multi-frequency vibration expectoration machine.

A controlled motor 7 is arranged on one side of the bottom of the mattress substrate 1, and one end of the power output shaft of the controlled motor 7 is fixedly connected with one end of the auxiliary belt 3, and one side of the first turning airbag 10 is provided with an inspection slot outside the controlled motor 7, and is controlled Control motor 7 is electrically connected with foot switch 6. The auxiliary strap 3 includes a left elastic strap and a right elastic strap, one end of the left elastic strap is fixedly connected to the mattress base 1, the other end is a free end, and one end of the right elastic strap is fixed to the output shaft of the controlled motor 7 The other end is a free end, and the free ends of the left elastic band and the right elastic band are provided with Velcro glued to each other. Paste the two ends of the auxiliary belt 3 with Velcro, bind the patient on the mattress, and then control the movement of the controlled motor 7 through the foot switch 6. When the controlled motor 7 starts to rotate forward, the auxiliary belt 3 is retracted. When rewinding, the auxiliary strap 3 is loosened, thereby automatically adjusting the tightness of the auxiliary strap 3 .

The head airbag (8) is inclined after being inflated, wherein the end near the head is the high point of the slope, and the end near the middle of the bed is the low point of the slope. When turning to the left, the first turning airbag (10) inflation raises the mattress on the right side, and when needs turn over to the right side, described second turning over air bag (11) inflation raises the mattress on the left side. By inflating the head airbag 8, after the head airbag 8 is inflated, it is inclined at one end and the other end is low, and the inclination angle can be adjusted freely between 0-45 degrees according to the amount of inflation, so as to realize the elevation of the head area, which is convenient The patient lies comfortably, and the first turning airbag 10 or the second turning airbag 11 is inflated, so that one side of the first turning airbag 10 or the second turning airbag 11 is raised to assist turning over and reduce the labor intensity of the medical staff.

The cross-section of the inflatable columns 2 is hexagonal, and there is a gap of 1-2mm between the inflatable columns 2. Ventilation holes can be set on the mattress base 1 at the gap of 1-2mm, which is convenient for the heat dissipation and ventilation of the mattress, and prevents patients from staying in bed for a long time resulting in poor ventilation.

The bottom of the inflation column 2 is provided with a solenoid valve for charging and deflation, one end of the inflation port of the inflation column 2 is connected with an inflation tube, and one end of the inflation tube is connected with an air pump. The independent inflation and deflation control of each inflation column 2 can be realized through the electrical control of the solenoid valve.

Working principle: When the medical auxiliary air bed is used, the inflation column 2 is evenly arranged on the mattress base 1, and the bottom of the inflation column 2 is equipped with an independent inflation and deflation solenoid valve, which can realize the independent inflation and deflation of the inflation column 2 Control, the inflatable column is made of silicone rubber. When not inflated, the height is low and has a certain degree of elasticity. When inflated, you can freely choose the inflatable column 2 that needs to be inflated. After the inflatable column 2 is inflated, the height becomes higher. At the same time Silicone rubber material, with a certain friction force, realizes smooth switching of the contact force point between the body and the mattress when the patient is lying down, and automatically switches according to the frequency that can be set to solve the local pressure problem caused by the patient's long-term bed rest.

When the patient needs to lie down, the head airbag 8 is inflated. After the head airbag 8 is inflated, it has an inclined structure with one end high and the other end low, so as to realize the elevation of the head area, which is convenient for the patient to lie comfortably. When in the posture, the vibrating expectoration vest 5 can be connected through the quick connector 4. After the patient wears the vibrating expectoration vest 5, the vibrating expectoration vest 5 can be inflated by connecting the air pump through the quick connector 4, and the vibration of the vibrating expectoration vest 5 can Patient expectoration, convenient to use.

When the patient needs to stand up, the two ends of the auxiliary belt 3 are pasted by Velcro, the patient is bound on the mattress, and then the movement of the controlled motor 7 is controlled by the foot switch 6. When the controlled motor 7 starts to rotate forward, the The auxiliary belt 3 is rewound, and when reversing, the auxiliary belt 3 is relaxed, thereby automatically adjusting the tightness of the auxiliary belt 3, and then the first turning airbag 10 or the second turning airbag 11 is inflated, so that the first turning One side of the airbag 10 or the second turning airbag 11 is raised to assist turning over and reduce the labor intensity of the medical staff.

Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Claims (6)

1. A healthcare auxiliary air cushion bed comprising: mattress base member (1) and supplementary band (3), its characterized in that: the mattress is characterized in that inflatable columns (2) are uniformly arranged at the top of the mattress base body (1), an auxiliary binding belt (3) is arranged between two sides of the mattress base body (1), a head airbag (8) is arranged on one side of the bottom of the mattress base body (1), a first turning-over airbag (10) and a second turning-over airbag (11) are arranged on two sides of the bottom of the mattress base body (1) away from the head airbag (8), and a supporting pad (9) is arranged between the first turning-over airbag (10) and the second turning-over airbag (11).

2. A healthcare auxiliary air mattress bed according to claim 1, wherein: a quick connector (4) is arranged on one side of the top of the mattress base body (1), and one end of the quick connector (4) is connected with a vibration sputum excretion vest (5) through an air pipe.

3. A healthcare auxiliary air mattress bed according to claim 1, wherein: the mattress is characterized in that a controlled motor (7) is arranged on one side of the bottom of the mattress base body (1), one end of a power output shaft of the controlled motor (7) is fixedly connected with one end of an auxiliary binding belt (3), an overhaul groove is formed in one side of the first turning-over air bag (10) located outside the controlled motor (7), and the controlled motor (7) is electrically connected with a foot switch (6).

4. A healthcare auxiliary air mattress bed according to claim 3, wherein: the auxiliary binding belt (3) comprises a left elastic binding belt and a right elastic binding belt, one end of the left elastic binding belt is fixedly connected with the mattress base body (1), the other end of the left elastic binding belt is a free end, one end of the right elastic binding belt is fixedly connected with an output shaft of the controlled motor (7), the other end of the right elastic binding belt is a free end, and magic tapes which are mutually adhered are arranged on the free ends of the left elastic binding belt and the right elastic binding belt.

5. A healthcare auxiliary air mattress bed according to claim 1, wherein: the head air bag (8) is inclined after being inflated, one end close to the head is an inclined plane high point, one end close to the middle of the bed body is an inclined plane low point, when the patient needs to turn over leftwards, the first turning-over air bag (10) is inflated to lift the right mattress, and when the patient needs to turn over rightwards, the second turning-over air bag (11) is inflated to lift the left mattress.

6. A healthcare auxiliary air mattress bed according to claim 1, wherein: the section of the inflatable column (2) is hexagonal, a gap of 1-2mm is reserved between the inflatable columns (2), an electromagnetic valve for inflating and deflating is arranged at the bottom of the inflatable column (2), one end of an inflation port of the inflatable column (2) is connected with an inflation tube, and one end of the inflation tube is connected with an inflation pump.
