A detection device for atmospheric monitoring

technical field

The utility model relates to the technical field of atmospheric monitoring, in particular to a detection device for atmospheric monitoring.

Background technique

With the continuous development of human society and the continuous improvement of science and technology, people's damage to the natural environment is becoming more and more serious, especially the atmospheric environment. The atmospheric environment is very important to human beings, so it is necessary to monitor the atmospheric environment at all times, and transmit the monitored data to people to ensure people's understanding of the atmospheric environment in order to take corresponding measures.

Existing testing equipment for atmospheric monitoring is usually installed at a high place. It is very inconvenient when the testing equipment needs to be inspected and maintained. Moreover, the direction of the air inlet of the existing testing equipment cannot be changed. When the wind direction changes, the inside of the testing equipment There is no airflow entering, so the atmosphere at this time cannot be monitored. For this reason, we have designed a detection device for atmospheric monitoring to solve the above technical problems.

Utility model content

The utility model provides a detection device for atmospheric monitoring, which solves the problems of inconvenient inspection and maintenance of detection equipment and inability to rotate with the wind direction in the related art.

The technical scheme of the utility model is as follows:

A detection device for atmospheric monitoring, comprising a fixed bottom box, a support sleeve is fixedly installed on the upper surface of the fixed bottom box, a lifting mechanism is fixedly installed inside the support sleeve, a support plate is installed on the lifting mechanism, A rotating seat is installed on the upper side of the end of the support plate, a detection mechanism is installed on the rotating seat, and a steering mechanism is installed on the detection mechanism.

In a preferred solution, the lifting mechanism includes a lifting screw and a moving block, the lifting screw is rotatably installed between the upper and lower side walls of the support sleeve, and the moving block is threaded on the lifting screw, so A strip-shaped hole is opened on the left side wall of the support sleeve, and a support plate is fixedly connected to one side of the moving block corresponding to the strip-shaped hole.

In a preferred solution, a motor is fixedly installed on the top inside of the fixed bottom box, and the output end of the motor extends into the supporting sleeve and is connected with the lower end of the lifting screw.

In a preferred solution, the detection mechanism includes a detection box and a detection instrument, the detection box is fixedly installed on the rotating seat, and the detection instrument is fixedly installed inside the detection box.

In a preferred solution, an air inlet hopper is installed on the right side wall of the detection box, an air outlet is opened at the bottom of the detection box, and a sealed door is installed on the front side wall of the detection box.

In a preferred solution, the steering mechanism includes a support rod and a fixed seat, the support rod is fixedly installed on the detection box body, the upper end of the support rod is fixedly installed with a fixed seat, and the left and right sides of the fixed seat Horizontal rods are respectively connected, the end of the horizontal rod on the left is connected with a rotating fan, and the end of the horizontal rod on the right is connected with a wind vane.

In a preferred solution, the front and rear sides of the fixed bottom box are respectively fixedly connected with storage boards, and the left side of the fixed bottom box is rotatably installed with a door.

In a preferred solution, a solar panel is fixedly installed on the side of the upper end of the support sleeve away from the detection mechanism.

Working principle of the present utility model and beneficial effect are:

1. The utility model can drive the detection mechanism to move up and down through the lifting mechanism, so that when the detection mechanism needs to be inspected and maintained, the detection mechanism can be lowered from the upper end of the support sleeve, which is convenient for the maintenance personnel to operate. By installing the steering mechanism on the detection mechanism , when the wind direction changes, the steering mechanism rotates following the direction of the wind, and at the same time drives the detection mechanism to rotate, so that the air intake bucket on the detection mechanism meets the direction of the wind, and the airflow can enter the detection mechanism , the detection mechanism can detect the atmosphere at this time, so that the detection mechanism can monitor the atmosphere in real time.

Description of drawings

Below in conjunction with accompanying drawing and specific embodiment, the utility model is described in further detail.

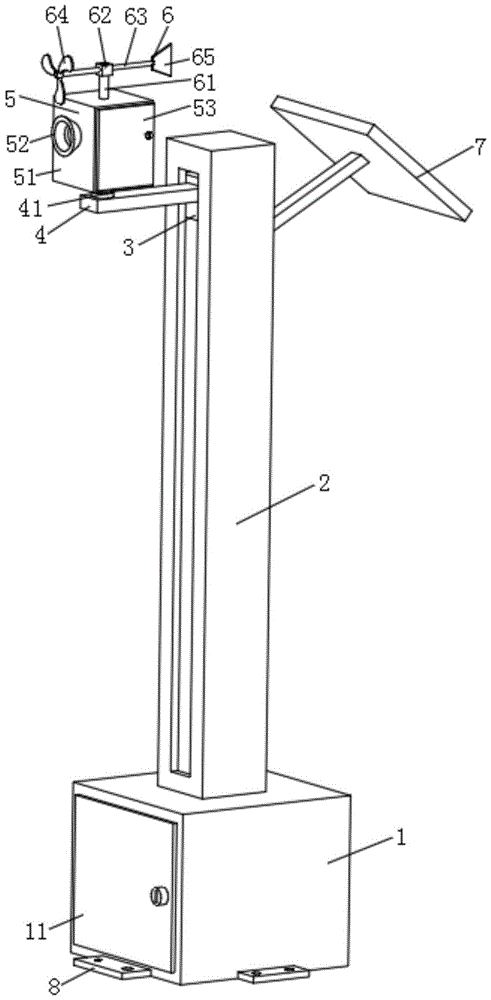

Fig. 1 is the first three-dimensional schematic diagram of the utility model structure;

Fig. 2 is the second perspective view of the structure of the utility model;

Fig. 3 is the third three-dimensional schematic diagram of the structure of the utility model;

Fig. 4 is a schematic diagram of the enlarged structure at A in Fig. 3 of the present utility model.

Among the figure: 1, fixed bottom box; 11, box door; 12, storage board; 2, support sleeve; 3, lifting mechanism; 31, lifting screw rod; 32, moving block; 33, motor; 4, support plate; 41. Rotating seat; 5. Detection mechanism; 51. Detection box body; 52. Air intake bucket; 53. Sealed door; 54. Detection instrument; 55. Air outlet; 6. Steering mechanism; 61. Support rod; 62. Fixed 63, horizontal bar; 64, rotating fan; 65, wind vane; 7, solar panel.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the embodiments of the present invention. Apparently, the described embodiments are only some of the embodiments of the present invention, not all of them. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts all involve the scope of protection of the present utility model.

Example

As shown in Figures 1 to 4, this embodiment proposes a detection device for atmospheric monitoring, including a fixed bottom box 1, a support sleeve 2 is fixedly installed on the upper surface of the fixed bottom box 1, and a support sleeve 2 is fixedly installed inside the support sleeve 2. Lifting mechanism 3 is arranged, and support plate 4 is installed on the lifting mechanism 3, and rotating seat 41 is installed on the upper side of the end of supporting plate 4, and detecting mechanism 5 is installed on rotating seat 41, and steering mechanism 6 is installed on the detecting mechanism 5, through lifting The mechanism 3 can drive the detection mechanism 5 to move up and down, so that when the detection mechanism 5 needs to be inspected and maintained, the detection mechanism 5 is lowered from the upper end of the support sleeve 2, which is convenient for maintenance personnel to operate. By installing the steering mechanism 6 on the detection mechanism 5 , when the wind direction changes, the steering mechanism 6 rotates following the blowing direction of the wind, and simultaneously drives the detection mechanism 5 to rotate, so that the air intake bucket 52 on the detection mechanism 5 meets the blowing direction of the wind, and the detection mechanism 5 The airflow can enter inside, and the detection mechanism 5 can detect the atmosphere at this time, so that the detection mechanism 5 can monitor the atmosphere in real time.

3-4, in a preferred embodiment, the lifting mechanism 3 includes a lifting screw 31 and a moving block 32, the lifting screw 31 is rotatably installed between the upper and lower side walls of the support sleeve 2, and the lifting screw 31 A moving block 32 is threadedly connected, and the left side wall of the supporting sleeve 2 is provided with a strip hole, and the side of the moving block 32 corresponding to the strip hole is fixedly connected with a support plate 4, and the inner upper top of the fixed bottom box 1 is fixedly installed with a Motor 33, the output end of motor 33 stretches into the support sleeve 2 and is connected with the lower end of the lifting screw mandrel 31. When the detection mechanism 5 is lifted, the lifting screw mandrel 31 is driven by the motor 33 to rotate, so that the lifting screw mandrel 31 goes up and down. The moving block 32 moves up and down, so that the detection mechanism 5 on the support plate 4 can move up and down, so that the staff can maintain the detection mechanism 5 .

1-2, in a preferred embodiment, the detection mechanism 5 includes a detection box body 51 and a detection instrument 54, the detection box body 51 is fixedly installed on the rotating seat 41, and the detection instrument is fixedly installed inside the detection box body 51 54, the right side wall of the detection box body 51 is equipped with an air inlet hopper 52, the bottom of the detection box body 51 is provided with an air outlet 55, and the front side wall of the detection box body 51 is rotated and installed with a sealed door 53, and the airflow in the atmosphere passes through the air inlet The air bucket 52 enters the detection box body 51, and the detection instrument 54 can detect the components in the airflow, and the airflow in the detection box body 51 can be discharged through the air outlet 55, so that the detection box body 51 can be filled with new airflow .

Referring to Fig. 1, in a preferred embodiment, the steering mechanism 6 includes a support rod 61 and a fixed seat 62, the support rod 61 is fixedly installed on the detection box body 51, the upper end of the support rod 61 is fixedly installed with a fixed seat 62, and the fixed seat The left and right sides of 62 are respectively connected with horizontal bar 63, and the end of left side horizontal bar 63 is connected with rotating fan 64, and the end of right side horizontal bar 63 is connected with wind vane 65, and under the effect of wind force, rotating fan 64 can rotate and Move to be perpendicular to the blowing direction of the wind, at this moment, the direction of the wind vane 65 is just the blowing direction of the wind, and at this moment, the airflow can just enter into the detection box body 51 through the air intake funnel 52 .

Referring to Fig. 3, in a preferred embodiment, the inside front and rear sides of fixed bottom box 1 are respectively fixedly connected with storage board 12, and the left side of fixed bottom box 1 is rotatably provided with box door 11, and storage board 12 can be used for Place the detection and maintenance work, and the box door 11 can close the fixed bottom box 1 to prevent other personnel from opening the fixed bottom box 1.

Referring to Fig. 1, in a preferred embodiment, a solar cell panel 7 is fixedly installed on the side of the upper end of the support sleeve 2 away from the detection mechanism 5, through which the solar energy can be converted into electrical energy and stored , so as to supply power to the motor 33 and the detection instrument 54.

In this embodiment, the existing detection equipment for atmospheric monitoring is usually installed at a high place, which is very inconvenient when the detection equipment needs to be inspected and maintained, and the direction of the air inlet of the existing detection equipment cannot be changed. There is no air flow in the detection equipment during the change, so the atmosphere at this time cannot be detected. The utility model can improve the existing technology and overcome the problems in the prior art. When in use, the detection mechanism 5 needs to be maintained At this time, the lifting screw 31 is driven by the motor 33 to rotate, so that the moving block 32 on the lifting screw 31 moves up and down, so that the detection mechanism 5 on the support plate 4 can move up and down, so that the staff can maintain the detection mechanism 5. When detecting When the wind direction changes during the process, under the action of the wind force, the rotating fan 64 can rotate and move to be perpendicular to the blowing direction of the wind. At this time, the direction of the wind vane 65 is the blowing direction of the wind, and the airflow can just pass through The air intake hopper 52 enters the detection box body 51, and the detection instrument 54 can detect the atmospheric composition at this time.

The above are only preferred embodiments of the utility model, and are not intended to limit the utility model. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the utility model shall be included in the utility model. within the scope of the new protection.

Claims (8)

1. The utility model provides a detection device for atmosphere monitoring, its characterized in that, including fixed base case (1), the upper surface fixed mounting of fixed base case (1) has support sleeve (2), fixed mounting has elevating system (3) in support sleeve (2), install backup pad (4) on elevating system (3), side-mounting has rotation seat (41) on the end of backup pad (4), install detection mechanism (5) on rotation seat (41), install steering mechanism (6) on detection mechanism (5).

2. The detection device for atmosphere monitoring according to claim 1, wherein the lifting mechanism (3) comprises a lifting screw rod (31) and a moving block (32), the lifting screw rod (31) is rotatably installed between the upper side wall and the lower side wall of the support sleeve (2), the moving block (32) is connected to the lifting screw rod (31) in a threaded manner, a strip-shaped hole is formed in the left side wall of the support sleeve (2), and a support plate (4) is fixedly connected to one side of the moving block (32) corresponding to the strip-shaped hole.

3. The detection device for atmosphere monitoring according to claim 2, wherein a motor (33) is fixedly installed on the upper top of the inside of the fixed bottom box (1), and the output end of the motor (33) extends into the supporting sleeve (2) and is connected with the lower end of the lifting screw rod (31).

4. The detection device for atmosphere monitoring according to claim 1, wherein the detection mechanism (5) comprises a detection box body (51) and a detection instrument (54), the detection box body (51) is fixedly installed on the rotating seat (41), and the detection instrument (54) is fixedly installed inside the detection box body (51).

5. The detection device for atmosphere monitoring according to claim 4, wherein the right side wall of the detection box body (51) is provided with an air inlet hopper (52), the bottom of the detection box body (51) is provided with an air outlet (55), and the front side wall of the detection box body (51) is rotatably provided with a sealing door (53).

6. The detection device for atmosphere monitoring according to claim 4, wherein the steering mechanism (6) comprises a supporting rod (61) and a fixing seat (62), the supporting rod (61) is fixedly installed on the detection box body (51), the fixing seat (62) is fixedly installed at the upper end of the supporting rod (61), horizontal rods (63) are respectively connected to the left side and the right side of the fixing seat (62), a rotating fan (64) is connected to the tail end of the horizontal rod (63) on the left side, and a wind vane (65) is connected to the tail end of the horizontal rod (63) on the right side.

7. The detection device for atmosphere monitoring according to claim 1, wherein the front side and the rear side of the inside of the fixed bottom box (1) are fixedly connected with a storage plate (12) respectively, and a box door (11) is rotatably installed on the left side surface of the fixed bottom box (1).

8. The detection device for atmosphere monitoring according to claim 1, wherein a solar cell panel (7) is fixedly installed at a side of the upper end of the support sleeve (2) away from the detection mechanism (5).
