Abstract

The utility model provides a drying device which comprises a drying box, wherein a containing cavity is formed in the drying box, a plurality of embedded rails are arranged on two sides of the inner wall of the containing cavity of the drying box at intervals, a base plate is connected between the two horizontal embedded rails in a sliding mode, a groove is formed in the base plate, a drain pipe communicated with the groove is formed in the base plate, and a lifting plate is connected in the groove of the base plate in a rotating mode. The utility model provides a drying device, a plurality of base plates are arranged in a drying box in a sliding manner through embedded rails, then each base plate is connected with a lifting plate, each lifting plate is used by the output end of a motor at the bottom and driven, materials can be dried better, a jack is obliquely arranged, a conductive material plate is obliquely inserted in the jack, water is led into a groove, and the water in the groove is discharged from a drain pipe.

Description

Drying device

Technical Field

The utility model relates to the technical field of dryers, in particular to a drying device.

Background

The general stoving case adopts shaped steel and sheet metal to form the back welding to form, and is rational in infrastructure, and the box is handsome in appearance, sturdy and durable, can be used as sample shelf and dolly in the working chamber, fills the heat preservation that the thermal insulation is good between working chamber and the box shell. The air blower can force the heated air in the working chamber to convect, so that the temperature uniformity in the box is improved. The air in the working chamber can be replaced by opening the wind top valve. An air duct is arranged between the left wall of the working chamber in the air blowing box and the heat insulation layer, and is internally provided with an air blower, fan blades and a guide plate, and an air blower switch can be started to enable the air blower to work.

However, most of the existing drying boxes stack the conductive material plates on the lifting plates to dry, so that the conductive coating and the lifting plates are poor in laminating and drying effect, and therefore, a drying device is provided.

Disclosure of Invention

Based on the technical problems in the background technology, the utility model provides a drying device.

The utility model provides a drying device, which comprises a drying box, wherein a containing cavity is formed in the drying box, a plurality of embedded rails are arranged at two sides of the inner wall of the containing cavity of the drying box at intervals, a base plate is connected between the two horizontal embedded rails in a sliding manner, a groove is formed in the base plate, a drain pipe communicated with the groove is formed in the base plate, and a lifting plate is connected in a rotating manner in the groove of the base plate;

the lifting plate is provided with a plurality of jacks, and the jacks are connected with a conductive paint plate;

the bottom of the drying box is provided with a driving mechanism for driving the lifting plates on the plurality of backing plates to rotate.

Preferably, the driving mechanism comprises a motor, and the output end of the motor is sequentially inserted into the plurality of base plates and the lifting plate.

Preferably, holes are formed between the base plate and the lifting plate, and the output end of the motor is sequentially inserted into the holes on the base plates and the lifting plate.

Preferably, the jack is obliquely arranged, and the conductive paint plate is obliquely inserted into the jack.

The utility model has the following beneficial effects: the utility model discloses a drying box, including the stoving case, the stoving case is connected with the stoving case, and the stoving case is connected with the back plate through inlaying rail sliding connection to a plurality of backing plates that set up, then is connected with the back plate on every backing plate, and every back plate is all used out and drive by the motor output of bottom, and the stoving that the material of being convenient for can be better, jack slope setting for the slope of electric conduction flitch is pegged graft in the jack, makes in the leading-in recess of water, and the water in the recess is discharged from the drain pipe.

Drawings

Fig. 1 is an overall structure diagram of a drying device according to the present utility model.

Fig. 2 is a block diagram of a plurality of pad plates in a drying device according to the present utility model.

Fig. 3 is a block diagram of a pad plate in a drying device according to the present utility model.

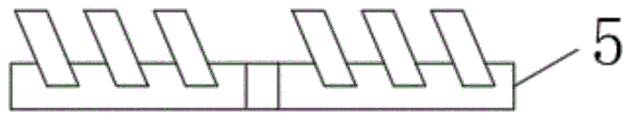

Fig. 4 is a structural diagram of a lifting plate and a conductive material plate in a drying device according to the present utility model.

Fig. 5 is an enlarged view of a dryer according to the present utility model.

Detailed Description

Referring to fig. 1-5, the utility model provides a drying device, which comprises a drying box 1, wherein a containing cavity is formed in the drying box 1, a plurality of embedded rails 2 are arranged at two sides of the inner wall of the containing cavity of the drying box 1 at intervals, a base plate 3 is connected between two horizontal embedded rails 2 in a sliding manner, a groove 4 is formed in the base plate 3, a drain pipe 7 communicated with the groove 4 is formed in the base plate 3, and a lifting plate 5 is connected in the groove 4 of the base plate 3 in a rotating manner;

the lifting plate 5 is provided with a plurality of jacks 6, and the jacks 6 are connected with a conductive paint plate;

a driving mechanism for driving the lifting plates 5 on the plurality of backing plates 3 to rotate is arranged at the bottom of the drying box 1.

In the specific embodiment, the driving mechanism comprises a motor 8, and the output ends of the motor 8 are sequentially inserted into the plurality of base plates 3 and the lifting plates 5; holes are formed between the base plate 3 and the lifting plate 5, and the output end of the motor 8 is sequentially inserted into the holes on the base plates 3 and the lifting plate 5.

In the implementation process, the output end of the motor 8 is inserted into each lifting plate 5 after passing through each backing plate 3, the output end of the motor 8 is not connected with the backing plate 3, and the output end of the motor 8 is clamped or fixed with the lifting plate 5.

In a specific embodiment, the insertion hole 6 is obliquely arranged, and the conductive paint plate is obliquely inserted into the insertion hole 6.

The foregoing is only a preferred embodiment of the present utility model, but the scope of the present utility model is not limited thereto, and any person skilled in the art, who is within the scope of the present utility model, should make equivalent substitutions or modifications according to the technical scheme of the present utility model and the inventive concept thereof, and should be covered by the scope of the present utility model.

Claims

1. The utility model provides a drying device, its characterized in that includes stoving case (1), offer in stoving case (1) and hold the chamber, hold chamber inner wall both sides of stoving case (1) and all interval arrangement install a plurality of embedded rails (2), two levels between embedded rails (2) sliding connection have backing plate (3), set up recess (4) on backing plate (3), set up drain pipe (7) with recess (4) are linked together on backing plate (3), recess (4) internal rotation of backing plate (3) are connected with lift board (5);

a plurality of jacks (6) are formed in the lifting plate (5), and the jacks (6) are connected with a conductive paint plate;

the bottom of the drying box (1) is provided with a driving mechanism for driving the lifting plates (5) on the plurality of backing plates (3) to rotate.

2. A drying apparatus according to claim 1, wherein the driving mechanism comprises a motor (8), and the output end of the motor (8) is sequentially inserted into the plurality of base plates (3) and the lifting plate (5).

3. The drying device according to claim 2, wherein holes are formed between the base plate (3) and the lifting plate (5), and the output end of the motor (8) is sequentially inserted into the holes on the plurality of base plates (3) and the lifting plate (5).

4. A drying apparatus according to any one of claims 1-3, wherein the receptacle (6) is inclined and the conductive paint plate is inserted into the receptacle (6) obliquely.
