Abstract

The utility model relates to a solar street lamp with a remote alarm function, comprising a lamp post, a light sensor is provided on one side of the lamp post, a control box is provided on the top of the lamp post, a street lamp bracket is provided on one side of the lamp post, and a street lamp bracket is installed on one side of the lamp post. There is a street lamp on one side, and the top of the control box is fixedly connected with two support columns, and the top of the support column is welded with a limit rod. The top of the control box is fixedly connected with an electric push rod, and the top of the electric push rod is fixedly connected with a connecting rod. Both ends of the rod are rotatably connected with a rotating plate, the top of the rotating plate is provided with a solar panel, and the bottom of the rotating plate is fixedly connected with a fixing bar. The utility model is provided with a connecting plate, a rotating plate and an electric push rod. At night, the electric push rod pulls the connecting rod to lower the connecting rod, so that the two rotating plates can move and close together, so that the solar panels are close to each other, thereby protecting the solar energy at night. The solar panel is protected, and at the same time, dust is prevented from falling on the solar panel, which prolongs the life of the solar panel.

Description

A solar street lamp with remote alarm function

technical field

The utility model relates to the technical field of solar street lamps, in particular to a solar street lamp with a remote alarm function.

Background technique

Solar lighting products have many advantages such as safety and no hidden dangers, energy saving and no consumption, green environmental protection, simple installation, automatic control, and maintenance-free. In recent years, solar lighting products have achieved great development, and the occasions for street lamps are increasing. Street lights are easy to install and do not need to lay cables when wiring. Therefore, remote wireless methods are also considered more in the control of solar street lights. Traditional solar street lights generally do not have remote fault alarm functions, which is not convenient for timely maintenance and troubleshooting. When the equipment fails , it cannot be repaired in time, which will affect the street lighting. At the same time, the solar panels of the existing solar street lamps are generally deployed all day long, which has no protective function for the solar panels, and at the same time, it is easy to accumulate dust when deployed for a long time, resulting in a decrease in conversion efficiency.

After searching, the Chinese Patent Publication No. is CN212057084U, which discloses a solar street lamp with remote alarm function, including a base, the top of the base is fixedly connected with a light pole, and the top of the right side of the light pole is fixedly connected with a fixed The right side of the fixed frame is fixedly connected with a lamp base, the bottom of the lamp base is fixedly connected with a lighting lamp, the left side of the light pole is fixedly connected with a mounting plate, and the bottom of the mounting plate is fixedly connected with a monitoring device. A solar street lamp with a remote alarm function in the above patent has the following disadvantages: the device can adjust the inclination angle of the solar photovoltaic panel by setting an electric telescopic rod, so as to achieve a more suitable illumination range and improve the photoelectric conversion efficiency. The plate has no protective function, and it is easy to accumulate dust after long-term use, resulting in a decrease in conversion efficiency.

Utility model content

The purpose of the utility model is to solve the shortcomings in the prior art, and propose a solar street lamp with a remote alarm function.

In order to achieve the above object, the utility model adopts the following technical solutions:

A solar street lamp with a remote alarm function, comprising a lamp post, a light sensor is provided on one side of the lamp post, a control box is provided on the top of the lamp post, a street lamp bracket is provided on one side of the lamp post, and a street lamp bracket is provided on one side of the street lamp bracket. For street lights, the top of the control box is fixedly connected with two support columns, the top of the support column is welded with a limit rod, the top of the control box is fixedly connected with an electric push rod, the top of the electric push rod is fixedly connected with a connecting rod, and the two ends of the connecting rod Both are rotatably connected with a rotating plate, the top of the rotating plate is provided with a solar panel, the bottom of the rotating plate is fixedly connected with a fixing bar, one side of the fixing bar is provided with a limiting groove, and the limiting rod is inside the limiting groove.

Further, a control module, a storage battery and a communication module are arranged inside the control box.

Further, one side of the rotating plate is rotatably connected with a rotating shaft, and the rotating shaft is fixedly connected with the connecting rod.

Further, both sides of the top of the rotating plate are fixedly connected with rubber blocks.

Further, the limiting rod is cylindrical.

Further, a transparent plate is provided on one side of the lamp post, and the transparent plate is on the top of the light sensor.

The beneficial effects of the utility model are:

1. By setting the connecting plate, rotating plate and electric push rod, the electric push rod pulls the connecting rod at night to make the connecting rod drop, so that the two rotating plates can move closer together, so that the solar panels are close to each other, so that the solar panels are closed at night Protect and avoid dust from falling on the solar panel, prolonging the life of the solar panel;

2. By setting the light sensor, when the light sensor does not detect the light at night, it proves that the street light is out of order, and the communication module will transmit the alarm information to notify the staff to repair it in time;

3. By setting the limit rod and the fixed bar, when the electric push rod pulls the connecting rod to move down, the rotating plate and the connecting rod will rotate, and the limit rod is limited inside the fixed bar, so that the two rotations The panels are close together to protect the solar panels;

4. By setting the rubber block, the position can be limited when the two rotating plates are close to each other, so as to avoid the collision of the solar panels on the two rotating plates;

5. By setting a transparent plate, the light sensor can be blocked and protected, and at the same time, it is convenient for light transmission to detect street lights.

Description of drawings

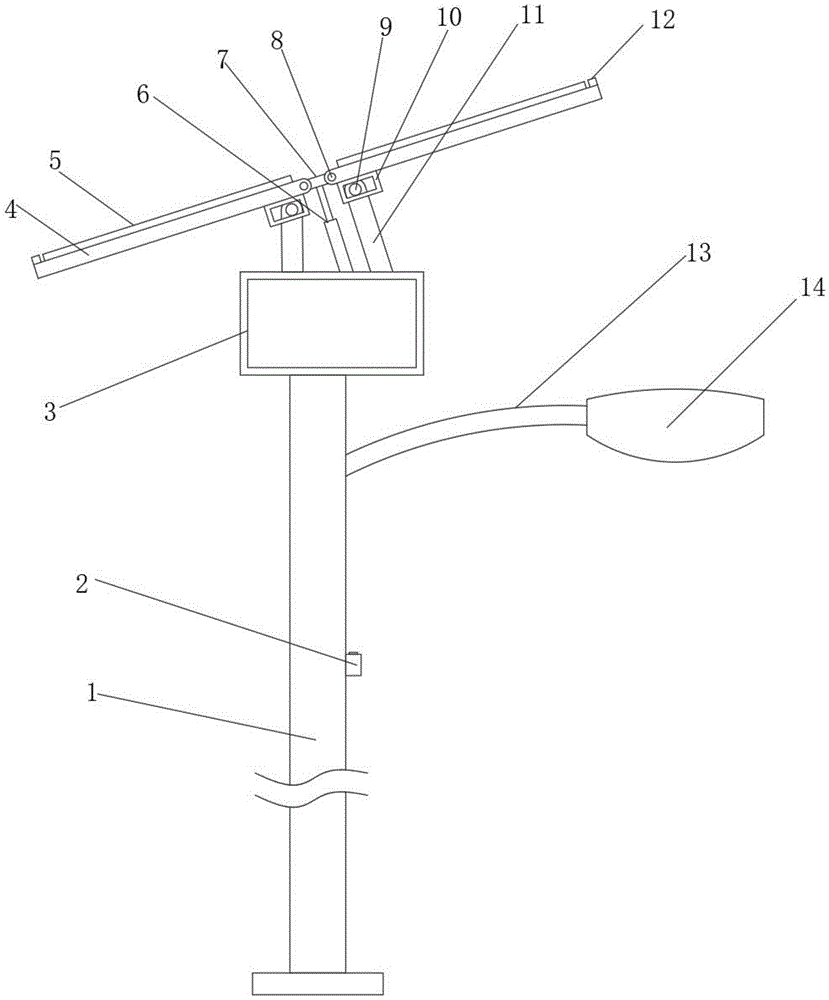

Fig. 1 is a sectional view of the unfolded structure of a solar panel of a solar street lamp with a remote alarm function proposed in Embodiment 1;

Fig. 2 is a cross-sectional view of a solar panel closing structure of a solar street lamp with a remote alarm function proposed in Embodiment 1;

FIG. 3 is a schematic diagram of an unfolded structure of a solar street lamp with a remote alarm function proposed in Embodiment 2. FIG.

In the figure: 1 lamp post, 2 light sensor, 3 control box, 4 rotating board, 5 solar panel, 6 electric actuator, 7 connecting rod, 8 rotating shaft, 9 limit rod, 10 fixing bar, 11 supporting column, 12 Rubber blocks, 13 street lamp brackets, 14 street lamps, 15 transparent plates.

Detailed ways

In order to further explain the technical means and effects of the utility model to achieve the intended purpose of the utility model, the specific implementation, structure, features and effects of the utility model will be described in detail below in conjunction with the accompanying drawings and preferred embodiments. As later.

Example 1

Referring to Figure 1-2, a solar street light with remote alarm function includes a lamp post 1, a light sensor 2 is provided on one side of the lamp post 1, a control box 3 is provided on the top of the lamp post 1, and a light sensor 2 is provided on one side of the lamp post 1. A street lamp support 13 is provided, and a street lamp 14 is provided on one side of the street lamp support 13. The top of the control box 3 is fixedly connected with two support columns 11, and the top of the support column 11 is welded with a limit rod 9, and the top of the control box 3 is fixedly connected with a Electric push rod 6, the top of electric push rod 6 is fixedly connected with connecting rod 7, both ends of connecting rod 7 are connected with rotating plate 4 in rotation, the top of rotating plate 4 is provided with solar panel 5, and the bottom of rotating plate 4 is fixedly connected There is a fixed bar 10, a limit groove is provided on one side of the fixed bar 10, and the limit rod 9 is in the inside of the limit groove. When the device is in use, the solar energy is converted through the solar panel 5, and the street lamp 14 is powered at night. At the same time, at night, through The electric push rod 6 pulls the connecting rod 7 to lower the connecting rod 7, so that the two rotating plates 4 move closer together, so that the solar panels 5 are close to each other, so as to protect the solar panels 5 at night and prevent dust from falling on the solar panels 5, prolong the life-span of solar panel 5.

Wherein, the interior of control box 3 is provided with control module, accumulator and communication module. During the day, solar panel 5 can charge accumulator. Transmit alarm information to notify staff to repair in time.

Wherein, one side of the rotating plate 4 is rotatably connected with a rotating shaft 8, and the rotating shaft 8 is fixedly connected with the connecting rod 7. The rotating shaft 8 is convenient for rotating between the rotating plate 4 and the connecting rod 7. When the electric push rod 6 pulls the connecting rod 7 When moving down, the rotating plate 4 and the connecting rod 7 will rotate, and the limit rod 9 is limited inside the fixed bar 10, so that the two rotating plates 4 are close together to protect the solar panel 5.

Wherein, both sides of the top of the rotating plate 4 are fixedly connected with rubber blocks 12, and the rubber blocks 12 can be used to limit the position when the two rotating plates 4 are close to each other, so as to prevent the solar panels 5 on the two rotating plates 4 from colliding with each other. .

Wherein, the limit rod 9 is cylindrical, and the limit rod 9 can move inside the limit groove of the fixed bar 10, thereby facilitating the movement of the rotating plate 4 to move close to closing, and at the same time, the rotating plate 4 can be unfolded and closed smoothly.

Working principle: when the device is in use, the solar panel 5 converts solar energy to supply power to the street lamp 14 at night, and at the same time, at night, the connecting rod 7 is pulled by the electric push rod 6 to lower the connecting rod 7, so that the two rotating plates 4 are movable and closed close to each other so that the solar panels 5 are close to each other, thereby protecting the solar panels 5 at night, while preventing dust from falling on the solar panels 5, and prolonging the life of the solar panels 5;

During the day, the solar panel 5 can charge the storage battery. At night, when the light sensor 2 does not detect light, it proves that the street lamp 14 is out of order, and the communication module transmits an alarm message to notify the staff to repair it in time;

The rotating shaft 8 is convenient to rotate between the rotating plate 4 and the connecting rod 7. When the electric push rod 6 pulls the connecting rod 7 to move downward, the rotating plate 4 and the connecting rod 7 will rotate. 10 internal limit, so that the two rotating plates 4 close together to protect the solar panel 5;

The rubber block 12 can be used to limit the position when the two rotating plates 4 are close to each other, so as to prevent the solar panels 5 on the two rotating plates 4 from colliding with each other;

The limit rod 9 can move inside the limit groove of the fixed bar 10, thereby facilitating the movement of the rotating plate 4 to move closer to close up, and at the same time, the rotating plate 4 can be unfolded and closed smoothly.

Example 2

Referring to FIG. 3 , a solar street lamp with remote alarm function. Compared with Embodiment 1, in this embodiment, in order to increase the practicability of the device, a transparent plate 16 is provided on one side of the lamppost 1, and the transparent plate 16 is placed on the light sensor 2. The top of the light sensor 2 can be shielded and protected through the transparent plate 16, and at the same time it is convenient for light transmission to detect the street lamp 14.

Working principle: when the device is in use, the solar panel 5 converts solar energy to supply power to the street lamp 14 at night, and at the same time, at night, the connecting rod 7 is pulled by the electric push rod 6 to lower the connecting rod 7, so that the two rotating plates 4 are movable and closed close to each other so that the solar panels 5 are close to each other, thereby protecting the solar panels 5 at night, while preventing dust from falling on the solar panels 5, and prolonging the life of the solar panels 5;

During the day, the solar panel 5 can charge the storage battery. At night, when the light sensor 2 does not detect light, it proves that the street lamp 14 is out of order, and the communication module transmits an alarm message to notify the staff to repair it in time;

The rotating shaft 8 is convenient to rotate between the rotating plate 4 and the connecting rod 7. When the electric push rod 6 pulls the connecting rod 7 to move downward, the rotating plate 4 and the connecting rod 7 will rotate. 10 internal limit, so that the two rotating plates 4 close together to protect the solar panel 5;

The rubber block 12 can be used to limit the position when the two rotating plates 4 are close to each other, so as to prevent the solar panels 5 on the two rotating plates 4 from colliding with each other;

The limit rod 9 can move inside the limit groove of the fixed bar 10, so as to facilitate the movement of the rotating plate 4 and close it, and at the same time, the rotating plate 4 can be unfolded and closed smoothly;

The light sensor 2 can be shielded and protected through the transparent plate 16 , and at the same time it is convenient for light transmission to detect the street lamp 14 .

The above shows and describes the basic principles and main features of the utility model and the advantages of the utility model, and the standard parts used in the utility model can be purchased from the market, and the special-shaped parts can be carried out according to the description and the accompanying drawings. Customized, the specific connection methods of each part adopt conventional methods such as bolts, rivets, and welding in the prior art. The machinery, parts and equipment all adopt the conventional models in the prior art, and the circuit connection adopts the conventional methods in the prior art. The connection method will not be described in detail here.

The above are only preferred embodiments of the present utility model, and do not limit the utility model in any form. Although the utility model has been disclosed as above with preferred embodiments, it is not used to limit the utility model. Any Those skilled in the art, without departing from the scope of the technical solution of the present utility model, may use the technical content disclosed above to make some changes or modify equivalent embodiments with equivalent changes, but all without departing from the technical solution of the utility model According to the technical essence of the utility model, any brief modification, equivalent change and modification made to the above embodiments still belong to the scope of the technical solution of the utility model.

Claims (6)

1. A solar street lamp with remote alarm function, comprising a lamppost (1), characterized in that a light sensor (2) is provided on one side of the lamppost (1), and the top of the lamppost (1) A control box (3) is provided, a street lamp support (13) is provided on one side of the lamp post (1), a street lamp (14) is provided on one side of the street lamp support (13), and the top of the control box (3) Two support columns (11) are fixedly connected, and the top of the support column (11) is welded with a limit rod (9), and the top of the control box (3) is fixedly connected with an electric push rod (6), and the electric push rod (6 ) is fixedly connected with a connecting rod (7), and both ends of the connecting rod (7) are rotatably connected with a rotating plate (4), and the top of the rotating plate (4) is provided with a solar panel (5), and the rotating plate ( The bottom of 4) is fixedly connected with a fixing bar (10), and one side of the fixing bar (10) is provided with a limiting groove, and the limiting rod (9) is inside the limiting groove. 2. A solar street lamp with a remote alarm function according to claim 1, characterized in that a control module, a storage battery and a communication module are arranged inside the control box (3). 3. A solar street lamp with remote alarm function according to claim 1, characterized in that, one side of the rotating plate (4) is rotatably connected with a rotating shaft (8), and the rotating shaft (8) is connected to the Connecting rod (7) is fixedly connected. 4. The solar street lamp with remote alarm function according to claim 1, characterized in that rubber blocks (12) are fixedly connected to both sides of the top of the rotating plate (4). 5. A solar street lamp with remote alarm function according to claim 1, characterized in that the limit rod (9) is cylindrical. 6. The solar street lamp with remote alarm function according to claim 1, characterized in that, one side of the lamp post (1) is provided with a transparent plate (16), and the transparent plate (16) is placed in the light the top of the sensor (2).
