Abstract

The utility model relates to the technical field of pipelines, in particular to an easy-to-connect pipeline, comprising a first pipeline, an annular groove is opened in the first pipeline, a second pipeline is pasted on the outside of the first pipeline, and the upper and lower ends of the first pipeline are A connecting plate is provided, the end of the first pipeline is provided with a first through hole, the outer side of the second pipeline is fixed with an annular insert, and the outer side of the annular insert is slidably arranged on the inner wall of the annular groove, and the end of the second pipeline is provided with a The second through hole, the inner wall of the first through hole and the second through hole are perforated with bolts, the bolts are threaded with nuts, the annular insert on the second pipe is inserted into the annular groove of the first pipe, and the first pipe and the second through hole are inserted into the annular groove. The position between the second pipes is determined, which is convenient for the construction of the pipe connection; through the first through hole and the second through hole through the bolt, and then threaded onto the bolt through the nut, the first pipe and the second pipe are tightly connected together .

Description

an easy-to-connect pipe

technical field

The utility model relates to the technical field of pipelines, in particular to an easy-to-connect pipeline.

Background technique

Pipeline refers to a device connected by pipes, pipe connectors and valves to transport gas, liquid or fluid with solid particles; usually, after the fluid is pressurized by blowers, compressors, pumps and boilers, it is discharged from the pipeline. The high-pressure part flows to the low-pressure part, and the pressure or gravity of the fluid itself can also be used to transport. Pipes are widely used, mainly in water supply, drainage, heat supply, gas supply, long-distance transportation of oil and natural gas, agricultural irrigation, hydraulic engineering and various industrial devices.

Joining is an industrial term that refers to the process of joining two separate profiles or parts into one complex part or component with fasteners such as screws, bolts and rivets; commonly used mechanical fasteners are mainly bolts, screws and rivets.

The connection of pipes usually adopts threaded connection and flange connection. In order to ensure the tightness of pipe connection with large diameter, flange connection is usually used. However, the direct alignment between pipes makes it difficult to ensure the stability between pipes, resulting in relatively difficult connection. Difficult and inconvenient construction affects the efficiency of pipeline connection. At the same time, flange connection is directly used for the first pipeline and the second pipeline. If there are too few connections between pipelines, it is easy to cause water leakage and affect the connection effect.

For example, the patented notification number CN214197742U discloses a new type of easy-to-connect pipe for water conservancy engineering, which relates to the technical field of water conservancy engineering. , the first connecting seat and the second connecting seat, the bearing seat is a plate-shaped structure, the lower surface of the first connecting seat and the lower surface of the second connecting seat are welded to the upper surface of the bearing seat, the body structure includes the first pipe and the second pipe, The side surface of the first pipe is connected to the side surface of the first connection seat, the side surface of the second pipe is connected to the side surface of the second connection seat, the fixing structure includes a fixing ring, and the side surfaces of the two fixing rings are connected to the first connecting seat respectively. The surface on one side of the seat is connected to the surface on one side of the second connecting seat. The utility model relates to a new type of pipeline for water conservancy projects which is easy to connect. Vibration during the construction of water conservancy projects can be well reduced by arranging the cooperation between the shock-absorbing spring and the shock-absorbing column.

The connection of pipes usually adopts threaded connection and flange connection. In order to ensure the tightness of the pipe connection with larger pipe diameter, flange connection is usually used. Combining the above-mentioned existing technology, it is known that the pipes are directly aligned, and it is difficult to ensure the tightness between the pipes. The stability of the pipeline leads to difficulty in connection and inconvenience in construction, which affects the efficiency of pipeline connection. At the same time, flange connection is directly used for the first pipeline and the second pipeline. If there are too few connections between pipelines, it is easy to cause water leakage and affect the connection effect. , the problem is widespread and urgently needs to be improved.

Utility model content

The purpose of the utility model is to provide an easy-to-connect pipeline to solve the problem of difficult pipeline connection.

In order to achieve the above purpose, the utility model provides the following technical solutions: an easy-to-connect pipeline, including a first pipeline, an annular groove is opened in the first pipeline, and the annular groove is opened on the inner wall of the end of the first pipeline. A second pipe is bonded to the outside of the first pipe, and the material and pipe diameter of the second pipe are the same as those of the first pipe.

Preferably, the upper and lower ends of the first pipeline are provided with connecting plates, and there are two connecting plates, which are integrally cast with the upper wall and the lower wall of the first pipeline.

Preferably, the end of the first pipeline is provided with first through holes, and there are eight first through holes, which are formed in a ring at the end of the first pipeline.

Preferably, the outer side of the second pipe is fixed with an annular insert, the annular insert is integrally cast with the outer wall of the second pipe, the diameter is smaller than the diameter of the second pipe, and the outer side of the annular insert is slidably arranged on the inner wall of the annular groove, The cross-sectional area of the annular insert is the same as that of the annular groove, and the annular insert is inserted into the annular groove to fill it up.

Preferably, the end of the second pipe is provided with second through holes, and there are eight second through holes, which are annularly opened at the end of the second pipe and correspond to the first through holes one by one.

Preferably, the inner walls of the first through hole and the second through hole are perforated with bolts, and the bolts can pass through the first through hole and the second through hole.

Preferably, nuts are threaded on the bolts, and the nuts are threaded on the bolts, and the ends of the two are attached to the first pipe and the second pipe respectively, so as to ensure the tightness between the first pipe and the second pipe. Fit to ensure the connection effect.

Compared with the prior art, the beneficial effects of the utility model are:

1. The utility model inserts the annular plug on the second pipeline into the annular groove of the first pipeline to determine the position between the first pipeline and the second pipeline, which is convenient for the construction of pipeline connection.

2. The utility model can pass through the first through hole and the second through hole through the bolt, and then connect the bolt to the bolt through the thread of the nut, so as to tightly connect the first pipeline and the second pipeline together.

Description of drawings

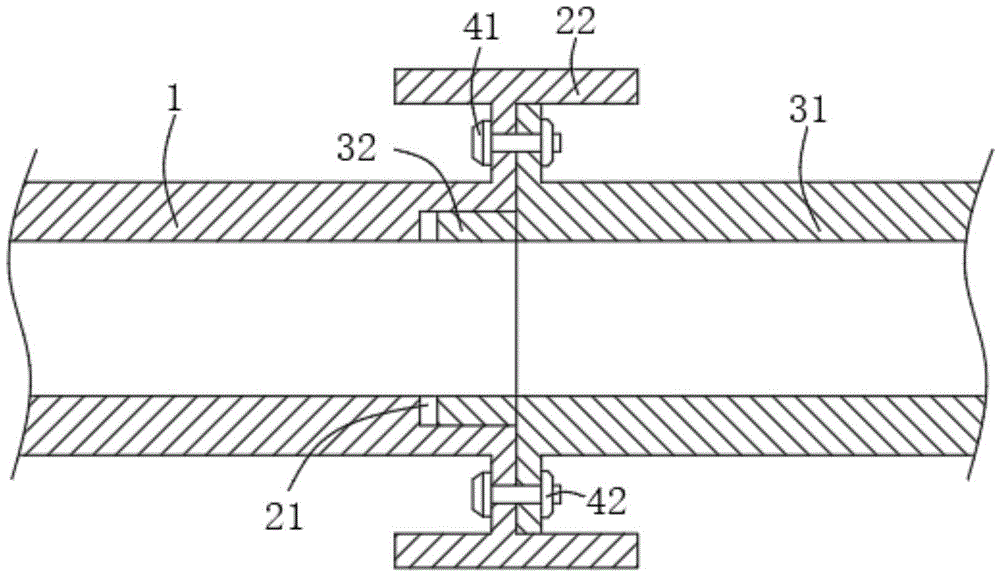

Fig. 1 is a front sectional view of the utility model;

Fig. 2 is a front view of the utility model;

Fig. 3 is a side view of the first pipeline of the present utility model;

Fig. 4 is a side view of the second pipeline of the present invention.

In the figure: 1, the first pipeline; 21, the annular groove; 22, the connecting plate; 23, the first through hole; 31, the second pipeline; 32, the ring plug; 33, the second through hole; 41, the bolt; 42 , Nut.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Example 1

Please refer to Fig. 1-Fig. 4, a kind of pipeline that is easy to connect in the diagram includes a first pipeline 1, and an annular groove 21 is opened in the first pipeline 1, and the annular groove 21 is opened on the inner wall of the end of the first pipeline 1. A second pipe 31 is bonded to the outside of the first pipe 1 , and the material and diameter of the second pipe 31 are the same as those of the first pipe 1 .

Among them, in order to facilitate the connection, the upper and lower ends of the first pipeline 1 are provided with connecting plates 22, two connecting plates 22 are provided, and are integrally cast with the upper wall and the lower wall of the first pipeline 1, and the ends of the first pipeline 1 Offer the first through hole 23, the first through hole 23 is provided with eight, is opened in the end portion of the first pipeline 1 in a ring shape, and the outside of the second pipeline 31 is fixed with an annular plug 32, and the annular plug 32 is connected with the second The outer wall of the pipeline 31 is integrally cast, the diameter is smaller than the diameter of the second pipeline 31, and the outer side of the annular plug 32 is slidably arranged on the inner wall of the annular groove 21, and the cross-sectional area of the annular plug 32 is the same as that of the annular groove 21. 32 is inserted in the annular groove 21, it can be filled.

When the pipeline is in use: the annular plug 32 on the second pipeline 31 is inserted into the annular groove 21 of the first pipeline 1 to determine the positions of the first pipeline 1 and the second pipeline 31. At this time, the first pipeline 1 and the second pipeline The pipes 31 are connected by bolts, which can avoid the position and misalignment between the two, facilitate the construction and enhance the connection effect at the same time.

Example 2

Please refer to Fig. 1-Fig. 4, this embodiment is further described for embodiment 1, a kind of pipeline that is easy to connect in the figure, comprises first pipeline 1, and first pipeline 1 is provided with annular groove 21, and annular groove 21 is opened in The inner wall of the end of the first pipe 1 and the outer side of the first pipe 1 are bonded with a second pipe 31 , and the material and diameter of the second pipe 31 are the same as those of the first pipe 1 .

Wherein, in order to closely connect the first pipeline 1 and the second pipeline 31, the end of the second pipeline 31 is provided with a second through hole 33, and the second through hole 33 is provided with eight, and the end of the second pipeline 31 is opened in a ring. part, and one-to-one correspondence with the first through hole 23, the inner wall of the first through hole 23 and the second through hole 33 is pierced with a bolt 41, the bolt 41 can pass through the first through hole 23 and the second through hole 33, on the bolt 41 A nut 42 is threaded, and the nut 42 is threaded to the bolt 41, and the ends of the two are attached to the first pipe 1 and the second pipe 31 respectively, so as to ensure the tightness between the first pipe 1 and the second pipe 31 Fit to ensure the connection effect.

In this embodiment, the bolt 41 passes through the first through hole 23 and the second through hole 33, and then the nut 42 is screwed onto the bolt 41 until the ends of the bolt 41 and the nut 42 are tightly attached to the first pipe 1. and the second pipe 31 to ensure the tight fit between the first pipe 1 and the second pipe 31 to ensure the connection effect.

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. There is no such actual relationship or order between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (1)

1. The utility model provides a pipeline of easily connecting, its characterized in that, includes first pipeline (1), annular groove (21) have been seted up in first pipeline (1), the outside laminating of first pipeline (1) has second pipeline (31), the upper and lower both ends of first pipeline (1) are provided with connecting plate (22), first through-hole (23) have been seted up to the tip of first pipeline (1), the outside of second pipeline (31) is fixed with annular insert (32), and the outside slip of annular insert (32) sets up in annular groove (21) inner wall, second through-hole (33) have been seted up to the tip of second pipeline (31), bolt (41) have been worn to first through-hole (23) and second through-hole (33) inner wall, threaded connection has nut (42) on bolt (41).
