Abstract

The utility model discloses a coating smoothing device, which comprises a fixed platform, the inner wall of the fixed platform is fixedly connected with a fixed shaft, the handle is firstly pushed to move the universal wheel through the fixed platform to move to the position of the wall, and then the universal wheel is locked to start Multiple first electric push rods adjust the angle of the scraper through the first spherical universal head and the second spherical universal head, and the starting motor passes through the worm, worm gear, threaded rod, threaded sleeve, fixed box, slider, fixed block and the second The spherical universal head drives the scraper up and down to smooth the wall longitudinally, and starts the second electric push rod to drive the scraper to perform horizontal smoothing through the connecting block, fixed block and the second spherical universal head, which realizes the convenience of over-height adjustment. The goal of automatic troweling on high walls avoids the problem of manual climbing operations due to the high wall height in traditional troweling work, greatly reduces the risk of work, and is also easy to adjust by moving smooth position.

Description

A paint smoothing device

technical field

The utility model relates to the technical field of construction processing, in particular to a coating smoothing device.

Background technique

Construction engineering refers to the engineering entity formed through the construction of various housing buildings and their ancillary facilities and the installation activities of supporting lines, pipelines and equipment. Among them, "housing construction" refers to projects that have roofs, beams, walls, foundations, and can form internal spaces to meet people's needs for production, living, learning, and public activities.

In the construction process of the construction project, it is necessary to paint and smooth the completed walls. Most of the existing smoothing techniques are manually carried out, and when the wall to be smoothed is too high, it is necessary to overlap the scaffolding by Workers carry out high-altitude operations, and high-altitude operations are dangerous, and when the wall is too large, it is very difficult to move the scaffolding.

Utility model content

Aiming at the deficiencies of the prior art, the utility model provides a paint smoothing device, which is used to solve the problems raised in the above-mentioned background technology.

In order to achieve the above object, the utility model adopts the following technical solutions:

A coating smoothing device, comprising a fixed platform, the inner wall of the fixed platform is fixedly connected with a fixed shaft, the surface of the fixed shaft is slidably connected with a fixed box, the inner wall of the fixed box is fixedly connected with a slide rail, and the inner wall of the slide rail slides A slider is connected, the top surface of the slider is fixedly connected with a fixed block, the surface of the fixed block is fixedly connected with a first electric push rod, and the output end of the first electric push rod is fixedly connected with a first spherical universal head, The front of the fixed block is fixedly connected with a second spherical universal head, the front of the second spherical universal head is fixedly connected with a scraper, and the scraper is fixedly connected with the first spherical universal head, and the top surface of the fixed box is provided with a movable mechanism, the surface of the fixed platform is provided with a lifting assembly, and the surface of the fixed platform is provided with an overall moving assembly.

Preferably, the moving mechanism is composed of a second electric push rod, a chute and a connecting block, the second electric push rod is fixedly connected to the fixed box, the chute runs through the top surface of the fixed box, and the connecting block It is fixedly connected with the output end of the second electric push rod, and the connecting block is slidably connected with the chute, and the connecting block is fixedly connected with the fixed block.

Preferably, the lifting assembly is composed of a threaded rod, a threaded sleeve, a motor, a worm and a turbine, the threaded rod is rotatably connected to the fixed platform, the threaded sleeve is fixedly connected to the fixed box, and the threaded sleeve is threaded to the threaded rod, The motor is fixedly connected to the fixed platform, the worm is fixedly connected to the output end of the motor, the worm wheel is fixedly connected to the surface of the threaded rod, and the worm meshes with the worm wheel.

Preferably, the overall moving assembly is composed of a handle, a universal wheel and a counterweight, the handle is fixedly connected to the fixed platform, the universal wheel is fixedly connected to the fixed platform, and the counterweight is fixedly connected to the fixed platform.

Preferably, there are multiple first electric push rods and first spherical universal heads, and the multiple first electric push rods are located on the surface of the fixed block, and the multiple first spherical universal heads are respectively located on multiple A first electric actuator output terminal.

Preferably, the slider is rectangular, and the slider is made of metal material.

Compared with the prior art, the beneficial effect of the utility model is: the paint smoothing device first pushes the handle to drive the universal wheel through the fixed platform to move to the wall position, then locks the universal wheel, and starts a plurality of first electric pushers. The rod adjusts the angle of the scraper through the first spherical universal head and the second spherical universal head. The plate is lifted and lowered to smooth the wall vertically, and the second electric push rod is activated to drive the scraper to perform horizontal smoothing through the connecting block, the fixed block and the second spherical universal head; it is convenient to automatically smooth the wall that is too high. The goal of smoothing avoids the problem of manual climbing due to the high height of the wall in the traditional smoothing work, greatly reduces the risk of work, and is also convenient to adjust the position of the smoothing by moving.

Description of drawings

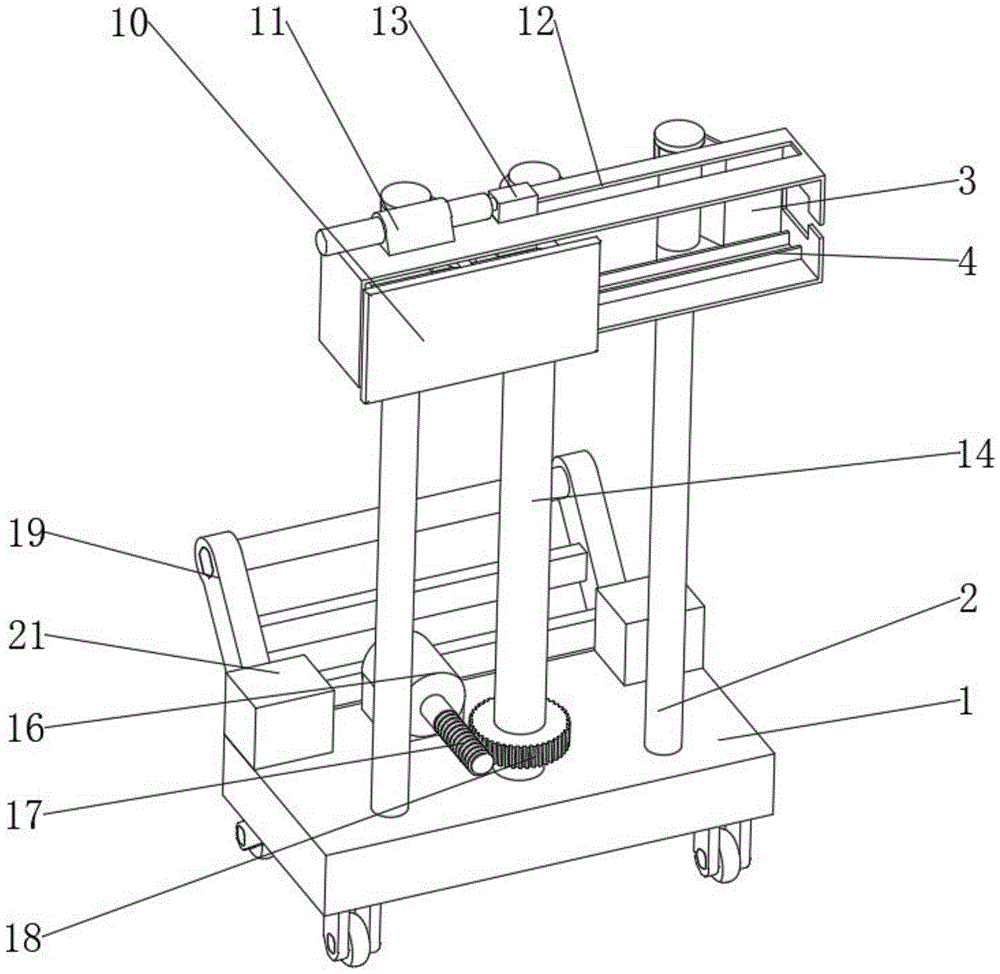

Fig. 1 is the isometric drawing of the utility model structure;

Fig. 2 is the right view of the utility model structure;

Fig. 3 is a schematic diagram of a partial structure of the structure of the utility model.

In the figure: 1. Fixed platform; 2. Fixed shaft; 3. Fixed box; 4. Slide rail; 5. Slider; 6. Fixed block; 7. The first electric push rod; 8. The first spherical universal head; 9. The second spherical universal head; 10. The scraper; 11. The second electric push rod; 12. The chute; 13. The connecting block; 14. The threaded rod; 15. The threaded sleeve; 16. The motor; 17. The worm; 18. Turbine; 19. Handle; 20. Universal wheel; 21. Counterweight.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Referring to Figures 1-3, a paint troweling device includes a fixed platform 1, the inner wall of the fixed platform 1 is fixedly connected with a fixed shaft 2, the surface of the fixed shaft 2 is slidably connected with a fixed box 3, and the inner wall of the fixed box 3 is fixedly connected with a slide rail 4 , the inner wall of the slide rail 4 is slidably connected with a slider 5, the slider 5 is rectangular, and the slider 5 is made of metal material, and is used to carry the movement of the fixed block 6. The slider 5 made of metal material has higher strength and is not easy Wear and deformation, the top surface of the slider 5 is fixedly connected with the fixed block 6, the surface of the fixed block 6 is fixedly connected with the first electric push rod 7, the output end of the first electric push rod 7 is fixedly connected with the first spherical universal head 8, the first There are multiple electric push rods 7 and first spherical universal heads 8, and multiple first electric push rods 7 are located on the surface of the fixed block 6, and multiple first spherical universal heads 8 are respectively located on multiple first The output end of an electric push rod 7 is used to adjust the angle of the scraper 10, so as to adapt to the smoothing work in different directions. The front of the fixed block 6 is fixedly connected with the second spherical universal head 9, which is fixed on the front A scraper 10 is connected, and the scraper 10 is fixedly connected with the first spherical universal head 8, and the top surface of the fixed box 3 is provided with a moving mechanism, and the moving mechanism is composed of a second electric push rod 11, a chute 12 and a connecting block 13. The second electric push rod 11 is fixedly connected with the fixed box 3, the chute 12 runs through the top surface of the fixed box 3, the connecting block 13 is fixedly connected with the output end of the second electric push rod 11, and the connecting block 13 is slidably connected with the chute 12 , the connecting block 13 is fixedly connected with the fixed block 6, and is used to drive the scraper 10 to move laterally, so as to facilitate horizontal smoothing of the wall surface. The surface of the fixed platform 1 is provided with a lifting assembly, and the lifting assembly consists of a threaded rod 14, a threaded sleeve 15, The motor 16, the worm 17 and the turbine 18 are composed, the threaded rod 14 is rotationally connected with the fixed platform 1, the threaded sleeve 15 is fixedly connected with the fixed box 3, and the threaded sleeve 15 is threadedly connected with the threaded rod 14, and the motor 16 is fixedly connected with the fixed platform 1, The worm 17 is fixedly connected to the output end of the motor 16, the worm 18 is fixedly connected to the surface of the threaded rod 14, and the worm 17 is engaged with the worm 18, and is used to drive the scraper 10 to move longitudinally, so as to facilitate longitudinal smoothing of the wall surface. The surface of the platform 1 is provided with an overall moving assembly, the overall moving assembly is composed of a handle 19, a universal wheel 20 and a counterweight 21, the handle 19 is fixedly connected with the fixed platform 1, the universal wheel 20 is fixedly connected with the fixed platform 1, and the counterweight 21 is fixedly connected with the fixed platform 1, and is used to drive the paint troweling device to move, so as to adjust the troweling position. First, push the handle 19 to drive the universal wheel 20 through the fixed platform 1 to move to the wall position, and then lock the universal wheel 20 , start a plurality of first electric push rods 7 to adjust the angle of the scraper 10 through the first spherical universal head 8 and the second spherical universal head 9, start the motor 16 through the worm 17, the worm gear 18, the threaded rod 14, the threaded sleeve 15, The fixed box 3, the slider 5, the fixed block 6 and the second spherical universal head 9 drive the scraper 10 up and down to smooth the wall surface longitudinally, and start the second electric push rod 11 to pass through the connecting block 13, the fixed block 6 and the second The spherical universal head 9 drives the scraper 10 to perform horizontal troweling work, which achieves the goal of automatically troweling the wall that is too high, and avoids the need for manual troweling due to the high wall height in the traditional troweling work The problem of climbing work greatly reduces the risk of work, and it is also convenient to adjust the position of troweling by moving.

The electrical components appearing in this article are all connected with the external main controller and 220V mains electricity, and the main controller can be a conventional known device that plays a control such as a computer.

When in use: first push the handle 19 to drive the universal wheel 20 to move to the wall position through the fixed platform 1, after locking the universal wheel 20, start the motor 16 to drive the worm 17 to rotate, and the worm 17 rotates through the worm gear 18 to drive the threaded rod 14 to rotate, The threaded rod 14 rotates through the threaded sleeve 15 to drive the fixed box 3 to move up and down, start a plurality of first electric push rods 7 to adjust the angle of the scraper 10 through the first spherical universal head 8 and the second spherical universal head 9, so that the scraper The bottom edge of the plate 10 is attached to the wall, and the fixed box 3 moves through the slider 5 and the fixed block 6 to drive the second spherical universal head 9 and the scraper 10 to rise to smooth the wall. When the scraper 10 rises to the highest point , start a plurality of first electric push rods 7 to adjust the angle of the scraper 10, so that the side of the scraper 10 sticks to the wall, start the second electric push rod 11 to push the connecting block 13 through the fixed block 6 and the second spherical universal The head 9 drives the scraper 10 to move horizontally to smooth the wall. After the horizontal smoothing is completed, start a plurality of first electric push rods 7 to adjust the angle of the scraper 10 so that the top edge of the scraper 10 is close to the wall, and start the motor 16 Reversing drives the scraper 10 to move down to smooth the wall surface.

To sum up, the paint smoothing device first pushes the handle 19 through the fixed platform 1 to drive the universal wheel 20 to move to the wall position, then locks the universal wheel 20, starts a plurality of first electric push rods 7 to pass through the first spherical The universal head 8 and the second spherical universal head 9 adjust the angle of the scraper 10, and the starting motor 16 passes through the worm screw 17, the worm gear 18, the threaded rod 14, the threaded sleeve 15, the fixed box 3, the slide block 5, the fixed block 6 and the second The spherical universal head 9 drives the scraper 10 up and down to smooth the wall longitudinally, and starts the second electric push rod 11 to drive the scraper 10 through the connecting block 13, the fixed block 6 and the second spherical universal head 9 to perform horizontal smoothing. , to achieve the goal of automatically smoothing the wall that is too high, avoiding the problem of manual climbing operations due to the high wall height in the traditional smoothing work, and greatly reducing the risk of work. At the same time, it is also convenient to adjust the position of the trowel by moving, so as to solve the problems raised in the above-mentioned background technology.

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. There is no such actual relationship or order between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a coating trowelling device, includes fixed platform, its characterized in that, fixed platform inner wall fixedly connected with fixed axle, fixed axle surface sliding connection has fixed case, fixed incasement wall fixedly connected with slide rail, slide rail inner wall sliding connection has the slider, slider top surface fixedly connected with fixed block, fixed block surface fixedly connected with first electric putter, first electric putter output fixedly connected with first spherical universal head, the positive fixedly connected with second spherical universal head of fixed block, the positive fixedly connected with scraper blade of second spherical universal head, and scraper blade and first spherical universal head fixedly connected with, fixed case top surface is provided with moving mechanism, the fixed platform surface is provided with lifting unit, the fixed platform surface is provided with overall movement subassembly.

2. The coating trowelling device of claim 1, wherein the moving mechanism comprises a second electric push rod, a chute and a connecting block, the second electric push rod is fixedly connected with the fixed box, the chute is penetrated and arranged on the top surface of the fixed box, the connecting block is fixedly connected with the output end of the second electric push rod, the connecting block is in sliding connection with the chute, and the connecting block is fixedly connected with the fixed block.

3. The paint trowelling apparatus of claim 1, wherein said lifting assembly comprises a threaded rod, a threaded sleeve, a motor, a worm and a worm gear, said threaded rod is rotatably connected to said fixed platform, said threaded sleeve is fixedly connected to said fixed box, said threaded sleeve is threadably connected to said threaded rod, said motor is fixedly connected to said fixed platform, said worm is fixedly connected to said motor output, said worm gear is fixedly connected to said threaded rod, and said worm is engaged with said worm gear.

4. The paint trowelling apparatus of claim 1, wherein said generally movable assembly comprises a handle, a universal wheel and a counterweight, said handle being fixedly connected to said fixed platform, said universal wheel being fixedly connected to said fixed platform, and said counterweight being fixedly connected to said fixed platform.

5. The paint trowelling apparatus of claim 1, wherein the first plurality of electric push rods and the first plurality of spherical universal heads are each a plurality of, and the plurality of first electric push rods are each located on the surface of the fixed block, and the plurality of first spherical universal heads are each located at the output ends of the plurality of first electric push rods.

6. The paint trowelling apparatus of claim 1, wherein said slider is rectangular and is made of a metallic material.
