Abstract

The application provides a wearable restraint belt, which belongs to the technical field of restraint belts. The wearable restraint includes a restraint portion and a receiving assembly. The restraint belt part includes a molding belt and a back strap, and the two ends of the molding belt are respectively provided with a hook and a ring that cooperate with each other, and the two ends of the two straps are symmetrically and detachably arranged on both sides of the molding belt; The storage component includes a storage bag, the two ends of the storage bag are respectively provided with a first zipper strip and a second zipper strip which are engaged with each other, the bottom of the first zipper strip is provided with a zipper head, and the binding belt is partially folded on the Inside the storage bag. Through the setting of the shaping belt, the ribs of the entire thorax can be fixed, and the rib fixing effect can be improved. The setting of the strap can prevent the imagination of the shaping belt from sliding down when it is fixed, and increase the stability of the shaping belt.

Description

A wearable restraint belt

technical field

The present application relates to the field of restraint belts, in particular to a wearable restraint belt.

Background technique

After a rib fracture, it is necessary to immobilize the outside of the rib fracture to limit the movement of the thoracic cage. This prevents the ribs from moving and reduces the time it takes for the ribs to heal.

What is commonly used now is that wide adhesive tape is wrapped around and fixed to the thorax, but it is easy to shift when the thorax is fixed, and the adhesive tape has no elasticity and is easy to squeeze the patient, and it is more inconvenient when dismounting.

Utility model content

In order to make up for the above shortcomings, the present application provides a wearable restraint belt, which aims to improve the problem that the belt is inelastic and easy to squeeze the patient, and it is inconvenient to disassemble.

An embodiment of the present application provides a wearable restraint belt, including a restraint belt part and a storage component.

The restraint belt part includes a molding belt and a back strap, and the two ends of the molding belt are respectively provided with a hook and a ring that cooperate with each other, and the two ends of the two straps are symmetrically and detachably arranged on both sides of the molding belt; The storage component includes a storage bag, the two ends of the storage bag are respectively provided with a first zipper strip and a second zipper strip which are engaged with each other, the bottom of the first zipper strip is provided with a zipper head, and the binding belt is partially folded on the Inside the storage bag.

In the above implementation process, when the ribs of the thorax need to be fixed, first connect the two straps with the shaping belt, then wear the two straps on the two shoulders by dressing, and then put the shaping strap The two ends are wound from the chest to the back, and then the plastic belt is fixed to the thoracic ribs through the cooperation of the hook and the hanging ring, and the fixation of the thoracic fracture is realized in turn. After use, remove the strap from the molding belt, then roll up the strap and the molding strap and put them into the storage bag, align the bottom of the second zipper strip and place it in the zipper puller, and use the cooperation of the zipper puller to lock the The storage bag is closed by the engagement of the first zipper strip and the second zipper strip, so as to realize the storage of the shaping belt and the strap. Wherein, through the setting of the shaping belt, the ribs of the entire thorax can be fixed, and the rib fixing effect can be improved. The setting of the strap can prevent the imagination of the shaping belt from sliding down when it is fixed, and increase the stability of the shaping belt. Through the setting of the storage bag, it is convenient to store the molding belt and the strap, and the storage effect is improved.

In a specific embodiment, two ends of the straps are respectively provided with a male snap button, and the molding belt is provided with a female snap button matched with the male snap button.

In the above implementation process, the detachable fixation of the braces and the molding straps can be realized through the setting of the male snap button and the female snap button, and it can be decided whether to use the strap according to the actual situation of the patient.

In a specific embodiment, the hanging rings are arranged in several rows equidistantly, and several hanging rings are arranged equidistantly in each row.

In the above implementation process, through the arrangement of several rows of hanging loops, the shaping belt can be applied to patients of various sizes.

In a specific embodiment, the molding belt includes a protective layer and a water-absorbing and air-permeable layer, and the water-absorbing and air-permeable layer is located above the protective layer.

In a specific embodiment, the molding belt further includes a wear-resistant layer, and the wear-resistant layer is located above the water-absorbing and air-permeable layer.

In a specific embodiment, the protection layer, the water-absorbing and air-permeable layer and the wear-resistant layer are jointly provided with several air holes at equal distances.

In the above implementation process, the protective layer can protect the skin of the thorax, the water-absorbing and breathable layer can play the role of water-absorbing and breathable when worn for a long time, and the wear-resistant layer mainly plays a wear-resistant effect, increasing the use of the plastic belt life.

Compared with prior art, the beneficial effect of the present application:

1. Through the setting of the shaping belt, the ribs of the entire thorax can be fixed to improve the effect of rib fixation.

2. Through the setting of the strap, it can prevent the imagination of the plastic belt from sliding down when it is fixed, and increase the stability of the plastic belt.

3. Through the setting of the snap button and the snap button, the detachable fixing of the strap and the shaping strap can be realized, and the use of the strap can be decided according to the actual situation of the patient.

4. Through the setting of the storage bag, it is convenient to store the plastic belt and the strap, and the storage effect is improved.

Description of drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present application, the accompanying drawings used in the embodiments will be briefly introduced below. It should be understood that the following drawings only show some embodiments of the present application, so It should be regarded as a limitation on the scope, and those skilled in the art can also obtain other related drawings based on these drawings without creative work.

Fig. 1 is a front view of the wearable restraint belt provided by the embodiment of the present application;

Fig. 2 is a rear view of the wearable restraint belt provided by the embodiment of the present application;

Fig. 3 is a front view of the connection relationship between the storage component and the restraint belt provided by the embodiment of the present application;

Fig. 4 is a rear view of the connection relationship between the storage component and the restraint belt provided by the embodiment of the present application;

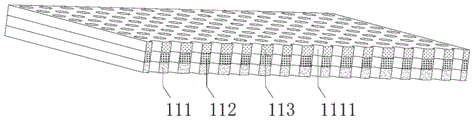

Fig. 5 is a schematic structural diagram of the molding belt provided in the embodiment of the present application.

Among the figure: 10-restraining belt part; 110-plastic belt; 111-protective layer; 1111-air vent; 112-water-absorbing breathable layer; 20-storage component; 210-storage bag; 220-first zipper strip; 230-second zipper strip; 240-zipper head.

Detailed ways

The technical solutions in the embodiments of the present application will be described below with reference to the drawings in the embodiments of the present application.

In order to make the purpose, technical solutions and advantages of the embodiments of the application clearer, the technical solutions in the embodiments of the application will be clearly and completely described below in conjunction with the drawings in the embodiments of the application. Obviously, the described embodiments It is a part of embodiment of this application, and is not all embodiment. Based on the implementation manners in this application, all other implementation manners obtained by persons of ordinary skill in the art without creative efforts shall fall within the scope of protection of this application.

Referring to FIGS. 1-5 , the present application provides a wearable restraint belt, which includes a restraint belt part 10 and a storage component 20 .

Wherein, the restraint belt part 10 is used to fix the fractured rib in the thoracic part of the patient, and the storage component 20 can store the restraint belt part 10 .

Please refer to Fig. 1, Fig. 2, Fig. 3, Fig. 4 and Fig. 5, the restraint belt part 10 includes a molding belt 110 and a back strap 120, specifically, the back strap 120 can be a cloth belt made of elastic cloth, on the back strap 120 A day buckle can be provided to facilitate the adjustment of the length of the strap 120 . The two ends of the molding belt 110 are respectively provided with a hook 130 and a hanging ring 140 that cooperate with each other. Specifically, the hook 130 and the hanging ring 140 are respectively fixed to the two ends of the molding belt 110 by sewing. Both ends of the two straps 120 are symmetrically and detachably arranged on both sides of the molding belt 110; wherein, when the ribs of the thorax need to be fixed, the two straps 120 are first connected to the molding strap 110, and then the two straps are connected by the method of dressing. Two straps 120 are respectively worn on the two shoulders, and then the two ends of the shaping belt 110 are wound from the chest to the back, and then the shaping belt 110 is fixed on the rib cage through the cooperation of the hook 130 and the hanging ring 140. Realize the fixation of the thoracic fracture. Through the setting of the shaping belt 110, the ribs of the entire thorax can be fixed, and the rib fixing effect can be improved. The setting of the strap 120 can prevent the imagination of the shaping belt 110 sliding down when it is fixed, and increase the stability of the shaping belt 110 .

When setting specifically, the two ends of the two straps 120 are respectively provided with snap male buckles, and the molding belt 110 is provided with a snap female button matched with the snap male buckles. Wherein, the detachable fixing of the strap 120 and the shaping belt 110 is realized through the setting of the male snap button and the female snap button, and it can be decided whether to use the strap 120 according to the actual situation of the patient.

During specific setting, several rows of hanging rings 140 are equidistantly arranged, and several hanging rings 140 are arranged equidistantly in each row. Wherein, through the setting of several rows of hanging loops 140, the shaping belt 110 can be applied to patients of various sizes.

In specific settings, the molding belt 110 includes a protective layer 111 and a water-absorbing and breathable layer 112. The water-absorbing and breathable layer 112 is located above the protective layer 111. Specifically, the protective layer 111 can be made of medical-grade silica gel, and the outside can be wrapped with a layer of medical gauze. The outer surface of the water-absorbing and air-permeable layer 112 is provided with pure cotton cloth so as to fit the skin of the thorax more closely. The molding belt 110 also includes a wear-resistant layer 113, which is located above the water-absorbing and breathable layer 112. Specifically, the wear-resistant layer 113 can be made of medical-grade cloth with good wear resistance. The protective layer 111 , the water-absorbing and air-permeable layer 112 and the wear-resistant layer 113 are jointly provided with several air holes 1111 equidistantly. Wherein, the skin of the thorax can be protected by the protective layer 111, the water-absorbing and air-permeable layer 112 can play the role of water-absorbing and air-permeable when worn for a long time, and the wear-resistant layer 113 mainly plays a wear-resistant effect, increasing the use of the shaping belt 110 life.

3 and 4, the storage assembly 20 includes a storage bag 210, and the two ends of the storage bag 210 are respectively provided with a first zipper strip 220 and a second zipper strip 230 that engage with each other, specifically, the first zipper strip 220 and the second zipper strip 230 The zipper strips 230 are respectively sewn on two ends of the storage bag 210 . The bottom of the first zipper bar 220 is provided with a zipper puller 240 , and the binding belt part 10 is folded inside the storage bag 210 . Wherein, after use, the strap 120 is removed from the molding belt 110, and then the strap 120 and the molding strap 110 are rolled up and put into the storage bag 210, and the bottom of the second zipper strip 230 is aligned and placed on the zipper puller 240 In this process, the first zipper bar 220 and the second zipper bar 230 are engaged by the cooperation of the zipper puller 240 to close the storage bag 210 to realize the storage of the molding belt 110 and the strap 120 . Wherein, the setting of the storage bag 210 facilitates the storage of the molding belt 110 and the strap 120 and improves the storage effect.

How this wearable restraint works:

When the ribs of the thorax need to be fixed, first connect the two straps 120 with the shaping belt 110, then wear the two straps 120 on the two shoulders by dressing, and then attach the two ends of the shaping strap 110 From the chest to the back, and then through the cooperation of the hook 130 and the hanging ring 140, the shaping belt 110 is fixed on the ribs of the thorax, and the fixation of the fractures of the thorax is realized in turn. After use, the strap 120 is removed from the molding belt 110, and then the strap 120 and the molding strap 110 are rolled up and put into the storage bag 210, and the bottom of the second zipper strip 230 is aligned and placed in the zipper puller 240, The first zipper bar 220 and the second zipper bar 230 are engaged by the cooperation of the zipper puller 240 to close the storage bag 210 to realize the storage of the molding belt 110 and the strap 120 . Wherein, through the setting of the shaping belt 110, the ribs of the entire thorax can be fixed, and the rib fixing effect can be improved. The setting of the strap 120 can prevent the imagination of the shaping belt 110 sliding down when it is fixed, and increase the stability of the shaping belt 110 . The setting of the storage bag 210 facilitates the storage of the molding belt 110 and the strap 120 and improves the storage effect.

The above descriptions are only examples of the present application, and are not intended to limit the scope of protection of the present application. For those skilled in the art, various modifications and changes may be made to the present application. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of this application shall be included within the protection scope of this application. It should be noted that like numerals and letters denote similar items in the following figures, therefore, once an item is defined in one figure, it does not require further definition and explanation in subsequent figures.

The above is only a specific implementation of the application, but the scope of protection of the application is not limited thereto. Anyone familiar with the technical field can easily think of changes or substitutions within the technical scope disclosed in the application. Should be covered within the protection scope of this application. Therefore, the protection scope of the present application should be based on the protection scope of the claims.

Claims (6)

1. A wearable restraint belt, characterized in that, comprising A restraint belt part (10), the restraint belt part (10) includes a molding belt (110) and a back strap (120), and the two ends of the molding belt (110) are respectively provided with mutually matched hooks (130) and hooks ring (140), the two ends of the two straps (120) are symmetrically and detachably arranged on both sides of the molding belt (110); The storage component (20), the storage component (20) includes a storage bag (210), and the two ends of the storage bag (210) are respectively provided with a first zipper strip (220) and a second zipper strip (230) which engage with each other , the bottom of the first zipper strip (220) is provided with a zipper puller (240), and the binding belt part (10) is folded inside the storage bag (210). 2. A wearable restraint belt according to claim 1, characterized in that, the two ends of the two straps (120) are respectively provided with snap buttons, and the molding belt (110) is provided with The male snap button fits the female snap button. 3 . The wearable restraint belt according to claim 1 , characterized in that, the hanging rings ( 140 ) are equidistantly arranged in several rows, and each row of the hanging rings ( 140 ) is equidistantly arranged in several rows. 4 . 4. A wearable restraint belt according to claim 1, characterized in that, the molding belt (110) comprises a protective layer (111) and a water-absorbing and breathable layer (112), and the water-absorbing and breathable layer (112) Located above the protection layer (111). 5. A wearable restraint belt according to claim 4, characterized in that, the shaping belt (110) further comprises a wear-resistant layer (113), and the wear-resistant layer (113) is located on the water-absorbing and breathable layer (112) above. 6. A wearable restraint belt according to claim 5, characterized in that, the protective layer (111), the water-absorbing and breathable layer (112) and the wear-resistant layer (113) are jointly equidistantly provided with several air holes (1111).
