CN219200729U - An intelligent waterproof detection system for building facades - Google Patents

Abstract

The invention provides an intelligent waterproof detection system for building facades, which includes a roof support assembly and a facade water spray detection assembly; the roof support assembly includes a horizontally arranged support plate, and the front bottom of the support plate There is a vertically arranged outer board, the bottom of the rear section is provided with a slide plate that can slide forward and backward along it, and the front side of the top is provided with two symmetrically arranged winches; the façade water spray detection component includes a vertically arranged outer façade , the left and right sides of the outer vertical board are provided with vertically arranged strip slides, and the inner middle is provided with an infrared imager and a strip nozzle arranged up and down. The beneficial effect of the present invention is that it is applicable to most of the current high buildings, can realize automatic lifting detection, and can effectively recycle water resources in real time, not only improves the detection efficiency, but also saves resources, and has broad market prospects.

Description

An intelligent waterproof detection system for building facades

technical field

The invention relates to the field of waterproof detection, in particular to an intelligent waterproof detection system for building facades.

Background technique

The water seepage on the facade of the building is caused by factors such as irregular construction techniques, careless details, improperly selected materials, and improper secondary decoration. Moreover, the quality of many current waterproof materials has declined, and the pass rate is generally low, especially for small factories. The products in the production process have not been strictly processed, and the quality control and technical control have not been properly controlled. There are even problems with the quality of raw materials for the production of waterproof materials. The quality of blocks, machine-made clay bricks, and cement cannot meet the requirements. The strength is not enough, and the sand and gravel used in the construction have a large mud content and exceed the specification requirements.

At present, water seepage on building facades generally passes through infrared imagers, which use infrared detectors and optical imaging objective lenses to receive infrared radiation energy from the target to form a visible infrared thermal image, which is consistent with the surface of the object corresponding to the heat distribution field. Since the heat capacity of water is larger than that of building materials, under the same heat radiation conditions, the presence of water in the water seepage part increases the heat, and the temperature rise is small, thus forming a thermal radiation on the infrared thermal image. "Cold spot" to judge whether there is water seepage. However, at present, most of them adopt the method of manual inspection using the lifting operation platform on the facade, which not only consumes manpower, but also wastes a lot of water resources and poses safety hazards.

Contents of the invention

In order to solve the above problems, the invention discloses an intelligent waterproof detection system for building facades.

The specific plan is as follows:

An intelligent waterproof detection system for building facades, characterized in that: it includes a roof support assembly and a facade water spray detection assembly; the roof support assembly includes a horizontally arranged bracket plate, and the bracket plate The bottom of the front side is provided with a vertically arranged outer board, the bottom of the rear section is provided with a slide plate that can slide back and forth along it, and the front side of the top is provided with two symmetrically arranged winches, and the front bottom of the slide plate is provided with a vertical The inner abutment plate is provided, the outer abutment plate is parallel to the inner abutment plate, and the thread on the inner abutment plate is threaded with a horizontally arranged screw rod, the screw rod is perpendicular to the outer abutment plate, and its front end is rotatably connected with the outer abutment plate, The rear end is provided with a control hand plate, and a support plate is arranged horizontally between the outer support plate and the inner support plate. Reaching board; the said façade water spray detection assembly includes a vertically arranged outer fascia, the inside of the left and right sides of the said façade is provided with a vertically arranged bar-shaped slide plate, and the inner middle part is provided with an infrared ray arranged up and down. Imager and strip sprinkler, the strip slide is in sliding contact with the facade of the building, the strip sprinkler is arranged horizontally, the top of the facade has a support rod, and the bottom is provided with a collection water tank, the support There are two connecting seats symmetrically arranged on the pole, and the two connecting seats are fixedly connected to the ends of the wire ropes of the two hoists respectively. The top of the collecting water tank is open, and the upper end of the rear side is inclined backward. There are rubber strips in contact with the exterior facade of the building. Water pipes are embedded inside the exterior facades. The upper ends of the water pipes are connected to strip nozzles, the lower ends are placed in the collection water tank, and the middle part is matched with a water pump.

The invention controls the relative movement of the outer support plate and the inner support plate through the screw rod, thereby clamping the parapet wall on the top of the building, wherein the support plate can be stably supported on the top of the parapet wall, and after the roof support assembly is fixed, the two winches Synchronous rewinding and unwinding realizes the stable lifting of the water spray detection component on the control exterior. When the façade water spray detection component descends at a constant speed, the strip nozzle will continuously spray water on the façade of the building, and the water left along the façade will be recycled into the collection water tank to form circulating water and reduce the loss of water resources At the same time, the infrared imager will scan the wall at the back end of the water spray to determine whether there is leakage of water.

As a further improvement of the present invention, a first triangular positioning block is provided between the inner side of the upper end of the outer abutment plate and the bracket plate, and a second triangular positioning block is provided between the inner side of the upper end of the inner abutting plate and the slide plate, and the The bottom of the support plate is provided with an anti-skid layer.

As a further improvement of the present invention, two pulleys arranged symmetrically up and down are provided on the inner side of the strip skateboard, and brushes are provided on the inner side except for the pulleys, which can effectively reduce the overflow of water spray from both sides and reduce water resources. consume.

As a further improvement of the present invention, a water supply tank is provided at the outer middle of the outer vertical plate, and a water supply pipe communicated with the upper part of the inner chamber of the collection water tank is provided at the lower end of the water supply tank. When the liquid level in the collection water tank is low, it will Perform water replenishment to ensure water jet operation.

As a further improvement of the present invention, a storage battery for power supply is provided at the bottom of the collection water tank, and a protective case is provided outside the storage battery.

As a further improvement of the present invention, it also includes adsorption assemblies arranged symmetrically on the left and right sides of the water spray detection assembly on the facade, the adsorption assembly includes an adsorption plate adsorbed on the facade of the building, and two The mounting holes are arranged symmetrically up and down, and a fan is installed in the mounting holes, and the inner and outer ends of the mounting holes are respectively covered with protective nets. Through the rotation of the fan, a negative pressure is formed between the adsorption plate and the facade of the building, so that the water spray detection component of the facade can move close to the facade of the building, effectively reducing the leakage of water spray and reducing the consumption of water resources.

The beneficial effect of the present invention is that it is suitable for most of the current high buildings, can realize automatic lifting detection, and can effectively recycle water resources in real time, not only improves the detection efficiency, but also saves resources, and has broad market prospects.

Description of drawings

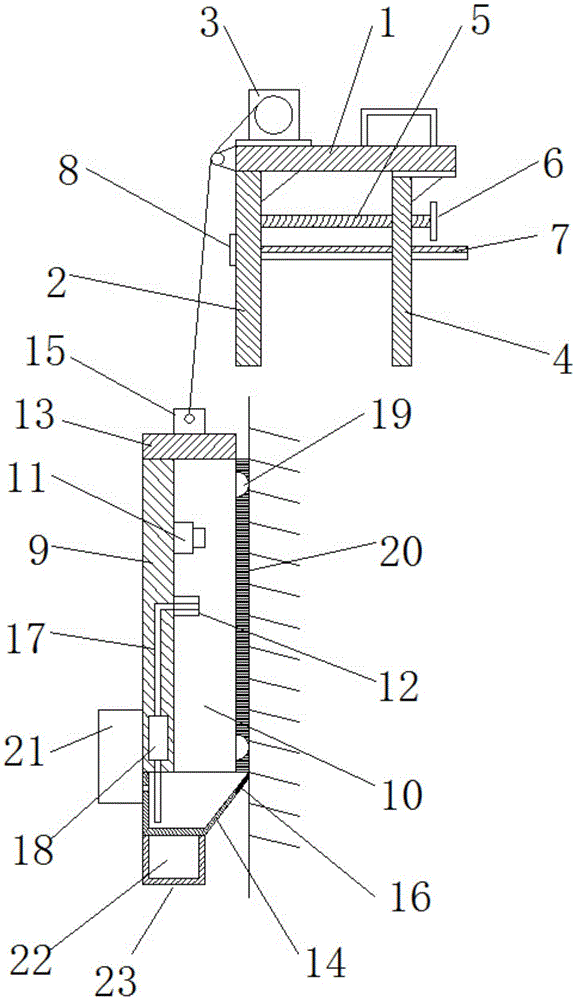

Fig. 1 is a structural schematic diagram of the present invention.

Fig. 2 is a left side view of Fig. 1 .

List of reference signs:

1-Bracket board, 2-Outer board, 3-Hoist, 4-Inner board, 5-Screw, 6-Hand plate, 7-Support board, 8-Limiting bar, 9-Outer board, 10- Strip slide, 11-infrared imager, 12-strip nozzle, 13-support rod, 14-collecting water tank, 15-connecting seat, 16-rubber strip, 17-water pipe, 18-water pump, 19-pulley, 20- Hairbrush, 21-replenishing water tank, 22-accumulator, 23-protective shell, 24-adsorption plate, 25-fan.

Detailed ways

The present invention will be further explained below in conjunction with the accompanying drawings and specific embodiments. It should be understood that the following specific embodiments are only used to illustrate the present invention and are not intended to limit the scope of the present invention.

As shown in the figure, an intelligent waterproof detection system for building facades includes a roof support assembly and a facade water spray detection assembly; the roof support assembly includes a horizontally arranged bracket plate 1, and the bracket plate 1 The bottom of the front side is provided with a vertically arranged outer abutment plate 2, the bottom of the rear section is provided with a slide plate that can slide back and forth along it, the front side of the top is provided with two symmetrically arranged winches 3, and the front bottom of the slide plate is provided with a vertically installed The inner abutment plate 4, the outer abutment plate 2 is parallel to the inner abutment plate 4, and the screw rod 5 arranged horizontally is threaded on the inner abutment plate 4, the screw rod 5 is perpendicular to the outer abutment plate, and its front end rotates with the outer abutment plate 2 connection, the rear end is provided with a control hand plate 6, and a support plate 7 is provided horizontally between the outer support plate 2 and the inner support plate 4, the front end of the support plate 7 passes through the outer support plate 2 and is connected with a limit strip 8, and The end slides through the inner board 4; the outer façade water spray detection assembly includes a vertically arranged outer fascia 9, the left and right sides of the outer façade 9 are provided with a vertically arranged strip slide 10, and the inner middle part is provided with There are infrared imagers 11 and strip nozzles 12 arranged up and down, the strip slide 10 is in sliding contact with the facade of the building, the strip nozzles 12 are arranged horizontally, the top of the facade 9 has a support rod 13, and the bottom is provided with a collection The water tank 14 and the supporting rod 13 are provided with two left and right symmetrical connecting seats 15, and the two connecting seats 15 are fixedly connected with the wire rope ends of the two winches 3 respectively, the top of the collecting water tank 14 is open, and the upper end of the rear side is inclined backward Setting, the upper end of the rear side is also provided with a rubber strip 16 in contact with the building facade, the inside of the outer facade 9 is embedded with a water pipe 17, the upper end of the water pipe 17 is connected with the strip nozzle 12, and the lower end is placed in the collection water tank 14 , the middle part is equipped with water pump 18. Wherein, the top of the bracket plate 1 is also provided with two auxiliary handles symmetrically arranged on the left and right sides.

The invention controls the relative movement of the outer support plate and the inner support plate through the screw rod, thereby clamping the parapet wall on the top of the building, wherein the support plate can be stably supported on the top of the parapet wall, and after the roof support assembly is fixed, the two winches Synchronous rewinding and unwinding realizes the stable lifting of the water spray detection component on the control exterior. When the façade water spray detection component descends at a constant speed, the strip nozzle will continuously spray water on the façade of the building, and the water left along the façade will be recycled into the collection water tank to form circulating water and reduce the loss of water resources At the same time, the infrared imager will scan the wall at the back end of the water spray to determine whether there is leakage of water.

In this embodiment, a first triangular positioning block is provided between the inner side of the upper end of the outer abutment plate 2 and the support plate 1, and a second triangular positioning block is provided between the inner side of the upper end of the inner abutment plate 4 and the slide plate. The bottom has a non-slip layer.

In this embodiment, two pulleys 19 arranged symmetrically up and down are arranged on the inner side of the bar-shaped skateboard 10, and brushes 20 are arranged on the inner surface except the pulleys 19, which can effectively reduce the overflow of sprayed water from both sides and reduce the risk of water spraying. LF.

In this embodiment, the outer middle part of the outer vertical plate 9 is provided with a replenishing water tank 21, and the lower end of the replenishing water tank 21 is provided with a replenishing pipe communicated with the upper part of the inner cavity of the collecting water tank 14. When the liquid level in the collecting water tank is low, the Replenish water to ensure water jet operation.

In this embodiment, a storage battery 22 for power supply is provided at the bottom of the collecting water tank 14 , and a protective case 23 is provided outside the storage battery 22 .

In this embodiment, it also includes adsorption assemblies symmetrically arranged on the left and right sides of the water spray detection assembly on the facade. The adsorption assembly includes an adsorption plate 24 adsorbed on the facade of the building. The mounting hole is equipped with a fan 25 in the mounting hole, and the inner and outer ends of the mounting hole are respectively covered with protective nets. Through the rotation of the fan, a negative pressure is formed between the adsorption plate and the facade of the building, so that the water spray detection component of the facade can move close to the facade of the building, effectively reducing the leakage of water spray and reducing the consumption of water resources.

The technical means disclosed in the solutions of the present invention are not limited to the technical means disclosed in the above embodiments, but also include technical solutions composed of any combination of the above technical features. It should be pointed out that those skilled in the art can make some improvements and modifications without departing from the principle of the present invention, and these improvements and modifications are also considered as the protection scope of the present invention.

Claims (6)

1. An intelligent waterproof detection system for building facades, characterized in that: it includes a roof support assembly and a facade water spray detection assembly; the roof support assembly includes a horizontally arranged bracket plate (1) , the bottom of the front side of the support plate (1) is provided with a vertically arranged outer plate (2), the bottom of the rear section is provided with a slide plate that can slide back and forth along it, and the front side of the top is provided with two symmetrically arranged winches ( 3), the bottom of the front side of the slide plate is provided with a vertically arranged inner abutment plate (4), the outer abutment plate (2) is parallel to the inner abutment plate (4), and the inner abutment plate (4) is threaded through There is a screw rod (5) arranged horizontally, the screw rod (5) is perpendicular to the outer abutment plate, and its front end is rotatably connected with the outer abutment plate (2), and the rear end is provided with a control hand plate (6), the outer abutment plate There is also a support plate (7) arranged horizontally between the plate (2) and the inner support plate (4), the front end of the support plate (7) passes through the outer support plate (2) and is connected with a limit strip (8), The rear end slides through the inner board (4); the outer façade water spray detection assembly includes a vertically arranged outer façade (9), and the left and right sides of the outer façade (9) are provided with vertical The vertically arranged strip slide (10), the inner middle part is provided with an infrared imager (11) and a strip nozzle (12) arranged up and down, the strip slide (10) is in sliding contact with the facade of the building, and the The strip nozzles (12) are arranged horizontally, the top of the outer vertical plate (9) is provided with a support rod (13), and the bottom is provided with a collection water tank (14), and the support rod (13) is provided with two left and right symmetrical and the two connecting seats (15) are fixedly connected to the wire rope ends of the two winches (3), the top of the collecting water tank (14) is open, and the upper end of the rear side is inclined backward, The upper end of the side is also provided with a rubber strip (16) in contact with the facade of the building, and a water pipe (17) is embedded in the inside of the outer facade (9), and the upper end of the water pipe (17) is connected to the strip nozzle ( 12) Connection, the lower end is placed in the collection water tank (14), and the middle part is equipped with a water pump (18). 2. An intelligent waterproof detection system for building facades according to claim 1, characterized in that: a second inner side of the upper end of the outer support plate (2) and the support plate (1) is provided A triangular positioning block, a second triangular positioning block is provided between the upper inner side of the inner abutment plate (4) and the sliding plate, and an anti-slip layer is provided at the bottom of the support plate (7). 3. An intelligent waterproof detection system for building facades according to claim 1, characterized in that: the inner side of the strip slide (10) is provided with two pulleys (19) arranged symmetrically up and down, A brush (20) is provided on the inner side surface except the pulley (19). 4. An intelligent waterproof detection system for building facades according to claim 1, characterized in that: a water replenishment tank (21) is provided at the outer middle of the exterior facade (9), and the water replenishment The lower end of the box (21) is provided with a water supply pipe communicating with the upper part of the inner chamber of the collecting water tank (14). 5. An intelligent waterproof detection system for building facades according to claim 1, characterized in that: the bottom of the collection water tank (14) is provided with a battery (22) for power supply, and the battery ( 22) A protective shell (23) is provided outside. 6. An intelligent waterproof detection system for building facades according to claim 1, characterized in that: it also includes adsorption components symmetrically arranged on the left and right sides of the facade water spray detection component, the adsorption components It includes an adsorption plate (24) adsorbed on the facade of the building, and two mounting holes arranged symmetrically up and down are opened on the adsorption plate (24), and a fan (25) is installed in the mounting hole. The inner and outer ends are respectively covered with protective nets.
