Abstract

The utility model relates to the technical field of hardware waterproof support, and discloses a hardware waterproof support including an operation block, the operation block is provided with a moving port, the moving port is equipped with a slide bar, the slide bar is equipped with a movable block, and the movable block is assembled There is a drawbar, the drawbar is equipped with a vertical plate, the operation block is equipped with a screw, the screw is equipped with a knob, the screw is equipped with a limit plate, the screw is equipped with a threaded block, and the threaded block is equipped with a second assembly plate. The block is equipped with a first assembly plate, and the first assembly plate and the second assembly plate are equipped with an adjustment rod. The above-mentioned hardware waterproof support solves the complicated installation environment of the existing hardware waterproof casing through the cooperation of the adjustment rod and the draw bar. , causing the distance between the metal waterproof casing and the connected object to be different, so that the support cannot guarantee that it can support the hardware waterproof casing while being fixed with the connected object, so that the support will be affected during use. Limitations, problems that affect the use of the device.

Description

A metal waterproof support

technical field

The utility model relates to the technical field of hardware waterproof supports, in particular to a hardware waterproof support.

Background technique

Metal bushings, usually used in building basements, are used to protect pipes or iron rings to facilitate pipe installation. The classification of metal bushings: rigid bushings, flexible waterproof bushings, steel pipe bushings and iron bushings, etc.

When the existing hardware waterproof casing is installed, in order to improve the stability of the hardware waterproof casing, the support is usually used to lift the hardware waterproof casing, but the existing support for the hardware waterproof casing is in use. There are also the following problems:

The installation environment of the existing metal waterproof casing is complicated, resulting in a different distance between the hardware waterproof casing and the connected object, so that the support cannot guarantee that the hardware waterproof casing can be supported while being fixed to the connected object function, the support is limited in the process of use and affects the use of the device, so it is necessary to relate to a hardware waterproof support used in the existing hardware waterproof support technical field.

Utility model content

Due to the complex installation environment of the existing metal waterproof casing, the distance between the hardware waterproof casing and the connected object is different, so that the support cannot guarantee that the hardware waterproof casing can be supported while being fixed with the connected object The role of the support makes the support limited in the process of use and affects the use of the device. The utility model provides a hardware waterproof support, which has the advantages of being convenient to adjust the installation position of the support and improving the use effect of the device. , to solve the problems raised by the background technology.

In order to achieve the above-mentioned purpose, the utility model provides the following technical solutions:

A hardware waterproof support, comprising an operation block, the operation block is symmetrically provided with a moving port, the moving port is symmetrically and fixedly equipped with a slide bar, the slide bar is movably equipped with a movable block, and the movable block is fixedly equipped with a One end of the drawbar moves through the operation block, and one end of the drawbar is fixedly equipped with a riser, and the riser is located on one side of the operation block.

Preferably, the operation block is movably equipped with a screw rod, the screw rod is located between the two moving ports, one end of the screw rod moves through the operation block, and the bottom of the screw rod is fixedly equipped with a knob, and the top of the screw rod is fixedly assembled The limit plate is threaded on the screw rod with a threaded block, and the symmetrical two sides of the threaded block are fixed with a second assembly plate, and the top of the movable block is fixed with a first assembly plate, and the first assembly plate is movable. It is equipped with an adjusting rod, and the other end of the adjusting rod is correspondingly movably assembled with the second assembly plate.

Preferably, the symmetrical two sides of the operation block are symmetrically fixed with fixed plates, the fixed plates are fixedly equipped with installation pipes, and one end of the installation pipes is movably equipped with an insertion rod. The internal movement is carried out, and the other ends of the insertion rods are all fixedly assembled on the risers.

Preferably, the operation block is symmetrically and fixedly equipped with mounting plates, the mounting plates are located on both sides of the moving port, the tops of the two mounting plates are fixedly equipped with placing blocks, the placing blocks are fixedly equipped with baffle plates, and the placing blocks penetrate A traction port is provided, and connecting rods are symmetrically and fixedly mounted on the traction port, and clamping blocks are movably mounted on the two connecting rods.

Preferably, a rotating cavity is provided inside the clamping block, an adjusting bolt is threadedly mounted on the placing block, one end of the adjusting bolt is fixedly equipped with a fixing rod, and one end of the fixing rod moves through the clamping block into the rotating cavity, and One end of the fixed rod is fixedly equipped with a rotating disk, and the rotating disk and the rotating cavity are movably assembled.

Preferably, the vertical plates are fixedly equipped with a horizontal plate, and one end of the horizontal plate is fixedly equipped with a connecting plate, and both the horizontal plate and the connecting plate are provided with threaded holes.

Preferably, the vertical boards, horizontal boards and connecting boards form a "U"-shaped structure.

Compared with the prior art, the utility model has the following beneficial effects:

1. For the hardware waterproof support in the utility model, after installing the hardware waterproof casing, move the baffle plate and the clamping block on the device to both sides of the hardware waterproof casing, and turn and move the adjusting bolt on the placement block, so that The rotating disk rotates in the rotating cavity, and the clamping block moves on the connecting rod, which is convenient for the clamping block and the baffle to clamp the metal waterproof casing. According to the distance between the connected object and the connecting plate, turn the knob to make the screw rod Rotate on the threaded sleeve block, let the adjustment rod push the movable block to move on the slide bar, the distance between the vertical plate and the operation block is changed by the traction rod, so that the connecting plate fits the connected object, and the fastening bolt is installed on the threaded hole , so that the device is fixed and the installation effect of the device is improved.

2. The metal waterproof support in the utility model, through the movement of the clamping block, makes the clamping block and the baffle clamp the metal waterproof casings of different diameters, and improves the use effect of the device.

Description of drawings

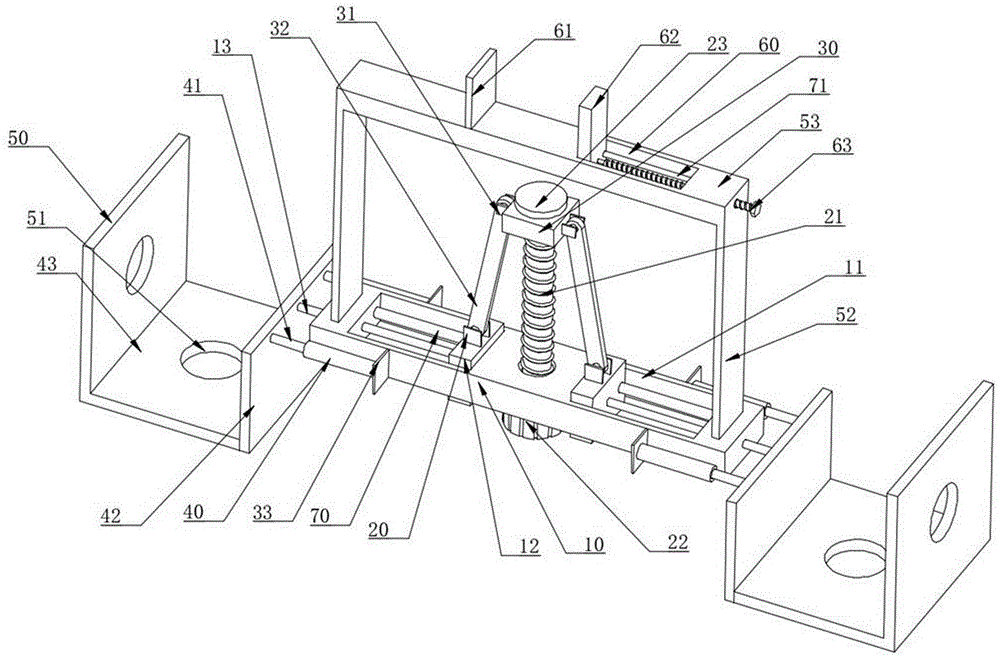

Fig. 1 is the side view structure schematic diagram of hardware waterproof support member in the utility model;

Fig. 2 is a partial sectional structural schematic diagram of Fig. 1 in the utility model;

Fig. 3 is the schematic diagram of enlarged structure at A place of Fig. 2 in the utility model;

Fig. 4 is a schematic diagram of the front view structure of the hardware waterproof support in the utility model;

Fig. 5 is a structural schematic diagram of the metal waterproof support in the utility model viewed from above.

In the picture:

10. Operation block; 11. Moving port; 12. Movable block; 13. Drawbar;

20. The first assembly plate; 21. Screw rod; 22. Knob; 23. Limiting plate;

30. Thread sleeve block; 31. Second assembly plate; 32. Adjusting rod; 33. Fixed plate;

40. Installation pipe; 41. Inserting rod; 42. Vertical plate; 43. Horizontal plate;

50, connecting plate; 51, threaded hole; 52, mounting plate; 53, placing block;

60. Traction port; 61. Baffle plate; 62. Clamping block; 63. Adjusting bolt;

70, sliding rod; 71, connecting rod; 72, rotating cavity; 73, fixed rod;

80, rotating disk.

Implementation

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Example

As shown in Figures 1 to 5, it is a structural schematic diagram of a hardware waterproof support in a preferred embodiment of the present invention. The hardware waterproof support of this embodiment includes an operation block 10, and a moving port is symmetrically arranged on the operation block 10. 11. The moving port 11 is symmetrically and fixedly equipped with a slide bar 70, and the slide bar 70 is movably equipped with a movable block 12 which moves on the slide bar 70. The movable block 12 is fixedly equipped with a draw bar 13, and the draw bar 13 One end moves through the operation block 10, and one end of the drawbar 13 is fixedly equipped with a riser 42, the riser 42 is located on one side of the operation block 10, and the operation block 10 is movably equipped with a screw rod 21, and the screw rod 21 is located on two moving sides. Between the openings 11, one end of the screw rod 21 moves through the operation block 10, and the bottom of the screw rod 21 is fixedly equipped with a knob 22, and the top of the screw rod 21 is fixedly equipped with a limit plate 23, and the screw rod 21 is screwed with a threaded sleeve. 30, the symmetrical side surfaces of the threaded sleeve block 30 are all fixedly equipped with a second assembly plate 31, the top of the movable block 12 is fixedly equipped with a first assembly plate 20, and the first assembly plate 20 is equipped with an adjusting rod 32 movably, adjusting The other end of the rod 32 is correspondingly movably assembled with the second assembly plate 31 .

The symmetrical two sides of the operation block 10 are all symmetrically fixedly equipped with a fixed plate 33, and the fixed plate 33 is fixedly equipped with a mounting pipe 40, and one end of the mounting pipe 40 is movably equipped with an insertion rod 41, and one end of the insertion rod 41 is all mounted on the mounting pipe. The inside of 40 moves, and the other end of inserting rod 41 is all fixedly assembled on the riser 42.

The operating block 10 is fixedly equipped with mounting plates 52 symmetrically. The mounting plates 52 are located on both sides of the moving port 11. The tops of the two mounting plates 52 are fixedly equipped with a placement block 53. The placement block 53 is located above the limit plate 23. The placement block 53 is fixedly equipped with a baffle plate 61, and the placement block 53 is provided with a traction port 60 through which a connecting rod 71 is symmetrically fixedly mounted on the traction port 60, and two connecting rods 71 are movably equipped with clips that move on the connecting rod 71. Hold block 62.

The inside of the clamping block 62 is provided with a rotating chamber 72, and the placement block 53 is threaded with an adjusting bolt 63, and one end of the adjusting bolt 63 is fixedly equipped with a fixing rod 73, and one end of the fixing rod 73 moves through the clamping block 62 to the rotating chamber 72 , and one end of the fixed rod 73 is fixedly fitted with a rotating disc 80 carried out in the rotating cavity 72 .

The vertical plates 42 are fixedly equipped with horizontal plates 43, and one end of the horizontal plates 43 is fixedly equipped with a connecting plate 50. The vertical plates 42, the horizontal plates 43 and the connecting plates 50 form a "U"-shaped structure. The horizontal plates 43 and the connecting plates 50 Both are provided with threaded holes 51, and the threads on the threaded holes 51 are equipped with fastening bolts, so that the device is convenient to be fixed with the connected object.

In this embodiment, after the metal waterproof casing is installed, the baffle plate 61 and the clamping block 62 on the device are moved to both sides of the hardware waterproof casing, and the moving adjustment bolt 63 is rotated on the placement block 53, so that the rotating disc 80 rotates in the rotating cavity 72, and the clamping block 62 moves on the connecting rod 71, which is convenient for the clamping block 62 and the baffle plate 61 to clamp the hardware waterproof sleeve, and rotate according to the distance between the connecting object and the connecting plate 50 The knob 22 makes the threaded mandrel 21 rotate on the threaded block 30, allowing the adjusting rod 32 to push the movable block 12 to move on the slide bar 70, and the traction rod 13 pushes the distance between the vertical plate 42 and the operation block 10 to change, so that the connection The plate 50 fits the connected object, and fastening bolts are installed on the threaded holes 51, so that the device is fixed and the installation effect of the device is improved.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (7)

1. A metal waterproof support, including an operation block (10), It is characterized by: The operating block (10) is symmetrically provided with a moving port (11), and the moving port (11) is symmetrically fixed with a sliding bar (70), and the sliding bar (70) is movably equipped with a movable block (12) , the movable block (12) is fixedly equipped with a drawbar (13), and one end of the drawbar (13) runs through the operating block (10) movably, and one end of the drawbar (13) is fixedly equipped with a riser (42). 2. A metal waterproof support according to claim 1, characterized in that: said operation block (10) is movably equipped with a screw rod (21), and one end of the screw rod (21) moves through the operation block ( 10), and the bottom of the screw rod (21) is fixedly equipped with a knob (22), the top of the screw rod (21) is fixedly equipped with a limit plate (23), and the screw rod (21) is threaded with a threaded sleeve (30) , the symmetrical two sides of the threaded block (30) are fixedly equipped with the second assembly plate (31), the top of the movable block (12) is fixedly equipped with the first assembly plate (20), on the first assembly plate (20) All are movably assembled with an adjusting rod (32), and the other end of the adjusting rod (32) is correspondingly movably assembled with the second assembly plate (31). 3. A hardware waterproof support according to claim 2, characterized in that: the symmetrical two sides of the operation block (10) are symmetrically fixed with fixed plates (33), and the fixed plates (33) are Installing pipe (40) is fixedly installed, and one end of installing pipe (40) is all movably equipped with plunger (41), and the other end of plunger (41) is all fixedly assembled on the riser (42). 4. A hardware waterproof support according to claim 3, characterized in that: said operation block (10) is symmetrically fixed with mounting plates (52), and the tops of the two mounting plates (52) are fixedly mounted There is a placement block (53), a baffle plate (61) is fixedly mounted on the placement block (53), a traction port (60) is provided through the placement block (53), and a connecting rod ( 71), the two connecting rods (71) are movably equipped with clamping blocks (62). 5. A metal waterproof support according to claim 4, characterized in that: the inside of the clamping block (62) is provided with a rotating cavity (72), and an adjusting bolt is threaded on the placing block (53) (63), one end of the adjusting bolt (63) is fixedly equipped with a fixed rod (73), and one end of the fixed rod (73) moves through the clamping block (62) into the rotating cavity (72), and the fixed rod (73) One end is fixedly equipped with a rotating disk (80), and the rotating disk (80) is movably assembled with the rotating chamber (72). 6. A metal waterproof support according to claim 5, characterized in that: said vertical plates (42) are fixedly equipped with horizontal plates (43), and one end of the horizontal plates (43) is fixedly equipped with The connecting plate (50), the horizontal plate (43) and the connecting plate (50) are all provided with threaded holes (51). 7. A hardware waterproof support according to claim 6, characterized in that: said vertical plate (42), horizontal plate (43) and connecting plate (50) form a "U" shape structure.
