The utility model discloses a rust removing device for die steel processing, which comprises a box body, wherein a placing plate is fixedly connected between two sides of the bottom of the inner cavity of the box body. This mould steel processing rust cleaning device through the setting of placing the board, can place the mould steel, through the setting of motor, can drive the polisher with threaded rod and thread bush cooperation and control reciprocating motion, through the setting of first electric telescopic handle, can adjust the service height of polisher, through the setting of immersible pump, can carry the inside water of water tank to spraying plate with inlet tube and outlet pipe cooperation, spraying plate can store the water blowout, through the setting of collecting the cover, can with the wash port cooperation with the water that has the dust carry to the inner chamber of water tank, through the setting of filter screen, can filter the dust in the water.
Description
Technical Field
The utility model relates to the technical field of die steel processing, in particular to a rust removing device for die steel processing.
Background
The die steel is a steel grade used for manufacturing dies such as a cold die, a hot die, and a die-casting die. The mould is a main processing tool for manufacturing parts in industrial departments such as machine manufacturing, radio instruments, motors, electric appliances and the like, the quality of the mould directly influences the quality of a pressure processing technology, the precision yield and the production cost of products, and the quality and the service life of the mould are mainly influenced by the materials of the mould and the heat treatment except by reasonable structural design and processing precision.
When the die steel is processed, a rust removing device is needed, and China patent discloses a die steel processing rust removing device (issued publication No. CN 109277926A), and the technology of the patent adjusts the structure; the polishing structure is connected with the inside of the dust collection structure in a sliding manner and comprises a mounting plate, a third motor, a rotating shaft and a polishing disc, wherein the mounting plate is connected with one end of the adjusting structure in a sliding manner, the mounting plate is of an L-shaped structure, the third motor is fixed on the top end of the mounting plate, the rotating shaft is connected with the dust collection structure in a sliding manner, the rotating shaft is fixedly connected with a transmission shaft of the third motor, and the polishing disc is fixed on one end of the rotating shaft, which is away from the third motor; and the unloading structure is arranged at one end of the feeding structure, which is away from the feeding structure. The die steel processing rust removing device provided by the utility model has the advantages of capability of automatically polishing and removing rust, time saving and labor saving, but the existing rust removing device does not have a dust collecting function, and when the die steel is polished and removed in rust, a large amount of generated dust is easy to float in the air and is inhaled by a user, so that the health of the user is easily influenced, and the air is easily polluted. Accordingly, a mold steel processing rust removing device is provided by those skilled in the art to solve the problems set forth in the background art described above.
Disclosure of Invention
The utility model aims to provide a rust removing device for die steel processing, which aims to solve the problems in the prior art.
In order to achieve the above purpose, the present utility model provides the following technical solutions:
the utility model provides a mould steel processing rust cleaning device, includes the box, fixedly connected with places the board between the both sides of box inner chamber bottom, place the wash port has been seted up at the top of board, the left top fixedly connected with motor of box, the right side fixedly connected with threaded rod of motor, the right side of threaded rod runs through to the inner chamber of box, the surface cover of threaded rod has the thread bush, the bottom fixedly connected with first electric telescopic handle of thread bush, the bottom fixedly connected with polisher of first electric telescopic handle;
the bottom of box is provided with dust removal mechanism, dust removal mechanism is including spraying board and water tank, and two equal fixedly connected with in the inner wall of box in one side that spray the board is opposite, the top fixedly connected with of water tank is in the bottom of box, the top intercommunication of water tank has the collection cover, the top of collecting the cover runs through to the inner chamber of box, fixedly connected with filter screen between the both sides at water tank inner chamber top, the equal fixedly connected with immersible pump in bottom of water tank inner chamber both sides, two immersible pumps all communicate with the inlet tube in one side that are opposite, and two immersible pumps all communicate with the outlet pipe in one side that the immersible pump was kept away from to the outlet pipe runs through to the inner chamber of box and with spray the board intercommunication.
As still further aspects of the utility model: the both sides of box all are provided with the second electric telescopic handle, and two opposite one sides of second electric telescopic handle all run through to the inner chamber of box and fixedly connected with buffering antiskid ribbed tile.
As still further aspects of the utility model: the top fixedly connected with stopper of thread bush, the spacing groove that uses with the stopper cooperation is seted up at the top of box inner chamber.
As still further aspects of the utility model: the surface cover of motor is equipped with the protective housing, the positive surface of water tank is provided with the controller.
As still further aspects of the utility model: the top intercommunication on water tank right side has the water pipe that adds, the bottom intercommunication of water tank has the drain pipe, the surface cover of drain pipe is equipped with the solenoid valve.
As still further aspects of the utility model: the left side of box front surface is through hinge swing joint has sealing door, sealing door's front surface is provided with the observation window.
As still further aspects of the utility model: the both sides of water tank bottom are all fixedly connected with backup pad, the bottom fixedly connected with rubber slab of backup pad.
Compared with the prior art, the utility model has the beneficial effects that:
1. according to the utility model, through the arrangement of the placing plate, die steel can be placed, through the arrangement of the motor, the grinding machine can be driven to reciprocate left and right by being matched with the threaded rod and the threaded sleeve, through the arrangement of the first electric telescopic rod, the use height of the grinding machine can be adjusted, through the arrangement of the submersible pump, water in the water tank can be conveyed to the spraying plate by being matched with the water inlet pipe and the water outlet pipe, the water can be sprayed out by the spraying plate to be stored, through the arrangement of the collecting cover, the water with dust can be conveyed to the inner cavity of the water tank by being matched with the water outlet hole, and the dust in the water can be filtered through the arrangement of the filter screen.
2. According to the utility model, through the arrangement of the second electric telescopic rod, the die steel can be clamped and fixed in cooperation with the buffering anti-skid plate, the threaded sleeve can be prevented from rotating in the moving process through the arrangement of the limiting block and the limiting groove, the motor can be prevented from being damaged in daily use through the arrangement of the protective shell, water can be conveyed to the inner cavity of the water tank through the arrangement of the water adding pipe, the rust removing condition of the die steel can be observed in real time through the arrangement of the observation window, and the stability of the device can be maintained through the arrangement of the supporting plate and the rubber plate.
Drawings
FIG. 1 is a structural perspective view of a rust removing device for die steel processing;
FIG. 2 is a schematic diagram of a structure of a rust removing device for die steel processing;
FIG. 3 is an enlarged view of part of the A in FIG. 2 in a die steel working rust removing apparatus;

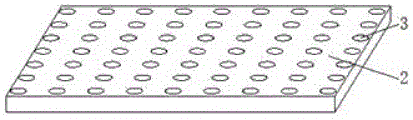

fig. 4 is a perspective view of a placing plate in a die steel processing rust removing device.
In the figure: 1. a case; 2. placing a plate; 3. a drain hole; 4. a motor; 5. a threaded rod; 6. a thread sleeve; 7. a first electric telescopic rod; 8. a grinding machine; 9. a dust removing mechanism; 901. a spray plate; 902. a water tank; 903. a collection cover; 904. a filter screen; 905. submersible pump; 906. a water inlet pipe; 907. a water outlet pipe; 10. a second electric telescopic rod; 11. buffering antiskid plates; 12. a limiting block; 13. a limit groove; 14. a protective shell; 15. a controller; 16. a water adding pipe; 17. a drain pipe; 18. an electromagnetic valve; 19. sealing the door; 20. an observation window; 21. a support plate; 22. a rubber plate.
Detailed Description
Referring to fig. 1-4, a rust removing device for die steel processing comprises a box body 1, wherein a placing plate 2 is fixedly connected between two sides of the bottom of an inner cavity of the box body 1, a drain hole 3 is formed in the top of the placing plate 2, a motor 4 is fixedly connected to the top of the left side of the box body 1, a threaded rod 5 is fixedly connected to the right side of the motor 4, the right side of the threaded rod 5 penetrates through the inner cavity of the box body 1, a thread bush 6 is sleeved on the surface of the threaded rod 5, a first electric telescopic rod 7 is fixedly connected to the bottom of the thread bush 6, and a grinding machine 8 is fixedly connected to the bottom of the first electric telescopic rod 7;
the bottom of box 1 is provided with dust removal mechanism 9, dust removal mechanism 9 includes sprays board 901 and water tank 902, two equal fixed connection in the inner wall of box 1 in one side that sprays the board 901 is opposite, the top fixed connection of water tank 902 is in the bottom of box 1, the top intercommunication of water tank 902 has collection cover 903, the top of collection cover 903 runs through to the inner chamber of box 1, fixedly connected with filter screen 904 between the both sides at water tank 902 inner chamber top, the equal fixedly connected with immersible pump 905 in the bottom of water tank 902 inner chamber both sides, two equal intercommunication of one side that immersible pump 905 is opposite have inlet tube 906, two equal intercommunication of one side that immersible pump 905 is opposite have outlet pipe 907, one side that the immersible pump 905 was kept away from is run through to the inner chamber of box 1 and with spray board 901 intercommunication.
Specifically, the two sides of the box body 1 are provided with second electric telescopic rods 10, and one side of each of the two opposite second electric telescopic rods 10 penetrates through the inner cavity of the box body 1 and is fixedly connected with a buffering anti-skid plate 11.
Through above-mentioned technical scheme, through the setting of second electric telescopic handle 10, can carry out the centre gripping with buffering antiskid ribbed tile 11 cooperation and fix the mould steel.
Specifically, the top of the thread bush 6 is fixedly connected with a limiting block 12, and the top of the inner cavity of the box body 1 is provided with a limiting groove 13 matched with the limiting block 12.
Through above-mentioned technical scheme, through the setting of stopper 12 and spacing groove 13, can prevent that thread bush 6 from rotating at the in-process that removes.
Specifically, the motor 4 is provided with a protective housing 14 on its surface, and the water tank 902 is provided with a controller 15 on its front surface.
By the above technical scheme, the motor 4 can be prevented from being damaged in daily use by the arrangement of the protective housing 14.
Specifically, the top on the right side of the water tank 902 is communicated with a water adding pipe 16, the bottom of the water tank 902 is communicated with a water draining pipe 17, and the surface of the water draining pipe 17 is sleeved with an electromagnetic valve 18.
By the above-described means, water can be supplied to the inner cavity of the water tank 902 by the provision of the water addition pipe 16.
Specifically, the left side of box 1 front surface is through hinge swing joint having sealing door 19, and sealing door 19's front surface is provided with viewing window 20.
Through the above technical scheme, through the setting of observation window 20, can observe the rust cleaning condition of mould steel in real time.
Specifically, the two sides of the bottom of the water tank 902 are fixedly connected with a supporting plate 21, and the bottom of the supporting plate 21 is fixedly connected with a rubber plate 22.
Through above-mentioned technical scheme, through the setting of backup pad 21 and rubber slab 22, can keep the stability of this device.
The working principle of the utility model is as follows: pouring water into the inner cavity of the water tank 902 through the water adding pipe 16, then opening the sealing door 19, placing die steel at the top of the placing plate 2 and opening the second electric telescopic rod 10, driving the buffering antiskid plate 11 to clamp and fix the die steel by the second electric telescopic rod 10, then opening the submersible pump 905, conveying water in the water tank 902 to the inner cavity of the spraying plate 901 by matching the submersible pump 905 with the water inlet pipe 906 and the water outlet pipe 907, spraying the water by spraying the plate 901, opening the first electric telescopic rod 7, driving the grinding machine 8 to move downwards to the bonding of the grinding plate and the die steel by the first electric telescopic rod 7, then opening the grinding machine 8 and the motor 4, grinding and derusting the die steel by the grinding machine 8, driving the grinding machine 4 to move left and right by matching the threaded rod 5 and the threaded sleeve 6, conveying dust generated by grinding by spraying the water sprayed by the spraying plate 901 to the drain hole 3 and the collecting cover 903, filtering dust in the water by the filter screen 904, and the filtered water to the bottom of the inner cavity of the water tank 902, and can be recycled.
The foregoing description is only a preferred embodiment of the present utility model, but the scope of the present utility model is not limited thereto, and any person skilled in the art, who is within the scope of the present utility model, should make equivalent substitutions or modifications according to the technical solution of the present utility model and the inventive concept thereof, and should be covered by the scope of the present utility model.
Claims (7)
1. The utility model provides a mould steel processing rust cleaning device, includes box (1), its characterized in that: the novel electric box comprises a box body (1), wherein a placing plate (2) is fixedly connected between two sides of the bottom of the inner cavity of the box body (1), a drain hole (3) is formed in the top of the placing plate (2), a motor (4) is fixedly connected to the top of the left side of the box body (1), a threaded rod (5) is fixedly connected to the right side of the motor (4), the right side of the threaded rod (5) penetrates through the inner cavity of the box body (1), a thread bush (6) is sleeved on the surface of the threaded rod (5), a first electric telescopic rod (7) is fixedly connected to the bottom of the thread bush (6), and a grinding machine (8) is fixedly connected to the bottom of the first electric telescopic rod (7);
the bottom of box (1) is provided with dust removal mechanism (9), dust removal mechanism (9) are including spraying board (901) and water tank (902), and two equal fixed connection in the inner wall of box (1) in one side that sprays board (901) are opposite, the top fixed connection of water tank (902) is in the bottom of box (1), the top intercommunication of water tank (902) has collection cover (903), the top of collecting cover (903) runs through the inner chamber to box (1), fixedly connected with filter screen (904) between the both sides at water tank (902) inner chamber top, the equal fixedly connected with immersible pump (905) in bottom of water tank (902) inner chamber both sides, one side that two immersible pumps (905) are opposite all communicates there is inlet tube (906), one side that outlet tube (907) kept away from immersible pump (905) runs through to the inner chamber of box (1) and with spray board (901) intercommunication.
2. The die steel processing rust removing device according to claim 1, wherein: the two sides of the box body (1) are provided with second electric telescopic rods (10), and one side of each of the two opposite second electric telescopic rods (10) penetrates through the inner cavity of the box body (1) and is fixedly connected with a buffering antiskid plate (11).
3. The die steel processing rust removing device according to claim 1, wherein: the top of the thread bush (6) is fixedly connected with a limiting block (12), and a limiting groove (13) matched with the limiting block (12) for use is formed in the top of the inner cavity of the box body (1).
4. The die steel processing rust removing device according to claim 1, wherein: a protective shell (14) is sleeved on the surface of the motor (4), and a controller (15) is arranged on the front surface of the water tank (902).
5. The die steel processing rust removing device according to claim 1, wherein: the top on the right side of the water tank (902) is communicated with a water adding pipe (16), the bottom of the water tank (902) is communicated with a drain pipe (17), and the surface of the drain pipe (17) is sleeved with an electromagnetic valve (18).
6. The die steel processing rust removing device according to claim 1, wherein: the left side of the front surface of the box body (1) is movably connected with a sealing door (19) through a hinge, and an observation window (20) is arranged on the front surface of the sealing door (19).
7. The die steel processing rust removing device according to claim 1, wherein: both sides of water tank (902) bottom all fixedly connected with backup pad (21), the bottom fixedly connected with rubber slab (22) of backup pad (21).
