Abstract

The utility model relates to the technical field of polishing equipment, in particular to processing and polishing equipment for CNC machine tool parts, comprising: a main body and an adjustment plate, the main body is provided with a collection tank, and a support block is welded in the collection tank, and the support block The upper end is fixed with a shelf block, the main body is provided with a mounting frame, the electric cylinder is fixed on the mounting frame, the telescopic end of the electric cylinder is fixed with a mounting frame, the inside of the mounting frame is mounted with a first motor, the The rotating shaft of the first motor is connected with a guide column, and an adjusting disc is fixed at the lower end of the guide column. The utility model abuts the main body through the splash guard, which can prevent the debris generated during polishing from splashing around, and at the same time, the generated debris can be collected downwards into the inner side of the collection frame through the collection groove; Port movement can adjust the polishing radius.

Description

CNC machine tool parts processing and polishing equipment

technical field

The utility model relates to the technical field of polishing equipment, in particular to a processing and polishing equipment for CNC machine tool parts.

Background technique

CNC machine tool is the abbreviation of numerical control machine tool, which is an automatic machine tool equipped with a program control system. The control system can logically process programs with control codes or other symbolic instructions, decode them, express them in coded numbers, and input them into the numerical control device through the information carrier. After calculation and processing, various control signals are sent by the numerical control device to control the movement of the machine tool, and the parts are automatically processed according to the shape and size required by the drawing. Thousands of spare parts will be used in the production of CNC machine tools. These parts Accessories need to be polished during processing, and polishing equipment is required.

For example, Chinese Patent Publication No. CN106670942A discloses a polishing device, which includes a support device, a polishing device and a positioning and clamping device. The supporting device includes a sequentially connected feeding frame, workbench and discharging frame. The polishing and polishing device includes a telescopic cylinder, a slide table, a polishing wheel, a bracket and a motor. The telescopic cylinder is set on the worktable, and the slide table is slidably set on the workbench. The telescopic end of the telescopic cylinder is connected to the slide table, and the bracket is set on the slide table. The polishing wheel is rotatably arranged on the bracket, the motor is arranged on the bracket, and the motor is connected with the polishing wheel. The positioning and clamping device includes a mounting plate, a clamping plate, multiple guide rods and multiple adjustment nuts. The mounting plate is set on the workbench, and the intervals of each guide rod are set on the mounting plate, and each guide rod slides through the clip respectively. The holding plate can better clamp and position the aluminum parts to reduce the vibration of the aluminum parts during polishing.

However, there are other defects in use. It is not equipped with a splash-proof structure, which easily causes polishing debris to splash. At the same time, the position of the polishing disc is fixed, so it cannot polish workpieces of different sizes.

To this end, we propose CNC machine tool parts processing and polishing equipment to solve the above-mentioned problems.

Utility model content

The purpose of the utility model is to provide CNC machine tool spare parts processing and polishing equipment to solve the problem of debris splashing during polishing.

In order to achieve the above purpose, the utility model provides the following technical solutions: CNC machine tool parts processing and polishing equipment, including: a main body and an adjustment plate, the main body is provided with a collection tank, and a support block is welded in the collection tank, and the support The upper end of the block is fixed with a shelving block, the main body is provided with a mounting frame, the electric cylinder is fixed on the mounting frame, the telescopic end of the electric cylinder is fixed with a mounting frame, and the two ends of the electric cylinder are connected to the mounting frame and the A base is installed and fixedly connected, the inside of the installation frame is equipped with a first motor, the rotating shaft of the first motor is connected with a guide post, the guide post is a round rod, and an adjustment disc is fixed at the lower end of the guide post.

Preferably, the guide post is rotatably connected to the guide tube, and the guide tube is provided with a splash guard, and the guide tube can move up and down and rotate along the guide post, and the guide tube will not be driven to rotate when the guide post rotates.

Preferably, the rest block is provided with a guide groove, and a splint is slidably connected to the inner side of the guide groove.

Preferably, a second motor is installed on the shelving block, the rotation shaft of the second motor is connected with a positive and negative threaded rod, and a splint is threaded on the positive and negative threaded rod, and the second motor drives the positive and negative threaded rod to rotate and drive the splint inward Clamp the polished piece closer together.

Preferably, the adjusting disc is provided with an adjusting groove, the inner side of the adjusting groove is slidably connected with a moving block, the lower end of the moving block is installed with a polishing disc, and the moving block drives the polishing disc to move along the adjusting groove to adjust the polishing diameter.

Preferably, a threaded rod is rotatably connected to the inner side of the adjusting groove, and a moving block is threadedly connected to the threaded rod, and the rotation of the threaded rod drives the moving block to move along the adjusting groove.

Preferably, one end of the threaded rod is welded with a hexagonal block, and the hexagonal block is arranged to facilitate the rotation of the threaded rod to drive the moving block to drive the polishing disc to move.

Preferably, a collection frame is inserted into the lower end of the collection tank, and the waste falling through the collection tank falls down into the inside of the collection frame.

Compared with the prior art, the beneficial effects of the utility model are:

1. The utility model abuts the main body through the splash guard, which can prevent the debris generated during polishing from splashing around, and at the same time, the generated debris can be collected downwards into the inner side of the collection frame through the collection tank.

2. The utility model can adjust the polishing radius by rotating the hexagonal block to drive the polishing block to move along the adjustment port.

Description of drawings

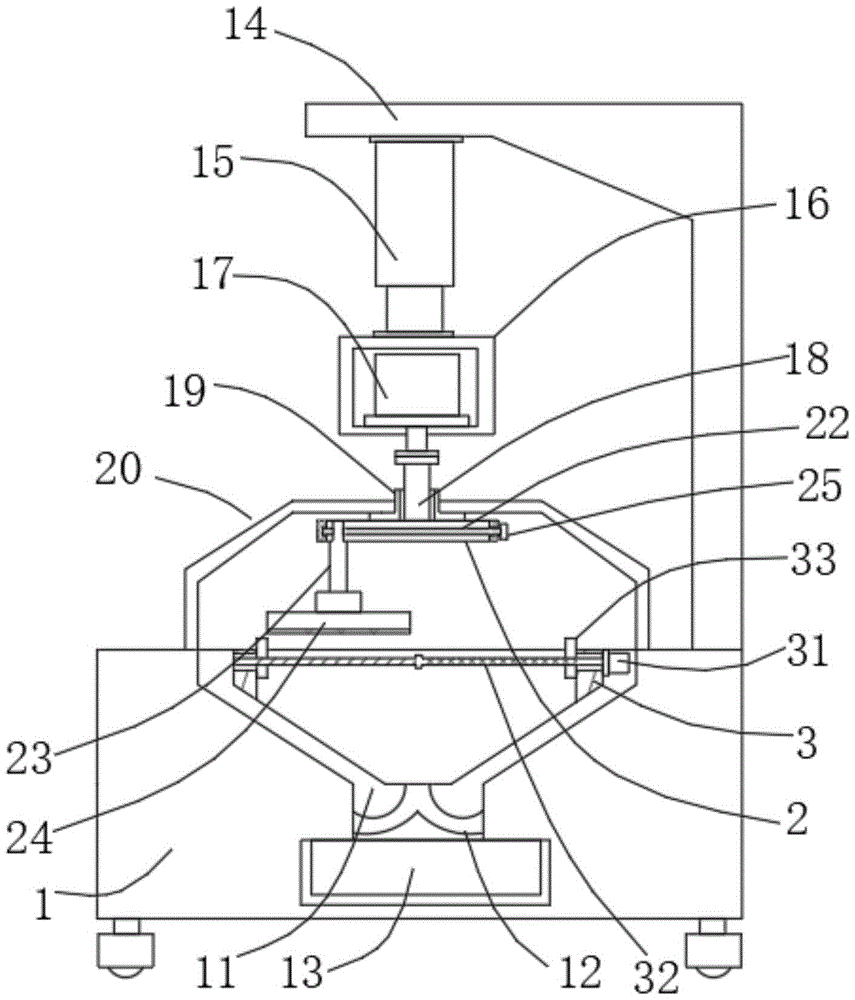

Fig. 1 is a sectional view of the overall structure of the utility model;

Fig. 2 is a cross-sectional view of the overall structure of the utility model;

Fig. 3 is the schematic diagram of the adjustment disc of the present invention;

In the figure: 1 main body, 11 collection tank, 12 support block, 13 collection frame, 14 installation frame, 15 electric cylinder, 16 installation frame, 17 first motor, 18 guide column, 19 guide pipe, 20 splash guard, 2 adjustment Disc, 21 adjustment port, 22 threaded shaft, 23 moving block, 24 polishing disc, 25 hexagonal block, 3 shelving block, 31 second motor, 32 positive and negative threaded rod, 33 splint, 34 guide groove.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Example 1

Please refer to Figure 1 and Figure 2, the machining and polishing equipment for CNC machine tool parts in the diagram includes: a main body 1 and an adjusting disc 2, a collection tank 11 is arranged on the main body 1, and a support block 12 is welded in the collection tank 11, and the support block 12 is fixed with a shelving block 3, the main body 1 is provided with a mounting frame 14, the mounting frame 14 is fixed with an electric cylinder 15, the telescopic end of the electric cylinder 15 is fixed with a mounting frame 16, and the two ends of the electric cylinder 15 are installed with bolts. The frame 16 and the installation base 14 are fixedly connected, the inside of the installation frame 16 is equipped with a first motor 17, the rotation shaft of the first motor 17 is connected with a guide column 18, the guide column 18 is a round rod, and the lower end of the guide column 18 is fixed with an adjustment disc 2.

Rotate and connect guide pipe 19 on guide post 18, splash guard 20 is installed on guide pipe 19, guide pipe 19 can move up and down along guide post 18 and rotate, can not drive guide pipe 19 to follow rotation when guide post 18 rotates.

The shelving block 3 is provided with a guide groove 34 , and a splint 33 is slidably connected to the inner side of the guide groove 34 .

A second motor 31 is installed on the shelving block 3, and the rotating shaft of the second motor 31 is connected with a positive and negative threaded rod 32, and the positive and negative threaded rod 32 is threaded with a splint 33, and the second motor 31 drives the positive and negative threaded rod 32 to rotate and drive The clamping plates 33 move inwardly to clamp the polishing piece.

The adjustment disc 2 is provided with an adjustment groove 21, the inner side of the adjustment groove 21 is slidably connected with a moving block 23, the lower end of the moving block 23 is equipped with a polishing disc 24, and the moving block 23 drives the polishing disc 24 to move along the adjustment groove 21 to adjust the polishing diameter.

A collection frame 13 is plugged into the lower end of the collection tank 11 , and waste falling through the collection tank 11 falls into the inside of the collection frame 13 downwards.

When using this polishing equipment: place the workpiece on the shelving block 3, drive the positive and negative threaded rod 32 to rotate through the second motor 31, and drive the splint 33 to move inward to clamp the workpiece, and then the electric cylinder 15 stretches to drive the polishing block 24 and the anti- The splash cover 20 is downward, the splash cover 20 abuts the main body 1 downward, the polishing disc 24 abuts the workpiece downward, and then the first motor 17 drives the polishing disc 24 to rotate to polish the workpiece, and the debris generated by polishing splashes around Falling down into the inside of the collection frame 13 through the collection groove 11, the waste chips can be avoided from splashing during polishing and the waste chips can be collected conveniently.

Example 2

Please refer to Fig. 1 and Fig. 3, this embodiment is further described for Embodiment 1, the CNC machine tool parts processing and polishing equipment in the figure includes: a main body 1 and an adjusting disc 2, the main body 1 is provided with a collecting tank 11, the collecting tank 11 A support block 12 is welded inside, a shelving block 3 is fixed on the upper end of the support block 12, a mounting frame 14 is arranged on the main body 1, an electric cylinder 15 is fixed on the mounting frame 14, and a mounting frame 16 is fixed on the telescopic end of the electric cylinder 15. The two ends of the cylinder 15 are fixedly connected with the installation frame 16 and the installation base 14 by bolts, the first motor 17 is installed on the inside of the installation frame 16, the rotating shaft of the first motor 17 is connected with a guide column 18, and the guide column 18 is a round rod. The lower end of the guide column 18 is fixed with an adjustment disc 2 .

The adjustment disc 2 is provided with an adjustment groove 21, the inner side of the adjustment groove 21 is slidably connected with a moving block 23, the lower end of the moving block 23 is equipped with a polishing disc 24, and the moving block 23 drives the polishing disc 24 to move along the adjustment groove 21 to adjust the polishing diameter.

The inner side of the adjustment groove 21 is rotatably connected with a threaded rod 22, and the threaded rod 22 is threaded with a moving block 23, and the rotation of the threaded rod 22 drives the moving block 23 to move along the adjustment groove 21.

One end of the threaded rod 22 is welded with a hexagonal block 25, and the setting of the hexagonal block 25 is convenient to rotate the threaded rod 22 to drive the moving block 23 to drive the polishing disc 24 to move.

A collection frame 13 is plugged into the lower end of the collection tank 11 , and waste falling through the collection tank 11 falls into the inside of the collection frame 13 downwards.

In this embodiment, the threaded rod 22 is driven to rotate by rotating the hexagonal block 25, and the moving block 23 is driven by the threaded rod 22 to drive the polishing disc 24 to move along the adjustment groove 21 to facilitate adjustment of the polishing diameter.

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. There is no such actual relationship or order between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (8)

1. Numerical control machine tool spare and accessory part processing polishing equipment, its characterized in that includes:

main part (1) and regulating disk (2), be provided with collecting vat (11) on main part (1), the welding has supporting shoe (12) in collecting vat (11), the upper end of supporting shoe (12) is fixed with shelves piece (3), be provided with mounting bracket (14) on main part (1), be fixed with electric cylinder (15) on mounting bracket (14), the flexible end of electric cylinder (15) is fixed with installing frame (16), first motor (17) are installed to installing frame (16) inboard, the rotation axis connection of first motor (17) has guide post (18), the lower extreme of guide post (18) is fixed with regulating disk (2).

2. The numerical control machine tool part machining and polishing device according to claim 1, characterized in that: the guide post (18) is rotatably connected with a guide pipe (19), and a splash guard (20) is arranged on the guide pipe (19).

3. The numerical control machine tool part machining and polishing device according to claim 2, characterized in that: the shelving block (3) is provided with a guide groove (34), and the inner side of the guide groove (34) is connected with a clamping plate (33) in a sliding manner.

4. The numerical control machine tool part machining and polishing device according to claim 1, characterized in that: the shelving block (3) is provided with a second motor (31), a rotating shaft of the second motor (31) is connected with a positive and negative threaded rod (32), and a clamping plate (33) is connected to the positive and negative threaded rod (32) in a threaded manner.

5. The numerical control machine tool part machining and polishing device according to claim 1, characterized in that: an adjusting groove (21) is formed in the adjusting disc (2), a moving block (23) is connected to the inner side of the adjusting groove (21) in a sliding mode, and a polishing disc (24) is arranged at the lower end of the moving block (23).

6. The numerical control machine tool part machining and polishing device according to claim 1, characterized in that: the inner side of the adjusting groove (21) is rotatably connected with a threaded rod (22), and a moving block (23) is connected to the threaded rod (22) in a threaded manner.

7. The numerical control machine tool part machining and polishing device according to claim 1, characterized in that: one end of the threaded rod (22) is welded with a hexagonal block (25).

8. The numerical control machine tool part machining and polishing device according to claim 1, characterized in that: the lower end of the collecting tank (11) is inserted with a collecting frame (13).
