CN219187396U - Storage platform for spraying automobile parts - Google Patents

Abstract

The utility model discloses a storage platform for auto parts spraying, which comprises a main body, a built-in cavity and a motor. The inside of the main body is provided with a built-in cavity, and a hydraulic rod is installed at the bottom of the main body. A moving structure is arranged above the inside, and the moving structure includes a threaded rod, a sliding seat and a support rod, one side of the motor is fixedly connected with a threaded rod, and an adjusting structure is arranged above the fixed base. The utility model is equipped with a moving structure. When the spraying storage platform is used, start the motor, and the threaded rod will rotate accordingly under the drive of the motor. The threaded rod will drive the sliding seat to slide on the outside of the support rod. Under the action, the threaded rod will not be shaken to cause instability, so that the spray paint sprayed by the spray gun can be evenly sprayed on the surface of the auto parts, and the applicability of the spray storage platform is realized.

Description

Storage platform for auto parts painting

technical field

The utility model relates to the technical field of auto parts processing, in particular to a storage platform for auto parts spraying.

Background technique

Auto parts are the various units that make up the whole car and a product that serves the car. Its production process includes spraying. Among them, the process of spraying one or more layers of paint on the surface of the product is the most extensive. Spraying on auto parts Appropriate paint can not only play a protective role, prolong its service life, but also improve the appearance quality of auto parts,

For this reason, the publication number is that CN216396783U discloses a kind of high-precision auto parts spraying platform in the patent specification, especially relates to the field of spraying platform, and it comprises operating platform, spraying box, spraying assembly, rotary table, tray and fixed assembly, described The spraying box cover is arranged above the operating table, and an opening is provided on the front side of the spraying box, the spraying assembly is arranged in the spraying box, the rotating table is arranged on the operating table, and the tray is arranged on the rotating table , and located at the lower part of the inner cavity of the spraying box, the fixing assembly is arranged in the spraying box, and the fixing assembly is used to fix the product to be sprayed. The application can improve spraying accuracy. Although the above-mentioned prior art solutions are simple and convenient to use, the following problems still exist:

When the above-mentioned spraying storage platform is in use, the paint sprayed from the spraying box will splash everywhere, causing pollution to the working environment.

1. When the above-mentioned spraying storage platform is in use, when spraying large irregular auto parts, due to the limited spraying range, the spraying of auto parts will be uneven.

2. When the above-mentioned spraying storage platform is in use, the waste paint generated by spraying the auto parts will splash everywhere, which will cause the pollution of the indoor environment.

Utility model content

(1) Technical problems to be solved

The purpose of the utility model is to provide a storage platform for auto parts spraying, which is used to solve the defect of the unevenness of the existing storage platform for spraying accessories.

(2) Contents of utility model

In order to solve the above technical problems, the utility model provides the following technical solutions: a storage platform for auto parts spraying, including a main body, a built-in cavity and a motor, the inside of the main body is provided with a built-in cavity, and the bottom end of the inside of the main body is installed with A hydraulic rod, the top of the hydraulic rod is fixed with a fixed base, and a moving structure is arranged above the inside of the main body, and the moving structure includes a threaded rod, a sliding seat and a support rod, and one side of the motor is fixedly connected with a threaded rod A motor is installed above one side of the main body, an adjustment structure is arranged above the fixed base, a waste liquid pipe is arranged on one side of the built-in cavity, and a protective structure is installed on the other side of the main body.

Preferably, the outer side of the threaded rod is threaded with a sliding seat, and both sides of the sliding seat are penetrated by a support rod.

Preferably, the threaded rod and the sliding seat are in a threaded connection structure, and the support rods are symmetrically distributed with respect to the vertical centerline of the sliding seat, thereby improving the applicability of the storage platform.

Preferably, the adjustment structure includes a spraying seat, a spraying chamber, a gun barrel, a spray gun, a first hinged rod, a second hinged rod, a telescopic rod, a fixed rod, a first slider, a first chute and a liquid inlet pipe. A spraying seat is provided above the fixed base, and a spraying chamber is arranged inside the spraying seat, a gun barrel is arranged at one end of the spraying chamber, a spray gun is fixed at one end of the gun barrel, and one side of the spray gun is fixedly connected to There is a first hinged rod, a second hinged rod is hinged above the outside of the first hinged rod, the bottom end of the spraying seat is fixedly connected with a telescopic rod, and the bottom end of the telescopic rod is fixed with a fixed rod. A first sliding block is fixedly connected to the bottom end of the rod, a first chute is provided on one side inside the first hinged rod, and a liquid inlet pipe is fixedly connected to one side of the spraying chamber.

Preferably, the spray guns are distributed at equal intervals at the bottom of the spraying chamber, and the second hinged rod and the first hinged rod are in a hinged structure, thereby improving the convenience of the storage platform.

Preferably, the protective structure includes a door frame, a window, a door handle, a second chute and a second slider, a door frame is installed at one end of the main body, a window is arranged inside the door frame, and one end of the door frame is fixed There is a door handle, so the inside of one end of the main body is provided with a second sliding slot, and the other end of the door frame is fixedly connected with a second sliding block.

Preferably, the second slider and the second chute are in a sliding structure, and the second slider is symmetrically distributed with respect to the horizontal centerline of the door frame, thereby realizing the protection of the storage platform.

(3) Beneficial effects

The storage platform for auto parts spraying provided by the utility model has the advantage that: by being provided with a moving structure, when the spraying storage platform is in use, the motor is started, and the threaded rod will rotate accordingly under the drive of the motor, and the threaded rod will drive to slide The seat slides on the outside of the support rod, and under the support of the support rod, the threaded rod will not shake and cause instability, so that the spray paint sprayed by the spray gun can be evenly sprayed on the surface of the auto parts, realizing this The suitability of the spray storage platform;

By setting the adjustment structure, when the spraying storage platform is in use, the liquid inlet pipe is transported to the spraying chamber through the pipe under the action of the booster pump installed in the paint storage box, so the spraying paint in the spraying chamber will be It enters the gun barrel to make the spray gun spray paint on the auto parts. When it is necessary to spray the unpainted fine places, under the expansion and contraction of the telescopic rod, the first slider slides in the first chute, and then Since the first hinged rod and the second hinged rod are in a hinged structure, the first hinged rod is driven to change the angle of the spray gun, which realizes the convenience of the spraying storage platform;

By providing a protective structure, when the spraying storage platform is in use, during the spraying process, the door frame is moved to one side of the main body, and the situation of spraying auto parts is observed through the window, and at the same time, the spray paint is avoided from the inside of the built-in cavity during the spraying process. Splashing out of the middle will cause pollution to the working environment. At the same time, the waste spray paint will be discharged to the outside of the main body through the waste liquid pipe for unified treatment, realizing the protection of the spray storage platform.

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present invention or the prior art, the following will briefly introduce the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are some embodiments of the present utility model. Those skilled in the art can also obtain other drawings based on these drawings without any creative work.

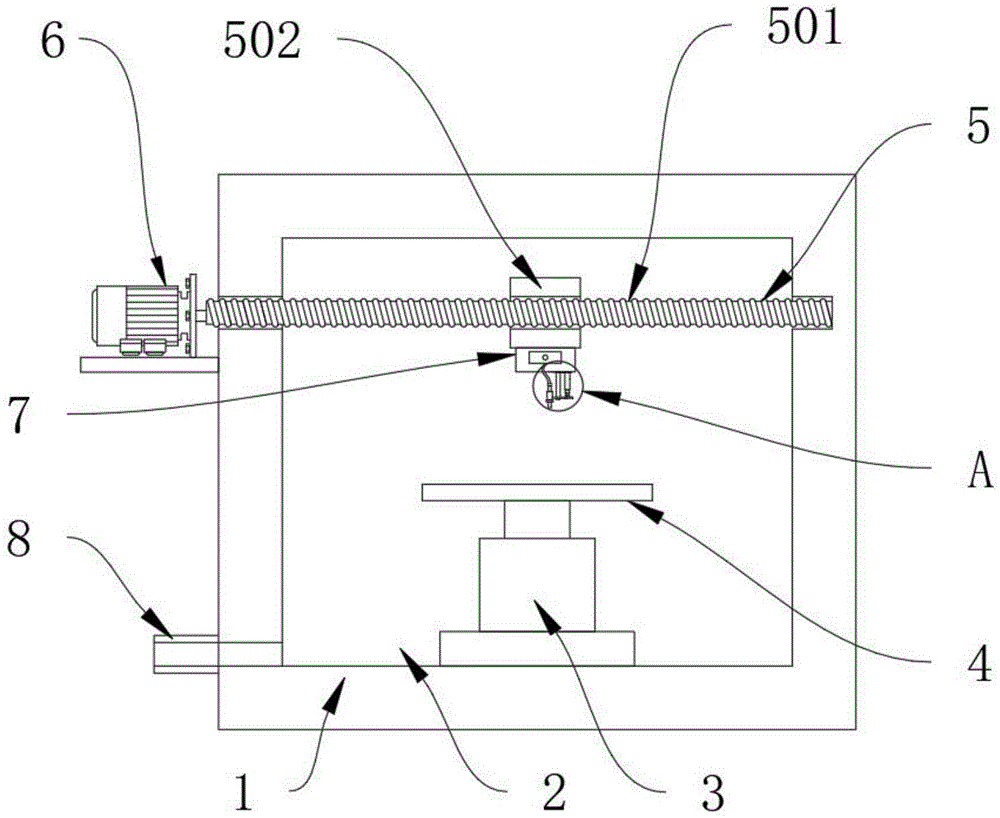

Fig. 1 is the front view sectional structure schematic diagram of the utility model;

Fig. 2 is a side view sectional structure schematic diagram of the utility model;

Fig. 3 is the top view sectional structure schematic diagram of the utility model;

Fig. 4 is a schematic diagram of a three-dimensional structure of a mobile structure of the present invention;

Fig. 5 is a schematic diagram of a partial section enlarged structure at A in Fig. 1 of the present utility model;

Fig. 6 is a side view sectional structure diagram of the adjustment structure of the present invention.

In the figure: 1. Main body; 2. Built-in cavity; 3. Hydraulic rod; 4. Fixed base; 5. Moving structure; 501. Threaded rod; 502. Sliding seat; 503. Support rod; ; 701, spray seat; 702, spray chamber; 703, gun barrel; 704, spray gun; 705, the first articulated rod; 706, the second articulated rod; ; 710, the first chute; 711, liquid inlet pipe; 8, waste liquid pipe; 9, protective structure; 901, door frame; 902, window; 903, door handle; 904, the second chute; 905, the second slide piece.

Detailed ways

In order to make the purpose, technical solutions and advantages of the embodiments of the utility model more clear, the technical solutions in the embodiments of the utility model will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the utility model. Obviously, the described The embodiments are some embodiments of the present utility model, but not all embodiments. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without creative work belong to the scope of protection of the present utility model.

In the description of the present utility model, it should be noted that, unless otherwise clearly stipulated and limited, the terms "installation", "connection" and "connection" should be understood in a broad sense, for example, it can be a fixed connection or a flexible connection. Detachable connection, or integral connection; it can be mechanical connection or electrical connection; it can be direct connection or indirect connection through an intermediary, and it can be the internal communication of two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present utility model in specific situations.

Embodiment one

Please refer to Figures 1-6. The storage platform for auto parts spraying provided by the utility model includes a main body 1, a built-in cavity 2 and a motor 6. The inside of the main body 1 is provided with a built-in cavity 2, and the bottom of the main body 1 is installed with a Hydraulic rod 3, the top of the hydraulic rod 3 is fixed with a fixed base 4, the upper part of the main body 1 is provided with a mobile structure 5, the mobile structure 5 includes a threaded rod 501, a sliding seat 502 and a support rod 503, one side of the motor 6 is fixedly connected with A threaded rod 501, a motor 6 is installed above one side of the main body 1, a waste liquid pipe 8 is arranged on one side of the built-in chamber 2, a sliding seat 502 is threaded on the outside of the threaded rod 501, and support rods are penetrated on both sides of the sliding seat 502 503 , the threaded rod 501 and the sliding seat 502 are in a threaded connection structure, and the supporting rods 503 are symmetrically distributed about the vertical center line of the sliding seat 502 .

Based on the storage platform for auto parts spraying in Example 1, the working principle is that when the spraying storage platform is in use, the accessories to be sprayed are placed on the surface of the fixed base 4 through an external power supply, and the hydraulic lever 3 is activated. Keep a relatively suitable distance between the spraying accessories and the spray gun 704, start the motor 6, and the threaded rod 501 will rotate thereupon under the drive of the motor 6, and the threaded rod 501 will drive the sliding seat 502 to slide on the outside of the support rod 503. Under the support of 503, the threaded rod 501 will not shake and cause instability, so that the spray paint sprayed by the spray gun 704 can be evenly sprayed on the surface of the auto parts.

Embodiment two

This embodiment also includes: the top of the fixed base 4 is provided with an adjustment structure 7, the adjustment structure 7 includes a spraying seat 701, a spraying chamber 702, a gun barrel 703, a spray gun 704, a first hinged rod 705, a second hinged rod 706, and a telescopic rod 707, fixed rod 708, first slide block 709, first chute 710 and liquid inlet pipe 711, the top of fixed base 4 is provided with spraying seat 701, the inside of spraying seat 701 is provided with spraying chamber 702, one end of spraying chamber 702 A gun barrel 703 is provided, and one end of the gun barrel 703 is fixed with a spray gun 704, and one side of the spray gun 704 is fixedly connected with a first hinged rod 705, and a second hinged rod 706 is hinged above the outside of the first hinged rod 705, and the spraying seat 701 The bottom end is fixedly connected with a telescopic rod 707, the bottom end of the telescopic rod 707 is fixed with a fixed rod 708, the bottom end of the telescopic rod 707 is fixedly connected with a first slider 709, and one side inside the first hinged rod 705 is provided with a first slider. The tank 710 is fixedly connected with the liquid inlet pipe 711 on one side of the spraying chamber 702 , the spray guns 704 are distributed at equal intervals at the bottom of the spraying chamber 702 , and the second hinged rod 706 and the first hinged rod 705 are in a hinged structure.

In this embodiment, when the spraying storage platform is in use, the liquid inlet pipe 711 is transported to the spraying chamber 702 through the pipeline under the action of the booster pump installed in the paint storage tank through the liquid inlet pipe 711, so the spraying paint in the spraying chamber 702 Will enter in the gun barrel 703 thereupon, make its spray gun 704 spray paint and spray on the auto parts, when needing to spray and not spray to subtle place, under the expansion and contraction action of telescoping rod 707, make its first slide block 709 in the first position Sliding in a chute 710 , and because the first hinged rod 705 and the second hinged rod 706 are in a hinged structure, the first hinged rod 705 is driven to change the angle of the spray gun 704 .

Embodiment three

This embodiment also includes: the other side of the main body 1 is equipped with a protective structure 9, the protective structure 9 includes a door frame 901, a window 902, a door handle 903, a second chute 904 and a second slider 905, and one end of the main body 1 is installed with a Door frame 901, the inside of the door frame 901 is provided with a window 902, one end of the door frame 901 is fixed with a door handle 903, so the inside of one end of the main body 1 is provided with a second chute 904, and the other end of the door frame 901 is fixedly connected with a second slider 905 , the second sliding block 905 and the second sliding slot 904 are in a sliding structure, and the second sliding block 905 is symmetrically distributed about the horizontal center line of the door frame 901 .

In this embodiment, during the spraying process, the door frame 901 is moved to one side of the main body 1, and the situation of spraying auto parts is observed through the window 902, and at the same time, the spray paint is prevented from splashing out from the inside of the built-in cavity 2 during the spraying process, causing work Environmental pollution, while the waste spray paint will be discharged to the outside of the main body 1 through the waste liquid pipe 8 for unified treatment, which realizes the protection of the spray storage platform.

In the description of the present utility model, it should be noted that, unless otherwise clearly stipulated and limited, the terms "installation", "connection" and "connection" should be understood in a broad sense, for example, it can be a fixed connection or a flexible connection. Detachable connection, or integral connection; it can be mechanical connection or electrical connection; it can be direct connection or indirect connection through an intermediary, and it can be the internal communication of two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present utility model in specific situations.

The device embodiments described above are only illustrative, and the units described as separate components may or may not be physically separated, and the components shown as units may or may not be physical units, that is, they may be located in One place, or it can be distributed to multiple network elements. Part or all of the modules can be selected according to actual needs to achieve the purpose of the solution of this embodiment. It can be understood and implemented by those skilled in the art without any creative effort.

Finally, it should be noted that: the above embodiments are only used to illustrate the technical solutions of the present utility model, and are not intended to limit it; although the utility model has been described in detail with reference to the foregoing embodiments, those of ordinary skill in the art should understand that: It is still possible to modify the technical solutions recorded in the foregoing embodiments, or to perform equivalent replacements for some of the technical features; and these modifications or replacements do not make the essence of the corresponding technical solutions deviate from the spirit of the technical solutions of the various embodiments of the present utility model. and range.

Claims (7)

1. A storage platform for auto parts spraying, comprising a main body (1), a built-in cavity (2) and a motor (6), characterized in that: the inside of the main body (1) is provided with a built-in cavity (2), the The bottom end inside the main body (1) is equipped with a hydraulic rod (3), the top end of the hydraulic rod (3) is fixed with a fixed base (4), and the upper part of the main body (1) is provided with a moving structure (5), The moving structure (5) includes a threaded rod (501), a sliding seat (502) and a support rod (503), and one side of the motor (6) is fixedly connected with a threaded rod (501); A motor (6) is installed above one side of the main body (1), and an adjustment structure (7) is provided above the fixed base (4); A waste liquid pipe (8) is arranged on one side of the built-in cavity (2), and a protective structure (9) is installed on the other side of the main body (1). 2. The storage platform for auto parts spraying according to claim 1, characterized in that: the outer side of the threaded rod (501) is threaded with a sliding seat (502), and both sides of the sliding seat (502) are A support rod (503) runs through it. 3. The storage platform for auto parts spraying according to claim 2, characterized in that: the threaded rod (501) and the sliding seat (502) are in a threaded connection structure, and the support rod (503) is connected to the sliding seat (502) The vertical centerlines are symmetrically distributed. 4. The storage platform for auto parts spraying according to claim 1, characterized in that: the adjustment structure (7) includes a spraying seat (701), a spraying chamber (702), a gun barrel (703), a spray gun ( 704), the first articulated rod (705), the second articulated rod (706), the telescopic rod (707), the fixed rod (708), the first slider (709), the first chute (710) and the liquid inlet pipe (711), the top of the fixed base (4) is provided with a spraying seat (701), the inside of the spraying seat (701) is provided with a spraying chamber (702), and one end of the spraying chamber (702) is provided with a gun pipe (703), one end of the gun barrel (703) is fixed with a spray gun (704), and one side of the spray gun (704) is fixedly connected with a first hinged rod (705), and the first hinged rod (705) A second hinged rod (706) is hinged above the outer side, a telescopic rod (707) is fixedly connected to the bottom end of the spraying seat (701), and a fixed rod (708) is fixed to the bottom end of the telescopic rod (707), The bottom end of the telescoping rod (707) is fixedly connected with a first slider (709), and one side inside the first hinged rod (705) is provided with a first chute (710), and the spray chamber (702 ) is fixedly connected with a liquid inlet pipe (711). 5. The storage platform for auto parts spraying according to claim 4, characterized in that: the spray guns (704) are distributed at equal intervals at the bottom end of the spraying chamber (702), and the second hinged rod (706 ) and the first hinged rod (705) are in a hinged structure. 6. The storage platform for auto parts spraying according to claim 1, characterized in that: the protective structure (9) includes a door frame (901), a viewing window (902), a door handle (903), and a second chute (904) and the second slider (905), a door frame (901) is installed at one end of the main body (1), and a window (902) is arranged inside the door frame (901), and the door frame (901) one by one A door handle (903) is fixed at one end, so a second sliding slot (904) is opened inside one end of the main body (1), and a second sliding block (905) is fixedly connected to the other end of the door frame (901). 7. The storage platform for auto parts spraying according to claim 6, characterized in that: the second slider (905) and the second chute (904) are in a sliding structure, and the second slider ( 905) The distribution is symmetrical about the horizontal center line of the door frame (901).
