Abstract

The utility model discloses a patient gown and trousers suitable for radiofrequency ablation surgery patients and the patient gown, belonging to the technical field of medical aids, in order to solve the problem that the existing patient gown and trousers are not easy to expose bilateral femoral veins conveniently and its surrounding areas, the patient gown trousers suitable for radiofrequency ablation surgery patients include trousers front piece (1) and trousers back piece (2), trousers front piece (1) contains trousers front top piece (11) and trousers front piece (11) and The trousers front lower part (12), the lower end of the trousers front top part (11) is positioned at the knee part (3) of the trousers of the hospital gown, and the outside of the trousers front top part (11) passes through the outside of the trousers back part (2) Velcro (7) connects, and the inboard of trousers front upper piece (11) is also connected by Velcro (7) with the inboard of trousers back piece (2). The front part of the trousers and the back part of the trousers are connected by Velcro, and the front part of the trousers can be opened at any time conveniently, which is convenient for observing the skin condition of the bilateral femoral vein puncture site.

Description

Patient gown trousers and patient gown suitable for patients undergoing radiofrequency ablation

technical field

The utility model relates to the technical field of medical aids, in particular to a patient gown trousers suitable for patients undergoing radiofrequency ablation operations, and a patient gown suitable for patients undergoing radiofrequency ablation operations.

Background technique

Cardiac radiofrequency ablation is a method of interventional treatment for tachyarrhythmia. Usually, before radiofrequency ablation, nurses need to prepare the patient's bilateral femoral veins. Radiofrequency ablation under general anesthesia also requires preoperative catheterization. After the operation, the bilateral femoral veins need to be compressed with sandbags for 6-8 hours, and they need to stay in bed for 12 hours. From day 3 to day 3, it is still necessary to observe the skin condition of the puncture site every shift. Traditional patient gowns are more integrated, and it is necessary to take off the trousers of the patient gown to carry out the above operations, especially for obese or critically ill patients with inconvenient activities, which will increase the workload of medical staff and is not convenient for catheterization Tube fixation.

Utility model content

In order to solve the problem that the patient gown and trousers are not easily and conveniently exposed to the bilateral femoral veins and its surrounding areas, the utility model provides a kind of patient gown trousers and a patient gown suitable for patients undergoing radiofrequency ablation surgery. Patient gown trousers for radiofrequency ablation surgery patients include trousers front piece and trousers back piece. The front piece of trousers and the back piece of trousers are connected by Velcro. skin condition.

The technical scheme that the utility model solves its technical problem adopts is:

Patient gown trousers suitable for patients undergoing radiofrequency ablation operations, comprising a trousers front piece and a trousers back piece that are laminated front and back, the trousers front piece includes a trousers front top piece and a trousers front bottom piece that are arranged up and down, and the lower end of the trousers front top piece Located at the knee part of the patient gown trousers, the upper end of the trousers front top is located at the trouser waist of the patient gown trousers, the outer side of the trousers front top is located at the outer trouser line of the patient gown trousers, the trousers front top The outside of the trousers is connected by Velcro with the outside of the trousers rear panel, the inboard of the trousers front upper panel is positioned at the inside trouser line of the patient gown trousers, and the inboard of the trousers front upper panel is also connected by a Velcro with the inboard of the trousers rear panel.

The patient gown suitable for patients undergoing radiofrequency ablation further includes an annular elastic waistband, which is located at the waist of the patient gown.

The upper end of the back piece of trousers and the upper end of the front top piece of trousers are all connected with the elastic waistband as a whole.

The lower end of the trousers front upper piece and the upper end of the trousers front lower piece are also connected by Velcro.

The trousers front top contains a left front top and a right front top which are symmetrically arranged, and the left front top and the right front top are mirror images of each other.

The left front upper piece and the right front upper piece are also connected by Velcro.

The velcro has a velcro hook surface and a velcro texture surface, and the velcro hook surface is located on the outside and inside of the back panel of the trousers.

The Velcro has a Velcro hook surface and a Velcro wool surface. The front top of the trousers has two lower ends symmetrically arranged. a lower end.

The front lower part of the trousers is connected with the back part of the trousers as a whole, and the lower end of the front upper part of the trousers is located at the upper end of the knee part of the trousers of the patient suit.

A patient gown suitable for patients undergoing radiofrequency ablation surgery, comprising a patient gown top and a patient gown trousers, wherein the patient gown trousers are the above-mentioned patient gown trousers suitable for patients undergoing radiofrequency ablation surgery.

The beneficial effects of the utility model are:

1. The front upper part of the trousers can be opened at any time conveniently, which is convenient for observing the skin condition of the bilateral femoral vein puncture, and avoids the need for nurses to take off the trousers of the patient’s trousers every shift to observe the patient’s wound, especially for obese and critically ill indwelling tubes For patients with many roads, the workload can be reduced, and laborious, time-consuming and labor-intensive can be avoided.

2. Preoperative skin preparation, indwelling catheters, and cleaning and disinfection of urinary catheters can all be performed by opening the front of the trousers, making the nursing operation fast and convenient.

3. The exposed area of the patient can be reduced as much as possible to keep warm.

4. The structure is simple and easy to use.

Description of drawings

The accompanying drawings constituting a part of this application are used to provide a further understanding of the utility model, and the schematic embodiments of the utility model and their descriptions are used to explain the utility model, and do not constitute improper limitations to the utility model.

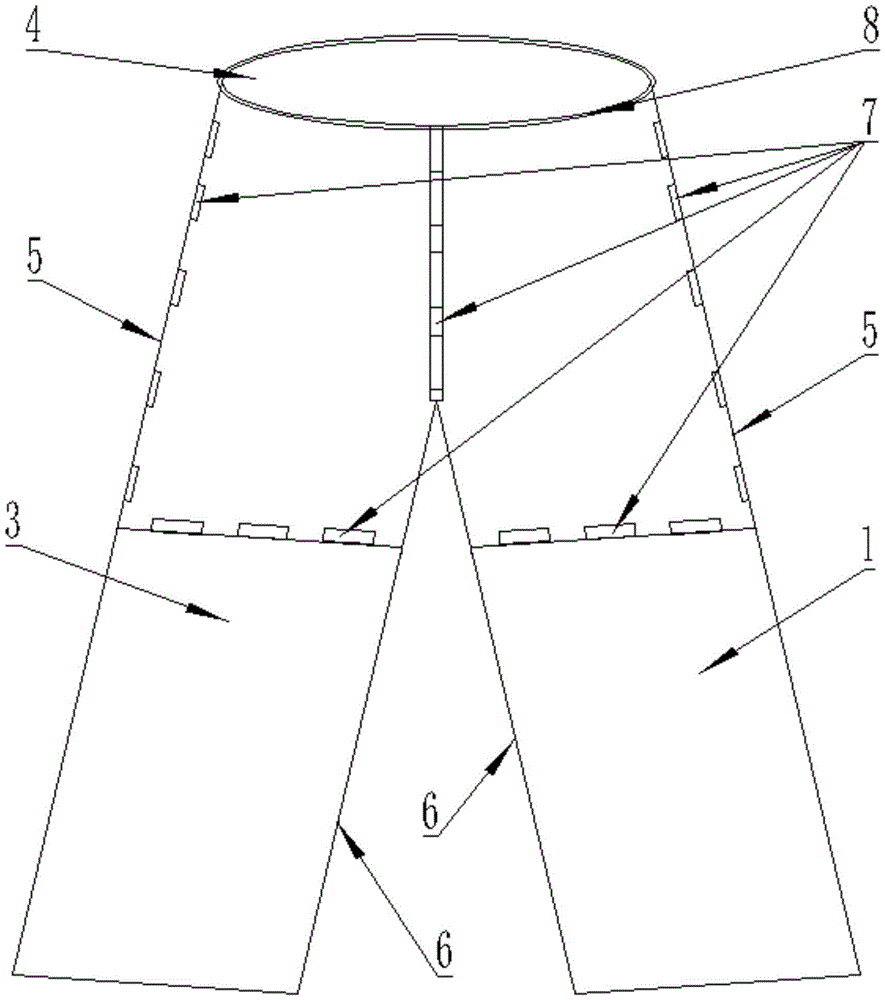

Fig. 1 is a schematic diagram of the patient gown and trousers suitable for patients undergoing radiofrequency ablation according to the present invention.

Figure 2 is a schematic view of the trouser front.

Figure 3 is a schematic view of the back panel of the trousers.

Fig. 4 is a schematic diagram of the front top panel of the trousers.

Fig. 5 is a schematic diagram of the left front upper piece.

Figure 6 is a schematic diagram of the right front upper piece.

1. Front part of trousers; 2. Back part of trousers; 3. Knee part; 4. Trouser waist part; 5. Outer trouser line; 6. Inner trouser line; 7. Velcro; 8. Elastic waistband;

11. Front top of trousers; 12. Front bottom of trousers;

71. Velcro hook surface; 72. Velcro rough surface;

111. Left front upper film; 112. Right front upper film.

Detailed ways

It should be noted that, in the case of no conflict, the embodiments in the present application and the features in the embodiments can be combined with each other. The utility model will be described in detail below with reference to the accompanying drawings and in conjunction with the embodiments.

A kind of patient gown trousers suitable for patients undergoing radiofrequency ablation surgery, comprising a trousers front panel 1 and a trousers rear panel 2 stacked front and back, the trousers front panel 1 includes a trousers front upper panel 11 and a trousers front lower panel 12 arranged up and down, and the trousers The lower end of the front upper piece 11 is positioned at the knee part 3 of the patient's trousers (after the patient puts on the patient's trousers, the position corresponding to the patient's knee on the patient's trousers), the trousers front upper piece 11 The upper end of the trousers is located at the trouser waist portion 4 of the patient gown trousers, the outer side of the trousers front upper piece 11 is located at the outer trouser line 5 of the patient gown trousers, the outer side of the trousers front top piece 11 and the outer side of the trousers back panel 2 pass through the magic Paste 7 to connect, the inboard of trousers front upper piece 11 is positioned at the inner trouser line 6 of described patient suit trousers, the inboard of trousers front upper piece 11 and the inboard of trousers rear panel 2 are also connected by velcro 7, as shown in Fig. 1 to Fig. 4.

In this embodiment, the patient gown trousers suitable for radiofrequency ablation surgery patients also include an annular elastic waistband 8, which is a closed annular structure, and the elastic waistband 8 can adopt an existing rubber elastic band, and the elastic waistband 8 is located The waist part 4 of the patient gown trousers, that is, the elastic waistband 8 is located at the upper end of the patient gown trousers, and the elastic waistband 8 extends along the circumferential direction of the upper end of the patient gown trousers.

In the present embodiment, the upper end of the trousers rear panel 2 and the upper end of the trousers front upper panel 11 are all connected with the elastic waistband 8, that is, the upper end of the trousers rear panel 2 is sewn together with the elastic waistband 8, and the trousers front upper panel 11 The upper end of the trousers is also sewed as one with the elastic waistband 8, and the upper end of the trousers front top 11 and the top of the trousers back panel 2 are connected by the elastic waistband 8, and the upper end of the trousers back panel 2 and the top of the trousers front top 11 cannot break away from the elastic belt8.

In this embodiment, the lower end of the trousers front top 11 is roughly located at the knee portion 3 of the trousers of the patient gown. 40%-60% of the length of the suit trousers, the lower end of the trousers front upper panel 11 and the upper end of the trousers front lower panel 12 generally extend along the left-right direction, and the lower end of the trousers front upper panel 11 and the upper end of the trousers front lower panel 12 also Connect through Velcro 7, as shown in Figure 1 to Figure 4.

In this embodiment, the outside of the trousers front panel 1 and the trousers rear panel 2 are all located at the outer trouser line 5 of the patient gown trousers, and the insides of the trousers front panel 1 and the trousers rear panel 2 are all located at the The inner trouser line 6 of the patient's suit trousers. The trousers front upper piece 11 contains the left front upper piece 111 and the right front upper piece 112 which are symmetrically arranged, and the left front upper piece 111 and the right front upper piece 112 are mirror images of each other. The right side of the left front upper piece 111 and the left side of the right front upper piece 112 are also connected by Velcro 7, as shown in FIGS. 4 to 6 .

Velcro 7 is a product of the prior art. Velcro 7 contains Velcro hook surface 71 and Velcro hair surface 72. In order to avoid possible stabbing of the patient by the Velcro hook surface as far as possible, the Velcro hook surface 71 is located at the trousers rear panel 2 On the outside and the inside of the trousers back panel 2, a subsection of the Velcro 7 on the outside and the inside is the hook surface 71 of the Velcro, and the Velcro 7 on the outside and inside of the front top panel 11 of the trousers. Another subdivision is the Velcro rough surface 72 , as shown in FIGS. 1 to 4 .

In order to facilitate the storage of the trousers front top 11 in the open state, so as to avoid scratching against other objects, the trousers front top 11 contains two symmetrically arranged lower ends. At the lower end, the Velcro wool surface 72 is located at the other lower end of the front upper piece 11 of the trousers. Like this, after opening the trousers front top 11, one of the trousers front top 11 and the other trousers front top 11 can be correspondingly connected by the Velcro 7, as shown in FIGS. 1 to 4 .

The trousers front panel 1 contains two trousers front lower panels 12 arranged left and right symmetrically. Face 72. When the other lower end of the trousers front upper piece 11 is provided with the velcro surface 72 , the upper end of the corresponding trousers front lower piece 12 is provided with the velcro hook surface 71 .

In the present embodiment, the trousers front lower panel 12 is connected with the trousers rear panel 2 as a whole, the outside of the trousers front lower panel 12 is sewn together with the outside of the trousers rear panel 2, and the inner side of the trousers front lower panel 12 is connected with the trousers rear panel 2. The inner side is stitched together. The lower end of the trousers front upper piece 11 is located at the upper end of the knee part 3 of the patient gown trousers, and in the vertical direction, the length of the trousers front top piece 11 is the length of the patient gown trousers suitable for radiofrequency ablation surgery patients 40%-45%.

There can be multiple magic stickers 7, and a plurality of magic stickers 7 are evenly spaced along the edge of the trousers front upper piece 11. Velcro 7 is connected with trousers front upper piece 11 and trousers back piece 2 in exactly the same way as the use of Velcro 7 in the prior art. The junction of the trousers front upper piece 11 and the trousers rear panel 2 is provided with an overlapping area, and the junction of the trousers front upper panel 11 and the trousers front lower panel 12 also has an overlapping area, and the Velcro 7 is positioned at the overlapping area. The connecting area is provided with a thickened layer, and since the front upper sheet 11 of the trousers needs to be opened and closed many times, the thickened layer can improve the service life of the trousers of the patient's suit.

The following introduces a patient gown suitable for radiofrequency ablation surgery patients. The patient gown suitable for radiofrequency ablation patients includes a patient gown top and a patient gown trousers. Patient gown trousers for patients undergoing ablation surgery, and prior art products can be used for the top of the patient gown.

The following describes how to use the patient gown and trousers suitable for patients undergoing radiofrequency ablation.

Under normal circumstances, when the patient puts on the trousers of the hospital gown, the orientation of the front top piece 11 of the trousers and the patient's face is the same (as both facing forward), and the front top piece 11 of the trousers is in a closed state. Connect with the outside of trousers rear panel 2 by Velcro 7, the inboard of trousers front upper panel 11 is also connected by Velcro 7 with the inboard of trousers rear panel 2, the lower end of trousers front upper panel 11 and the upper end of trousers front lower panel 12 also Attached via Velcro 7. When needing to open the trousers front top 11, tear the above-mentioned Velcro 7, the outside of the trousers front top 11 is separated from the outside of the trousers back 2, the inside of the trousers front top 11 is separated from the inside of the trousers back 2, and the trousers front The lower end of the upper piece 11 and the upper end of the front lower piece 12 of the trousers are also disengaged. At this time, the front upper piece 11 of the trousers is in an open state, and the bilateral femoral vein and its surrounding areas can be exposed, which is convenient for observing the punctured part of the bilateral femoral vein. Condition.

Because the front upper piece 11 of the trousers can be opened at any time conveniently, it is convenient to observe the skin condition of the bilateral femoral vein puncture site, and it is avoided that the nurse needs to take off the patient trousers when observing the patient’s wound every shift, especially for obese and critically ill indwelling tubes For patients with many roads, the workload can be reduced, and laborious, time-consuming and labor-intensive can be avoided. In addition, during preoperative skin preparation, indwelling catheter, and cleaning and disinfection of urinary catheter, the front top panel 11 of the trousers can be opened for operation, making the nursing operation fast and convenient. The mode of only opening the top sheet 11 before the trousers can reduce the exposed area of the patient every time as much as possible, so as to keep warm.

In order to facilitate understanding and description, the utility model adopts absolute positional relationship for expression. If there is no special explanation, the orientation word "upper" indicates the upper side direction in Figure 1, and the orientation word "down" indicates the lower direction in Figure 1. Lateral direction, the orientation word "left" indicates the right direction in Figure 1, the orientation word "right" indicates the left direction in Figure 1, and the orientation word "front" indicates that it is perpendicular to the paper in Figure 1 and points to the outside of the paper The orientation word "back" indicates the direction perpendicular to the paper in Figure 1 and pointing to the inside of the paper. The utility model is described using the viewing angle of the user, but the above-mentioned orientation words cannot be understood or interpreted as limiting the protection scope of the utility model.

The above is only a specific embodiment of the utility model, and it cannot limit the scope of utility model implementation, so the replacement of its equivalent components, or the equivalent changes and modifications made according to the patent protection scope of the utility model should still belong to areas covered by this patent. In addition, the technical features and technical features, technical features and technical solutions, and technical solutions and technical solutions in the utility model can be used in free combination.

Claims (10)

1. Patient trousers suitable for radio frequency ablation operation patient, a serial communication port, patient trousers suitable for radio frequency ablation operation patient include trousers anter (1) and trousers back part (2) of range upon range of setting around, trousers anter (1) contain trousers anter (11) and trousers anter (12) of lower part down of setting from top to bottom, and the lower extreme of anter (11) is located patient trousers's knee position (3), the upper end of anter (11) is located patient trousers's waist of trousers position (4), the outside of anter (11) is located patient trousers's outside trousers line (5), the outside of anter (11) is connected through magic subsides (7) with trousers back part (2) outside before the trousers, and the inboard of anter (11) is located patient trousers's inboard line (6), the inboard of anter (11) is also connected through magic subsides (7) with trousers back part (2) inside.

2. The patient gown pants suitable for use on radio frequency ablation surgery patients according to claim 1, characterized in that the patient gown pants suitable for use on radio frequency ablation surgery patients further comprise an annular elastic waistband (8), the elastic waistband (8) being located at the waist portion (4) of the patient gown pants.

3. Patient clothing pants suitable for radiofrequency ablation surgery patients according to claim 2, characterized in that the upper end of the pants back panel (2) and the upper end of the pants front upper panel (11) are connected as one piece with an elastic waistband (8).

4. Patient clothing pants suitable for radiofrequency ablation surgery patients according to claim 1, characterized in that the lower end of the front upper pants piece (11) and the upper end of the front lower pants piece (12) are also connected by means of velcro (7).

5. Patient trousers suitable for radiofrequency ablation surgery patients according to claim 1, characterized in that the trousers front upper piece (11) comprises a left front upper piece (111) and a right front upper piece (112) which are arranged in bilateral symmetry, the left front upper piece (111) and the right front upper piece (112) being mirror images of each other.

6. Patient trousers suitable for radiofrequency ablation surgery patients according to claim 5, characterized in that the left front upper piece (111) and the right front upper piece (112) are also connected by means of velcro (7).

7. Patient clothing trousers suitable for radiofrequency ablation surgery patients according to claim 1, characterized in that the velcro (7) contains velcro hook surface (71) and velcro loop surface (72), the velcro hook surface (71) being located on the outside and inside of the trousers back piece (2).

8. The patient clothing trousers suitable for radio frequency ablation surgery patients according to claim 1, wherein the velcro (7) comprises a velcro hook surface (71) and a velcro loop surface (72), the trousers front upper piece (11) comprises two lower ends which are symmetrically arranged left and right, the velcro hook surface (71) is positioned at one lower end of the trousers front upper piece (11), and the velcro loop surface (72) is positioned at the other lower end of the trousers front upper piece (11).

9. Patient clothing trousers suitable for radiofrequency ablation surgery patients according to claim 1, characterized in that the trousers front lower piece (12) is connected with the trousers rear piece (2) as a whole, the lower end of the trousers front upper piece (11) is located at the upper end of the knee part (3) of the patient clothing trousers.

10. The patient clothing suitable for the radio frequency ablation surgery patient is characterized by comprising a patient clothing coat and patient clothing trousers, wherein the patient clothing trousers are the patient clothing trousers suitable for the radio frequency ablation surgery patient according to claim 1.
