Abstract

The utility model discloses a wood cutting machine, which comprises an operating table. A plurality of brackets are arranged at the bottom part of the operating table. The brackets extend obliquely and then are supported on the ground. The end of the bracket far away from the operating table is bent to form a connecting part. , the connecting hole is vertically penetrated at the top of the connecting part, a motor is arranged under the operating table, a saw blade is arranged at the output end of the motor, and a saw blade groove is arranged on the top of the operating table, and a part of the saw blade passes through the The saw blade groove extends to the top of the console, and a switch for controlling the motor is installed in the box at the bottom of the console, which also includes a movable table, an elastic anti-vibration component and a supporting plate; The jacking and compaction reduce the vibration during the cutting process of the board.

Description

A wood cutting machine

technical field

The utility model relates to a wood cutting machine.

Background technique

Existing wood processing and cutting machines usually require operators to press and push the wood boards to be processed by hand when processing wood boards. The boards are prone to vibration during the cutting process, resulting in cracking of the boards, especially synthetic wood boards.

In view of the above problems, the patent notification number CN 217072683 U announced a wood cutting machine, including a bracket, a cutting assembly and a dust removal assembly are installed on the bracket, and the cutting assembly includes a fixing plate mounted on the bracket and a A sliding plate that is movably connected to the fixed plate, a first driver is installed on the fixed plate, the first driver is toothed with the sliding plate, and a locking member is detachably connected to the sliding plate, the The locking piece is used to lock the template on the sliding plate.

In this technical solution, it is necessary to fix the cut wooden board on the sliding board and fix it through the locking member. Although this method can effectively avoid the vibration of the wooden board, each operation needs to fix the wooden board, no matter how complicated it is. Compression operation, for the assembly line cutting operation of wood boards, this fixing method is undoubtedly extremely inefficient.

Based on the above problems, we designed a wood cutting machine that can automatically jack up and compact the wood by pushing it in, reducing the vibration during the wood cutting process.

Utility model content

The technical problem to be solved by the utility model is to provide a wood cutting machine which can automatically jack up and compact the wood board by pushing it in, so as to reduce the vibration during the cutting process of the wood board.

In order to solve the above problems, the utility model adopts the following technical solutions:

A wood cutting machine, comprising an operating table, a plurality of brackets are arranged at the bottom of the operating table, the brackets extend obliquely and then supported on the ground, the end of the bracket away from the operating table is bent to form a connecting part, and the connecting part The top vertically penetrates through the connecting hole, and a motor is arranged under the console, the output end of the motor is provided with a saw blade, and a saw blade groove is arranged on the top of the console, and a part of the saw blade extends through the saw blade groove To the top of the operating table, a switch for controlling the motor is installed in the bottom of the operating table, and also includes,

Movable table, the movable table is slidably matched with the operating table, a baffle is arranged on the top of the movable table, the distance from the baffle to the saw blade is the distance for cutting the plate,

an elastic anti-vibration component, the elastic anti-vibration component cooperates with the movable table, and the elastic anti-vibration component acts on the surface of the cut plank,

The supporting plate, the supporting plate is erected between a plurality of the brackets, the supporting plate is located under the motor, a sawdust trough is arranged on the surface of the supporting plate, and a sawdust trough is provided on the trough wall of the sawdust trough. A hole for the motor shaft, the saw blade is located in the sawdust trough, the saw blade trough corresponds to the sawdust trough, and the outer surface of the sawdust trough is provided with an open slot for discharging sawdust.

Preferably, two right-angled slots are provided at the end face of the console corresponding to the movable table, and slots are provided at the bottom of the right-angled slots, and the movable table corresponds to the end face of the console An insertion rod is arranged at the position, and the insertion rod is inserted into the slot, and a locking screw is arranged at the bottom of the console, and the locking screw is screwed in and against the insertion rod, and the position of the insertion rod is fixed at this time.

Preferably, the elastic anti-vibration assembly includes a sliding seat, the sliding seat is detachably connected to a shaft, the shaft is sleeved with a pressure roller, and a bearing is fitted between the pressure roller and the shaft , a chute is vertically arranged on the surface of the baffle, the sliding seat fits in the chute, a guide rod is vertically arranged in the chute, and the guide rod passes through the chute The slide seat is provided with a spring on the guide rod, and the spring acts on the top of the slide seat, and an adjustment nut is provided on the guide rod, and the adjustment nut is limited to the upper end of the spring.

Preferably, the sliding seat includes a T-shaped block, one end of the T-shaped block is inserted into the chute, and the other end is limited on the surface of the baffle plate, and one end of the T-shaped block is matched with a cover plate, The cover plate is limited on the other surface of the baffle plate.

Preferably, the part of the supporting plate corresponding to the sawdust trough is obliquely bent downward to form a discharge part, and the opening groove is located at a lower part of the discharge part.

The device operates as follows:

First, adjust the position of the movable table according to the selected cutting width, so that the distance between the baffle and the saw blade is the required cutting width.

Restart the motor, wait for the saw blade to stabilize its speed, and then push the board in. After the board is pushed in, the elastic anti-vibration assembly rolls the pressure roller. The elastic anti-vibration assembly does not affect the pushing of the wood board. The vibration and bounce generated during the cutting process pass The elastic anti-vibration component can effectively avoid or alleviate it, and ensure that the cutting edge of the board is smooth.

The beneficial effects of the utility model are:

This device realizes the support of the cut wooden board through the cooperation of the operation table and the movable table. The position of the movable table is adjustable, which is convenient for adjusting the width of sawing. Acting on the surface of the wooden board, the elastic anti-vibration component is rollable, so it does not affect the pushing of the wooden board while satisfying the compression. This device saves the step of fixing the wooden board separately, greatly improves the processing efficiency, and is suitable for popularization and use .

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present invention or the prior art, the following will briefly introduce the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are only some embodiments of the utility model, and those skilled in the art can also obtain other drawings based on these drawings without creative work.

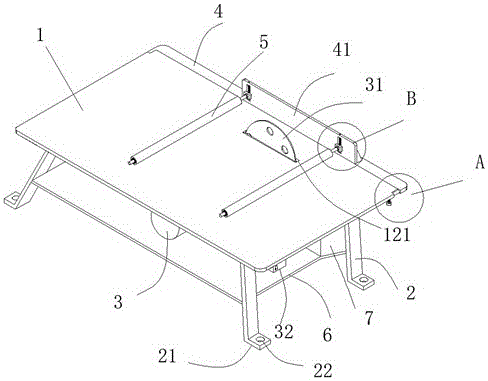

Fig. 1 is the structural representation of the utility model;

Figure 2 is an enlarged view of A;

Figure 3 is an enlarged view of B;

Fig. 4 is the schematic diagram of slider;

Figure 5 is a schematic diagram of the pallet.

Detailed ways

All features disclosed in this specification, or steps in all methods or processes disclosed, may be combined in any manner, except for mutually exclusive features and/or steps.

Any feature disclosed in this specification (including any appended claims, abstract and drawings), unless expressly stated otherwise, may be replaced by alternative features which are equivalent or serve a similar purpose. That is, unless expressly stated otherwise, each feature is one example only of a series of equivalent or similar features.

In the description of the present invention, it should be understood that the terms "one end", "the other end", "outside", "upper", "inside", "horizontal", "coaxial", "central", "end The orientation or positional relationship indicated by "part", "length", "outer end", etc. is based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the utility model and simplifying the description, rather than indicating or implying No device or element must have a specific orientation, be constructed and operate in a specific orientation, and thus should not be construed as limiting the invention.

In addition, in the description of the present invention, "plurality" means at least two, such as two, three, etc., unless otherwise specifically defined.

In this utility model, unless otherwise clearly specified and limited, terms such as "setting", "socketing", "connecting", "through", and "inserting" should be understood in a broad sense, for example, it can be a fixed connection , can also be detachable connection, or integrated; can be mechanical connection, can also be electrical connection; can be directly connected, can also be indirectly connected through an intermediary, can be the internal communication of two components or the mutual connection of two components Functional relationship, unless expressly defined otherwise. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present utility model according to specific situations.

Referring to a wood cutting machine shown in Figures 1 to 5, it includes an operating table 1, and a plurality of supports 2 are provided at the bottom of the operating table 1. The supports 2 are supported on the ground after extending obliquely outwards, and the supports 2 are far away from the operating table. That end of table 1 is bent to form connecting portion 21, vertically penetrates through connecting hole 22 at the top of connecting portion 21, a motor 3 is arranged below console 1, and the output end of motor 3 is provided with saw blade 31, in operation The top of the table 1 is provided with a saw blade groove 121, and a part of the saw blade 3 extends to the top of the operation table 1 through the saw blade groove 121, and a control box for controlling the motor 3 is mounted on the bottom of the operation table 1. switch 32, further comprising,

Movable table 4, described movable table 4 is slidably matched with described operating table 1, and a baffle plate 41 is arranged on the top of described movable table 4, and the distance from described baffle plate 41 to described saw blade 31 is the distance of cutting plate , in the above-mentioned technical scheme, the adjustable movable table 4 can adapt to the cutting needs of wider width planks,

The elastic anti-vibration assembly 5, the elastic anti-vibration assembly 5 cooperates with the movable table 4, the elastic anti-vibration assembly 5 acts on the surface of the cut plank, and the elastic anti-vibration assembly 5 can act on the surface of the cut plank surface, reduce the vibration of the wood during cutting, and ensure the smoothness of the cutting edge,

Supporting plate 6, described supporting plate 6 is erected between a plurality of described brackets 2, and described supporting plate 6 is positioned at the below of described motor 3, and a sawdust groove 7 is arranged on the plate surface of supporting plate 6, in sawdust groove 7 A hole 72 passing through the motor shaft is provided at the wall of the groove, the saw blade 31 is located in the sawdust groove, the saw blade groove 121 corresponds to the sawdust groove 7, and the outer surface of the sawdust groove 7 is provided with There is an open slot 71 for discharging sawdust. Supporting plate 6 can be used for storage, and the setting of sawdust groove 7 can collect the sawdust that produces when sawing plank.

In a preferred embodiment of the present utility model, two right-angle grooves 131 are arranged at the end face of the operating table 1 corresponding to the movable table 4, and slots (not As shown in the figure), the movable table 4 is provided with an insertion rod 42 at the end face corresponding to the operation table 1, and the insertion rod 42 is inserted into the slot, and a locking screw 141 is provided at the bottom of the operation table 1, and the locking After screwing in, the screw 141 bears against the insertion rod 42 , and the position of the insertion rod 42 is fixed at this time.

The movable table 4 is adjusted by sliding the insertion rod 42 along the slot, and the length of the insertion rod 42 is slightly smaller than the width of the console 1 .

In a preferred embodiment of the present utility model, the elastic anti-vibration assembly 5 includes a sliding seat 51, and the sliding seat 51 is detachably connected with a shaft 52, and a pressure roller 53 is sleeved on the shaft 52, A bearing (not shown) is fitted between the pressure roller 53 and the shaft 52, and a slide groove 441 is vertically provided on the surface of the baffle plate 41, and the slide seat 51 fits on the slide In the groove 441, a guide rod 442 is vertically arranged in the chute 441, the guide rod 442 passes through the slide seat 51, and a spring 443 is arranged on the guide rod 442, and the spring 443 acts on the slide seat 51 , an adjusting nut 444 is provided on the guide rod 442 , and the adjusting nut 444 is limited to the upper end of the spring 443 .

Using the pressure roller 53, under normal conditions, the pressure roller 53 fits or is close to the upper surface of the console 1, and the pressure roller 53 is lifted up with the insertion of the plank. At this time, the spring 443 provides a rebound force after being compressed, so that the pressure roller 53 is pressed. On the surface of the board, reduce the vibration of the board during cutting.

In a preferred embodiment of the present invention, the sliding seat 51 includes a T-shaped block 511, one end of the T-shaped block 511 is inserted into the sliding groove 441, and the other end is limited on the surface of the baffle plate 41 One end of the T-shaped block 511 is matched with a cover plate 512 , and the cover plate 512 is limited on the other surface of the baffle plate 41 .

In a preferred embodiment of the present utility model, the part of the supporting plate 6 corresponding to the sawdust trough 7 is obliquely bent downward to form a discharge part 61, and the opening groove 71 is located at the top of the discharge part 61. low.

The discharge part 61 can accumulate the sawdust toward the lower place, which is convenient for sorting and discharging the sawdust.

It should be noted that the terminology used here is only for describing specific implementations, and is not intended to limit the exemplary implementations according to the present application. As used herein, unless the context clearly dictates otherwise, the singular is intended to include the plural, and it should also be understood that when the terms "comprising" and/or "comprising" are used in this specification, they mean There are features, steps, operations, means, components and/or combinations thereof.

The relative arrangements of components and steps, numerical expressions and numerical values set forth in these embodiments do not limit the scope of the present invention unless specifically stated otherwise. At the same time, it should be understood that, for the convenience of description, the sizes of the various parts shown in the drawings are not drawn according to the actual proportional relationship. Techniques, methods and devices known to those of ordinary skill in the relevant art may not be discussed in detail, but where appropriate, such techniques, methods and devices should be considered part of the Authorized Specification. In all examples shown and discussed herein, any specific values should be construed as illustrative only, and not as limiting. Therefore, other examples of the exemplary embodiment may have different values. It should be noted that like numerals and letters denote like items in the following figures, therefore, once an item is defined in one figure, it does not require further discussion in subsequent figures.

For the convenience of description, spatially relative terms may be used here, such as "on", "above", "on the surface", "above ", etc., are used to describe the spatial positional relationship between one device or feature and other devices or features as shown in the figure. It will be understood that the spatially relative terms are intended to encompass different orientations of the device in use or operation in addition to the orientation depicted in the figures. For example, if the device in the figures is turned over, devices described as "above" or "above" other devices or configurations would then be oriented "beneath" or "above" the other devices or configurations. under other devices or configurations”. Thus, the exemplary term "above" can encompass both an orientation of "above" and "beneath". The device may be otherwise oriented (rotated 90 degrees or at other orientations) and the spatially relative descriptions used herein interpreted accordingly.

It should be noted that the terminology used here is only for describing specific implementations, and is not intended to limit the exemplary implementations according to the present application. As used herein, unless the context clearly dictates otherwise, the singular is intended to include the plural, and it should also be understood that when the terms "comprising" and/or "comprising" are used in this specification, they mean There are features, steps, operations, means, components and/or combinations thereof.

It should be noted that the terms "first" and "second" in the description and claims of the present application and the above drawings are used to distinguish similar objects, but not necessarily used to describe a specific sequence or sequence. It is to be understood that the data so used are interchangeable under appropriate circumstances such that the embodiments of the application described herein can be practiced in sequences other than those illustrated or described herein.

The above descriptions are only preferred embodiments of the utility model, and are not intended to limit the utility model. For those skilled in the art, the utility model can have various modifications and changes. Any modification, equivalent replacement, improvement, etc. made within the spirit and principles of the present utility model shall be included in the protection scope of the present utility model.

Claims (5)

1. The utility model provides a plank cutting machine, includes the operation panel, is equipped with a plurality of supports in the bottom portion of operation panel, supports in subaerial after the outside extension of support slope, and the support is kept away from the that one end of operation panel and is buckled and form connecting portion, runs through with the connecting hole at the top of connecting portion is vertical, is provided with a motor in the below of operation panel, and the output of motor is provided with the saw bit, is provided with the saw bit groove at the top of operation panel, the part of saw bit extends to behind this saw bit groove to the top of operation panel, install a box in the bottom of operation panel has one control the switch of motor, its characterized in that: also included is a method of manufacturing a semiconductor device,

the movable table is in sliding fit with the operating table, a baffle plate is arranged at the top of the movable table, the distance between the baffle plate and the saw blade is the distance for cutting the plate,

an elastic vibration-stopping component, which is matched with the movable table and acts on the surface of the cut wood board,

the support plate is arranged among the plurality of supports, the support plate is arranged below the motor, a sawdust groove is formed in the surface of the support plate, a hole for penetrating through a motor shaft is formed in the groove wall of the sawdust groove, the saw blade is arranged in the sawdust groove, the saw blade groove corresponds to the sawdust groove, and an opening groove for discharging sawdust is formed in the outer surface of the sawdust groove.

2. The plank cutting machine as claimed in claim 1, wherein: two right-angle grooves are formed in the position, corresponding to the end face of the movable table, of the operation table, slots are formed in the position, corresponding to the end face of the operation table, of the movable table, inserting rods are arranged in the slots, locking screws are arranged at the bottom of the operation table, the locking screws are screwed in and then abut against the inserting rods, and at the moment, the positions of the inserting rods are fixed.

3. The plank cutting machine as claimed in claim 1, wherein: the elastic vibration-damping assembly comprises a sliding seat, a shaft rod is detachably connected to the sliding seat, a pressing roller is sleeved on the shaft rod, a bearing is matched between the pressing roller and the shaft rod, a sliding groove is vertically formed in the plate surface of the baffle plate, the sliding seat is matched in the sliding groove, a guide rod is vertically arranged in the sliding groove, the guide rod penetrates through the sliding seat, a spring is arranged on the guide rod and acts on the top of the sliding seat, an adjusting nut is arranged on the guide rod, and the adjusting nut is limited at the upper end of the spring.

4. A board cutter according to claim 3, wherein: the sliding seat comprises a T-shaped block, one end of the T-shaped block is inserted into the sliding groove, the other end of the T-shaped block is limited on the surface of the baffle, a cover plate is matched with one end of the T-shaped block, and the cover plate is limited on the other surface of the baffle.

5. The plank cutting machine as claimed in claim 1, wherein: the part of the supporting plate corresponding to the sawdust groove is bent obliquely downwards to form a discharging part, and the opening groove is positioned at the lower part of the discharging part.
