Abstract

The utility model discloses a pest trapping processor, which relates to the technical field of pest control, comprising four first through holes respectively provided on the bottom plate, barbed ground nails are arranged in the first through holes, and upright posts are arranged on the bottom plate. There is a horizontal plate on one side of the column, and a height adjustment device for adjusting the height of the horizontal plate is installed between the column and the horizontal plate. There is a first groove in the horizontal plate, and a collection box is installed sliding in the first groove. A handle is provided; a box is provided on the horizontal plate, a second groove is provided on the top wall of the box, a first turntable is provided in the second groove, a number of second through holes are respectively provided on the side walls of the box, and a number of second through holes are provided on the bottom of the box. There is a through hole at the connection between the wall and the top wall of the horizontal plate, a cross is arranged in the through hole, a second turntable is arranged on the cross, a high-voltage power grid is set between the first turntable and the second turntable, and a number of traps are set on the inner circumference of the high-voltage power grid. The utility model has the advantages of simple and reliable structure, good trapping effect on pests, convenient control, and is suitable for popularization.

Description

A pest trap processor

technical field

The utility model relates to the technical field of pest control, in particular to a pest trap processor.

Background technique

In the human and biosphere, forestry is engaged in the cultivation, protection and utilization of forest resources through advanced science and technology and management methods, giving full play to the multiple benefits of forests, and sustainable management of forest resources, promoting population, economy, society, environment and resources. Coordinated development of basic industries and social welfare undertakings. However, forestry seedlings are vulnerable to pest damage, and pest trapping processors are required.

The utility model whose patent number is CN216853540U discloses a forestry pest trapping device, which relates to the technical field of forestry devices and includes a mounting plate, a hanging ring is fixed on the top of the mounting plate, and a trapping box and a first motor are respectively installed on the bottom of the mounting plate. The utility model is provided with a second chute, a second slider, a groove, a third chute, a spring, a limit block, an extruding block and a filter screen, and after the pests are killed by cutting the blades, the pests will All fall on the screen, at this time, the staff can squeeze the extrusion block, so that the extrusion block squeezes the limit block and slides in the third chute, and at the same time, the limit block will squeeze the spring and move toward the groove. After the limit block is stored in the groove, the staff can pull down the filter screen, so that the filter screen drives the second slider to slide down in the second chute to remove the filter screen, and all the pests pass through Residues on the filter net, so that the staff no longer need to clean the inside of the trapping box, effectively reducing the difficulty of cleaning the staff.

Existing pest trapping processors can only lure certain types of pests. If the trapping device is installed too high, it will be difficult to catch some pests that are small in size and weak in flying ability; If the installation position of the trapping treatment device is too low, it will be difficult to catch some large and strong flying pests, and the pests cannot be effectively controlled, resulting in a small limitation in the range of trapping pests, and it is inconvenient for the power grid. If the surface is cleaned, too much dust and pest residues on the surface of the power grid will affect the normal use of the power grid, resulting in poor trapping effect.

Utility model content

Aiming at the above problems, the utility model provides a pest trapping processor, which solves the problem that the pest trapping range of the existing pest trapping processor is small.

The technical solution of the utility model is: a pest trapping processor, including a bottom plate and a column;

The base plate is respectively provided with four first through holes, the first through holes are provided with barbed ground nails, the base plate is provided with a column, the side of the column is provided with a horizontal plate, and the column and A height adjustment device for adjusting the height of the horizontal plates is provided between the horizontal plates, a first groove is provided in the horizontal plate, a collection box is slid in the first groove, and a handle is provided on the outside of the collection box;

A box is provided on the horizontal plate, a second groove is provided on the top wall of the box, a first turntable is provided in the second groove, and a plurality of second through holes are respectively provided on the side walls of the box , the connection between the bottom wall of the box and the top wall of the horizontal plate is provided with a through hole, a cross is provided in the through hole, a second turntable is arranged on the cross, and a second turntable is set between the first turntable and the second turntable. There is a high-voltage power grid, and a number of trapping lamp tubes are arranged on the inner circumference of the high-voltage power grid, and the two ends of the trapping lamp tubes are respectively connected to the first turntable and the second turntable;

A cleaning component is provided on the outside of the high-voltage grid.

Further, the height adjusting device includes a connection block, a first threaded rod, a first bevel gear, a first rotating shaft, a second bevel gear and a first handle, the side wall of the column is provided with a third groove, and the first There is a first threaded rod in the three grooves, the two ends of the first threaded rod are connected to the inner wall of the third groove in rotation, and a connecting block is screwed on the first threaded rod, and the connecting block is connected to the third groove The side wall is slidingly connected, one side of the connecting block is connected to the horizontal plate, a fourth groove is provided under the third groove, and one end of the first threaded rod rotates through the inner wall of the third groove and the fourth groove A first bevel gear is sleeved, and a matching second bevel gear is provided on one side of the first bevel gear, and the second bevel gear is engaged with the first bevel gear, and the second bevel gear runs through a A rotating shaft, both ends of the first rotating shaft are rotatably connected to the inner wall of the fourth groove, and one end of the first rotating shaft rotates through the inner wall of the fourth groove and is connected with a first handle.

Further, the side wall of the third groove is provided with a fifth groove, and the connecting block is provided with a first protrusion matching the fifth groove, and the first protrusion is slidably connected to the fifth groove. in the slot.

Further, the cleaning assembly includes a second rotating shaft, a brush, a fixed rod, a second threaded rod, a second handle, a second protrusion and a motor, the motor is provided on the box, and the first turntable and the second A second rotating shaft is arranged between the two rotating discs, the second rotating shaft is located inside the trapping lamp tube, the first end of the second rotating shaft passes through the first rotating disc and is connected to the output shaft of the motor, the motor drives the second rotating shaft, and the second rotating shaft The second end of the second rotating shaft passes through the second turntable and is connected to the cross in rotation. A sixth groove is arranged on one side of the second groove, and a second threaded rod is arranged in the sixth groove. The second threaded rod has two sides. One end of the second threaded rod is connected to the inner wall of the sixth groove in rotation, and one end of the second threaded rod rotates through the inner wall of the sixth groove to be connected with a second handle, and the second threaded rod is screwed with a second protrusion, and the second threaded rod The protrusion is slidably connected to the side wall of the sixth groove, the first end of the fixed rod is connected under the second protrusion, the second end of the fixed rod is slidably connected to the cross, and a brush is arranged inside the fixed rod.

Further, two support rods are respectively provided on the top of the column, a storage battery is provided between the two support rods, and the same solar panel is provided on the two support rods, and the solar panel is located above the storage battery. The storage battery is electrically connected to the solar panel, and the motor, the high-voltage power grid and the trapping lamp are all electrically connected to the storage battery.

Advantage of the utility model:

The utility model realizes the trapping treatment of pests with different flying heights by setting the height adjustment device, improves the range of trapping pests, and increases the applicability of the device; Clean up the corpses of pests on the net to prevent the insects from sticking to the high-voltage power grid after electrocution and affect the effect of disinfestation. The brush is in contact with the surface of the high-voltage power grid to achieve a good cleaning effect; by setting the battery and the solar panel to cooperate, the environmental protection of the pest trapping processor is greatly increased. The utility model has the advantages of simple and reliable structure, good trapping effect on pests, convenient control and suitable for popularization.

In addition to the purposes, features and advantages described above, the present invention has other purposes, features and advantages. Below with reference to figure, the utility model is described in further detail.

Description of drawings

The accompanying drawings constituting a part of this application are used to provide a further understanding of the utility model, and the schematic embodiments of the utility model and their descriptions are used to explain the utility model, and do not constitute an improper limitation of the utility model.

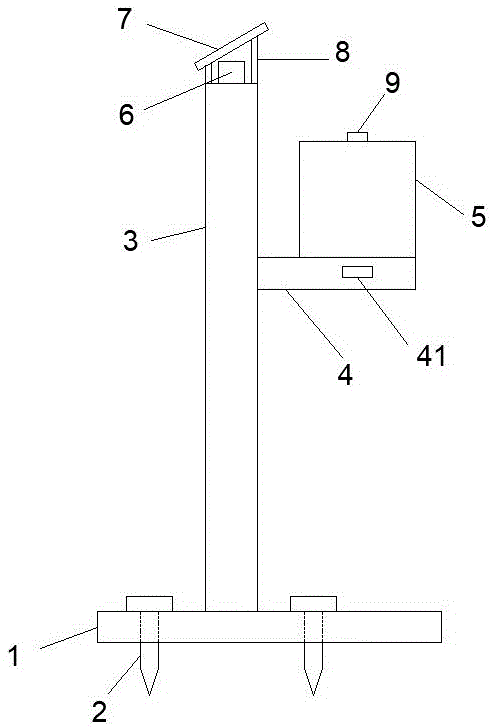

Fig. 1 is the overall structural representation of the utility model;

Fig. 2 is the overall installation schematic diagram of the utility model;

Fig. 3 is a schematic view of installation of the box body of the present utility model;

Fig. 4 is the installation schematic diagram of the connection block of the present utility model;

Fig. 5 is a schematic diagram of the installation of the cleaning assembly of the present utility model;

Fig. 6 is a schematic diagram of installation of the second threaded rod of the present invention.

Reference signs:

1 is the bottom plate, 2 is the barbed ground nail, 3 is the column, 31 is the connecting block, 32 is the first threaded rod, 33 is the first bevel gear, 34 is the first rotating shaft, 35 is the second bevel gear, 36 is the second bevel gear One protrusion, 37 is the first handle, 4 is the horizontal plate, 41 is the handle, 42 is the collection box, 5 is the box, 51 is the second rotating shaft, 52 is the high-voltage power grid, 53 is the trapping lamp, 54 is the cross, 55 is a brush, 56 is a fixed rod, 57 is a first turntable, 58 is a second turntable, 59 is a second threaded rod, 510 is a second handle, 511 is a second protrusion, 6 is a storage battery, and 7 is a solar panel , 8 is a support rod, and 9 is a motor.

Detailed ways

In order to make the purpose, technical solution and advantages of the utility model clearer, the utility model will be further described in detail below in conjunction with the accompanying drawings and embodiments. It should be understood that the specific embodiments described here are only used to explain the utility model, and are not intended to limit the utility model.

In describing the present utility model, it should be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", The orientation or positional relationship indicated by "outside" is based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the utility model and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation , are constructed and operated in a specific orientation and therefore cannot be construed as limiting the invention.

Referring to Fig. 1 to Fig. 6, a pest trapping processor includes a bottom plate 1 and a column 3;

The bottom plate 1 is respectively provided with four first through holes, and barbed ground nails 2 are installed in the first through holes, and the first through holes cooperate with the barbed ground nails 2 to fix the bottom plate 1 on the ground. There is a column 3, the base plate 1 is used to support the column 3, a horizontal plate 4 is installed on one side of the column 3, the column 3 is used to fix the horizontal plate 4, and a height adjustment device for adjusting the height of the horizontal plate 4 is installed between the column 3 and the horizontal plate 4 ;

The height adjusting device comprises a connection block 31, a first threaded rod 32, a first bevel gear 33, a first rotating shaft 34, a second bevel gear 35 and a first handle 37, and the side wall of the column 3 is provided with a third groove, and the third groove The first threaded rod 32 is installed in the groove, and the two ends of the first threaded rod 32 are rotatably connected with the inner wall of the third groove. The connecting block 31 is screwed on the first threaded rod 32, and the rotation of the first threaded rod 32 drives the connecting block 31 to lift , the connecting block 31 is slidably connected with the side wall of the third groove, the side wall of the third groove is provided with a fifth groove, the connecting block 31 is equipped with a first protrusion 36 matching with the fifth groove, the first protrusion 36 The sliding connection of the protrusion 36 is set in the fifth groove, and the fifth groove cooperates with the first protrusion 36 to ensure that the connecting block 31 slides smoothly in the third groove, and one side of the connecting block 31 is connected with the horizontal plate 4, The connecting block 31 lifts and drives the horizontal plate 4 to lift, the third groove is provided with a fourth groove, and one end of the first threaded rod 32 rotates through the third groove and the inner wall of the fourth groove is fixedly provided with a first bevel gear 33 , the first bevel gear 33 rotates to drive the first threaded rod 32 to rotate, and the first bevel gear 33 side is equipped with a matching second bevel gear 35, the second bevel gear 35 is meshed with the first bevel gear 33, and the second bevel gear The rotation of the gear 35 drives the first bevel gear 33 to rotate, the second bevel gear 35 runs through the first rotating shaft 34, the rotation of the first rotating shaft 34 drives the second bevel gear 35 to rotate, and the two ends of the first rotating shaft 34 rotate with the inner wall of the fourth groove Connected, one end of the first rotating shaft 34 rotates through the inner wall of the fourth groove and is connected with a first handle 37, and the rotation of the first handle 37 drives the first rotating shaft 34 to rotate;

The horizontal plate 4 is provided with a first groove, and a collection box 42 is installed slidingly in the first groove. The collection box 42 is used to collect the dead insects that have been electrocuted by the high-voltage power grid 52. A handle 41 is installed on the outside of the collection box 42. 41 is used for better pulling collection box 42;

A casing 5 is installed on the horizontal plate 4, and the horizontal plate 4 is used for fixing the casing 5. The top wall of the casing 5 is provided with a second groove, and a first rotating disk 57 is installed in the second groove, and the side walls of the casing 5 are respectively A plurality of second through holes are provided, and a through hole is provided at the junction of the bottom wall of the box body 5 and the top wall of the horizontal plate 4, and a cross 54 is installed in the through hole, and a second turntable 58 is installed on the cross 54, and the cross 54 is used to fix the first turntable. Two turntables 58, a high-voltage power grid 52 is installed between the first turntable 57 and the second turntable 58, the first turntable 57 and the second turntable 58 are used to fix the high-voltage power grid 52, and the high-voltage power grid 52 is used to electrocute the pests. Grid 52 inside circumference is equipped with some trapping lamp tubes 53, and trapping lamp tubes 53 are used for trapping pests, and the two ends of trapping lamp tubes 53 are connected with the first rotating disk 57 and the second rotating disk 58 respectively;

A cleaning assembly is installed on the outside of the high-voltage power grid 52, and the cleaning assembly includes a second rotating shaft 51, a hair brush 55, a fixed rod 56, a second threaded rod 59, a second handle 510, a second protrusion 511 and a motor 9, and the casing 5 is installed There is a motor 9, and the casing 5 is used to fix the motor 9. A second rotating shaft 51 is installed between the first rotating disk 57 and the second rotating disk 58. The second rotating shaft 51 rotates to drive the first rotating disk 57 and the second rotating disk 58 to rotate. The rotation of the turntable 57 and the second turntable 58 drives the high-voltage power grid 52 to rotate. The second shaft 51 is located inside the trapping lamp 53. The first end of the second shaft 51 runs through the first turntable 57 and is connected to the output shaft of the motor 9. The motor 9 drives the second shaft. 51, the second end of the second rotating shaft 51 runs through the second turntable 58 and is rotationally connected with the cross 54, a sixth groove is provided on one side of the second groove, and a second threaded rod 59 is installed in the sixth groove, and the second threaded rod 59 two ends are connected with the 6th groove inwall rotationally, and the second threaded rod 59 one end that rotates runs through the 6th groove inwall and is connected with the second handle 510, and the rotation of the second handle 510 drives the 2nd threaded rod 59 to rotate, and the second threaded rod 59 59 is screwed with a second protrusion 511, the rotation of the second threaded rod 59 drives the second protrusion 511 to move, the second protrusion 511 is slidingly connected with the side wall of the sixth groove, and the second protrusion 511 is connected with a fixed rod 56 first end, the second end of the fixed rod 56 is slidingly connected with the cross 54, the second protrusion 511 moves to drive the fixed rod 56 to move, the inside of the fixed rod 56 is equipped with a brush 55, the fixed rod 56 moves to drive the hair brush 55 to move, The brush 55 is used to clean the dust and pest corpses on the surface of the high-voltage power grid 52;

Two support rods 8 are respectively installed on the top of the column 3, a battery 6 is installed between the two support rods 8, and the same solar panel 7 is installed on the two support rods 8, the support rods 8 are used to fix the solar panel 7, the solar panel 7 Located above the battery 6, the battery 6 is electrically connected to the solar panel 7, the solar panel 7 charges the battery 6, the motor 9, the high-voltage grid 52 and the trapping lamp 53 are all electrically connected to the battery 6, and the battery 6 feeds the motor 9, high voltage Power grid 52 and trapping lamp tube 53 supply power.

The usage method of the utility model: when in use, the pest trapping processor is placed at the indicated place, and the worker fixes the bottom plate 1 on the ground through the barbed ground nails 2, and then, the worker drives the first rotating shaft 34 by turning the first handle 37 Rotation, the rotation of the first rotating shaft 34 drives the second bevel gear 35 to rotate, the rotation of the second bevel gear 35 drives the rotation of the first bevel gear 33, the rotation of the first bevel gear 33 drives the rotation of the first threaded rod 32, and the rotation of the first threaded rod 32 drives The connection block 31 lifts, the connection block 31 lifts to drive the horizontal plate 4 to lift, the horizontal plate 4 lifts to bring the box body 5 to lift, and then adjusts the installation height of the trapping processor. Then, the staff turns on the trapping lamp 53 and the high-voltage power grid 52 , can carry out the trapping treatment of pests, when there is a lot of dust left on the high-voltage power grid 52 or the corpses of pests need to be cleaned, the staff will turn off the trapping lamp tube 53 and the high-voltage power grid 52, and drive the second threaded rod 59 by turning the second handle 510 Rotate, the second threaded rod 59 rotates to drive the second protrusion 511 to move, the second protrusion 511 moves to drive the fixed rod 56 to move, the fixed rod 56 moves to drive the brush 55 to move, and when the brush 55 touches the high voltage grid 52, it stops rotating The second handle 510, then, turn on the motor 9 to drive the second rotating shaft 51 to rotate, the second rotating shaft 51 rotates to drive the first rotating disk 57 and the second rotating disk 58 to rotate, the first rotating disk 57 and the second rotating disk 58 rotate to drive the high-voltage power grid 52 to rotate, The dust and pest corpses on the surface of the high-voltage power grid 52 are brushed off by the brush 55. When the pest corpses in the collection box 42 need to be piled up more, the staff pulls the collection box 42 out by pulling the handle 41, and dumps the collection box 42 for accumulation. dead pests.

The utility model realizes the trapping treatment of pests with different flying heights by setting the height adjustment device, improves the range of trapping pests, and increases the applicability of the device; Clean up the corpses of pests on the net to prevent the insects from sticking to the high-voltage power grid after electrocution and affect the effect of disinfestation. The brush is in contact with the surface of the high-voltage power grid to achieve a good cleaning effect; by setting the battery and the solar panel to cooperate, the environmental protection of the pest trapping processor is greatly increased. The utility model has the advantages of simple and reliable structure, good trapping effect on pests, convenient control and suitable for popularization.

The above descriptions are only preferred embodiments of the present utility model, and are not intended to limit the present utility model. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present utility model shall be included in this utility model. within the scope of protection of utility models.

Claims (5)

1. A pest trapping processor, characterized in that it includes a bottom plate (1) and a column (3); The base plate (1) is respectively provided with four first through holes, the first through holes are provided with barbed ground nails (2), the base plate (1) is provided with a column (3), the A horizontal plate (4) is provided on one side of the column (3), and a height adjustment device for adjusting the height of the horizontal plate (4) is provided between the column (3) and the horizontal plate (4). A first groove is provided, and a collection box (42) is slid in the first groove, and a handle (41) is provided on the outside of the collection box (42); The horizontal plate (4) is provided with a box body (5), the top wall of the box body (5) is provided with a second groove, and a first turntable (57) is arranged in the second groove, and the The side walls of the box body (5) are respectively provided with a number of second through holes, the bottom wall of the box body (5) and the top wall of the horizontal plate (4) are connected with through holes, and a cross (54) is arranged in the through holes ), the cross (54) is provided with a second turntable (58), and a high-voltage power grid (52) is set between the first turntable (57) and the second turntable (58), and the high-voltage power grid (52) A number of trapping lamp tubes (53) are arranged on the inner circumference, and the two ends of the trapping lamp tubes (53) are respectively connected with the first turntable (57) and the second turntable (58); A cleaning component is provided on the outside of the high-voltage grid (52). 2. The pest trapping processor according to claim 1, characterized in that: the height adjustment device includes a connecting block (31), a first threaded rod (32), a first bevel gear (33), a first rotating shaft (34), the second bevel gear (35) and the first handle (37), the side wall of the column (3) is provided with a third groove, and the first threaded rod (32) is arranged in the third groove , both ends of the first threaded rod (32) are rotatably connected with the inner wall of the third groove, and a connecting block (31) is screwed on the first threaded rod (32), and the connecting block (31) and the third The side wall of the groove is slidingly connected, one side of the connecting block (31) is connected with the horizontal plate (4), a fourth groove is provided under the third groove, and one end of the first threaded rod (32) is rotated A first bevel gear (33) is set through the inner wall of the third groove and the fourth groove, and a matched second bevel gear (35) is arranged on one side of the first bevel gear (33). The bevel gear (35) is meshed with the first bevel gear (33), the second bevel gear (35) runs through the first rotating shaft (34), and the two ends of the first rotating shaft (34) are connected with the fourth groove The inner wall is rotatably connected, and one end of the first rotating shaft (34) rotates through the inner wall of the fourth groove and is connected with a first handle (37). 3. The pest trapping processor according to claim 2, characterized in that: the side wall of the third groove is provided with a fifth groove, and the connecting block (31) is provided with a The first protrusion (36), the first protrusion (36) is slidingly connected and arranged in the fifth groove. 4. The pest trapping processor according to claim 1, characterized in that: the cleaning assembly includes a second rotating shaft (51), a brush (55), a fixed rod (56), a second threaded rod (59) , the second handle (510), the second protrusion (511) and the motor (9), the motor (9) is provided on the box (5), the first turntable (57) and the second turntable (58 ) is provided with a second rotating shaft (51), the second rotating shaft (51) is located inside the trapping lamp (53), and the first end of the second rotating shaft (51) runs through the first turntable (57) and the motor ( 9) Output shaft connection, the motor (9) drives the second rotating shaft (51), the second end of the second rotating shaft (51) passes through the second turntable (58) and is connected to the cross (54) in rotation, the second A sixth groove is provided on one side of the groove, and a second threaded rod (59) is arranged in the sixth groove, and both ends of the second threaded rod (59) are rotationally connected with the inner wall of the sixth groove, and the One end of the second threaded rod (59) rotates through the inner wall of the sixth groove and is connected with a second handle (510). The second threaded rod (59) is screwed with a second protrusion (511). The second The protrusion (511) is slidingly connected to the side wall of the sixth groove, the first end of the fixing rod (56) is connected under the second protrusion (511), and the second end of the fixing rod (56) is connected to the cross (54 ) sliding connection, and a brush (55) is provided inside the fixed rod (56). 5. The pest trapping processor according to claim 4, characterized in that: two support rods (8) are arranged on the top of the column (3), and there is a set between the two support rods (8). The storage battery (6), the same solar panel (7) is provided on the two support rods (8), the solar panel (7) is located above the storage battery (6), the storage battery (6) and the solar panel (7) Electrically connected, the motor (9), the high-voltage power grid (52) and the trapping lamp (53) are all electrically connected to the storage battery (6).
