CN219165033U - Communication equipment cooling assembly - Google Patents

Abstract

The utility model discloses a heat dissipation assembly for communication equipment, which comprises a communication equipment housing. A square frame is symmetrically embedded in the middle of both sides of the communication equipment housing. plate, a second concave plate is inserted inside one end of the first concave plate, a third concave plate is inserted inside one end of the second concave plate, and a heat dissipation box. The heat dissipation component of the communication equipment, through the setting of two motors with opposite rotation directions, cooperates with the rotating shaft and the fan blades to realize air suction while drawing air, thereby speeding up the air circulation rate inside the communication equipment housing and bringing better heat dissipation The effect is good, the setting of the dust-proof net can prevent dust, and the setting of the rotating plate and the cleaning brush can clean the outer surface of the dust-proof net while dissipating heat, preventing dust from clogging, without removing it, and improving efficiency.

Description

Communication equipment cooling components

technical field

The utility model relates to the technical field of communication equipment cooling devices, in particular to communication equipment cooling components.

Background technique

In order to better spread network signals, communication companies often build communication equipment on the roof or on the mountain, and communication base stations are generally in the open environment. It is necessary to ensure the dustproof effect of the communication base station and its heat dissipation performance. In order to be suitable for harsh outdoor environments, communication base stations often use materials with better protection performance to make their shells. However, the heat dissipation vents provided on the casing are convenient for its own heat dissipation, and it is easy to cause external dust to flow into the heat dissipation vents with the wind in windy weather; although some communication devices are equipped with dust-proof nets and cooling fans, the dust-proof nets are used for a long time. Too much dust will accumulate, and it needs to be removed and cleaned or replaced manually, which will affect the efficiency. In addition, the height of the cooling fan on the existing communication equipment is generally fixed, which cannot be adjusted according to the demand. Focus on heat dissipation and ventilation at a certain position, which is less practical.

Therefore, it is necessary to propose a heat dissipation component for communication equipment to solve the above problems.

Utility model content

The main purpose of the utility model is to provide a communication equipment cooling assembly, which can effectively solve the problems in the background technology.

In order to achieve the above object, the technical scheme that the utility model takes is:

The communication equipment heat dissipation assembly includes a communication equipment housing. A square frame is symmetrically embedded in the middle of both sides of the communication equipment housing. A second concave plate is inserted inside one end of a concave plate, a third concave plate is inserted inside one end of the second concave plate, and a heat dissipation box is arranged in the middle of the inner side of the square frame. A motor is fixedly installed inside the box, the output shaft of the motor is fixedly connected with a rotating shaft, and a fan blade is fixedly installed at one end of the rotating shaft close to the motor, and a dust-proof net is embedded in the middle of the outer side of the cooling box. One end of the rotating shaft away from the motor is fixedly connected to a rotating plate, and one side of the rotating plate is provided with a cleaning brush;

The front and rear ends of the outer side of the heat dissipation box are symmetrically fixedly connected with side plates, and a concave rod is inserted in the middle of the side of the side plate, and one end of the concave rod close to the square frame is fixedly connected with a fixed plate, and the fixed plate is close to The middle part of one side of the square frame is fixedly connected with a fixed plug, the middle part of the side of the fixed plate away from the square frame is fixedly connected with a compression spring, and the front and rear ends of the outer side of the square frame are symmetrically provided with sockets.

Preferably, the second concave plate is slidably fitted with the inner side of the first concave plate, the third concave plate is slidably fitted with the inner side of the second concave plate, and the third concave plate is far away from the second concave plate. One end of the shaped plate is fixedly connected to the side wall of the heat dissipation box, and the front and rear side walls of the second concave plate, the third concave plate, and the heat dissipation box are all fitted and slidably connected to the front and rear side walls of the square frame inner cavity.

Preferably, the rotation directions of the two motors are opposite.

Preferably, the end of the rotating shaft away from the motor extends to the outside of the dust-proof net, the rotating plate is located outside the dust-proof net, and the cleaning brushes are in close contact and slidingly fitted with the outside of the dust-proof net.

Preferably, the concave rod is slidably connected to the side plate, and the end of the compression spring away from the fixed plate is fixedly connected to the side wall of the side plate.

Preferably, the number of the sockets in the same vertical direction is at least fifteen, and the sockets are evenly distributed, and the fixed plugs are mated with the sockets.

Beneficial effect

Compared with the prior art, the utility model provides a communication equipment cooling assembly, which has the following beneficial effects:

1. The heat dissipation component of the communication equipment, through the setting of two motors with opposite rotation directions, cooperates with the rotating shaft and the fan blade to realize the suction while drawing the air, thereby speeding up the air circulation rate inside the communication equipment housing, bringing better The heat dissipation effect is good, the setting of the dust-proof net can prevent dust, the setting of the rotating plate and the cleaning brush can clean the outer surface of the dust-proof net while dissipating heat, prevent dust from clogging, and improve efficiency without removing it.

2. The heat dissipation component of the communication equipment, through the mutual cooperation of the first concave plate, the second concave plate, the third concave plate, the socket, the side plate, the concave rod, the fixed plug, the compression spring, and the fixed plate The height of the heat dissipation box can be adjusted conveniently, and further, a certain position inside the housing of the communication equipment can be focused on heat dissipation, which can meet different needs and increase the practicality.

Description of drawings

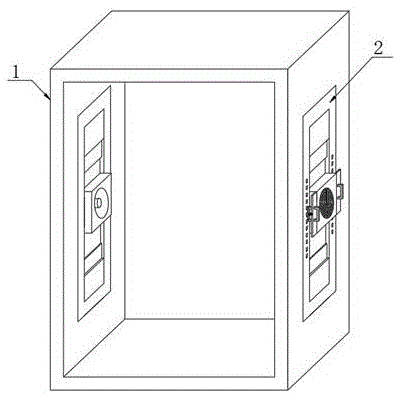

Fig. 1 is a structural representation of the utility model;

Fig. 2 is the structural representation of square framework of the present utility model;

Fig. 3 is a structural schematic diagram of the utility model cooling box;

Fig. 4 is a side view structural diagram of the connection of the first concave plate, the second concave plate and the third concave plate of the utility model;

Fig. 5 is a schematic cross-sectional structure diagram of the heat dissipation box of the present invention.

In the figure: 1. communication equipment shell; 2. square frame; 3. first concave plate; 4. second concave plate; 5. third concave plate; 6. cooling box; 7. socket; 8. Dustproof net; 9. Rotating plate; 10. Cleaning brush; 11. Side plate; 12. Concave rod; 13. Fixed plug; 14. Compression spring; 15. Motor; 16. Rotating shaft; 17. Fan blade; 18. Fixed plate.

Detailed ways

In order to make the technical means, creative features, goals and effects achieved by the utility model easy to understand, the utility model will be further elaborated below in conjunction with specific embodiments.

As shown in Figure 1-5, the communication equipment heat dissipation assembly includes a communication equipment housing 1, a square frame 2 is symmetrically embedded in the middle of both sides of the communication equipment housing 1, and the upper and lower ends of the inner side of the square frame 2 are symmetrically fixedly connected with the second A concave plate 3, the inner side of one end of the first concave plate 3 is inserted with the second concave plate 4, the inner side of one end of the second concave plate 4 is inserted with the third concave plate 5, the inner middle part of the square frame 2 A cooling box 6 is provided, the second concave plate 4 is slidingly fitted with the inner side of the first concave plate 3, the third concave plate 5 is slidingly fitted with the inner side of the second concave plate 4, and the third concave plate 5 is far away from the first concave plate. One end of the two concave plates 4 is fixedly connected with the side wall of the heat dissipation box 6, and the front and rear side walls of the second concave plate 4, the third concave plate 5, and the heat dissipation box 6 are all attached to the front and rear side walls of the square frame 2 inner cavity. The motor 15 is fixedly installed on the inner side of the cooling box 6, and the rotation directions of the two motors 15 are opposite. 17. The end of the rotating shaft 16 away from the motor 15 extends to the outside of the dust-proof net 8, and the outer middle part of the cooling box 6 is embedded with a dust-proof net 8. The end of the rotating shaft 16 away from the motor 15 is fixedly connected with a rotating plate 9, and the rotating plate One side of 9 is provided with cleaning brush 10, and rotating plate 9 is positioned at the outside of dust-proof net 8, and the outside of cleaning brush 10 and dust-proof net 8 is in close contact and slidingly fits, and the two motors 15 rotation directions that are provided with are opposite, cooperate to rotate The shaft 16 and the fan blade 17 can realize air suction while drawing air, thereby speeding up the air circulation rate inside the communication equipment housing 1, bringing better heat dissipation effect, and the dust-proof net 8 can be set for dust-proof, rotating The arrangement of the plate 9 and the cleaning brush 10 can clean the outer surface of the dust-proof net 8 while dissipating heat, prevent dust from clogging, without removing it, and improve efficiency;

The front and rear ends of the outer side of the heat dissipation box 6 are symmetrically fixedly connected with a side plate 11, and a concave rod 12 is inserted in the middle of the side of the side plate 11, and the concave rod 12 is slidingly connected with the side plate 11, and the concave rod 12 is close to one end of the square frame 2 Fixedly connected with a fixed plate 18, the fixed plate 18 is fixedly connected with a fixed plug 13 in the middle of one side close to the square frame 2, and is fixedly connected with a compression spring 14 in the middle of the side of the fixed plate 18 away from the square frame 2, and the compressed spring 14 is far away from the fixed plate One end of 18 is fixedly connected with the side wall of the side plate 11, and the front and rear ends of the square frame 2 outside are symmetrically provided with sockets 7, and the number of sockets 7 in the same vertical direction is at least fifteen, and the sockets 7 are evenly distributed, and the fixed sockets Block 13 is mated with socket 7, through the first concave plate 3, the second concave plate 4, the third concave plate 5, socket 7, side plate 11, concave rod 12, fixed plug 13, The mutual cooperation of the compression spring 14 and the fixing plate 18 can conveniently adjust the height of the heat dissipation box 6, and then can focus on a certain position inside the communication equipment housing 1 to dissipate heat, which can meet different needs and increase the practicality.

It should be noted that the utility model is a heat dissipation component for communication equipment. When in use, the two motors 15 rotate in opposite directions, and the rotating shaft 16 drives the fan blade 17 to rotate, which can realize air suction while drawing air, thereby speeding up the communication equipment housing 1. The internal air circulation rate brings a better heat dissipation effect. The setting of the dust-proof net 8 can prevent dust, and the setting of the rotating plate 9 and the cleaning brush 10 can clean the outer surface of the dust-proof net 8 while dissipating heat. Cleaning prevents dust from clogging without dismantling, which improves efficiency. The mutual cooperation of the block 13, the compression spring 14, and the fixed plate 18 can easily adjust the height of the cooling box 6. Specifically, when adjusting the height of the cooling box 6, the two concave rods 12 are pulled outward, and the concave rods 12 drive the fixed plate 18 Compress the compression spring 14, while the fixed plate 18 drives the fixed plug 13 to disengage from the inside of the socket 7, then adjust the height of the cooling box 6 up and down, the third concave plate 5 slides on the inside of the second concave plate 4, the second The second concave plate 4 slides on the inner side of the first concave plate 3 , so that it can focus on a certain position inside the communication device housing 1 to dissipate heat, which can meet different needs and increase practicability.

The basic principles and main features of the present utility model and the advantages of the present utility model have been shown and described above. Those skilled in the industry should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principles of the utility model. Without departing from the spirit and scope of the utility model, the utility model The new model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The scope of protection required by the utility model is defined by the appended claims and their equivalents.

Claims (6)

1. Communication equipment cooling module, including communication equipment casing (1), its characterized in that: square frame (2) are inlayed to the bilateral middle part symmetry of communications facilities casing (1), the inboard upper and lower both ends symmetry fixedly connected with first concave plate (3) of square frame (2), the inboard second concave plate (4) that is equipped with of one end of first concave plate (3) is inserted, the inboard third concave plate (5) that is equipped with of one end of second concave plate (4) is inserted, the inboard middle part of square frame (2) is provided with radiating box (6), the inboard fixed mounting of radiating box (6) has motor (15), the output shaft fixedly connected with axis of rotation (16) of motor (15), the one end fixedly mounted flabellum (17) that axis of rotation (16) is close to motor (15), the outside middle part of radiating box (6) is inlayed and is equipped with dust screen (8), one end fixedly connected with rotor plate (9) that motor (15) are kept away from to axis of rotation (16), one side of rotor plate (9) is provided with brush cleaner (10);

the utility model discloses a radiator is characterized by comprising a radiating box (6), a concave rod (12) is inserted in the middle of the side face of the side plate (11), a fixed plate (18) is fixedly connected with one end of the concave rod (12) close to a square frame (2), a fixed insert (13) is fixedly connected with one side middle part of the fixed plate (18) close to the square frame (2), a compression spring (14) is fixedly connected with one side middle part of the fixed plate (18) away from the square frame (2), and sockets (7) are symmetrically arranged at the front end and the rear end of the outer side of the square frame (2).

2. The communication device heat sink assembly of claim 1, wherein: the second concave plate (4) is in sliding fit with the inner side of the first concave plate (3), the third concave plate (5) is in sliding fit with the inner side of the second concave plate (4), one end, away from the second concave plate (4), of the third concave plate (5) is fixedly connected with the side wall of the radiating box (6), and the front side wall and the rear side wall of the second concave plate (4), the third concave plate (5) and the radiating box (6) are respectively attached to the front side wall and the rear side wall of the inner cavity of the square frame (2) in a sliding mode.

3. The communication device heat sink assembly of claim 1, wherein: the rotation directions of the two motors (15) are opposite.

4. The communication device heat sink assembly of claim 1, wherein: one end of the rotating shaft (16) far away from the motor (15) extends to the outer side of the dust screen (8), the rotating plate (9) is located at the outer side of the dust screen (8), and the cleaning brush (10) is in close contact with the outer side of the dust screen (8) and is in sliding fit with the dust screen.

5. The communication device heat sink assembly of claim 1, wherein: the concave rod (12) is in sliding connection with the side plate (11), and one end, far away from the fixed plate (18), of the compression spring (14) is fixedly connected with the side wall of the side plate (11).

6. The communication device heat sink assembly of claim 1, wherein: the number of the jacks (7) in the same vertical direction is at least fifteen, the jacks (7) are uniformly distributed, and the fixed plug blocks (13) are in plug-in fit with the jacks (7).
