Abstract

The utility model relates to an intersection control cabinet with a wire organizer, comprising a cabinet body, a wire management mechanism is arranged inside the cabinet body, an auxiliary component is arranged on the front of the cabinet body, and the wire management mechanism includes a cabinet body The partition board is fixedly connected, the side of the cabinet body opposite to the partition board is fixedly connected with a horizontal plate, the inside of the cabinet body is fixedly installed with a wire management box and a cable coil plate, and the inner top wall of the wire management box is fixedly connected There is an electric push rod, the output end of the electric push rod is fixedly connected with a wire pressing plate slidingly connected with the wire management box, the bottom of the wire pressure plate and the inner bottom wall of the wire management box are both provided with a wire management groove, and the wire management The inside of the groove is fixedly connected with a protective pad. The intersection control cabinet with a wire management device is provided with a wire management mechanism to facilitate the user to manage the wires, improve the efficiency of the user's wiring and maintenance, save the user's time, and solve the problem of complex structure, inconvenient operation for the user, and increased It shortens the operating time and affects the user's work efficiency.

Description

An intersection control cabinet with a cable manager

technical field

The utility model relates to the technical field of control cabinets, in particular to an intersection control cabinet with a wire organizer.

Background technique

The control cabinet is to assemble the switchgear, measuring instrument, protective device and auxiliary equipment in the closed or semiclosed metal cabinet or on the screen width according to the requirements of electrical wiring. And the safety of the surrounding equipment, the circuit can be connected or broken by manual or automatic switch during normal operation, and the circuit can be cut off or alarmed by means of protective electrical appliances in case of failure or abnormal operation, and various parameters in operation can be displayed by means of measuring instruments. Certain electrical parameters are adjusted to prompt or signal deviations from normal operating conditions.

At present, in order to facilitate wiring and line maintenance, a cable manager is generally installed inside the control cabinet, but the existing cable manager has a complex structure, which is inconvenient for users to operate, increases operating time, and affects the work efficiency of users.

Utility model content

Aiming at the deficiencies of the prior art, the utility model provides an intersection control cabinet with a cable organizer, which has the advantages of simplicity and convenience, solves the problem of complex structure, inconvenient operation for users, increased operation time, and affects the work efficiency of users The problem.

In order to achieve the above purpose, the utility model provides the following technical solutions: an intersection control cabinet with a wire organizer, including a cabinet body, a wire management mechanism is provided inside the cabinet body, and auxiliary components are provided on the front of the cabinet body;

The wire management mechanism includes a partition fixedly connected to the cabinet body, a horizontal plate is fixedly connected to the opposite side of the cabinet body to the partition board, and a wire management box and a cable coil plate are fixedly installed inside the cabinet body. The inner top wall of the wire management box is fixedly connected with an electric push rod, and the output end of the electric push rod is fixedly connected with a wire pressing plate slidingly connected with the wire management box, and the bottom of the wire pressure plate and the inner bottom wall of the wire management box are both A cable management slot is provided, and the inside of the cable management slot is fixedly connected with a protective pad, and the front of the cable coil plate is fixedly connected with a coil column, and the top of the cabinet body is threadedly connected with a cooling fan, and the top of the cooling fan There is a protective net.

Further, the auxiliary assembly includes a safety door hinged with the cabinet, and a filter screen is arranged on the front of the safety door.

Further, six wiring holes are opened inside the separator, and the wiring holes are symmetrically distributed.

Further, sliders are fixedly connected to the left and right sides of the wire crimping plate, and the wire crimping plate is slidably connected to the cable management box through the sliders.

Further, the protective pad is made of elastic rubber and has been treated with anti-slip treatment.

Further, the top of the cabinet is provided with vent holes, and the cooling fan communicates with the cabinet through the vent holes.

Compared with the prior art, the technical solution of the present application has the following beneficial effects:

1. The intersection control cabinet with a wire management device, by setting a wire management mechanism, facilitates the user to manage the wires, improves the efficiency of the user's wiring and maintenance, saves the user's time, and solves the problem of complex structure and inconvenient operation for the user. , increasing the operating time and affecting the user's work efficiency.

2. The intersection control cabinet with a cable manager is equipped with auxiliary components, which is convenient for users to maintain and reduces the impact of dust on electrical components.

Description of drawings

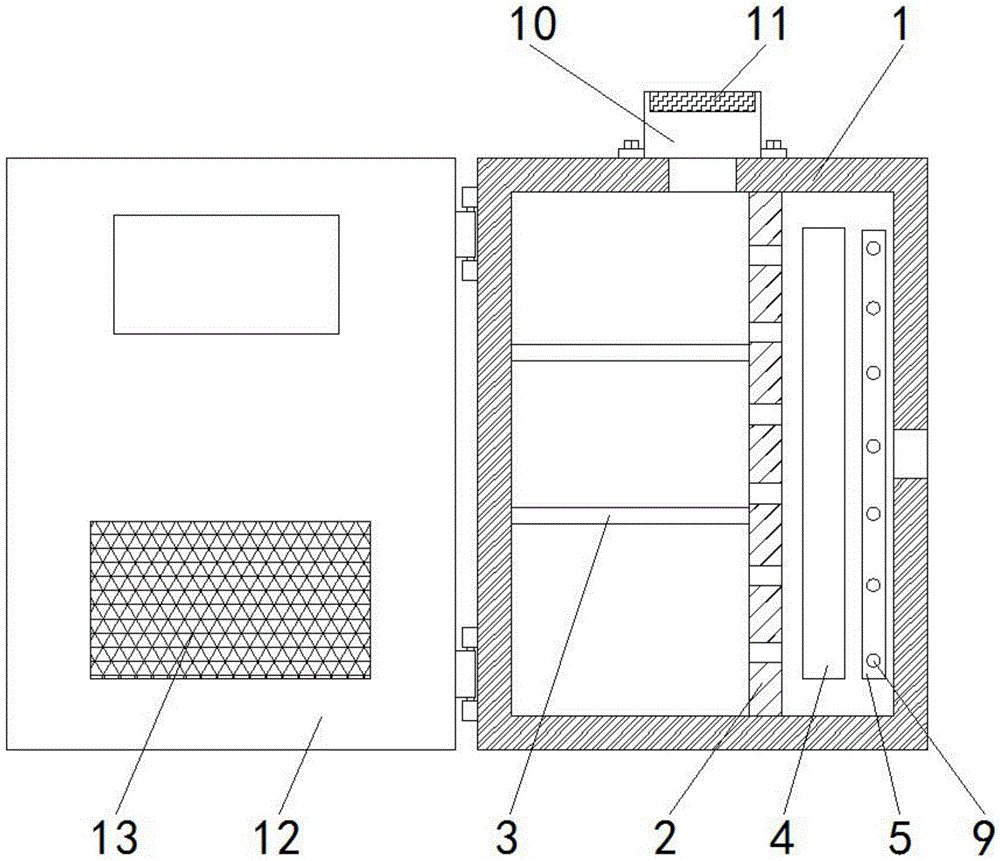

Fig. 1 is a structural sectional view of the utility model;

Fig. 2 is a cross-sectional view of the structure of the cable management box of the present invention;

Fig. 3 is a side view of the structure of the cable coil plate of the present invention.

In the figure: 1. cabinet body; 2. clapboard; 3. horizontal plate; 4. cable management box; 5. coil plate; 6. electric push rod; Wire trough; 801, protective pad; 9, wire coil post; 10, cooling fan; 11, protective net; 12, safety door; 13, filter screen.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Figures 1-3, an intersection control cabinet with a wire organizer in this embodiment includes a cabinet body 1, a wire management mechanism is arranged inside the cabinet body 1, and auxiliary components are arranged on the front of the cabinet body 1.

In this embodiment, the wire management mechanism includes a partition 2 fixedly connected to the cabinet body 1. There are six wiring holes inside the partition 2, and the wiring holes are symmetrically distributed, which is convenient for users to perform wiring and maintenance. To improve the efficiency of wiring and maintenance, the side of the cabinet body 1 opposite to the partition board 2 is fixedly connected with a horizontal plate 3, and the inside of the cabinet body 1 is fixedly installed with a cable management box 4 and a cable plate 5, and the inner top wall of the cable management box 4 An electric push rod 6 is fixedly connected, and the output end of the electric push rod 6 is fixedly connected with a wire pressing plate 7 slidably connected with the wire management box 4. The left and right sides of the wire pressing plate 7 are fixedly connected with sliders 701, and the wire pressing plate 7 passes through The slider 701 is slidably connected with the wire management box 4 to limit the position of the wire crimping plate 7 so that the up and down sliding of the wire crimping plate 7 is more stable.

In this embodiment, the bottom of the wire crimping plate 7 and the inner bottom wall of the wire management box 4 are all provided with a wire management groove 8, and the inside of the wire management groove 8 is fixedly connected with a protective pad 801. processing, protecting the lines, using the elasticity of the elastic rubber to adapt to lines of various sizes, and the front of the coil plate 5 is fixedly connected with the coil post 9, which is convenient for users to arrange and divide the lines, and improves the efficiency of line management. The top of the cabinet 1 is threadedly connected with a cooling fan 10, and the top of the cabinet 1 is provided with a ventilation hole. The cooling fan 10 communicates with the cabinet 1 through the ventilation hole, and the cooling fan 10 accelerates the air exchange inside and outside the cabinet 1. The inside of the body 1 dissipates heat, and the top of the heat dissipation fan 10 is provided with a protective net 11 to protect the heat dissipation fan 10 and reduce dust from entering the interior of the cabinet body 1 .

It should be noted that by setting the cable management mechanism, it is convenient for the user to arrange the cable, improve the efficiency of the user's wiring and maintenance, save the user's time, and solve the problem of complex structure, inconvenient operation for the user, increased operation time, and impact on the user. User productivity issues.

Concretely, when the wiring of electrical components needs to be carried out, the circuit is connected with the wire coil column 9 by rotation, the circuit is split, and then different circuits are extended to the left side of the cable management box 4 through the wire management groove 8, and then electrically pushed The rod 6 is energized to push the wire crimping plate 7 to move downward, so that the crimping plate 7 and the protective pad 801 are closely attached to the circuit, clamping and fixing the circuit, and finally the disassembled and sorted out circuit passes through the opening inside the partition 2 The wiring hole is connected with the electrical components, so as to achieve the purpose of clarifying the wiring, facilitating connection and maintenance, and saving users' time.

In this embodiment, the auxiliary assembly includes a safety door 12 hinged with the cabinet body 1, and a filter screen 13 is arranged on the front of the safety door 12, and the air outside the cabinet body 1 enters the inside of the cabinet body 1 through the filter screen 13, and the filter screen 13 filters out The dust in the air reduces the dust entering the interior of the cabinet body 1.

It should be noted that by providing auxiliary components, it is convenient for users to perform maintenance, and the influence of dust on electrical components is reduced.

Specifically, when wiring or maintenance is required, the user opens the safety door 12 by hand to perform wiring or maintenance. During the use of the control cabinet, the air outside the cabinet 1 enters the inside of the cabinet 1 through the filter screen 13, and the filter screen 13 Filter out dust in the air.

The working principle of the above-mentioned embodiment is:

(1) In the intersection control cabinet with a wire manager, when the wiring of electrical components needs to be performed, the circuit is connected to the wire coil column 9 by rotation, the circuit is split, and then different circuits are extended to the management through the wire management slot 8. On the left side of the wire box 4, then the electric push rod 6 is energized to push the pressure plate 7 to move downward, so that the pressure plate 7 and the protective pad 801 are closely attached to the circuit, and the circuit is clamped and fixed, and finally the split is sorted out The final circuit is connected to the electrical components through the wiring hole provided inside the partition 2, so as to achieve the purpose of clarifying the circuit, facilitating connection and maintenance, and saving user time.

(2) For the intersection control cabinet with a cable manager, when wiring or maintenance is required, the user opens the safety door 12 by hand to perform wiring or maintenance. During the use of the control cabinet, the air outside the cabinet 1 is filtered The net 13 enters the inside of the cabinet body 1, and the filter net 13 filters out the dust in the air.

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. There is no such actual relationship or order between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device. Without further limitations, an element defined by the phrase "comprising a ..." does not exclude the presence of additional identical elements in the process, method, article or apparatus comprising said element.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. Crossing switch board with reason line ware, including the cabinet body (1), its characterized in that: a wire arranging mechanism is arranged in the cabinet body (1), and an auxiliary component is arranged on the front surface of the cabinet body (1);

the wire arranging mechanism comprises a partition plate (2) fixedly connected with a cabinet body (1), one side, opposite to the partition plate (2), of the cabinet body (1) is fixedly connected with a transverse plate (3), a wire arranging box (4) and a wire coiling plate (5) are fixedly arranged in the cabinet body (1), an electric push rod (6) is fixedly connected to the inner top wall of the wire arranging box (4), a wire pressing plate (7) is fixedly connected to the output end of the electric push rod (6) and is in sliding connection with the wire arranging box (4), wire arranging grooves (8) are formed in the bottom of the wire pressing plate (7) and the inner bottom wall of the wire arranging box (4), a protection pad (801) is fixedly connected to the inner side of the wire arranging grooves (8), a wire coiling column (9) is fixedly connected to the front surface of the wire coiling plate (5), a heat radiating fan (10) is connected to the top thread of the cabinet body (1), and a protection net (11) is arranged at the top of the heat radiating fan (10).

2. The crossing control cabinet with wire organizer of claim 1, wherein: the auxiliary assembly comprises a safety door (12) hinged with the cabinet body (1), and a filter screen (13) is arranged on the front face of the safety door (12).

3. The crossing control cabinet with wire organizer of claim 1, wherein: the inside of baffle (2) has offered the wiring hole that is six in quantity, and the wiring hole is symmetrical distribution.

4. The crossing control cabinet with wire organizer of claim 1, wherein: the left side and the right side of the line pressing plate (7) are fixedly connected with sliding blocks (701), and the line pressing plate (7) is in sliding connection with the line arranging box (4) through the sliding blocks (701).

5. The crossing control cabinet with wire organizer of claim 1, wherein: the protection pad (801) is elastic rubber and is subjected to anti-skid treatment.

6. The crossing control cabinet with wire organizer of claim 1, wherein: the top of the cabinet body (1) is provided with a vent hole, and the heat dissipation fan (10) is communicated with the cabinet body (1) through the vent hole.
