CN219156548U - Energy-saving and environment-friendly sewage treatment device - Google Patents

Abstract

The utility model discloses an energy-saving and environment-friendly sewage processor, which comprises a treatment tank, a first treatment component is arranged on one side of the treatment tank, a mixing component is arranged at one end of the first treatment component, and a second treatment component is arranged in the treatment tank. Through the mutual cooperation of the above-mentioned various mechanisms, the utility model can ensure multiple filtering effects, and can also clean the inner wall of the treatment tank, so as to ensure the subsequent sewage treatment effect. At the same time, setting the rotating blades can ensure the treatment efficiency and better saving Energy, to meet the needs of environmentally friendly use, can clean up the sludge in the sewage, so as to avoid the problem of sludge clogging during filtration. Guarantee the effect of sewage treatment.

Description

An energy-saving and environment-friendly sewage processor

technical field

The utility model relates to the technical field of sewage treatment, in particular to an energy-saving and environment-friendly sewage processor.

Background technique

my country is a country with a shortage of water resources. The recycling and reuse of water resources is a very promising business. The recycling and reuse of water resources is to purify sewage and industrial sewage so that they can be reused. Save a lot of water resources, including domestic sewage and industrial sewage, if discharged randomly, it will cause groundwater pollution, so an energy-saving and environmentally friendly sewage processor is needed.

A kind of energy-saving and environment-friendly sewage disposer disclosed by retrieval Chinese patent announcement number CN 208378575 U, through bottom plate, mixing tank, first water pipe, water pump, water suction pipe, sewage collecting tank, isolation net, handle, support rod, cross bar, The combined use of electric telescopic rods, motors, transmission rods and stirring blades can stir the sewage, stir and separate the sludge in the sewage, better treat the sewage, increase the efficiency of sewage treatment, and save filtration Time, through the combined use of the second water pipe, filter box, first filter screen, second filter screen, activated carbon adsorption layer and outlet pipe, the sewage can be further filtered and purified, which can better save energy and reach the enterprise The demand for environmental protection.

However, there are still some deficiencies in an energy-saving and environment-friendly sewage processor. Although the patent can carry out agitation treatment of sewage, and agitate and separate the sludge in sewage, it can better treat sewage and increase the cost of sewage treatment. Efficiency saves filtration time. Through the combined use of the second water pipe, filter box, first filter screen, second filter screen, activated carbon adsorption layer and outlet pipe, the sewage can be further filtered and purified, saving more time. Energy meets the needs of enterprises for environmental protection, but when the sewage is filtered for a long time, the residual scale of the sewage will adhere to the inner wall of the filter box, which will affect the sewage treatment effect in the subsequent sewage treatment.

Aiming at the problems in the related technologies, no effective solution has been proposed yet.

Utility model content

(1) Solved technical problems

Aiming at the deficiencies of the prior art, the utility model provides an energy-saving and environment-friendly sewage processor, which has the advantage of ensuring environmental protection of sewage treatment, and further solves the problems in the prior art.

(2) Technical solution

In order to realize the above-mentioned advantages of ensuring the environmental protection of sewage treatment, the specific technical scheme adopted by the utility model is as follows:

An energy-saving and environment-friendly sewage processor comprises a treatment tank, a first treatment component is arranged on one side of the treatment tank, a mixing component is arranged on one end of the first treatment component, and a second treatment component is arranged in the treatment tank.

Further, in order to better filter the sewage for the first time, the first treatment assembly includes a water inlet pipe arranged on one side of the treatment tank, a treatment box is arranged on one side of the water inlet pipe, and a first filter screen is arranged in the treatment box, and the first A cleaning plate is arranged on one side of the filter screen, an electric push rod is arranged on one side of the cleaning plate, one end of the electric push rod runs through one side of the processing box, and a first output pipe is arranged on one side of the processing box.

Further, in order to better ensure the cleaning effect, an output port is provided on the side of the processing box close to the tail end of the electric push rod, an output cover is provided on one side of the output port, a second output pipe is provided on one side of the output cover, and the second output pipe A first delivery pump is arranged on one side, a first control valve is arranged on the second output pipe, and a mixing assembly is arranged on one side of the first output pipe.

Further, for better treatment agent addition and mixing effect, the mixing assembly includes a mixing cylinder arranged on one side of the first output pipe, equidistant support plates are arranged inside the mixing cylinder, a bearing is arranged in the middle of the support plate, and a bearing is arranged in the middle of the bearing. The rotating rod is provided with equidistant mixing blades on the surface of the rotating rod.

Further, for a better sewage mixing effect, the mixing blade is provided with an installation port on the side close to the mixing cylinder, an input cover is provided in the installation port, a delivery pipe is provided on one side of the input cover, and a second delivery pump is provided on the side of the delivery pipe.

Further, in order to better add the treatment agent, an installation port is opened on the mixing cylinder near the periphery of the mixing blade, an input cover is arranged in the installation port, a delivery pipe is arranged on one side of the input cover, and a second delivery pump is arranged on one side of the delivery pipe .

Further, in order to better ensure the second treatment effect of sewage, the second treatment component includes a motor arranged on the connecting pipe, one end of the motor runs through the treatment tank and one end is provided with an adjustment rod, and the surface of the adjustment rod is provided with equidistant rotating blades, which rotate The blades are provided with equidistant second filter nets close to the treatment tank.

Further, for better output and cleaning effects, a cleaning brush is provided on one side of the rotating blade, and a water outlet pipe is provided on the side of the cleaning brush close to the treatment tank, and a second control valve is provided on the water outlet pipe.

(3) Beneficial effects

Compared with the prior art, the utility model has the following beneficial effects:

(1) By setting the second processing component in the treatment tank, it is convenient to ensure multiple filtering effects during use, and it can also clean the inner wall of the treatment tank, thereby ensuring the subsequent sewage treatment effect, and setting rotating blades at the same time, It can ensure the processing efficiency and better save energy, and meet the needs of environmental protection.

(2) By setting the first treatment component on one side of the treatment tank, it is convenient to clean the sludge in the sewage during use, thereby avoiding the problem of sludge clogging during filtration. At the same time, by setting the mixing component, it is convenient to use When used, the mixing effect of the treatment agent can be guaranteed, so that the sewage treatment effect can be guaranteed.

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present invention or the prior art, the accompanying drawings required in the embodiments will be briefly introduced below. Obviously, the accompanying drawings in the following description are only the present invention. For some embodiments of the present invention, those of ordinary skill in the art can also obtain other drawings based on these drawings on the premise of not paying creative efforts.

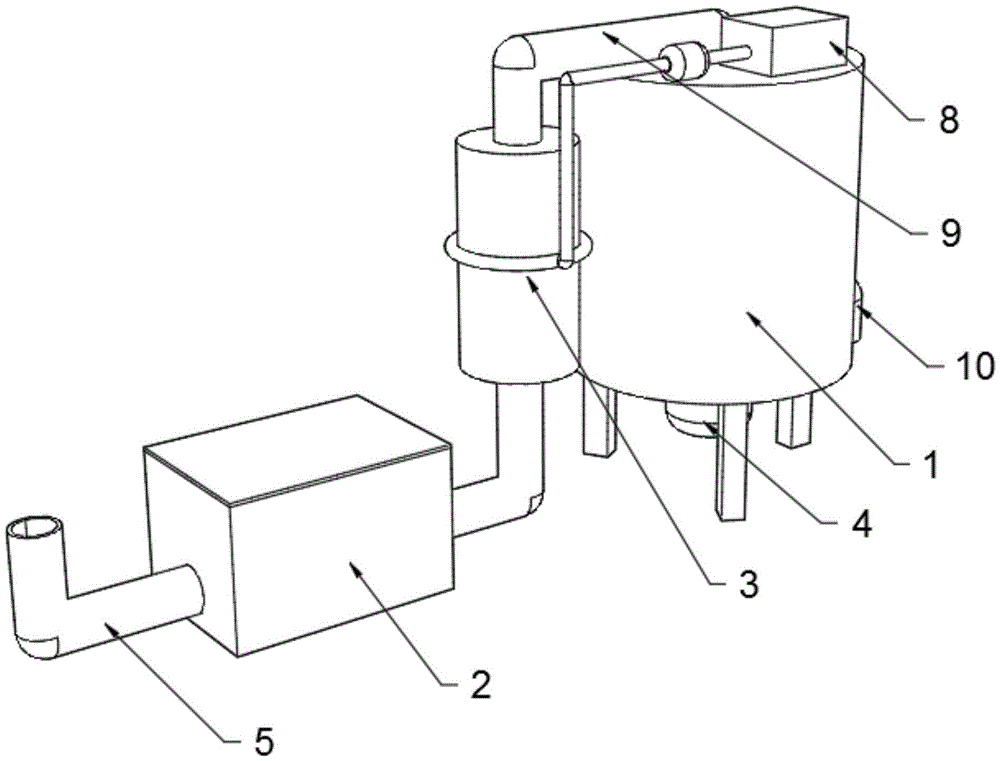

Fig. 1 is a schematic structural diagram of an energy-saving and environment-friendly sewage processor according to an embodiment of the present invention;

Fig. 2 is a side view structural schematic diagram of an energy-saving and environment-friendly sewage processor according to an embodiment of the utility model;

Fig. 3 is a schematic structural diagram of a first treatment component of an energy-saving and environment-friendly sewage processor according to an embodiment of the present invention;

Fig. 4 is a schematic structural diagram of an energy-saving and environment-friendly sewage processor mixing assembly according to an embodiment of the present invention;

Fig. 5 is a schematic structural diagram of a second treatment component of an energy-saving and environment-friendly sewage processor according to an embodiment of the present invention.

In the picture:

1. Processing tank; 2. First processing component; 201. Processing box; 202. First filter screen; 203. Cleaning plate; 204. Electric push rod; 205. First output pipe; 206. Output cover; 207. The first Two output pipes; 208, the first delivery pump; 3, the mixing assembly; 301, the mixing cylinder; 302, the bearing; 303, the rotating rod; 304, the mixing blade; 305, the input cover; 306, the delivery pipe; 307, the second delivery Pump; 4, second processing component; 401, motor; 402, adjusting rod; 403, rotating blade; 404, second filter screen; 405, cleaning brush; 5, water inlet pipe; 6, first control valve; 7, Support plate; 8, material storage box; 9, connecting pipe; 10, water outlet pipe; 11, second control valve.

Detailed ways

In order to further illustrate the various embodiments, the utility model provides accompanying drawings, which are a part of the disclosure content of the utility model, which are mainly used to illustrate the embodiments, and can cooperate with the relevant descriptions in the manual to explain the operating principles of the embodiments. With reference to these contents, those skilled in the art should be able to understand other possible implementations and advantages of the present invention. The components in the figures are not drawn to scale, and similar component symbols are generally used to represent similar components.

The utility model is now further described in conjunction with the accompanying drawings and specific implementation methods. Please refer to the accompanying drawings 1-5, an energy-saving and environmentally friendly sewage processor according to an embodiment of the present utility model, including a treatment tank 1 for carrying sewage ;

In actual use, solar panels can be arranged around the treatment tank 1, so as to better ensure the energy-saving effect during use;

One side of the treatment tank 1 is provided with a first treatment component 2, which is used to treat the sewage for the first time;

One end of the first treatment component 2 is provided with a mixing component 3, which is used to add a treatment agent to the sewage, so as to ensure the mixing effect;

The treatment tank 1 is provided with a second treatment assembly 4, which is used to treat the sewage for the second time and clean the inner wall of the treatment tank 1;

The second processing assembly 4 includes a motor 401 provided at one end of the processing tank 1. One end of the motor 401 runs through the processing tank 1 and one end is provided with an adjusting rod 402. The surface of the adjusting rod 402 is provided with equidistant rotating blades 403, and the rotating blades 403 are arranged close to the processing tank 1. There is a second filter screen 404 equidistant, a cleaning brush 405 is arranged on one side of the rotating blade 403, and a water outlet pipe 10 is arranged on the side of the cleaning brush 405 close to the treatment tank 1, and the water outlet pipe 10 is provided with a second control valve 11.

Through the above scheme of the utility model, when the second sewage treatment is carried out, when the sewage added with treatment agent flows into the treatment tank 1 through the connecting pipe 9, the motor 401 is started by the external controller, and then the motor 401 drives the adjustment The rod 402, the rotating blade 403 and the cleaning brush 405 rotate, and then carry out multi-layer filtration treatment with the input sewage, and during the filtration treatment, the inner wall of the treatment tank 1 is cleaned by the cleaning brush 405, thereby avoiding long-term During sewage treatment, scale is generated on the inner wall of the treatment tank 1, which affects the sewage treatment effect. The treated sewage is opened by the second control valve 11 through an external controller, and then flows out through the outlet pipe 10.

Embodiment one

Please refer to Fig. 1-Fig. 5, for the first treatment assembly 2, the first treatment assembly 2 includes the water inlet pipe 5 provided on one side of the treatment tank 1, the side of the water inlet pipe 5 is provided with a treatment box 201, and one end of the treatment box 201 passes through The hinge is provided with a sealing cover;

The processing box 201 is provided with a first filter screen 202, a side of the first filter screen 202 is provided with a cleaning plate 203, and a side of the cleaning plate 203 is provided with an electric push rod 204, and one end of the electric push rod 204 runs through the processing box 201 side, and the processing One side of the box 201 is provided with a first output pipe 205, the side of the processing box 201 close to the tail end of the electric push rod 204 is provided with an output port, one side of the output port is provided with an output cover 206, and one side of the output cover 206 is provided with a second output tube 207 , the first delivery pump 208 is arranged on the side of the second output pipe 207 , the first control valve 6 is arranged on the second output pipe 207 , and the mixing assembly 3 is arranged on the side of the first output pipe 205 .

Through the above scheme of the utility model, when in use, the sewage enters the treatment box 201 through the water inlet pipe 5 through the external delivery pump, and then the sewage transported into the treatment box 201 is filtered for the first time through the first filter net 202 treatment, filter the sludge in the sewage, when there is a lot of sludge, start the electric push rod 204 through the external controller, then the electric push rod 204 drives the cleaning plate 203 to move and adjust, push the sludge into the output port, and then After the first transfer pump 208 is activated by the external controller and the first control valve 6 is opened, then the first transfer pump 208 can suck the sludge into the second output pipe 207 through the output cover 206, and then discharge it to be discharged by the first transfer pump 206. The primary filtered sewage is transported into the mixing cylinder 301 through the first output pipe 205 .

Embodiment two

Please refer to Fig. 1-Fig. 5, for the mixing assembly 3, the mixing assembly 3 includes a mixing cylinder 301 arranged on one side of the first output pipe 205, an equidistant support plate 7 is arranged inside the mixing cylinder 301, and the middle part of the support plate 7 is arranged There is a bearing 302, a rotating rod 303 is arranged in the middle of the bearing 302, and equidistant mixing blades 304 are arranged on the surface of the rotating rod 303;

The periphery of the mixing blade 304 is located on the mixing cylinder 301 and has an installation port, and an input cover 305 is arranged in the installation port, a delivery pipe 306 is arranged on one side of the input cover 305, and a second delivery pump 307 is arranged on one side of the delivery pipe 306;

One end of the second delivery pump 307 is provided with a material storage box 8, and the material storage box 8 and the second delivery pump 307 are arranged at one end of the processing tank 1, and one end of the mixing cylinder 301 is provided with a connecting pipe 9, and the second processing assembly 4 is arranged on the connecting pipe. 9 near one end of the treatment tank 1;

And the electric push rod 204, the first delivery pump 208, the second delivery pump 307, the motor 401, the first control valve 6, and the second control valve 11 are all electrically connected to the external controller and the external power supply.

Through the above scheme of the present utility model, when the sewage is transported into the mixing cylinder 301, the second delivery pump 307 is activated by an external controller, and the sewage treatment agent in the storage tank 8 is delivered to the delivery pipe 306, and then passed The input cover 305 sprays the sewage treatment agent into the mixing cylinder 301, and then the bearing 302, the rotating rod 303, and the mixing blade 304 are driven to rotate by the flow of water, and then the sprayed sewage treatment agent is mixed, and then the mixed water is mixed through the connecting pipe 9. Good sewage is delivered to the treatment tank 1.

In order to facilitate the understanding of the above-mentioned technical solution of the utility model, the working principle or operation mode of the utility model in the actual process will be described in detail below.

Working principle: To sum up, with the help of the above-mentioned technical solution of the utility model, when in use, the sewage enters the treatment tank 201 through the water inlet pipe 5 through the external delivery pump, and then is transported to the treatment tank 201 through the first filter net 202. The sewage in the tank 201 is filtered for the first time, and the sludge in the sewage is filtered. When there is a lot of sludge, the electric push rod 204 is activated by the external controller, and then the electric push rod 204 drives the cleaning plate 203 to move and adjust , push the sludge into the output port, and then start the first delivery pump 208 and open the first control valve 6 through the external controller, then the first delivery pump 208 can suck the sludge into the second output pipe through the output cover 206 207, it is discharged immediately, and the sewage filtered for the first time is transported into the mixing cylinder 301 through the first output pipe 205. When the sewage is transported into the mixing cylinder 301, the second delivery pump 307 is started by an external controller, The sewage treatment agent in the storage tank 8 is delivered to the delivery pipe 306, and then the sewage treatment agent is sprayed into the mixing cylinder 301 through the input cover 305, and then the bearing 302, the rotating rod 303, and the mixing blade 304 are driven by the flow of the water flow Rotate, then the sprayed sewage treatment agent is mixed, and then the mixed sewage is transported to the treatment tank 1 through the connecting pipe 9, and when the second sewage treatment is performed, the sewage that has been added with the treatment agent passes through the connecting pipe 9 When it flows into the treatment tank 1, the motor 401 is started by an external controller, and then the motor 401 drives the adjustment rod 402, the rotating blade 403 and the cleaning brush 405 to rotate, and then carries out multi-layer filtration treatment with the input sewage, and During the filtration process, the inner wall of the treatment tank 1 is cleaned by cleaning the brush 405, so as to avoid scale formation on the inner wall of the treatment tank 1 during long-term sewage treatment, which affects the sewage treatment effect, and the treated sewage is used by an external controller. It is opened by the second control valve 11 and then flows out through the outlet pipe 10 .

In this utility model, unless otherwise clearly specified and limited, terms such as "installation", "setting", "connection", "fixation" and "rotation" should be understood in a broad sense, for example, it may be a fixed connection, It can also be detachable connection, or integrated; it can be mechanical connection or electrical connection; it can be directly connected or indirectly connected through an intermediary, and it can be the internal communication of two components or the interaction of two components Unless otherwise clearly defined, those skilled in the art can understand the specific meanings of the above terms in the present utility model according to specific situations.

The above descriptions are only preferred embodiments of the present utility model, and are not intended to limit the present utility model. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present utility model shall be included in the Within the protection scope of the present utility model.

Claims (6)

1. An energy-saving and environment-friendly sewage processor, comprising a treatment tank (1), is characterized in that: A first processing assembly (2) is provided on one side of the processing tank (1), and a mixing assembly (3) is provided at one end of the first processing assembly (2); A second processing component (4) is arranged in the processing tank (1); The first treatment assembly (2) comprises a water inlet pipe (5) provided on one side of the treatment tank (1), a treatment box (201) is arranged on one side of the water inlet pipe (5), and the treatment box (201 ) is provided with a first filter screen (202), one side of the first filter screen (202) is provided with a cleaning plate (203), and one side of the cleaning plate (203) is provided with an electric push rod (204), so One end of the electric push rod (204) runs through one side of the processing box (201), and one side of the processing box (201) is provided with a first output pipe (205); The second processing assembly (4) includes a motor (401), one end of the motor (401) is provided with an adjustment rod (402) passing through the processing tank (1), and the surface of the adjustment rod (402) is provided with equidistant Rotating blades (403), the rotating blades (403) are provided with equidistant second filter nets (404) close to the processing tank (1). 2. An energy-saving and environment-friendly sewage processor according to claim 1, characterized in that an output port is provided on the side of the treatment box (201) close to the tail end of the electric push rod (204), and the output port One side of the mouth is provided with an output cover (206), and one side of the output cover (206) is provided with a second output pipe (207), and one side of the second output pipe (207) is provided with a first delivery pump (208) , the second output pipe (207) is provided with a first control valve (6), and the mixing assembly (3) is arranged on one side of the first output pipe (205). 3. A kind of energy-saving and environment-friendly sewage processor according to claim 2, characterized in that, the mixing assembly (3) comprises a mixing cylinder (301) arranged on one side of the first output pipe (205), the The mixing cylinder (301) is provided with equidistant support plates (7), the middle part of the support plate (7) is provided with a bearing (302), and the middle part of the bearing (302) is provided with a rotating rod (303). Equidistant mixing blades (304) are arranged on the surface of the rotating rod (303). 4. The energy-saving and environment-friendly sewage processor according to claim 3, characterized in that, an installation opening is opened on the mixing cylinder (301) close to the periphery of the mixing blade (304), and the installation opening is provided with An input cover (305), a delivery pipe (306) is arranged on one side of the input cover (305), and a second delivery pump (307) is arranged on one side of the delivery pipe (306). 5. The energy-saving and environment-friendly sewage processor according to claim 4, characterized in that, one end of the second delivery pump (307) is provided with a material storage box (8), and the material storage box (8) and the first Two delivery pumps (307) are arranged at one end of the processing tank (1), and one end of the mixing cylinder (301) is provided with a connecting pipe (9), and the second processing assembly (4) is arranged at the connecting pipe (9) close to the processing tank (1) One end. 6. An energy-saving and environment-friendly sewage processor according to claim 5, characterized in that a cleaning brush (405) is provided on one side of the rotating blade (403), and the cleaning brush (405) is close to the treatment A water outlet pipe (10) is provided on one side of the tank (1), and the water outlet pipe (10) is provided with a second control valve (11).
