Abstract

The utility model discloses a brushing machine for printing textiles, which comprises a workbench, a support is provided at the bottom of the workbench, a feeding platform and a discharge platform are respectively provided at both ends of the workbench, and a There is a dust removal device, and the dust removal device includes a box body, and a bristle roller capable of contacting the textile is provided near the center of the box body, and a hair removal roller for cleaning the bristle roller is provided at the end of the bristle roller away from the center of the box body , the hair-removing roller and the brush roller are not in the same vertical plane, and the position of the side wall of the box corresponding to the hair-removing roller is provided with a suction port that absorbs foreign matter on the hair-removing roller along the vertical direction, and the suction The other end of the mouth is connected with the air duct. The utility model has a reasonable structural design, and the rotating hair removal roller can make the suction port clean it in all directions, avoiding that the cleaning work cannot be carried out for a long time due to insufficient cleaning, the structure is simple and easy to operate, and the work efficiency is improved .

Description

A brushing machine for printing textiles

technical field

The utility model relates to the technical field of textile machinery, in particular to a brushing machine for printing textiles.

Background technique

Textile machinery is the production means and material basis of the textile industry. The technical level, quality and manufacturing cost are directly related to the development of the textile industry. During the processing of textiles, there will be a large number of yarn hairiness, short fibers, dust due to electrostatic forces, etc. Factors adhere to the textile, and at the same time, there is an inconsistency in the suede surface of the textile surface after the processing process is completed, which directly affects the subsequent process and causes the deterioration of the operating environment.

After searching, for example, the patent No. CN202023059728.1 discloses that the utility model discloses a textile brushing machine, which includes a workbench, which is provided with ventilation holes, and the two ends of the workbench are respectively fixed with a feeding platform and an outlet. There is a through groove on the material table and the working table, and there is a brush roller in the through groove. There is a brush roller on the top of the brush roller, and the two brush rollers at the top and bottom are contacted and connected. , Both ends of the bristle roller are provided with a dust removal device, the dust removal device includes a suction port, the suction port is connected with a suction pipe, the suction pipe is connected with a dust collection box, an opening is opened on the side wall of the dust collection box, and a filter is embedded in the opening The dust collection box is connected to the exhaust fan through the opening, and the two sides of the workbench are respectively fixed with electric slide rails. .

Based on the above, the attachments on the surface of the textile are cleaned by the bristle roller, and then the attachments adhering to the bristle roller are cleaned by the depilation comb, but the depilation comb is always kept at a certain angle with the bristle roller and is in a fixed state , the exhaust fan can only clean one side of the depilatory comb, which will cause attachments to be stuck between the teeth or the back of the depilatory comb. After a long time of work, the cleaning effect of the depilatory comb will decrease, and even the brush roller cannot be cleaned. clean up.

Utility model content

In order to solve the above-mentioned problem that due to long-time work, the attachments get stuck on the teeth of the comb, resulting in the decline of the cleaning effect of the depilatory comb, and even the inability to continue cleaning the brush roller, the utility model provides a brushing machine for printed textiles.

The technical scheme of the utility model is as follows:

A brushing machine for printing textiles, comprising a workbench, the bottom of the workbench is provided with a bracket, the two ends of the workbench are respectively provided with a feeding platform and a discharge platform, and the middle part of the workbench is provided with a dust removal device. The dedusting device includes a box, and the inside of the box is provided with a bristle roller capable of contacting the textile near the center, and the end of the bristle roller away from the center of the box is provided with a hair removal roller for cleaning the bristle roller. The roller and the brush roller are not in the same vertical plane, and the position of the side wall of the box corresponding to the hair removal roller is provided with a suction port that absorbs foreign matter on the hair removal roller along the vertical direction, and the other end of the suction port is connected to the The air duct is connected. Avoid flying dust inside the box due to cleaning debris on the surface of the textile, and re-contaminate the surface of the textile.

Further, a first scraper and a second scraper are respectively provided on both sides of the lower end of the box, one end of the first scraper and the second scraper can be in contact with the textile, and the first scraper Channels are formed between the second scraper and the inner wall of the box, one end of the channel is used to absorb foreign matter, and the other end of the channel is connected with the air duct. Ensure that the channel can absorb and discharge the scraped debris in time to avoid larger attached debris from entering the subsequent stage.

Further, the first scraper and the second scraper are installed obliquely on the box respectively, and the inner ends of the first scraper and the second scraper are made of hard plastic. While avoiding scratching the surface of the textile, the inclined installation is more convenient for cleaning attachments.

Further, an air duct is provided at the upper end of the suction port, and the air duct is connected to a dust removal box arranged outside the box, and a fan is provided outside the dust removal box. The sundries removed from the surface of the textile can be sucked into the dust removal box, which is convenient for uniform treatment of the sundries.

Further, soft bristles and hard bristles are respectively provided on the brush roller and the hair removal roller. Avoids damage to the textile surface during cleaning and also facilitates cleaning of the bristle rollers.

Further, the bristle roller and the depilatory roller are a set of bristle assemblies, and multiple sets of the bristle assemblies are arranged in the box. Ensures the cleaning effect of the textile surface.

Further, multiple groups of bristle assemblies are symmetrically distributed on both sides of the horizontal center line of the box body. It can clean both sides of the fabric at the same time, improving the processing efficiency.

The beneficial effects of the utility model are:

(1): The structure design of the utility model is reasonable. Through the rotary hair removal roller, the brush hair roller can be fully cleaned and at the same time, the attachment can be avoided from being stuck on the hair removal roller. The rotary hair removal roller can make the suction port It is cleaned in all directions to avoid the inability to carry out the cleaning work for a long time due to insufficient cleaning. The structure is simple and easy to operate, and the work efficiency is improved.

(2): The structure of this device is simple. By setting scrapers on both sides of the box, it is convenient to clean the attachments on the surface of the textile for the first time before cleaning. The second cleaning ensures the effect of cleaning, and improves the cleaning efficiency of the product through double cleaning.

(3): The device is arranged symmetrically along the horizontal centerline of the workbench, and can clean both sides of the textile at the same time, which not only reduces the cleaning time, but also ensures the cleaning effect.

Description of drawings

The solutions and advantages of the present application will become apparent to those of ordinary skill in the art by reading the following detailed description of the preferred embodiments. The drawings are only for the purpose of illustrating preferred embodiments, and are not considered to limit the present invention.

In the attached picture:

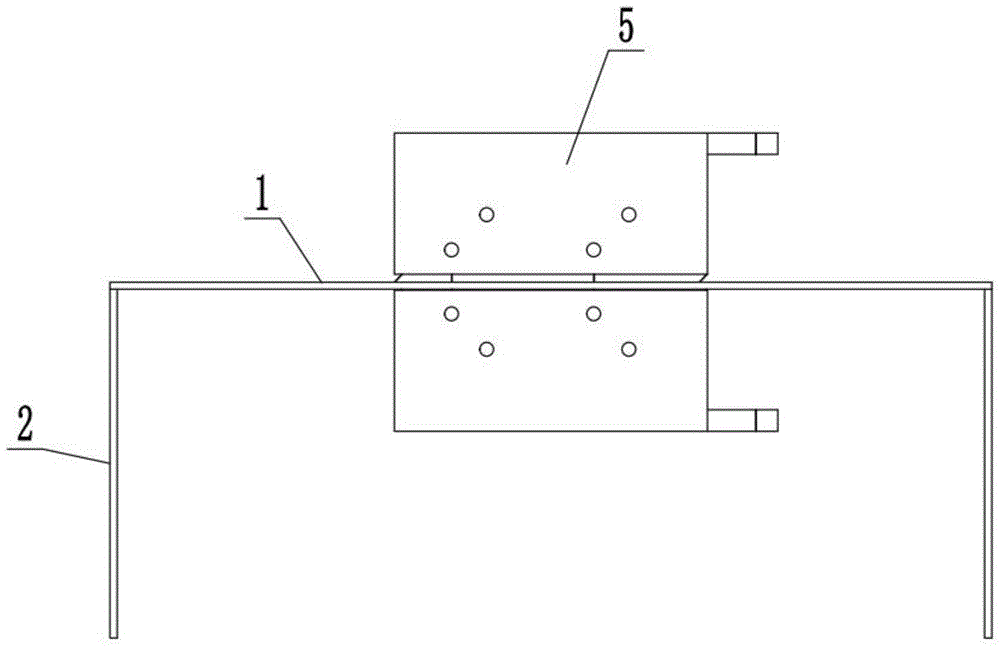

Fig. 1 is a front view of the utility model;

Fig. 2 is a top view of the utility model;

Fig. 3 is a schematic diagram of the overall structure of the utility model;

Fig. 4 is a sectional view of the overall structure of the utility model;

Fig. 5 is a front sectional view of the utility model;

Figure 6 is an enlarged view of the local structure of Figure 4;

FIG. 7 is an enlarged view of the partial structure in FIG. 5 .

The components represented by each reference number in the figure are:

1. Working table; 2. Support; 3. Feeding table; 4. Discharging table; 5. Dust removal device; 6. Box body; 7. Brush roller; 8. Hair removal roller; 9. Suction port; 11. Wind 12. Dust removal box; 13. Fan; 14. First scraper; 15. Second scraper; 16. Motor; 17. Passage.

Detailed ways

Exemplary embodiments of the present disclosure will be described in more detail below with reference to the accompanying drawings. It should be noted that these embodiments are provided to enable a more thorough understanding of the present disclosure and to fully convey the scope of the present disclosure to those skilled in the art. The present disclosure can be implemented in various forms and should not be construed by the limited by the implementation.

Example

This embodiment provides a printing textile brushing machine, referring to Fig. 1-Fig. 7, comprising a workbench 1, the bottom of the workbench 1 is provided with a support 2, and the two ends of the workbench 1 are respectively provided with feeding platforms 3 and the discharge platform 4, characterized in that a dust removal device 5 is provided in the middle of the workbench 1, and the dust removal device 5 includes a box body 6, and the interior of the box body 6 is provided with a cloth that can contact the textile near the center. Brush roller 7, described brush roller 7 is provided with the depilatory roller 8 that is used for cleaning the brush roller 7 at one end away from the center of casing 6, and described depilatory roller 8 and brush roller 7 are not in the same vertical plane, and described casing 6 The position of the side wall corresponding to the dehairing roller 8 is provided with a suction port 9 which absorbs impurities on the depilation roller 7 along the vertical direction, and the other end of the suction port 9 is connected with the air duct 11 . Avoid flying dust generated inside the box body 6 due to cleaning sundries on the surface of the textile, and re-contaminate the surface of the textile.

Both the brush roller 7 and the hair removal roller 8 are installed on the box body 6, and the cleaning work on the surface of the textile is completed through rotation, and the power for the rotation of the brush roller 7 and the hair removal roller 8 is provided by a motor 16 installed outside the box body 6 . The installation position of the dust removal device 5 in the middle of the workbench 1 is a hollow structure, and the dust removal device 5 is installed symmetrically in the hollowed out place. The brush roller 7 and the hair removal roller 8 in the dust removal device 5 on the upper part of the workbench 1 rotate clockwise, and the lower part of the workbench 1 The brush roller 7 and the hair removal roller 8 in the dust removal device 5 rotate counterclockwise to ensure that the upper and lower sides of the textile are cleaned simultaneously, thereby improving cleaning efficiency and reducing costs.

The dedusting device 5 is detachably installed in the middle of the workbench 1. When cleaning the surface of the textile, one end of the textile is laid from the feeding table 3 and passes through the middle of the workbench 1 and the crimping machine outside the discharge table 4. Connected, through the rotation of the crimping machine, power is provided for the movement of the textile, so that the hair removal roller 8 cleans the surface of the textile fabric when it is working, and the debris attached to the bristles of the hair removal roller 8 passes through the cleaning work. The hair roller 8 is removed, and then sucked out through the suction port 9, so as to prevent foreign matter from accumulating on the hair removal roller 8, thereby affecting the continuous workability of the device.

Both sides of the lower end of the box body 6 are respectively provided with a first scraper 14 and a second scraper 15, one end of the first scraper 14 and the second scraper 15 can be in contact with the textile, and the first scraper 14 and the second scraper 15 can be in contact with the textile. A channel 17 is formed between the scraper 14 and the second scraper 15 and the inner wall of the box body 6 , one end of the channel 17 is used to absorb foreign matter, and the other end of the channel 17 is connected to the air duct 11 . Ensure that the channel 17 can absorb and discharge the scraped debris in a timely manner, so as to prevent larger attached debris from entering the subsequent stage.

When the first scraper 14 and the second scraper 15 scrape and clean the attachments on the surface of the textile respectively, the channel 17 will suck out the cleaned attachments, so as to avoid the failure to clean the scraped attachments in time, resulting in subsequent The cleanup phase is not functioning properly, or is burdening subsequent cleanup efforts.

The first scraper 14 cleans the textiles for the first time in the direction of the feeding table 3, so as to scrape out the easy-to-clean sundries, and the second scraper 15 cleans the textiles cleaned by the brush roller 7, so as to avoid During the cleaning process, the sundries reattached to the surface of the textile are missed and cleaned, so as to ensure the cleaning effect of the device and improve the cleaning efficiency of the product.

The first scraper 14 and the second scraper 15 are obliquely installed on the box body 6 and are at an acute angle with the discharge table 4, which is convenient to improve the effect of cleaning the surface of the textile. Will not cause damage to the textile surface.

The air duct 11 is connected to a dust removal box 12 arranged outside the box body 6 , and a fan 13 is arranged outside the dust removal box 12 . The sundries removed from the textile surface can all be sucked into the dust removal box 12, which facilitates the uniform treatment of the sundries.

The debris attached to the surface of the textile to be cleaned is sucked to the air duct 11 through the suction port 9, and then sucked into the dust removal box 12 by the air duct 11, and is uniformly processed by the dust removal box 12. The dust removal box 12 is a detachable structure , the above suction is provided by the fan 13 to ensure that the cleaned debris is sucked out by the dust removal device 5, avoiding flying dust and debris generated in the cleaning process, causing secondary pollution to the cleaned textiles.

The brush roller 7 and the hair removal roller 8 are respectively provided with soft bristles and hard bristles. Avoid damage to the textile surface when it is cleaned, and it is also convenient to clean the brush roller 7 simultaneously.

The soft bristles on the brush roller 7 ensure that when the textile is cleaned, not only can the attachment be removed, but also the surface of the textile will not be damaged, and the hard bristles on the hair removal roller 8 can remove the brush roller. 7. The sundries attached to the soft bristles are completely cleaned during cleaning to ensure that the soft bristles are completely cleaned and will not affect the subsequent cleaning work.

The bristle roller 7 and the hair removal roller 8 are a set of bristle assemblies, and multiple sets of the bristle assemblies are arranged in the casing 6 . Ensures the cleaning effect of the textile surface.

By arranging multiple groups of bristle assemblies in the dust removal device 5, it can be ensured that the cleaned textiles can reach the cleaning standard, ensure the cleaning effect, avoid secondary cleaning caused by cleaning not up to the standard, and save costs.

Multiple groups of bristle assemblies are symmetrically distributed on both sides of the horizontal centerline of the workbench 1 . It can clean both sides of the fabric at the same time, improving the processing efficiency.

In this embodiment, the working principle of the brushing machine for printed textiles is:

First, the dust removal device 5 on the upper side of the workbench 1 is disassembled; then, the textile to be cleaned is placed on the workbench 1, and one end of the textile is connected to the curler in the direction of the discharge table 4; next, the The dust removal device 5 on the upper side of the workbench 1 is installed; in the next step, the motor 16 and the fan 13 on the dust removal device 5 are also started at the same time as the crimping machine is started, and the crimping machine drives the textile from the feeding table 3 to the dust removal device 5. The material table moves in 4 directions; then, the two sides of the textile first pass through the first scraper 14, scrape off the attachments that are easy to clean on the surface, and discharge them from the channel 17; Carry out deep cleaning, clean up the hard-to-clean attachments on the surface, and then use the hair removal roller 8 to clean up the sundries attached to the brush roller 7, and discharge them from the suction port 9; finally, the second scraper 15 is used for textile The flying dust attached to the surface of the object is scraped off for the second time, and the dust removal box 12 is removed to clean up the sundries inside it.

The above is only a preferred embodiment of the utility model, but the scope of protection of the utility model is not limited thereto, and any person familiar with the technical field can easily think of Changes or additions, deletions and substitutions should be covered within the protection scope of the present utility model. Therefore, the protection scope of the present utility model should be based on the protection scope of the claims.

Claims (7)

1. A brushing machine for printing textiles, comprising a workbench (1), the bottom of the workbench (1) is provided with a support (2), and the two ends of the workbench (1) are respectively provided with a feeding table (3 ) and discharge table (4), it is characterized in that, described workbench (1) middle part is provided with dedusting device (5), and described dedusting device (5) comprises casing (6), and described casing (6) The interior is provided with a brush roller (7) close to the center, which can be in contact with the textile, and the end of the brush roller (7) away from the center of the box body (6) is provided with a hair removal roller (8) for cleaning the brush roller (7). The hair removal roller (8) and the hair removal roller (7) are not in the same vertical plane, and the side wall of the box (6) corresponding to the hair removal roller (8) is provided with a roller for absorbing the hair removal along the vertical direction. The suction port (9) for sundries on the roller (8), the other end of the suction port (9) is connected with the air duct (11). 2. A kind of brushing machine for printed textiles according to claim 1, characterized in that a first scraper (14) and a second scraper (15) are respectively provided on both sides of the lower end of the casing (6), One end of the first scraper (14) and the second scraper (15) can be in contact with the textile, and the first scraper (14) and the second scraper (15) are respectively connected to the box body. (6) A channel (17) is formed between the inner walls, one end of the channel (17) is used to absorb foreign matter, and the other end thereof is connected with the air duct (11). 3. A brushing machine for printed textiles according to claim 2, characterized in that the first scraper (14) and the second scraper (15) are installed obliquely on the box (6) respectively , the inner ends of the first scraper (14) and the second scraper (15) are made of hard plastic. 4. A kind of printing textile brush hair machine according to claim 2, is characterized in that, described air channel (11) is connected with the dust removal box (12) that is arranged on casing (6) outside, and described dust removal box ( 12) A blower fan (13) is provided outside. 5. A brushing machine for printed textiles according to claim 1, characterized in that soft bristles and hard bristles are respectively provided on the brushing roller (7) and the hair removal roller (8). 6. A kind of brushing machine for printing textiles according to claim 1, characterized in that, the brush roller (7) and the hair removal roller (8) are a set of brush assemblies, and the brush assemblies are mounted on the casing (6 ) contains multiple groups. 7. A brushing machine for printed textiles according to claim 6, characterized in that, multiple groups of bristle assemblies are symmetrically distributed on both sides of the horizontal centerline of the workbench (1).
